Body and Frame: Locations

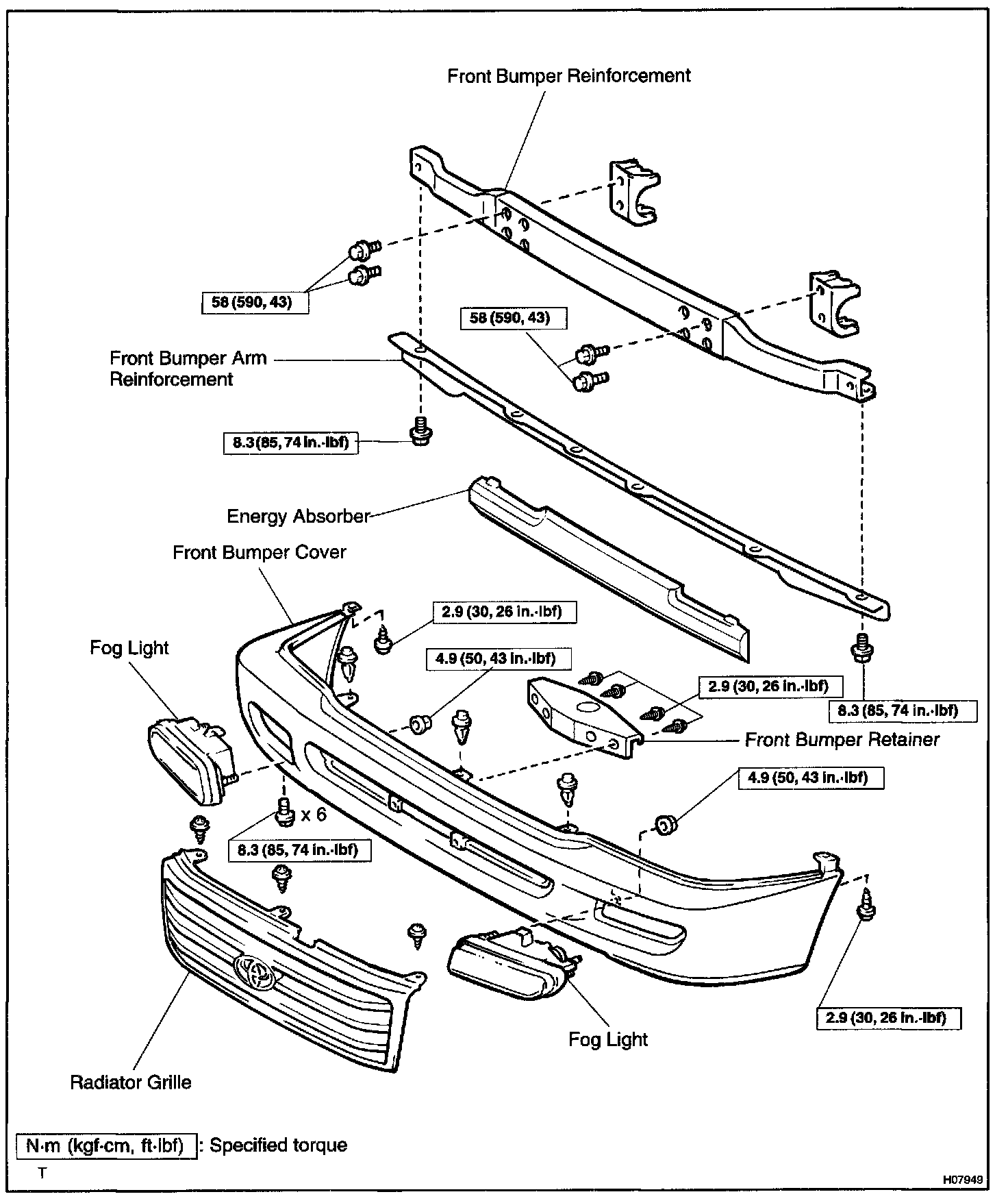

Front Bumper:

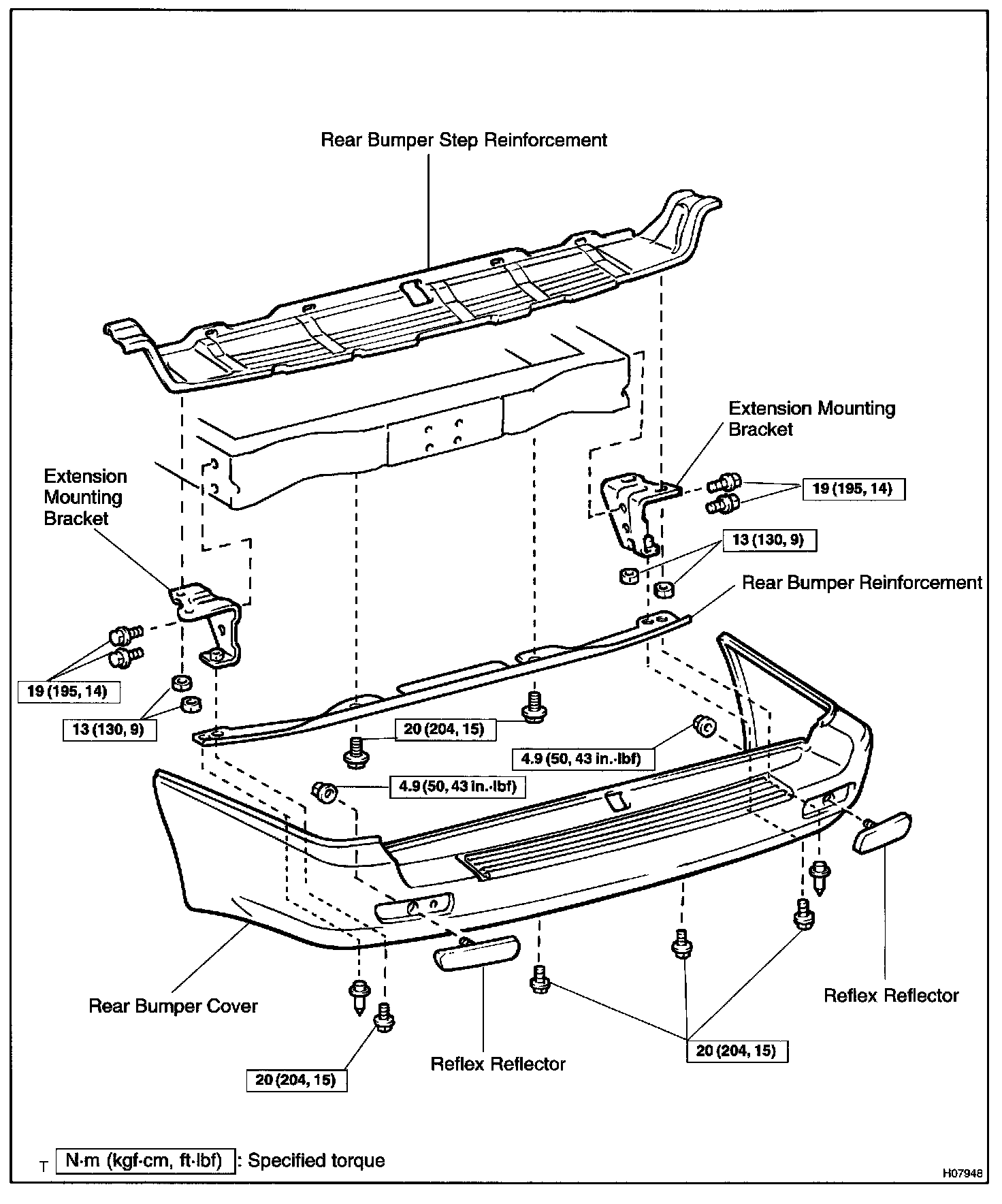

Rear Bumper:

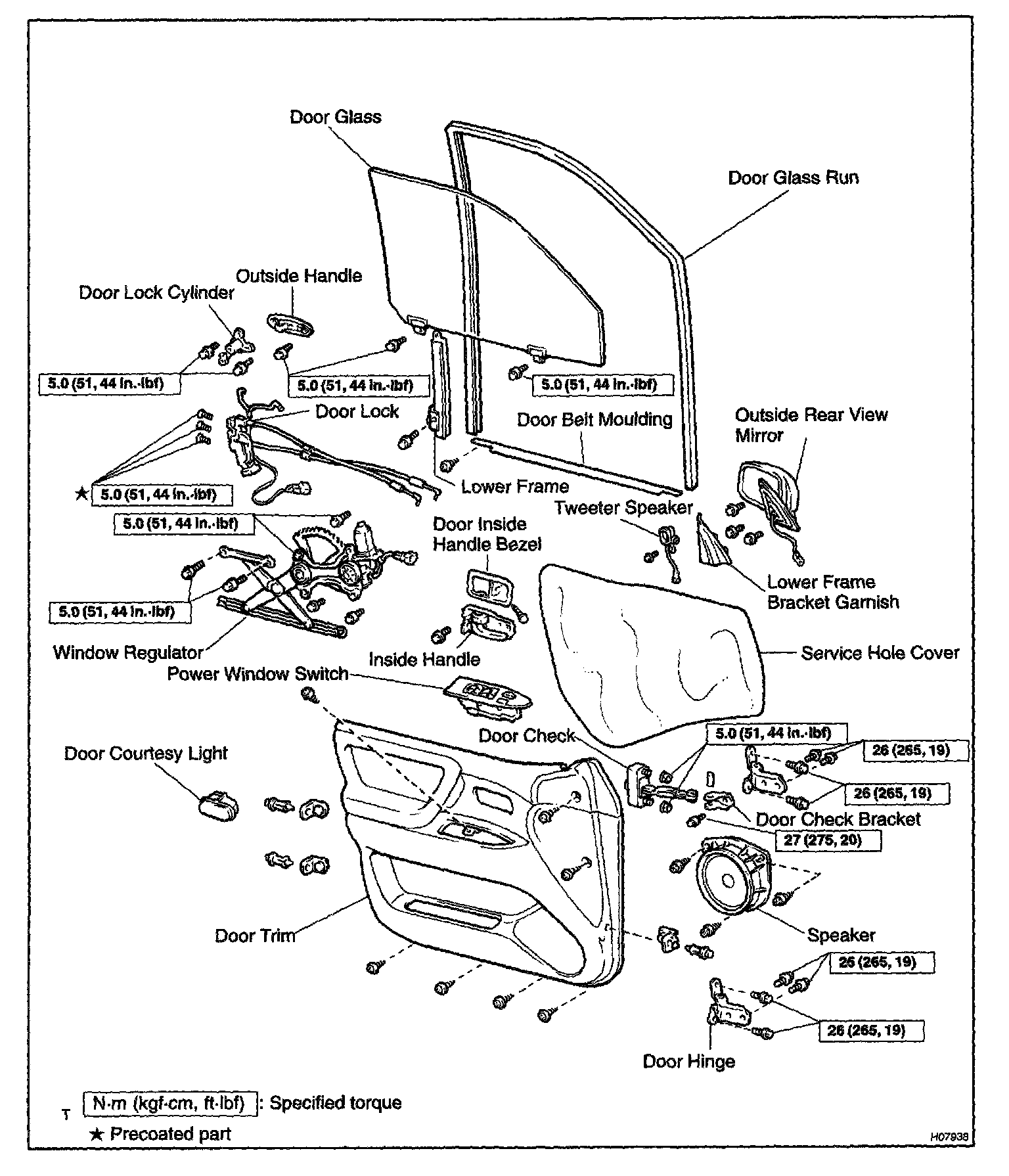

Front Door:

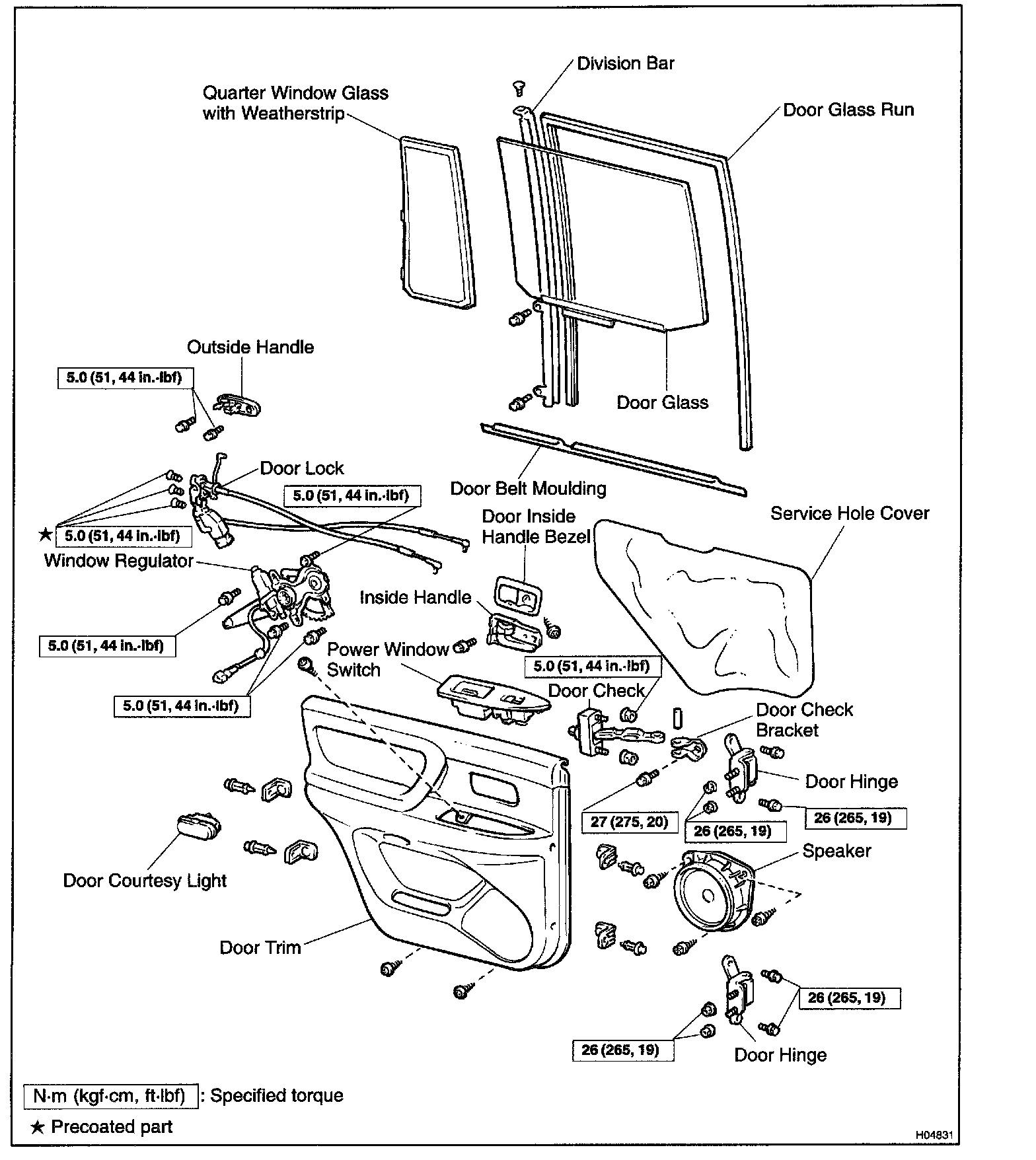

Rear Door:

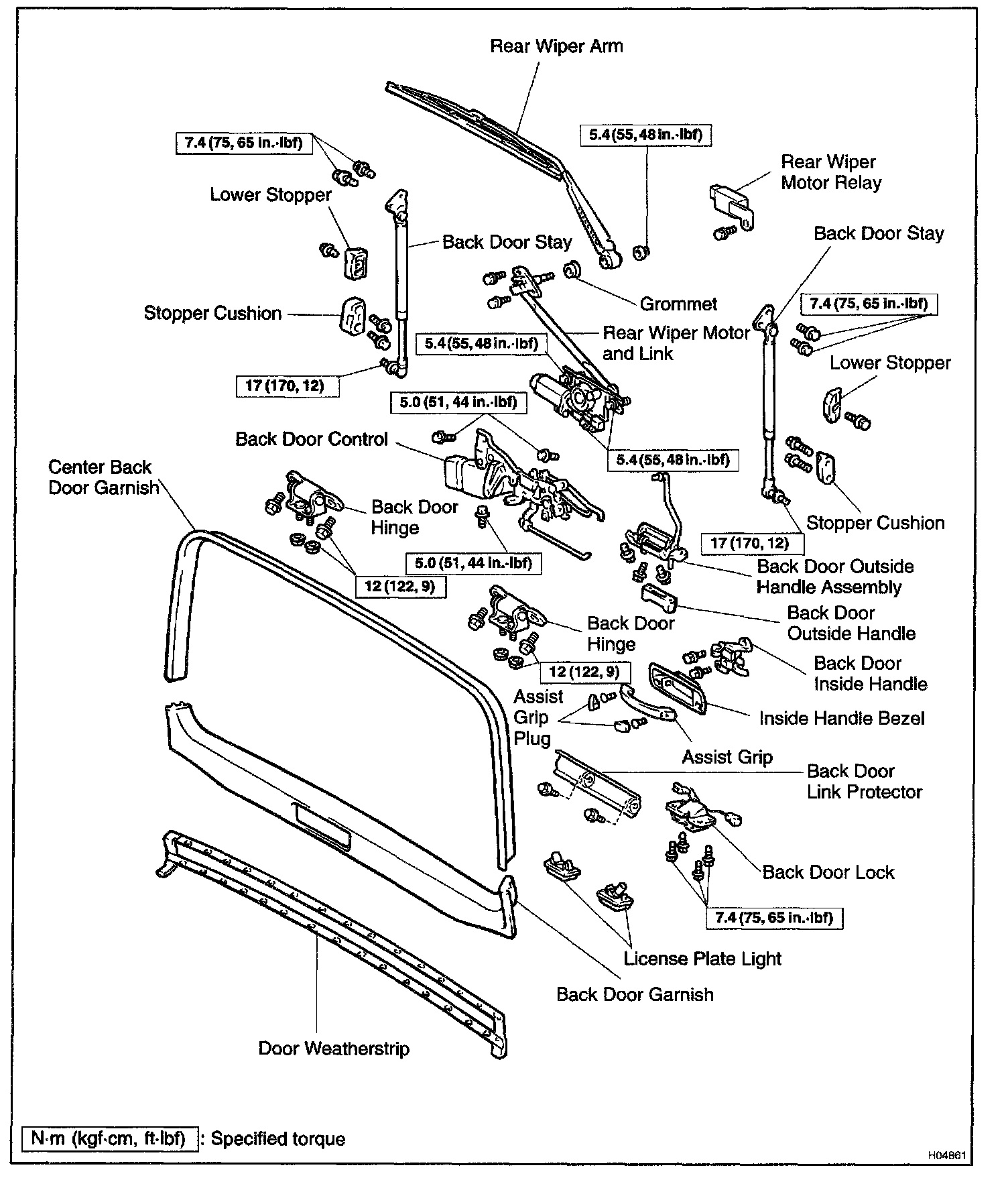

Upper Back Door:

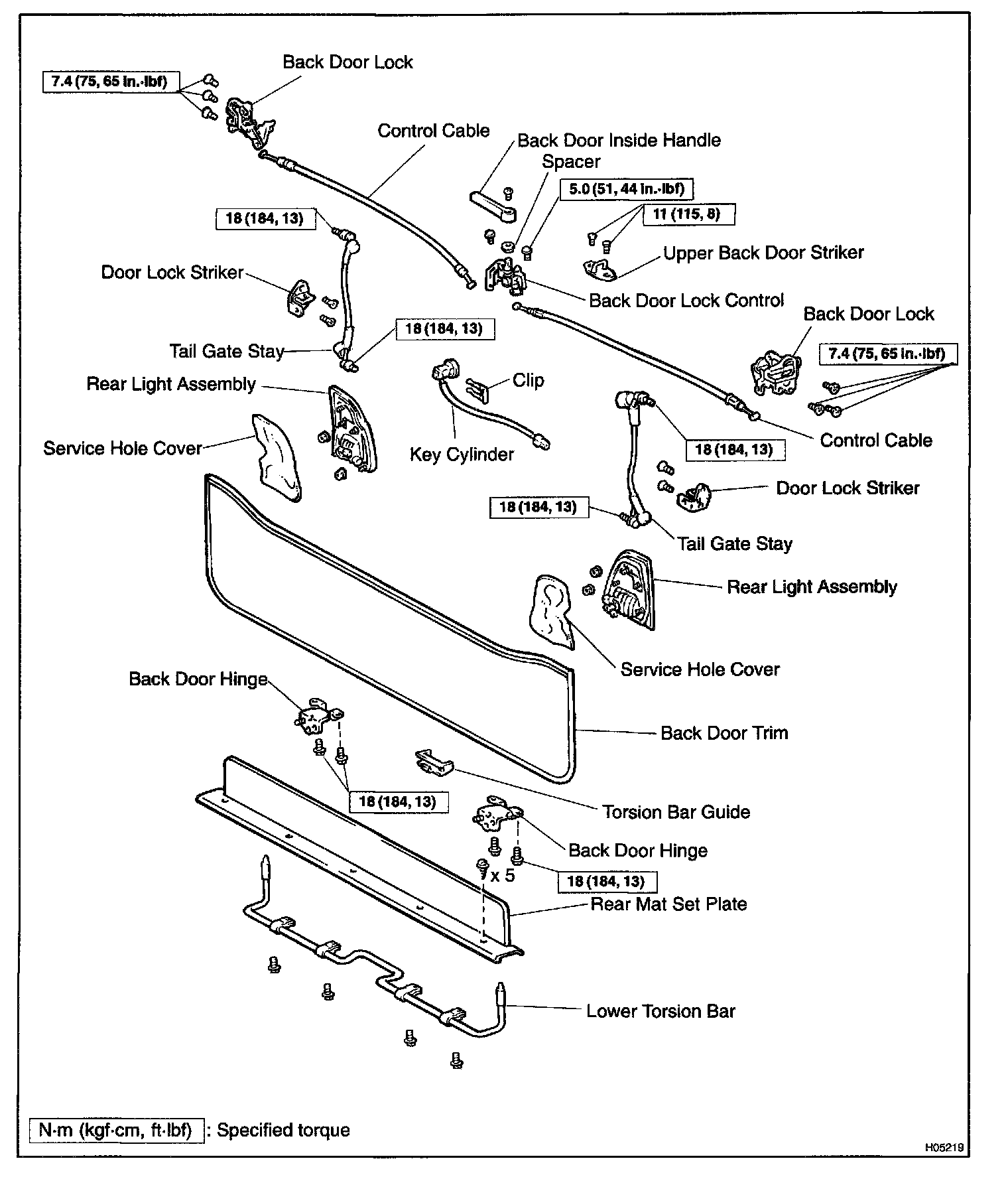

Lower Back Door:

Front Wiper And Washer:

Rear Wiper And Washer:

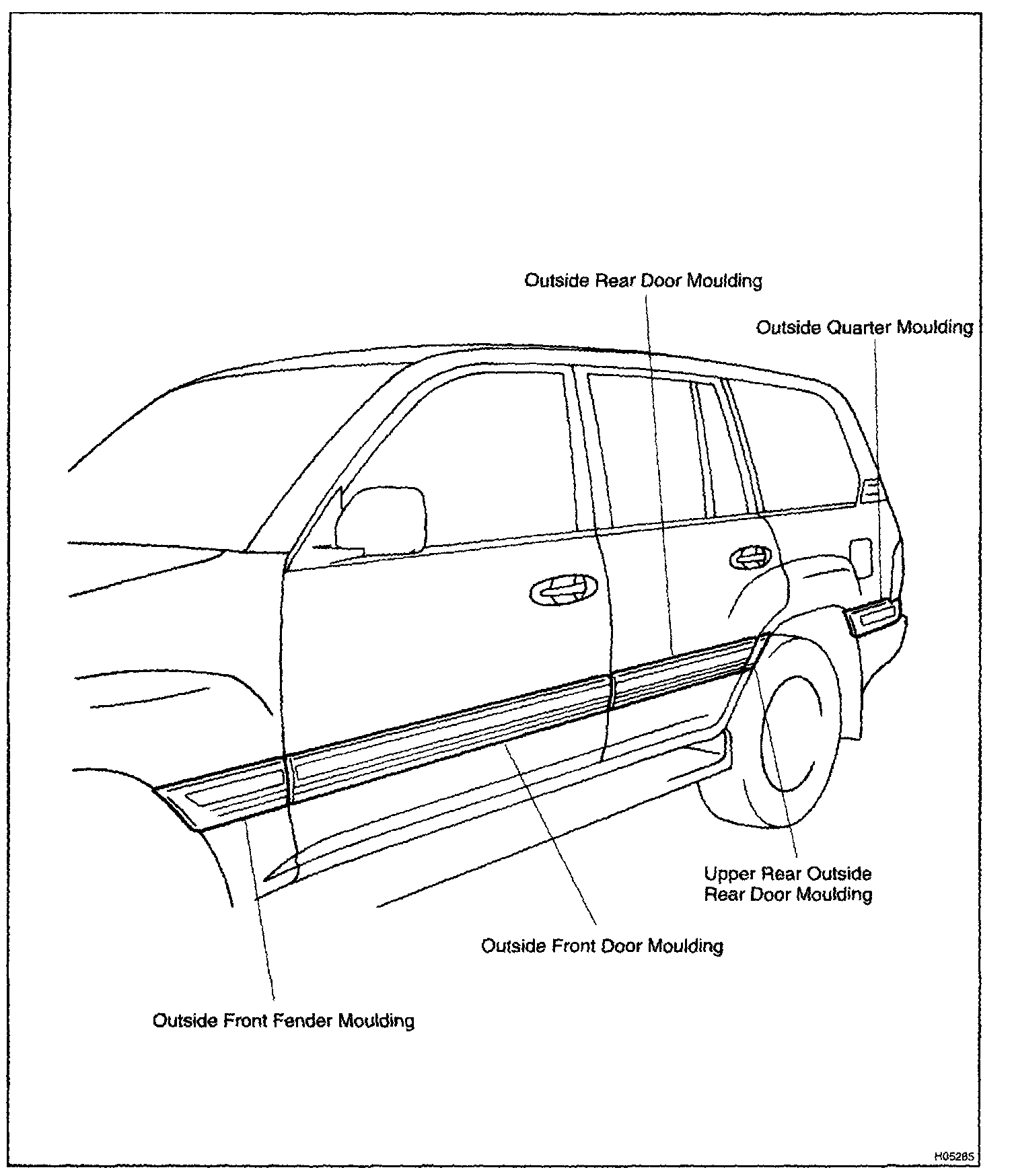

Body Outside Moulding:

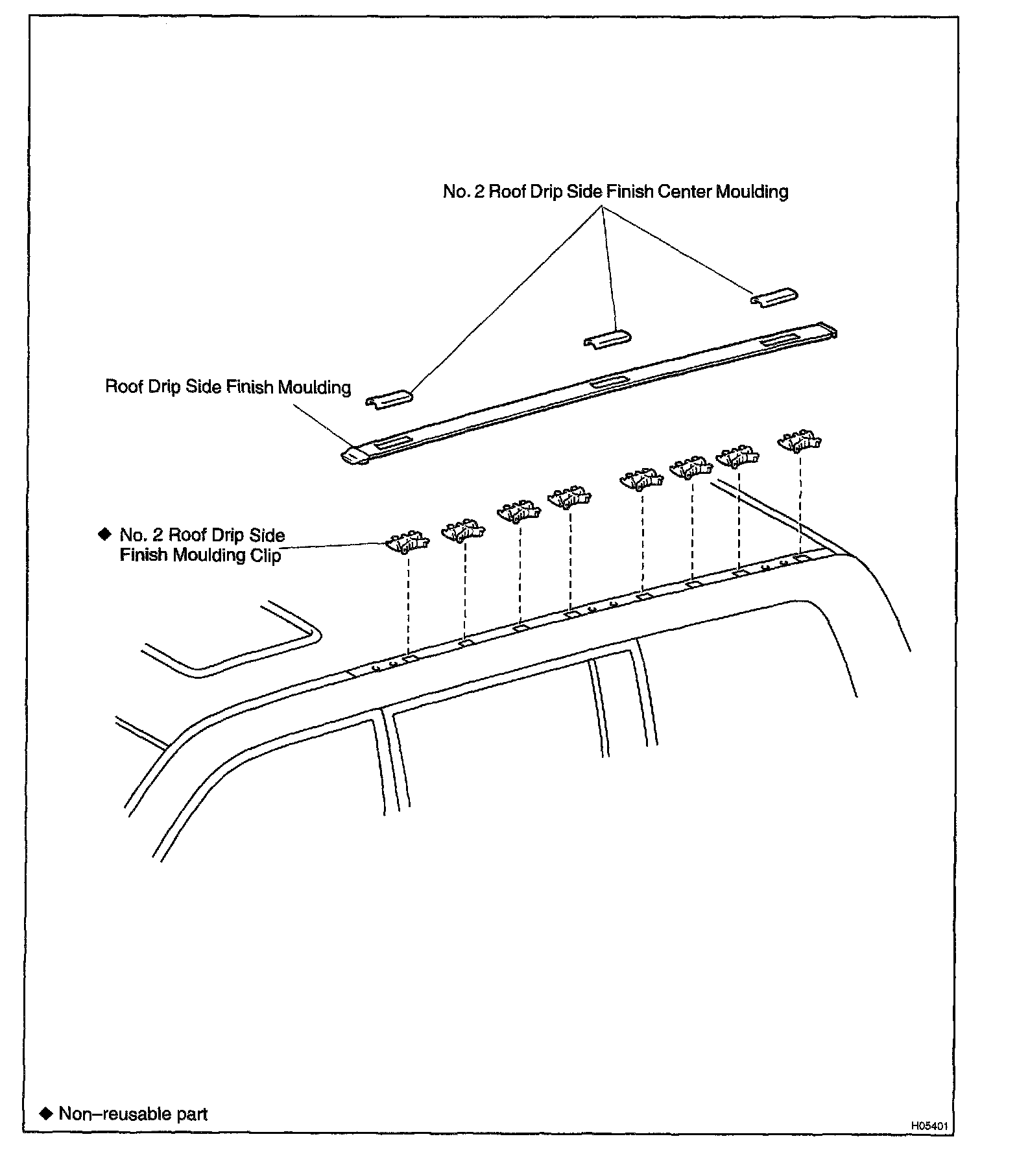

Roof Drip Side Finish Moulding:

Windshield:

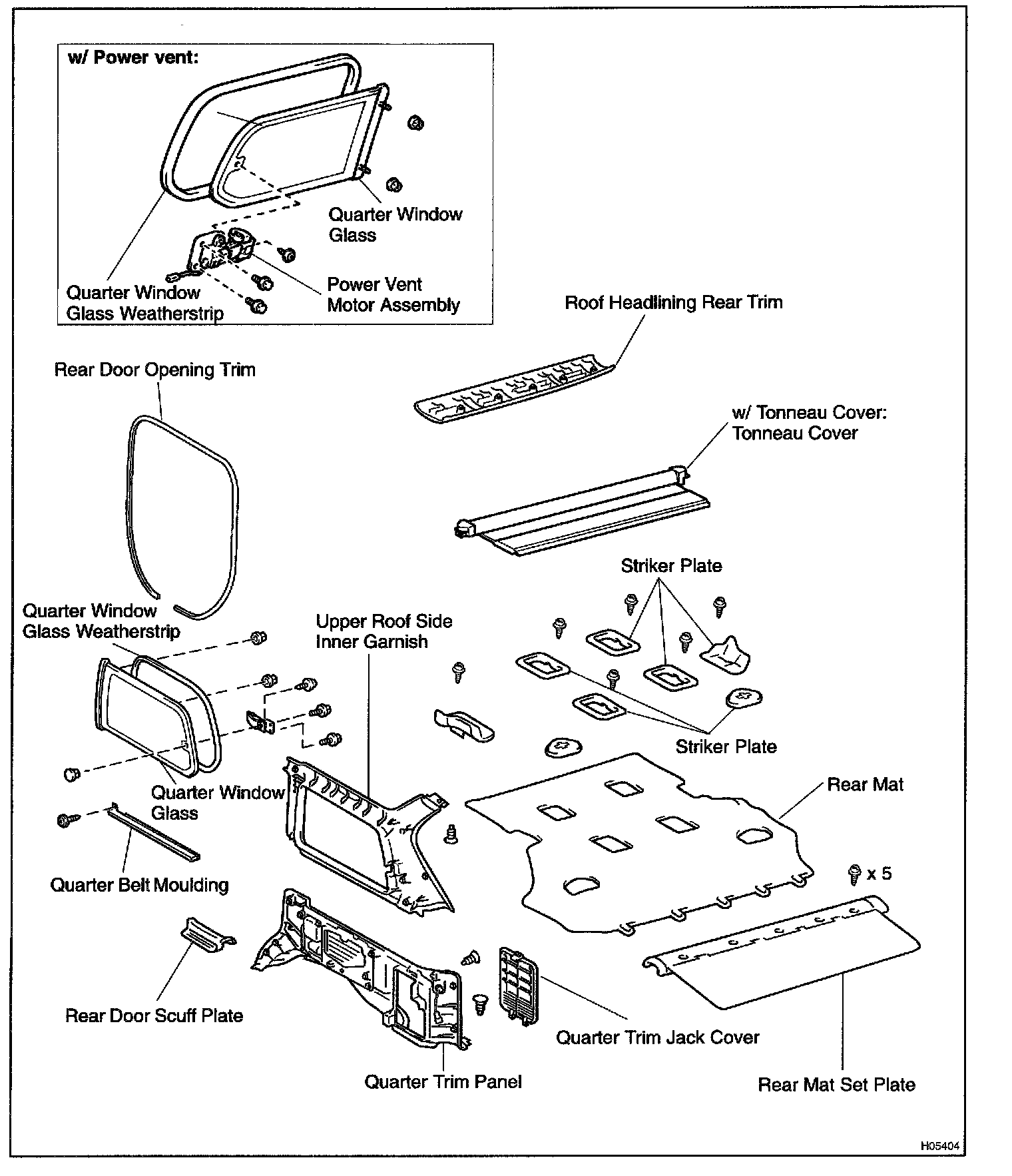

Quarter Window Glass (Fixed Type):

Quarter Window Glass (Swing Type):

Back Door Glass:

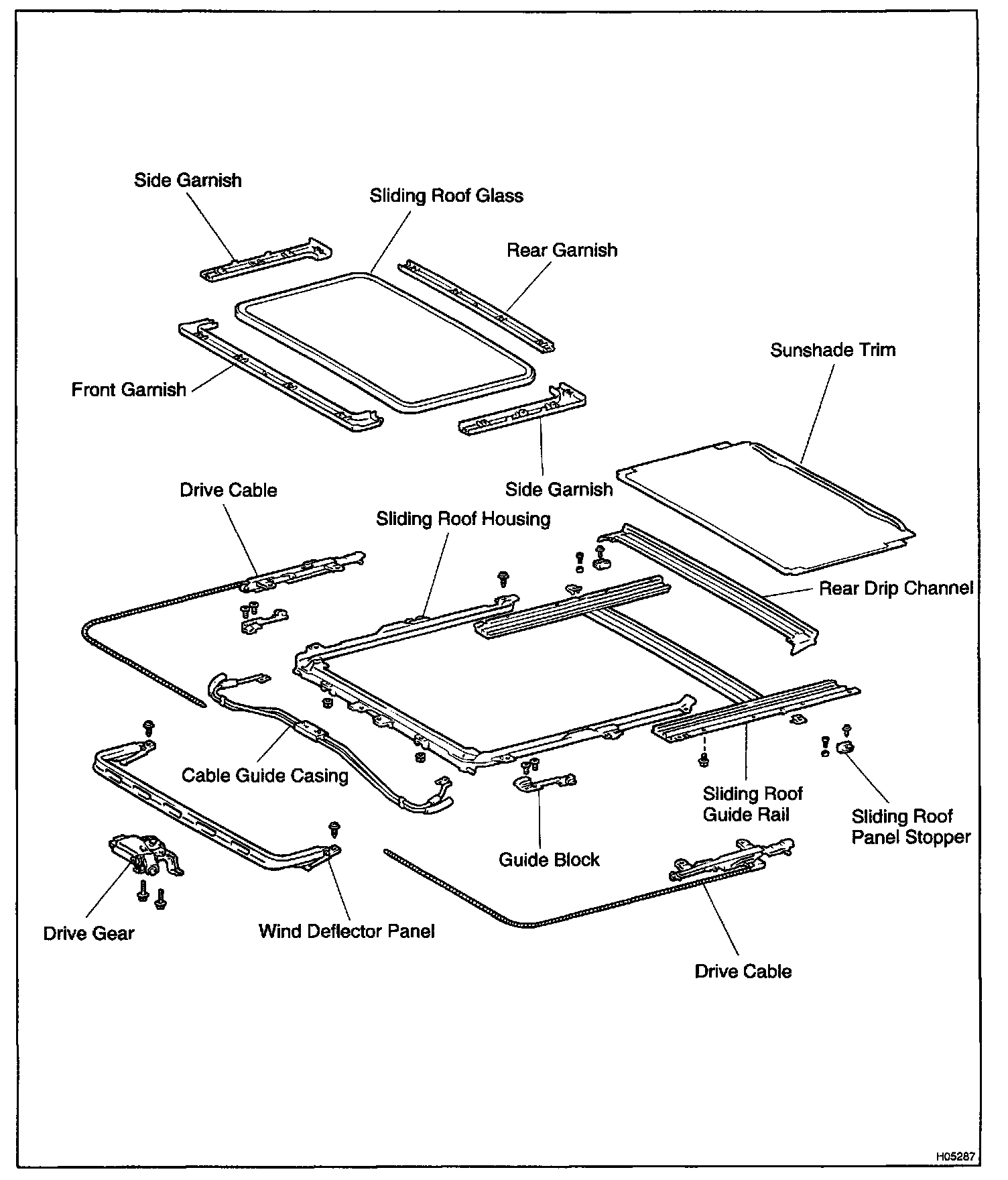

Sliding Roof:

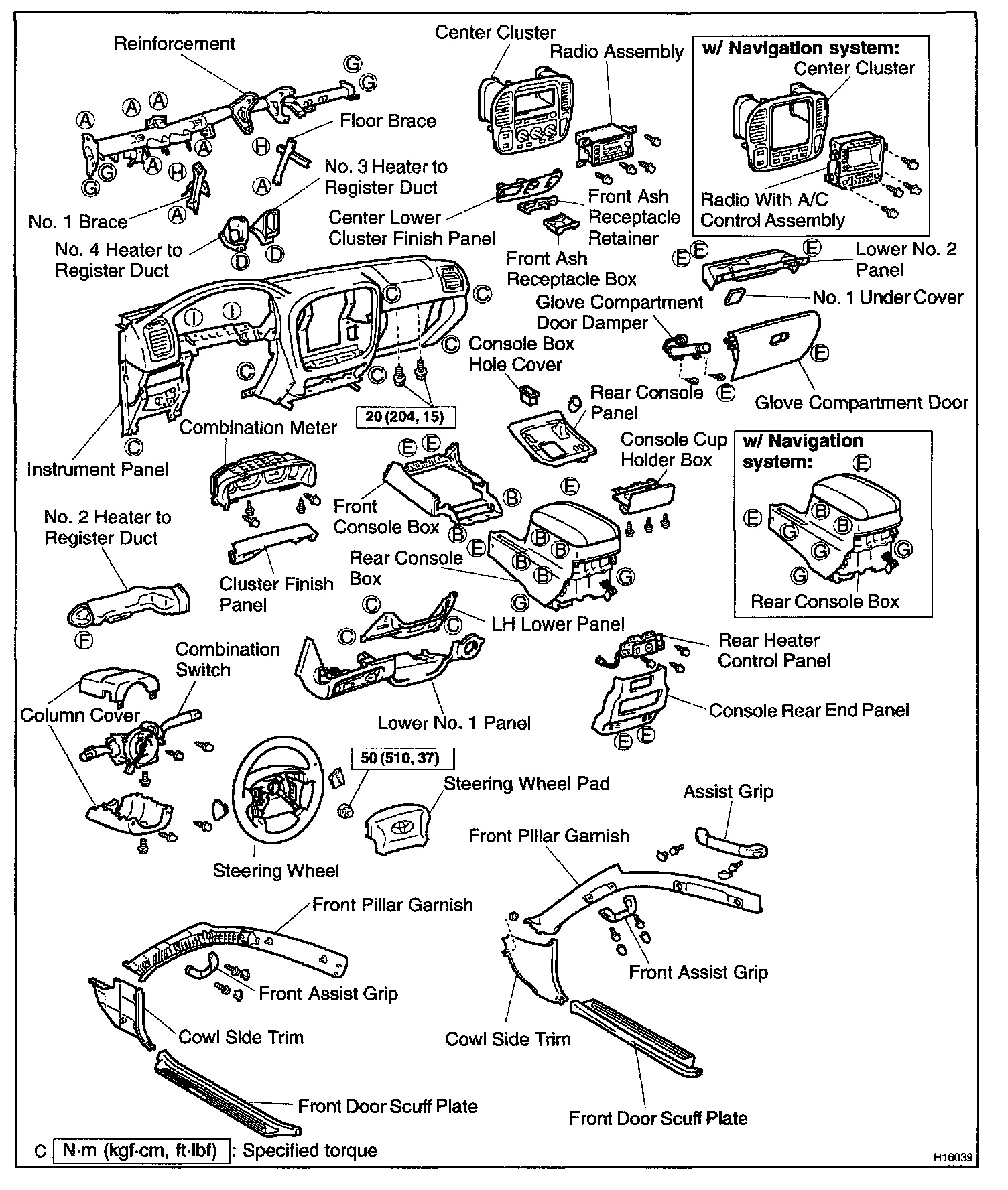

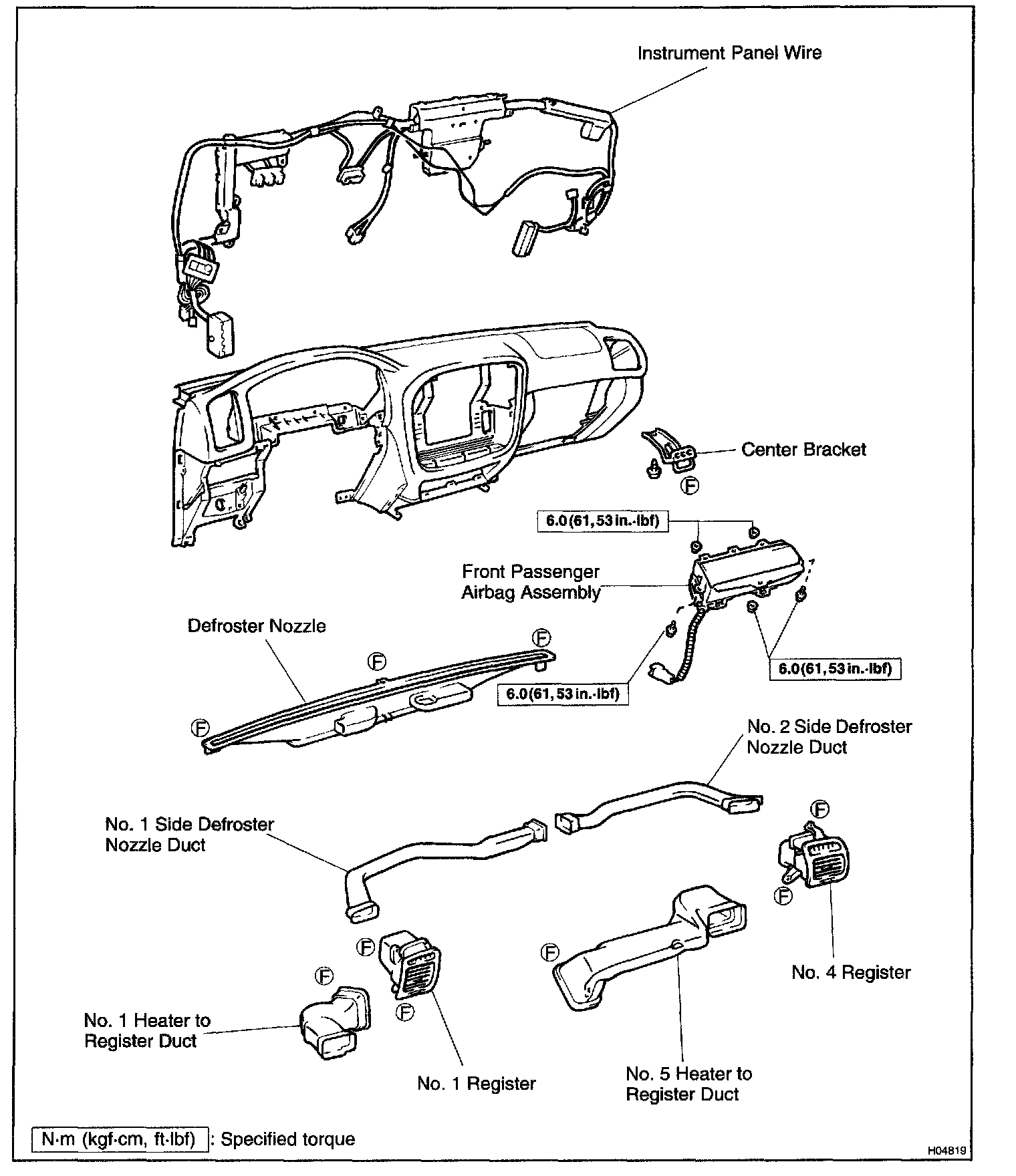

Instrumental Panel (Part 1):

Instrumental Panel (Part 2):

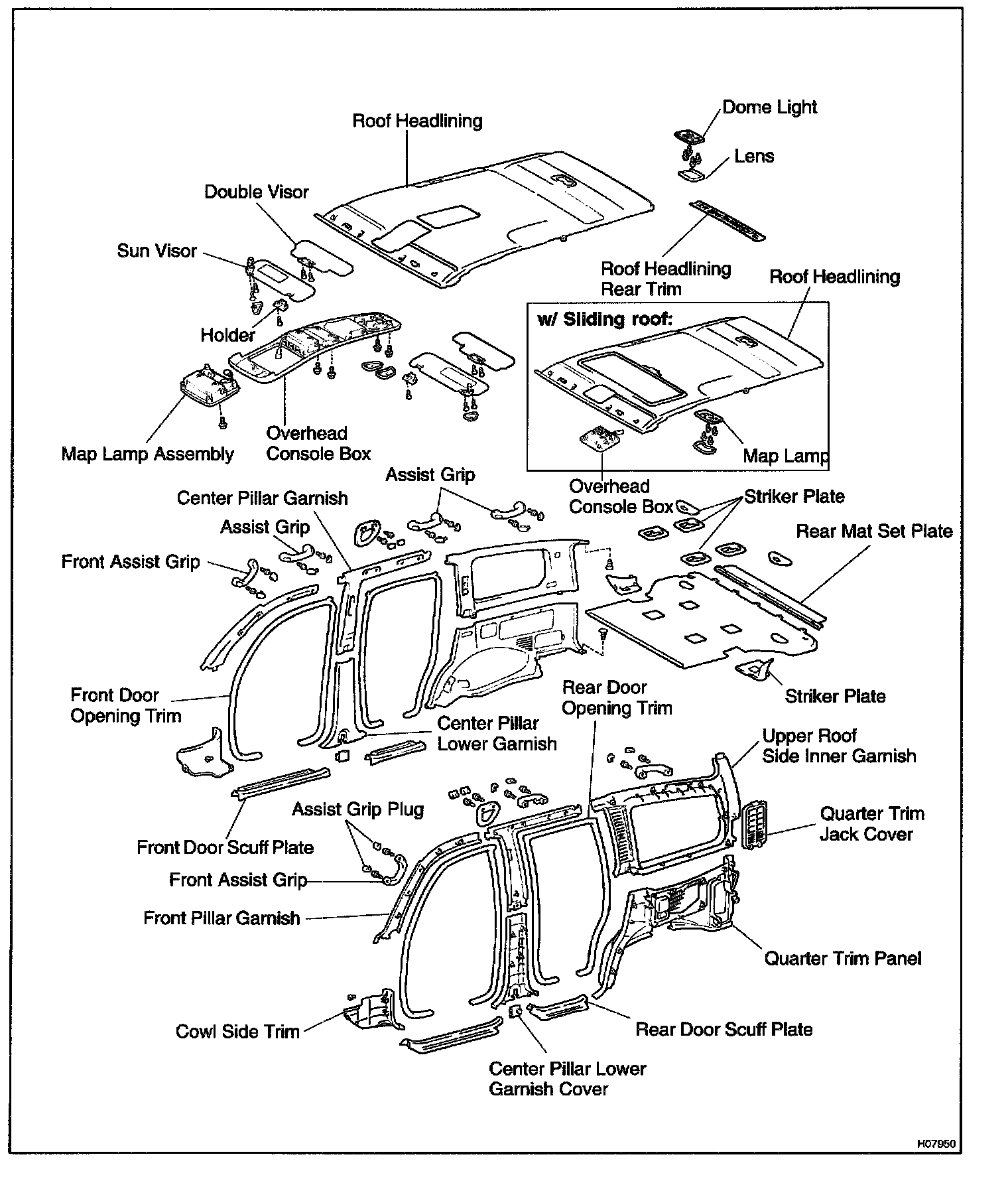

Roof Headlining:

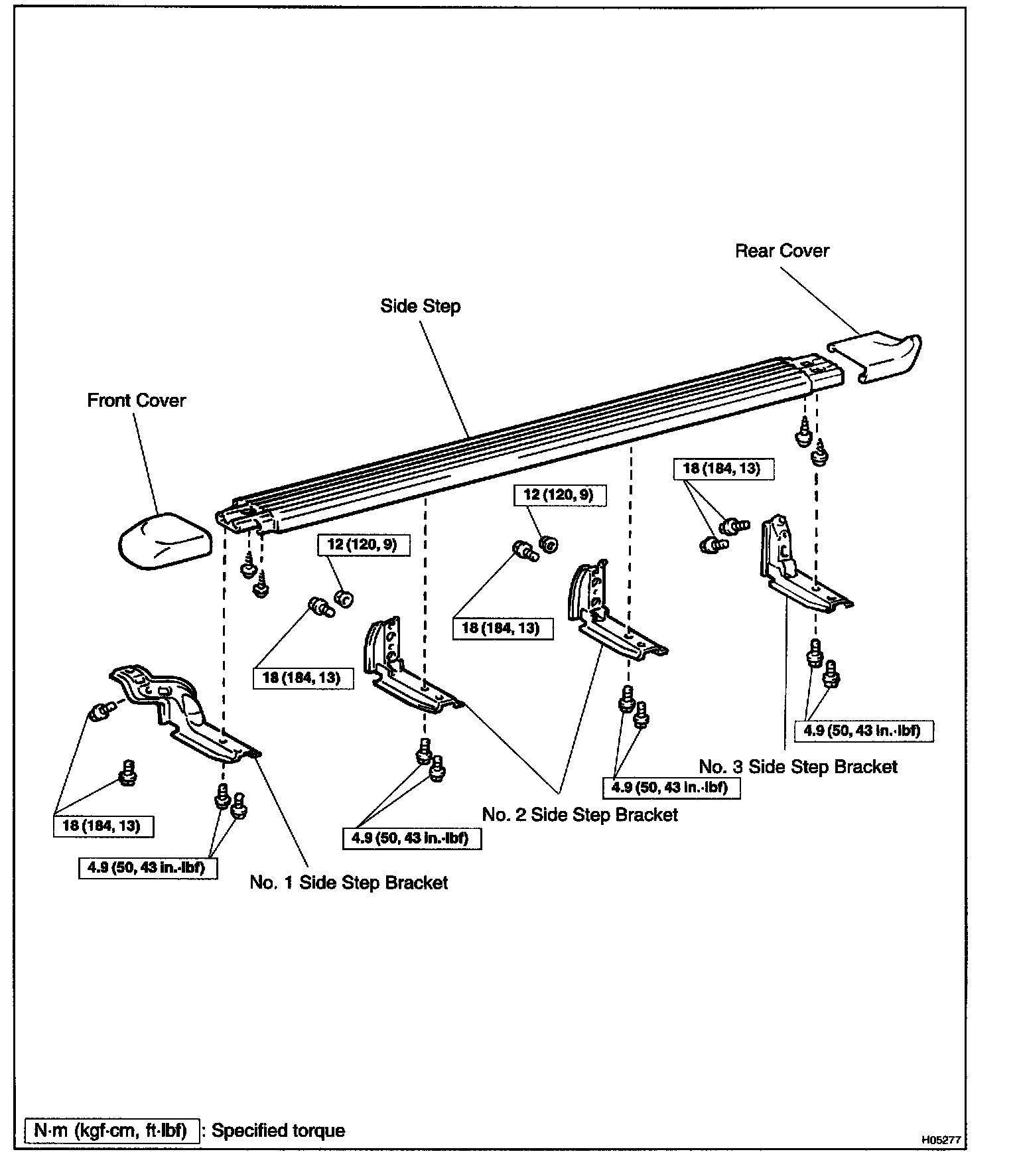

Side Step:

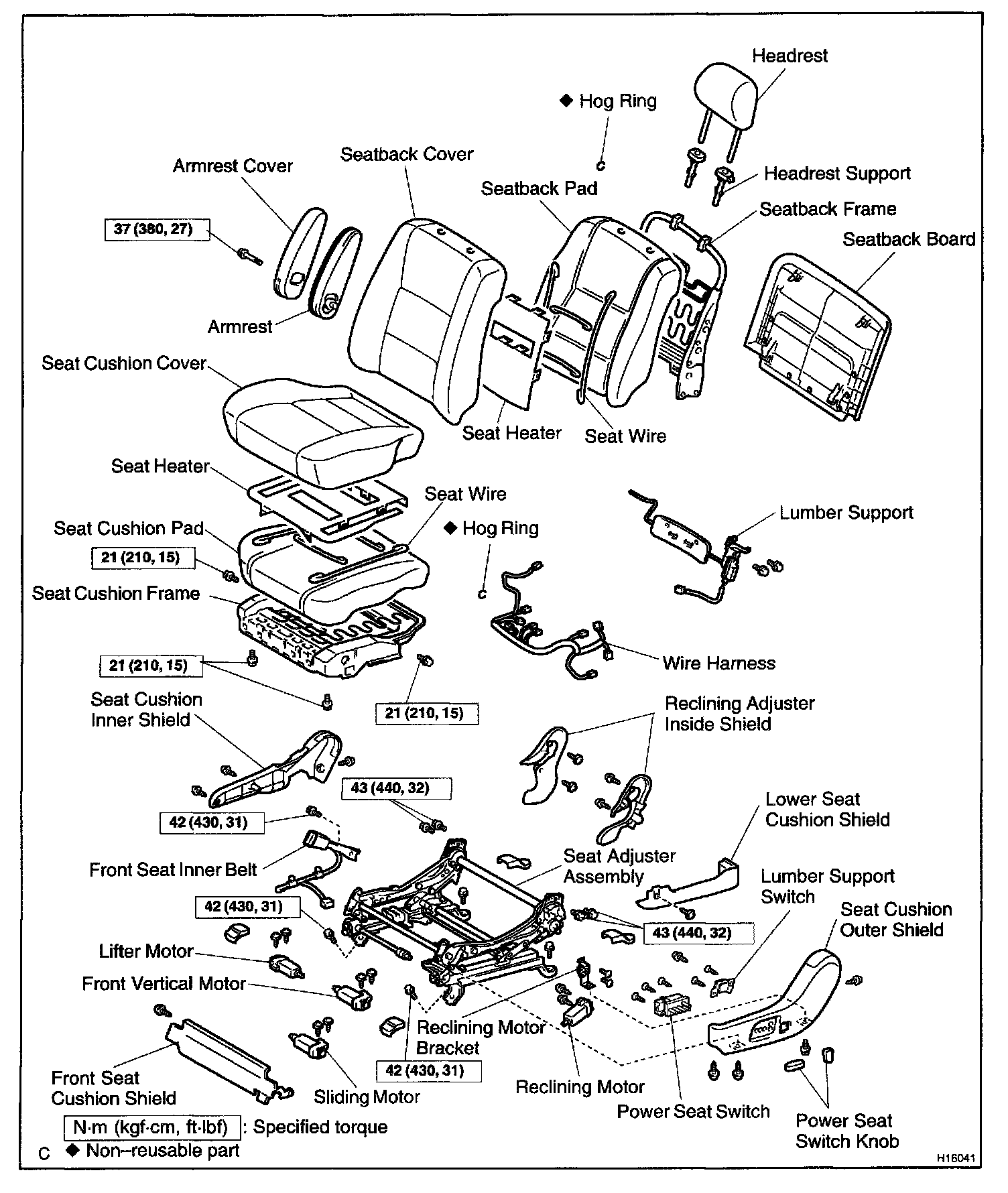

Front Seat:

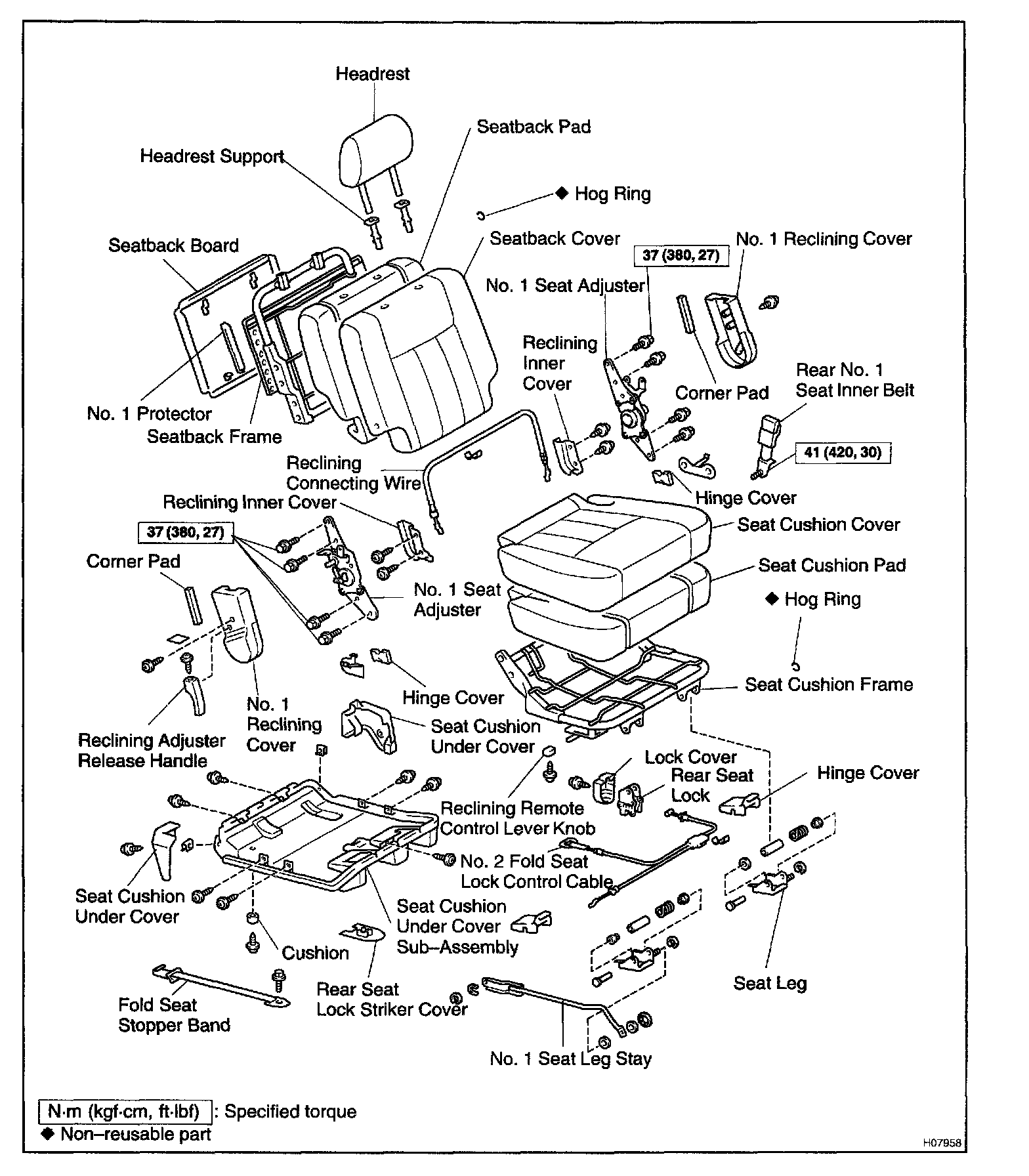

Rear No.1 Seat (LH):

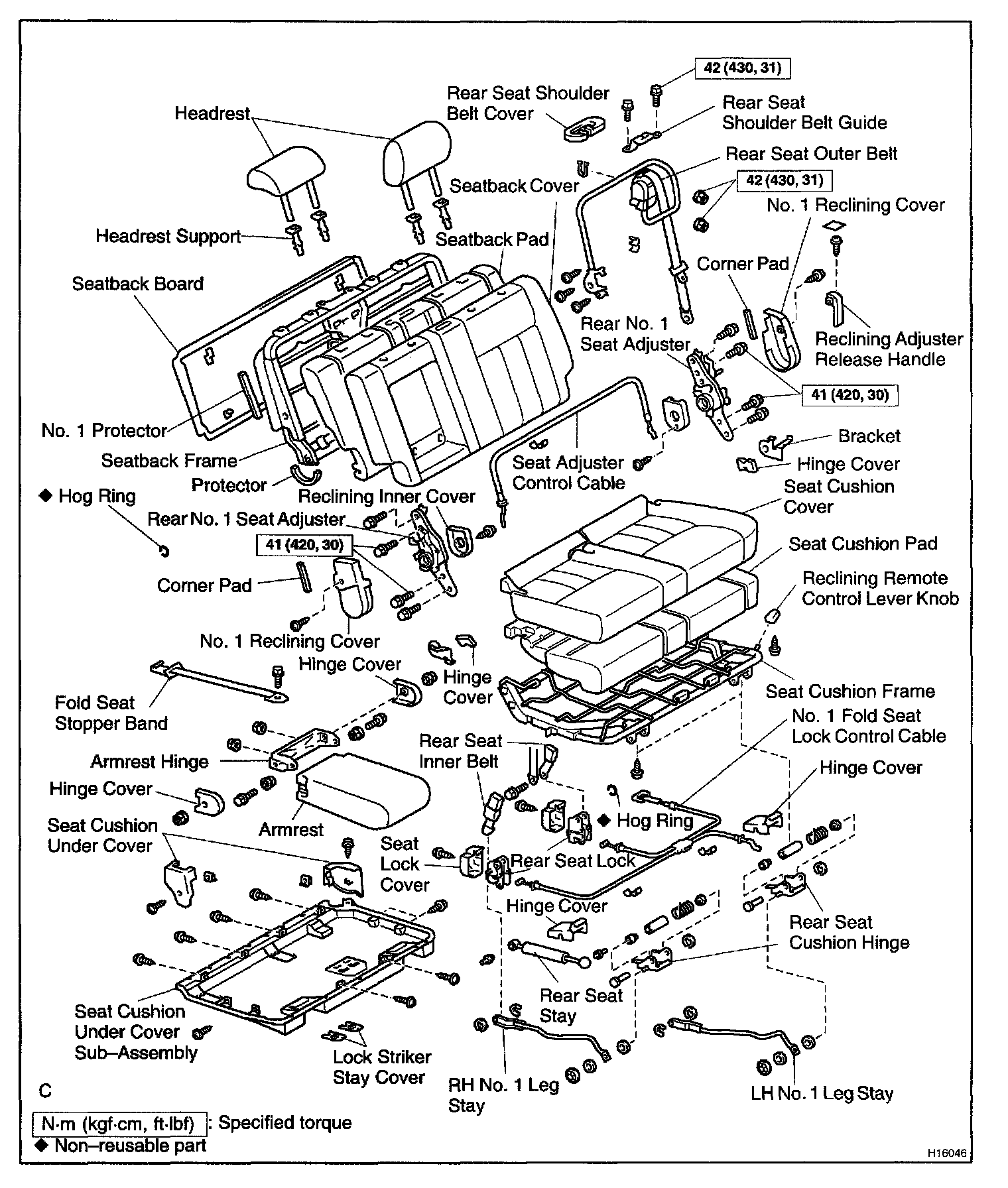

Rear No.1 Seat (RH):

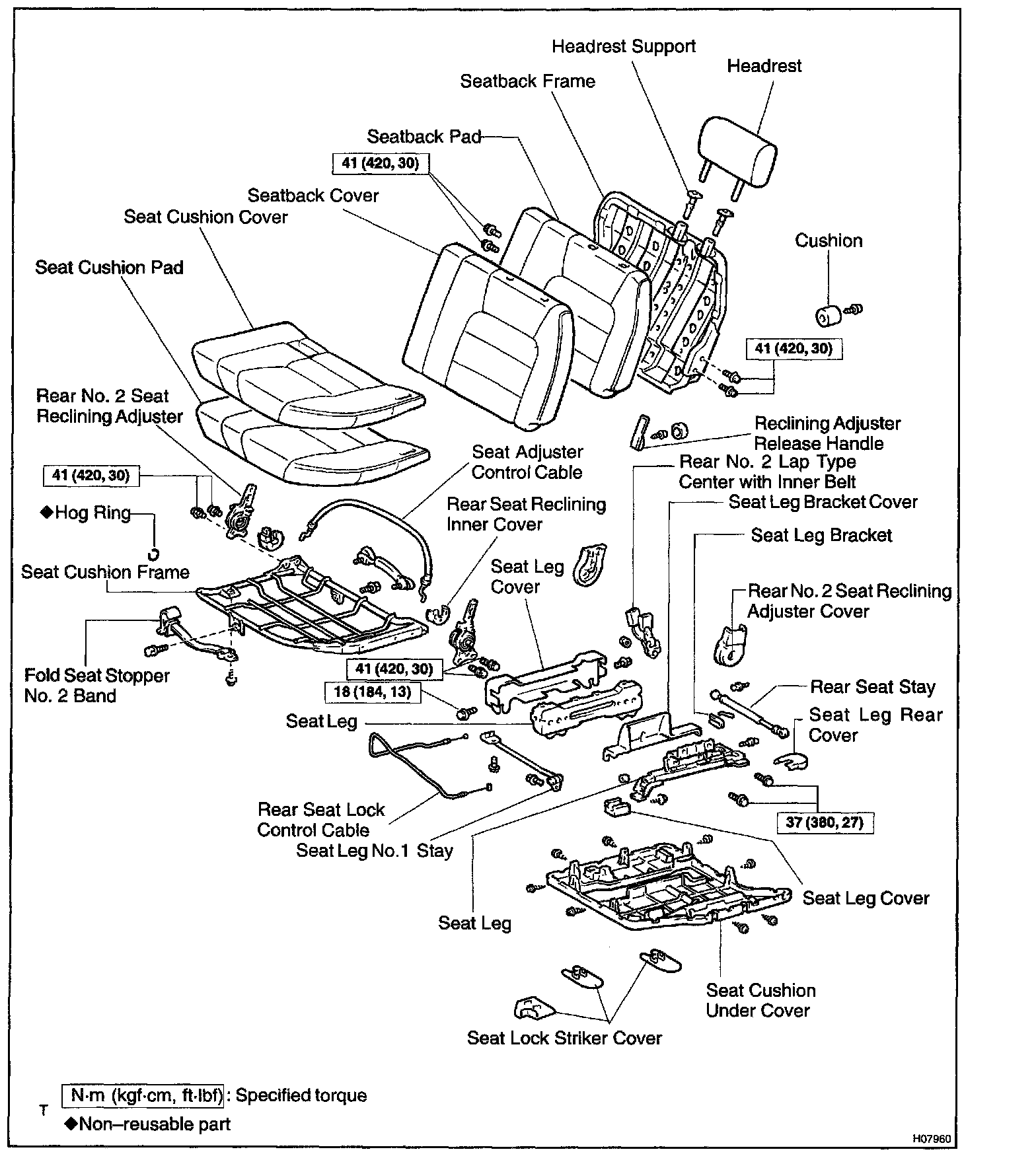

Rear No.2 Seat:

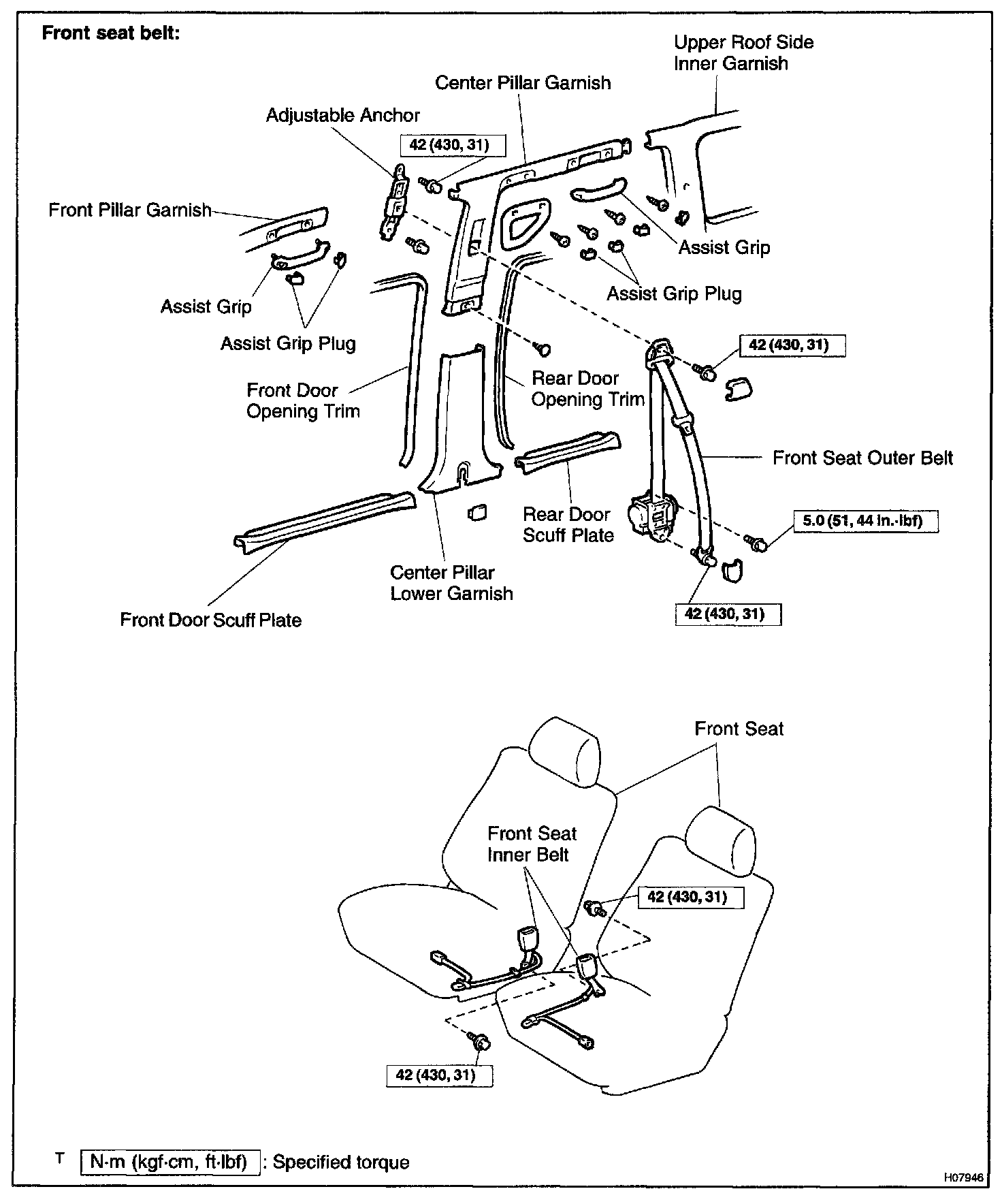

Seat Belt - Front Seat Belt:

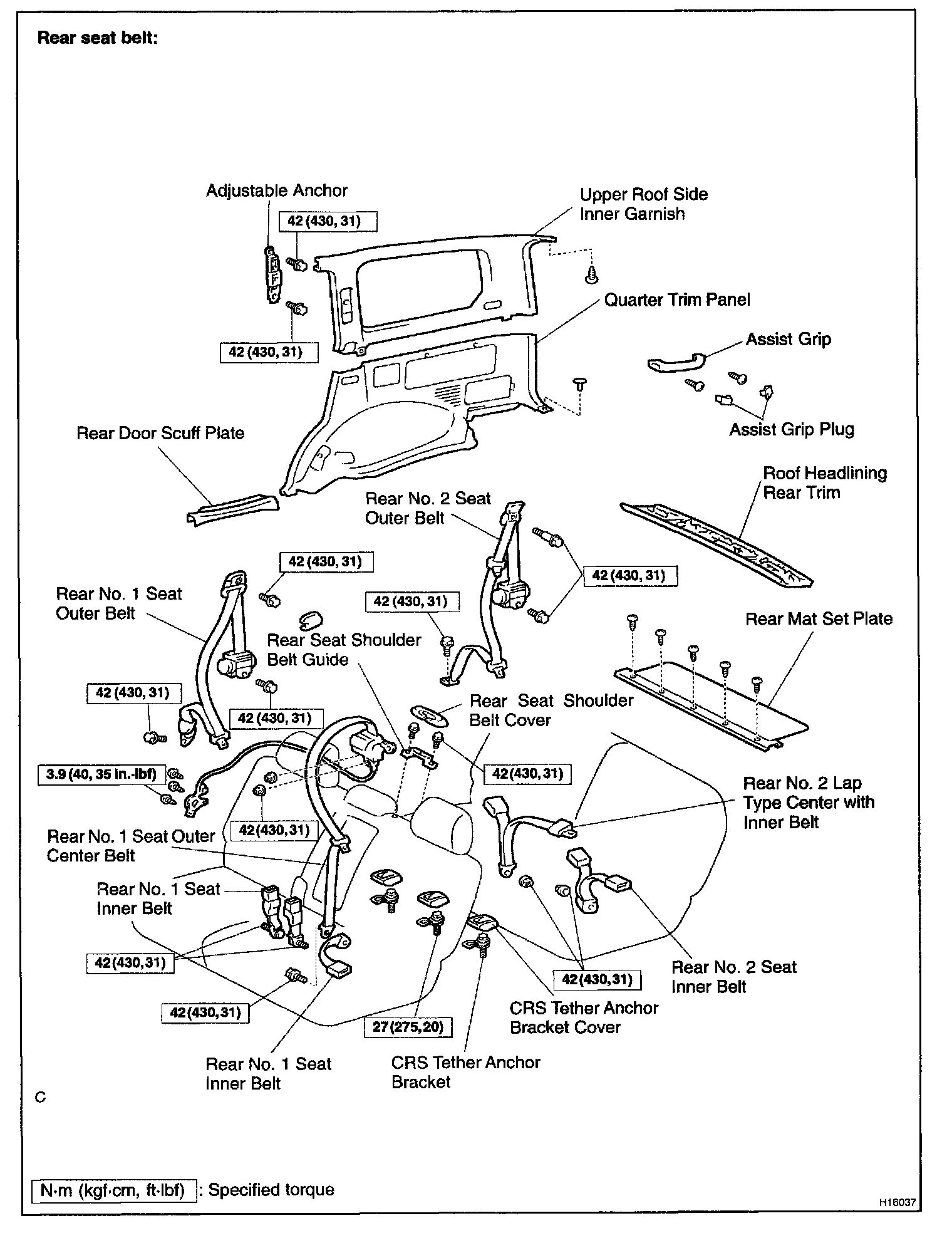

Seat Belt - Rear Seat Belt:
