Rear Control Assembly

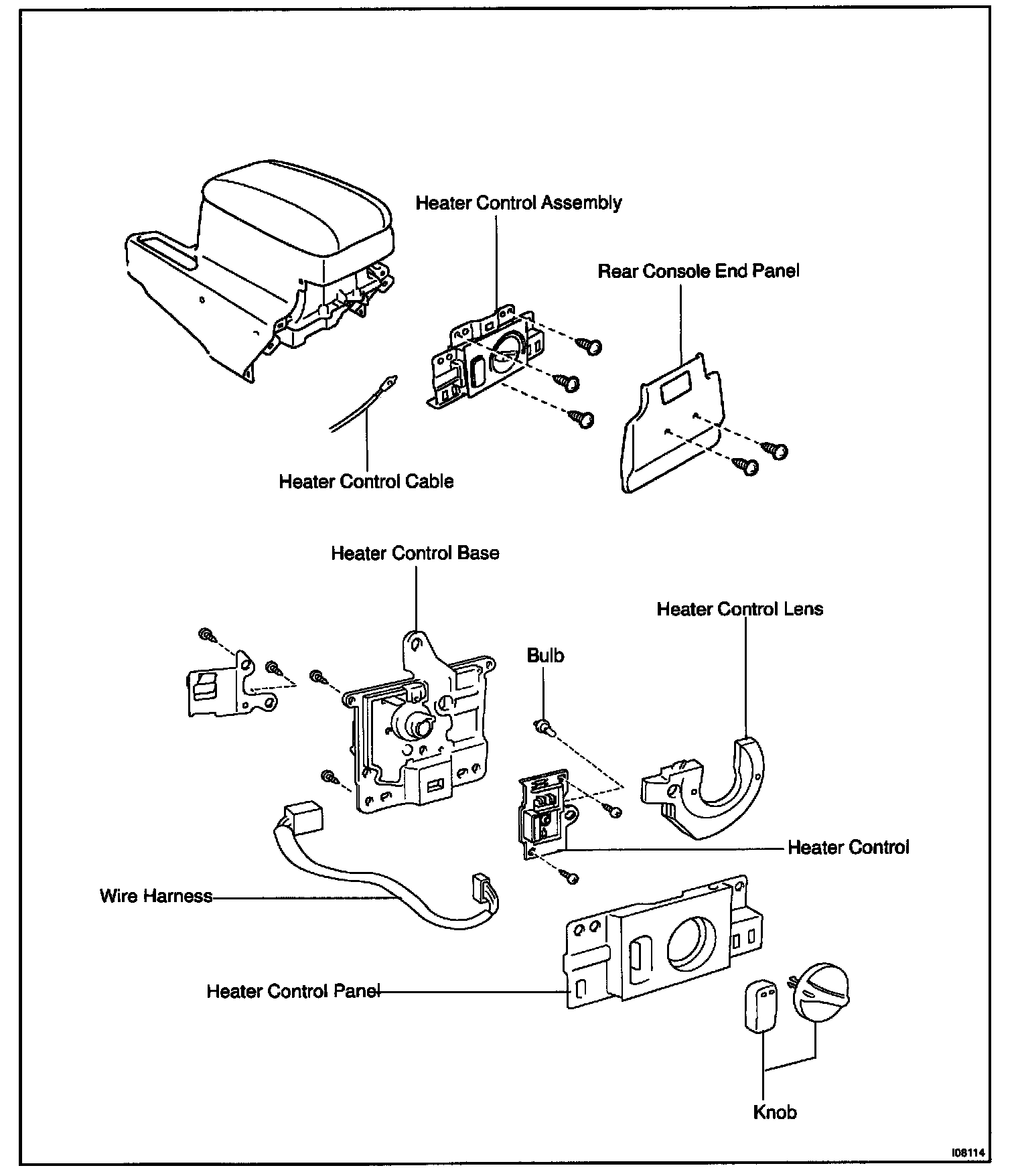

Rear Heater Control Assembly:






REMOVAL

1. REMOVE REAR CONSOLE END PANEL




2. REMOVE HEATER CONTROL ASSEMBLY
a. Turn the heater control dial to "MAX. WARM" position.

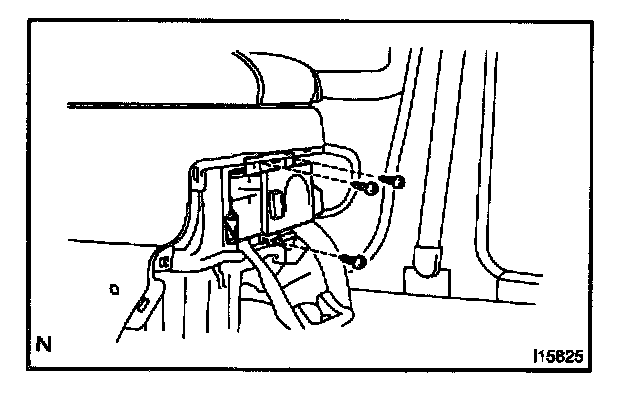

b. Remove the 3 screws and heater control assembly then disconnect the connector and control cable.

INSTALLATION




1. INSTALL HEATER CONTROL ASSEMBLY
a. Connect the heater control cable.

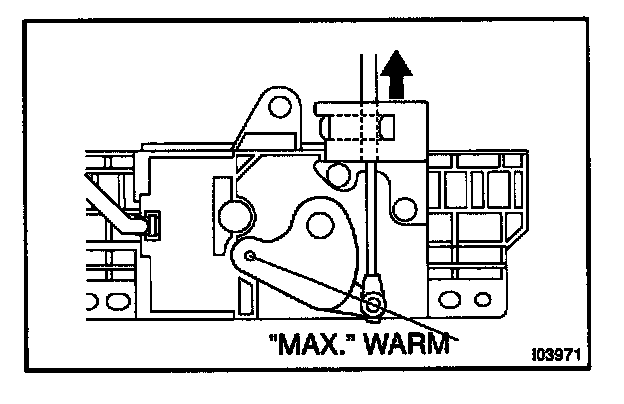

1. Set the heater control dial to "MAX. WARM" position.
2. Connect the heater control cable to the heater control assembly.

HINT: Lock the clamp during lightly pulling the outer cable in the direction, as shown in the illustration by an arrow.




b. Connect the connector to heater control assembly.

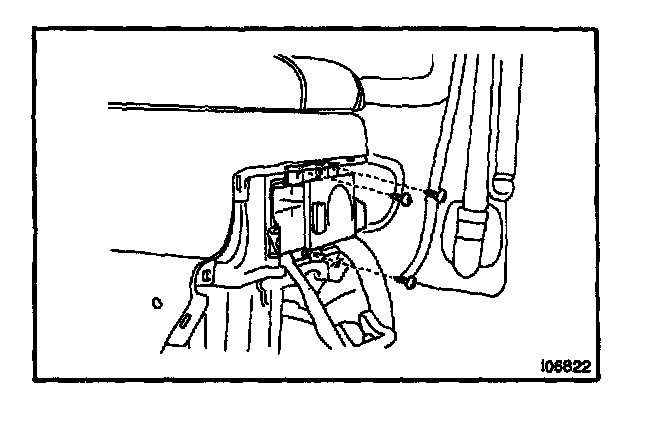

c. Install the heater control assembly to rear console box with the 3 screws.

2. INSTALL REAR CONSOLE END PANEL
