Fuse: Application and ID

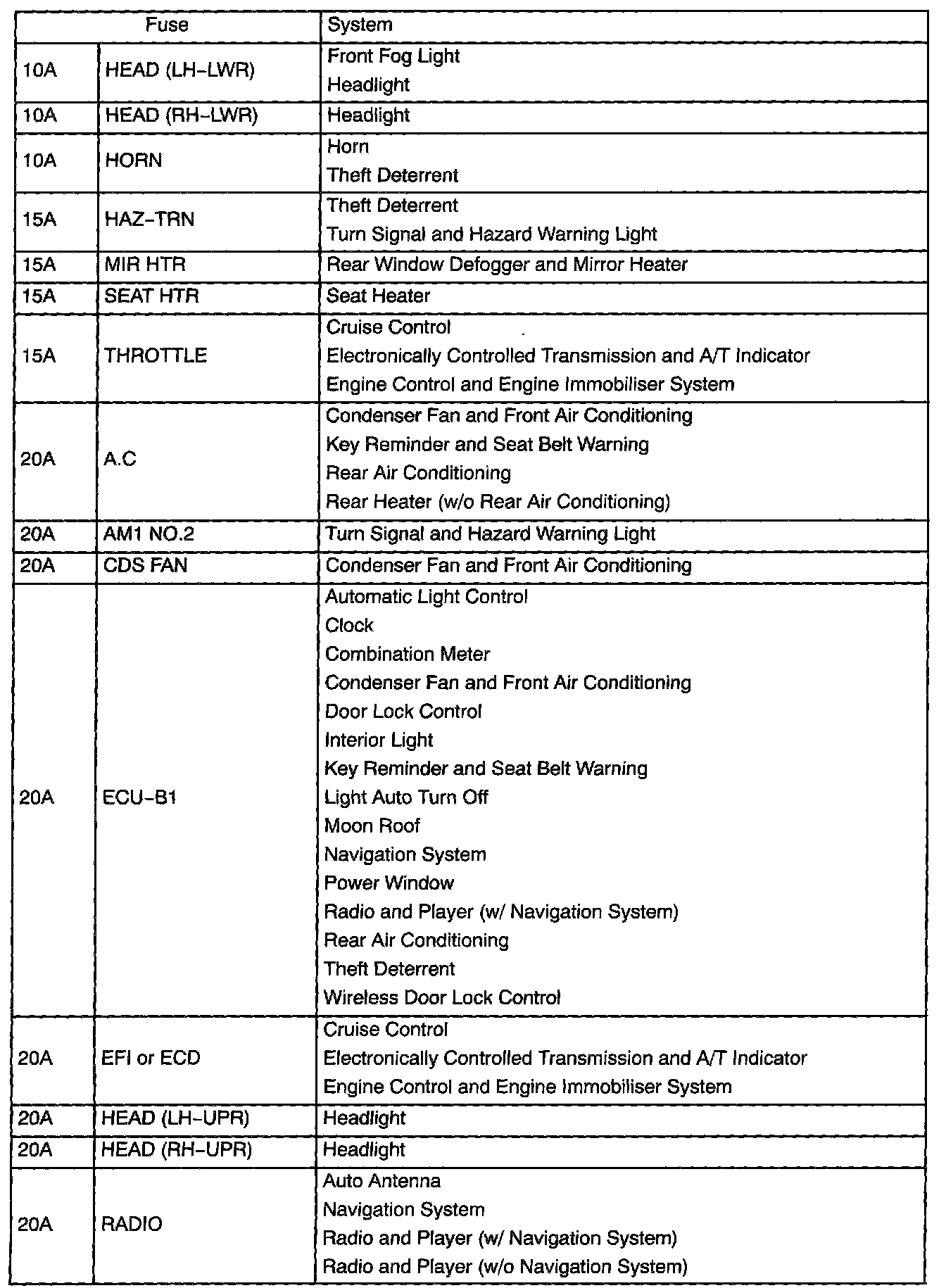

Engine Room J/B Fuse Applications Part 1:

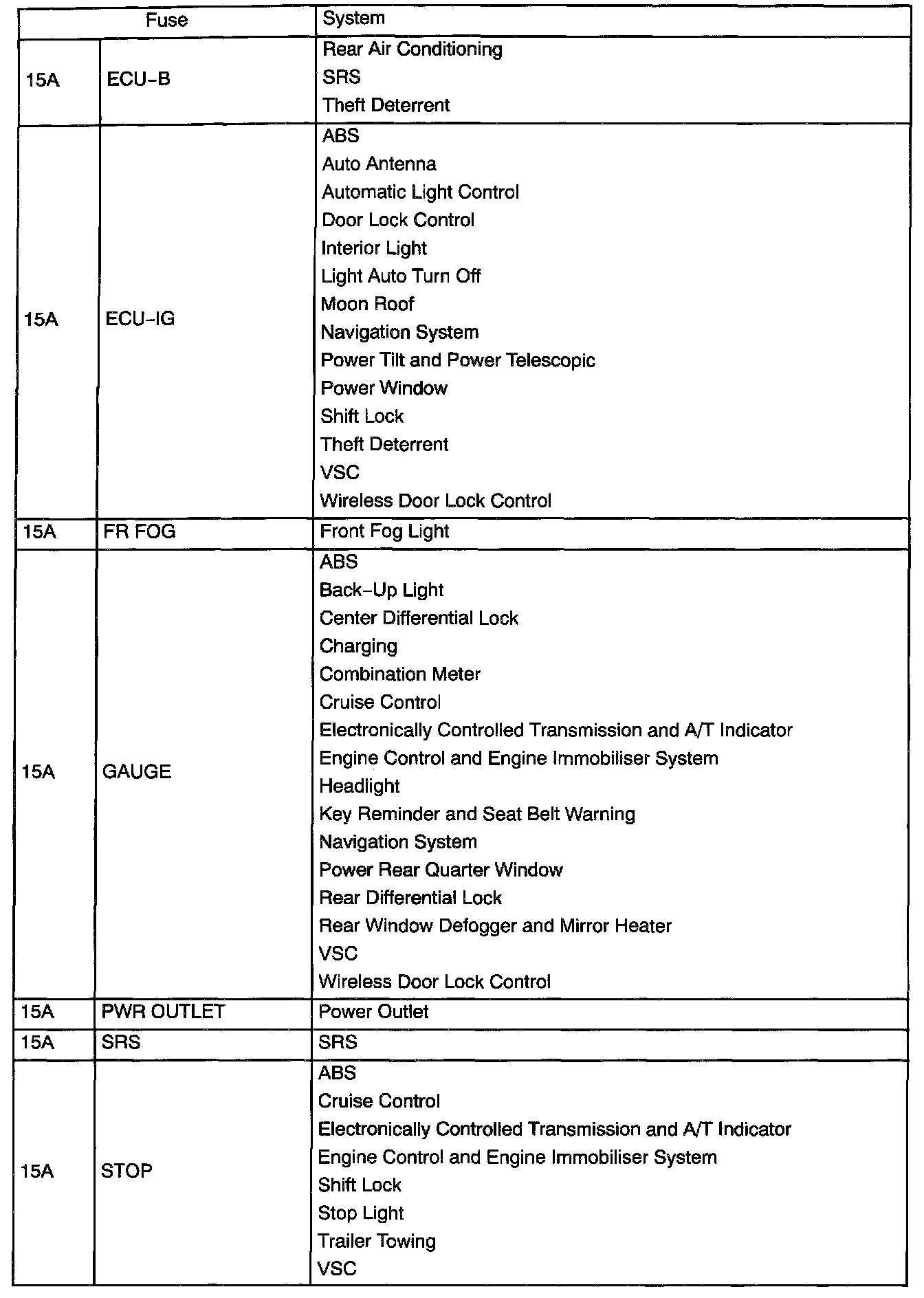

Engine Room J/B Fuse Applications Part 2:

Fusible Link Block (F6) Fuse Applications:

Engine Room Fuse Details

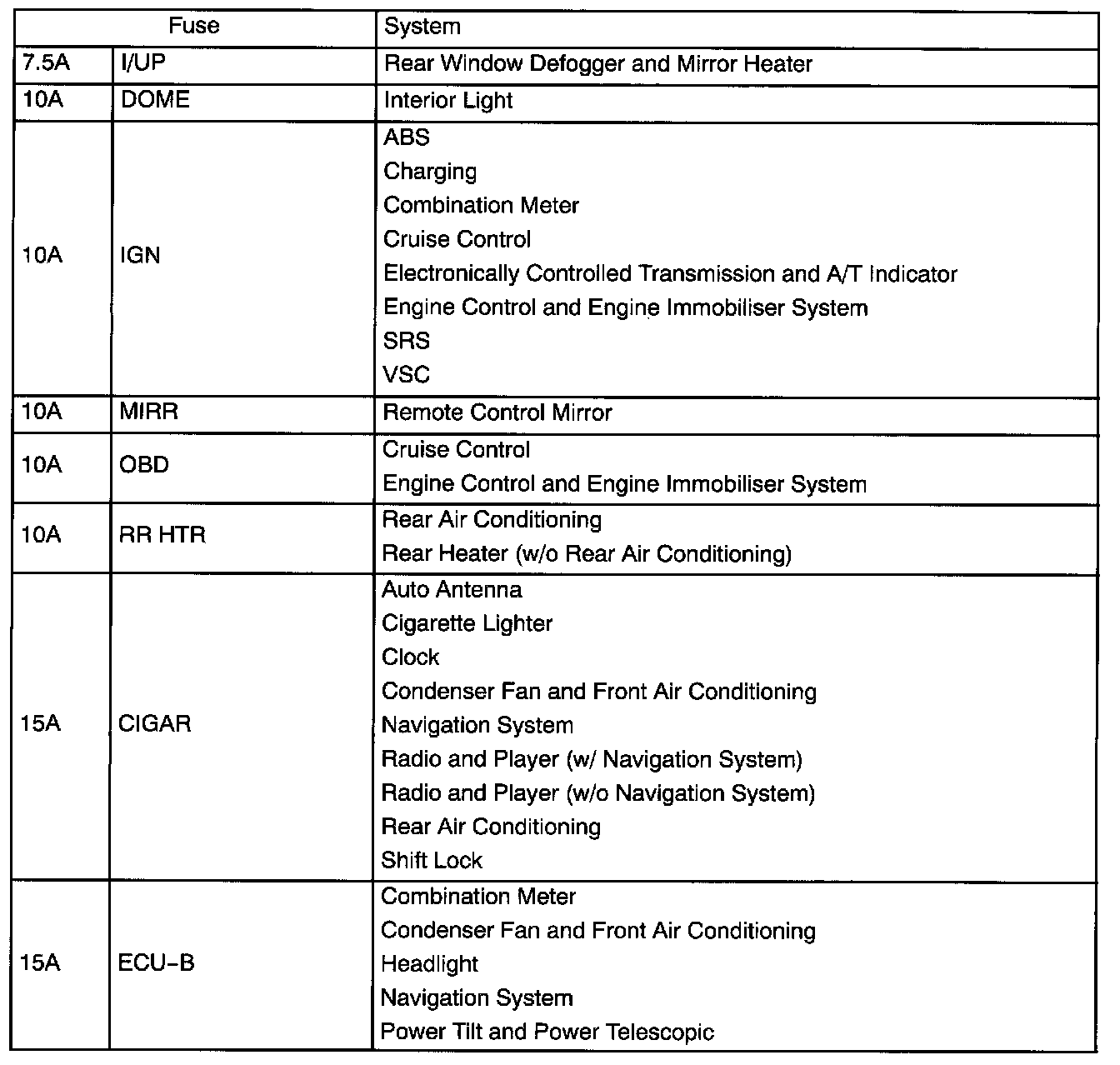

Cowl Side J/B LH Fuse Applications Part 1:

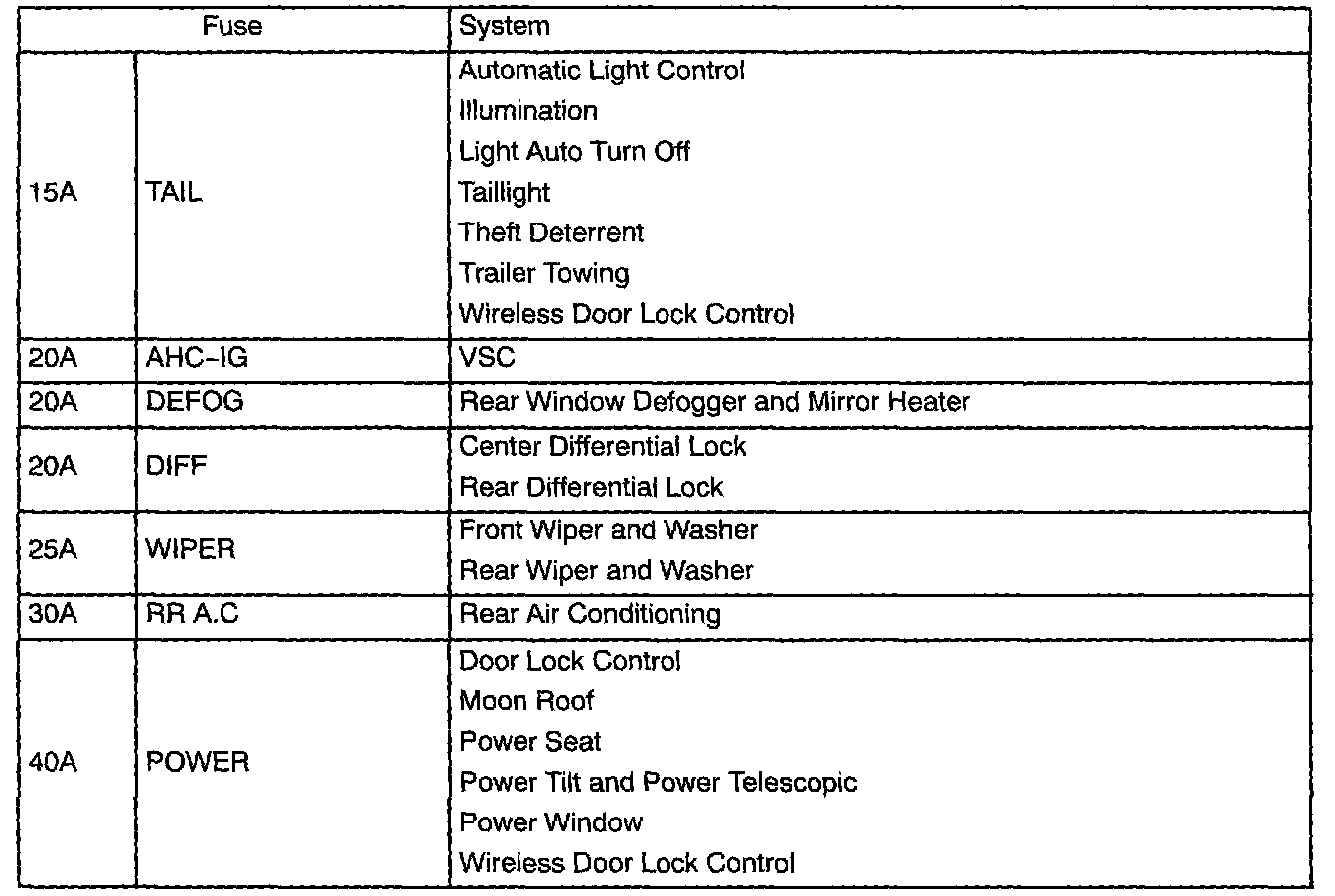

Cowl Side J/B LH Fuse Applications Part 2:

Cowl Side J/B LH Fuse Applications Part 3:

Interior Panel Fuse Details
