Connector Locations

Engine Compartment:





Ground Location
EA Cylinder Head Rear LH
EB Engine Block LH
EC Engine Block LH
ED Cylinder Head Rear RH

Connector Location
EA1 Engine No.4 Wire and Engine Wire (Near the Generator)

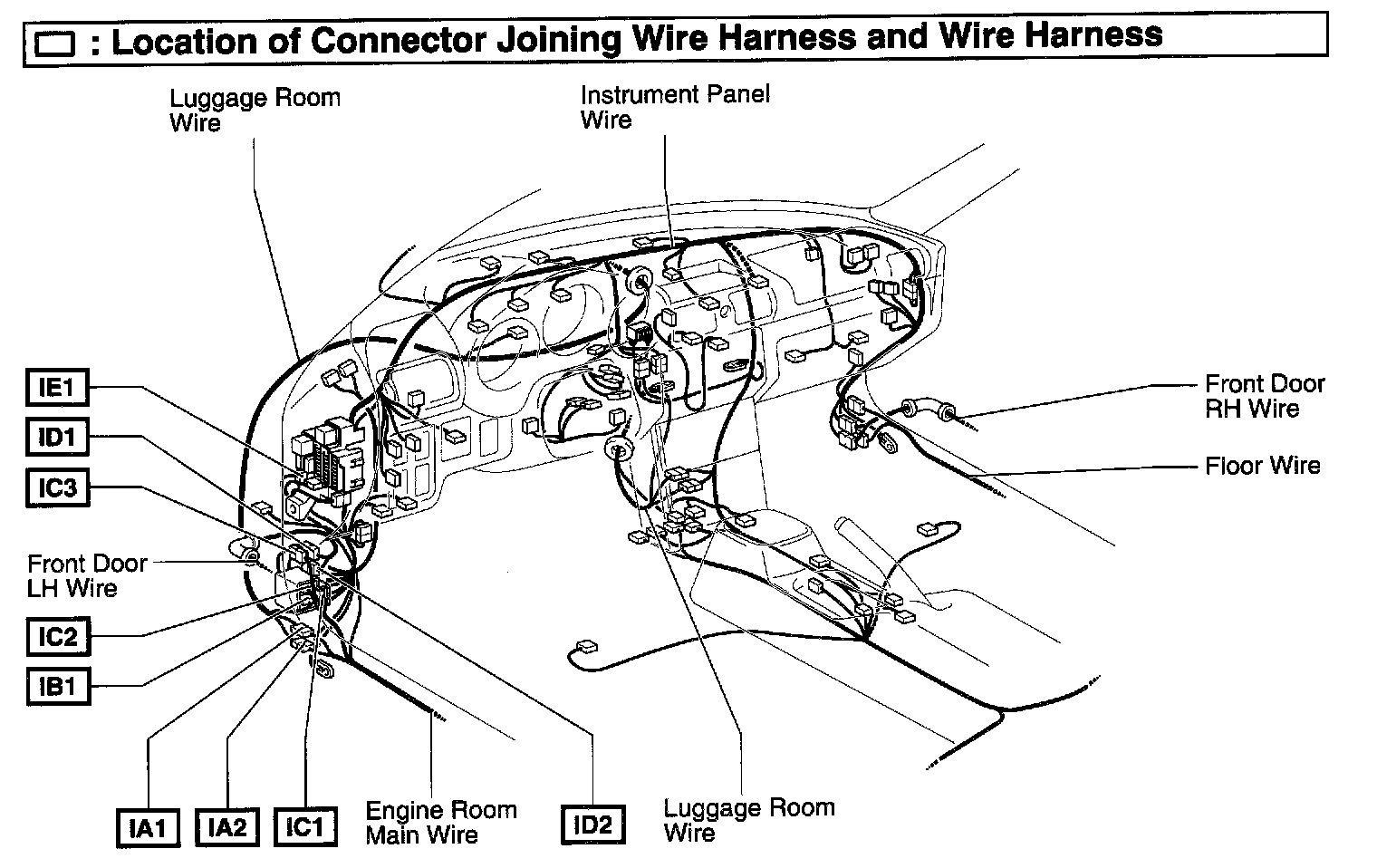

Instrument Panel:





Connector Location
IA1 Engine Room Main Wire and Luggage Room Wire (Left Kick Panel)
IA2 Engine Room Main Wire and Luggage Room Wire (Left Kick Panel)
IB1 Luggage Room Wire and Instrument Panel Wire (Left Kick Panel)
IC1 Engine Room Main Wire and Instrument Panel Wire (Left Kick Panel)
IC2 Engine Room Main Wire and Instrument Panel Wire (Left Kick Panel)
IC3 Engine Room Main Wire and Instrument Panel Wire (Left Kick Panel)
ID1 Front Door LH Wire and Instrument Panel Wire (Left Kick Panel)
ID2 Front Door LH Wire and Instrument Panel Wire (Left Kick Panel)
IE1 Engine Room Main Wire and Instrument Panel Wire (Left Side of Instrument Panel)

Instrument Panel:





Connector Location
IF1 Luggage Room Wire and Instrument Panel Wire (Instrument Panel Brace LH)
IF2 Luggage Room Wire and Instrument Panel Wire (Instrument Panel Brace LH)
IG1 Luggage Room Wire and Instrument Panel Wire (Under the Instrument Panel Center)
IG2 Luggage Room Wire and Instrument Panel Wire (Under the Instrument Panel Center)
IH1 Instrument Panel Wire and Luggage Room Wire (Under the Instrument Panel Center)
II1 Front Door RH Wire and Instrument Panel Wire (Right Kick Panel)
II2 Front Door RH Wire and Instrument Panel Wire (Right Kick Panel)
IJ1 Floor Wire and Instrument Panel Wire (Right Kick Panel)
IJ2 Floor Wire and Instrument Panel Wire (Right Kick Panel)

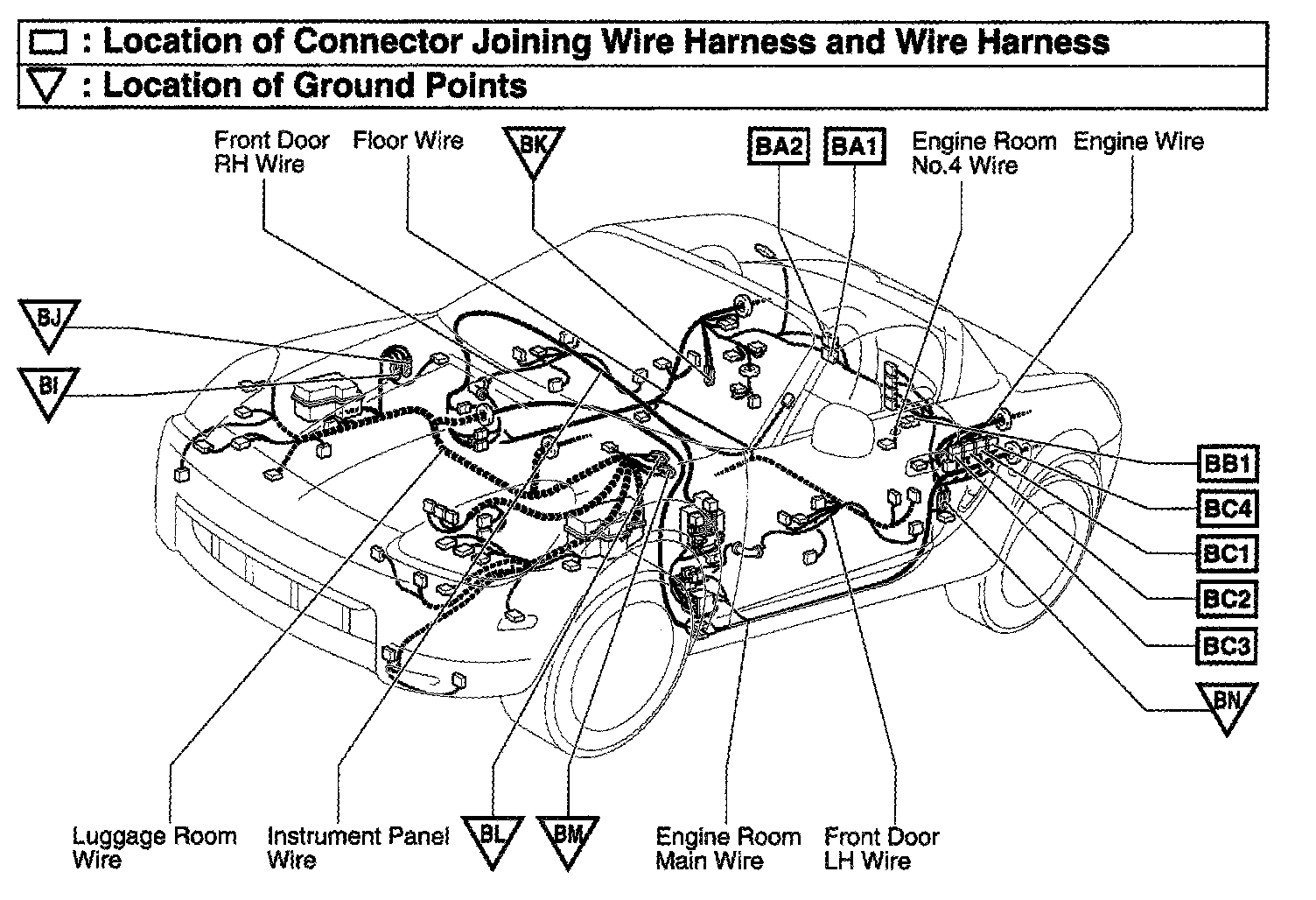

Body:





Ground Location
BI Cylinder Head Front RH
BJ Cylinder Head Front RH
BK Under the Center Pillar RH
BL Cylinder Head Front LH
BM Cylinder Head Front LH
BN Under the Center Pillar LH

Connector Location
BA1 Engine Room Main Wire and Floor Wire (Right Side of Room Partition Panel)
BA2 Engine Room Main Wire and Floor Wire (Right Side of Room Partition Panel)
BB1 Engine Room No.4 Wire and Engine Room Main Wire (Left Side of Room Partition Panel)
BC1 Engine Wire and Engine Room Main Wire (Quarter Panel LH)
BC2 Engine Wire and Engine Room Main Wire (Quarter Panel LH)
BC3 Engine Wire and Engine Room Main Wire (Quarter Panel LH)
BC4 Engine Wire and Engine Room Main Wire (Quarter Panel LH)
