Transmission Shift Switch Circuit
CIRCUIT DESCRIPTIONWhen shifting the shift lever in S position, using the transmission shift switch, it is possible to shift in 1 - 5 positions.
Pressing "Up switch" once causes the shift up by 1 position and "Down switch" once causes the shifts down by 1 position respectively.
Wiring Diagram:

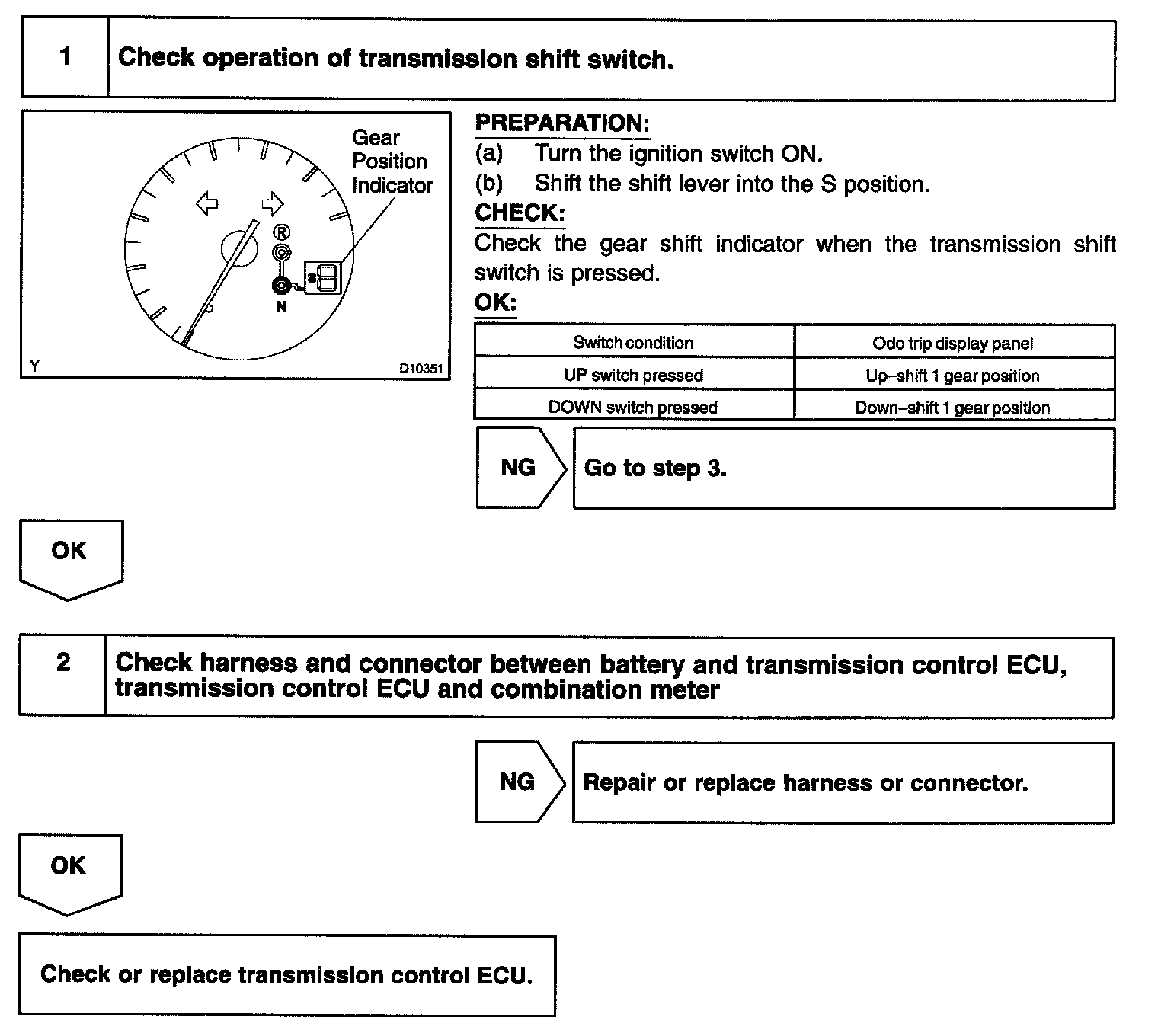

Step 1 - 2:

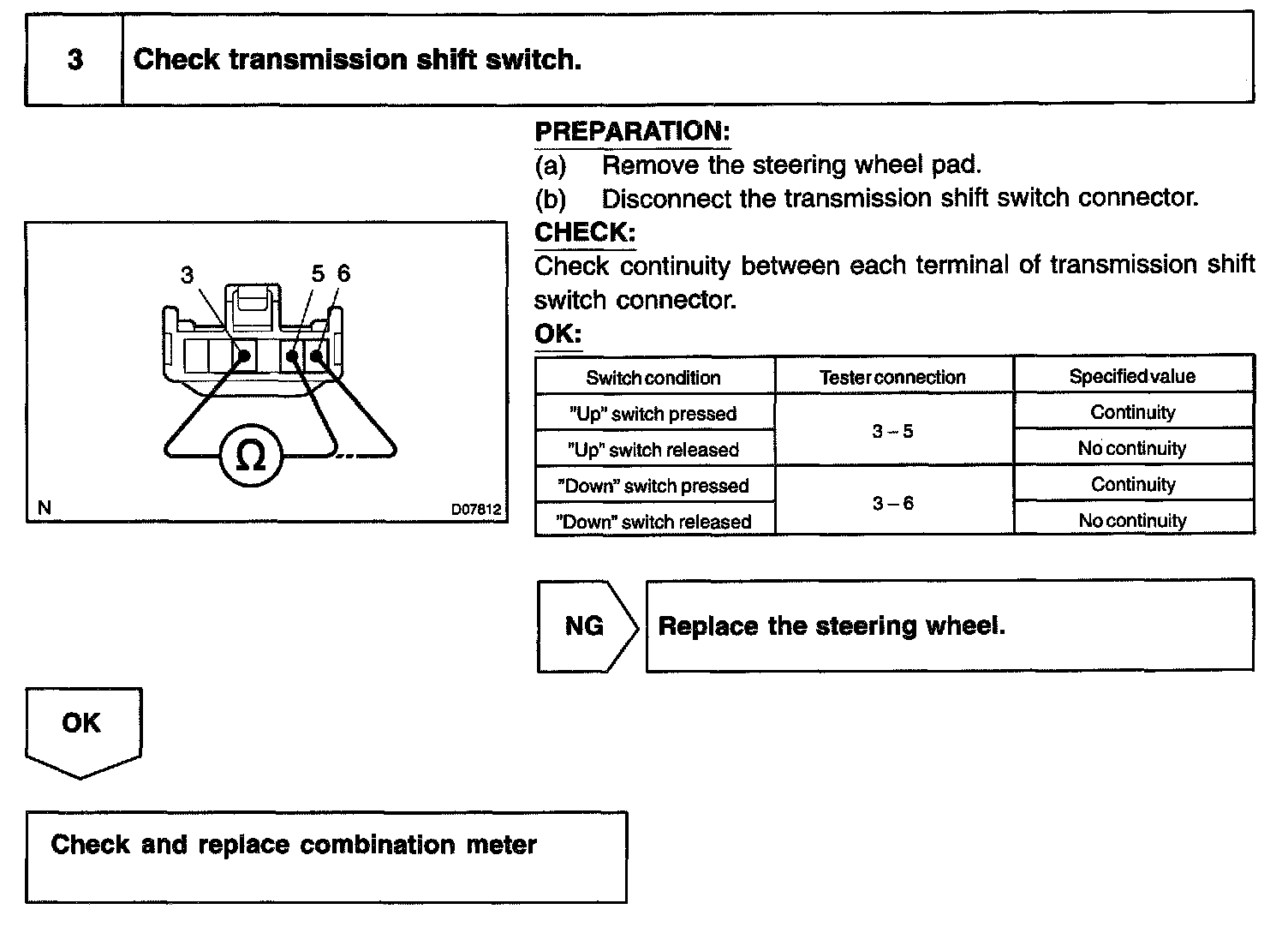

Step 3:
INSPECTION PROCEDURE
