Fuse Block: Locations

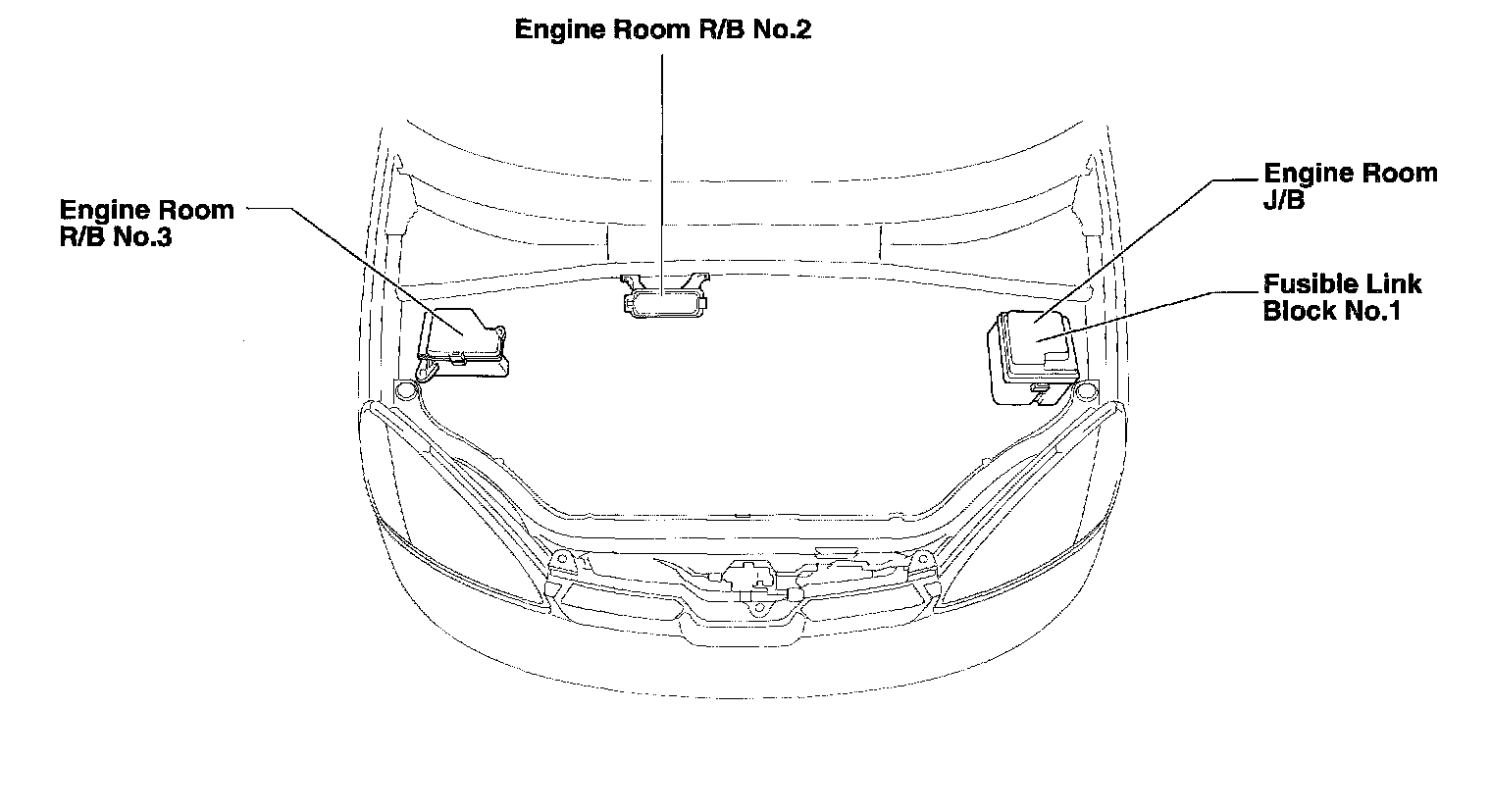

Fusible Link Block No.1:
Fusible Link Block No.2:
Engine Room R/B No.2:

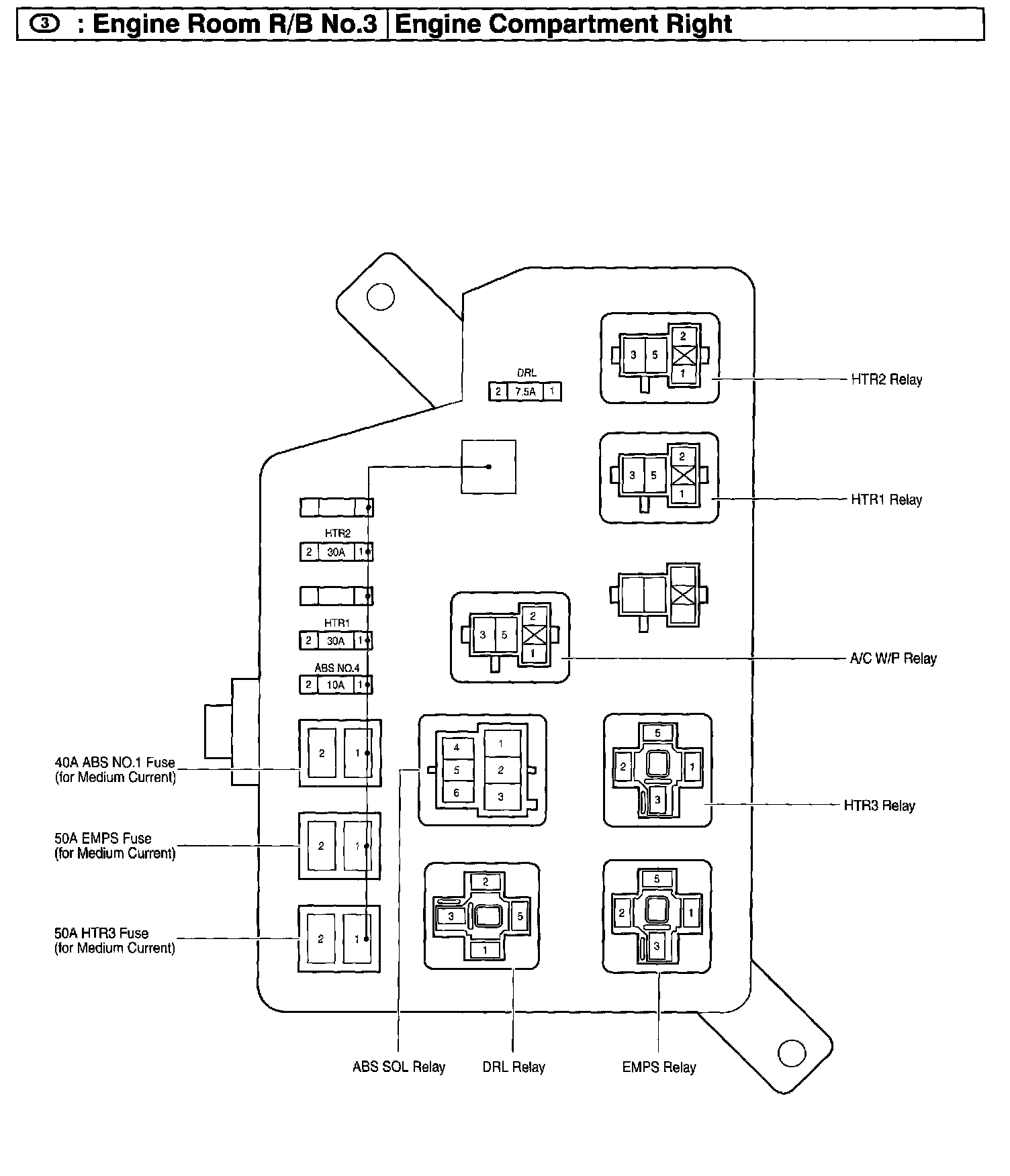

Engine Room R/B No.3:
Engine Room J/B Part 1:

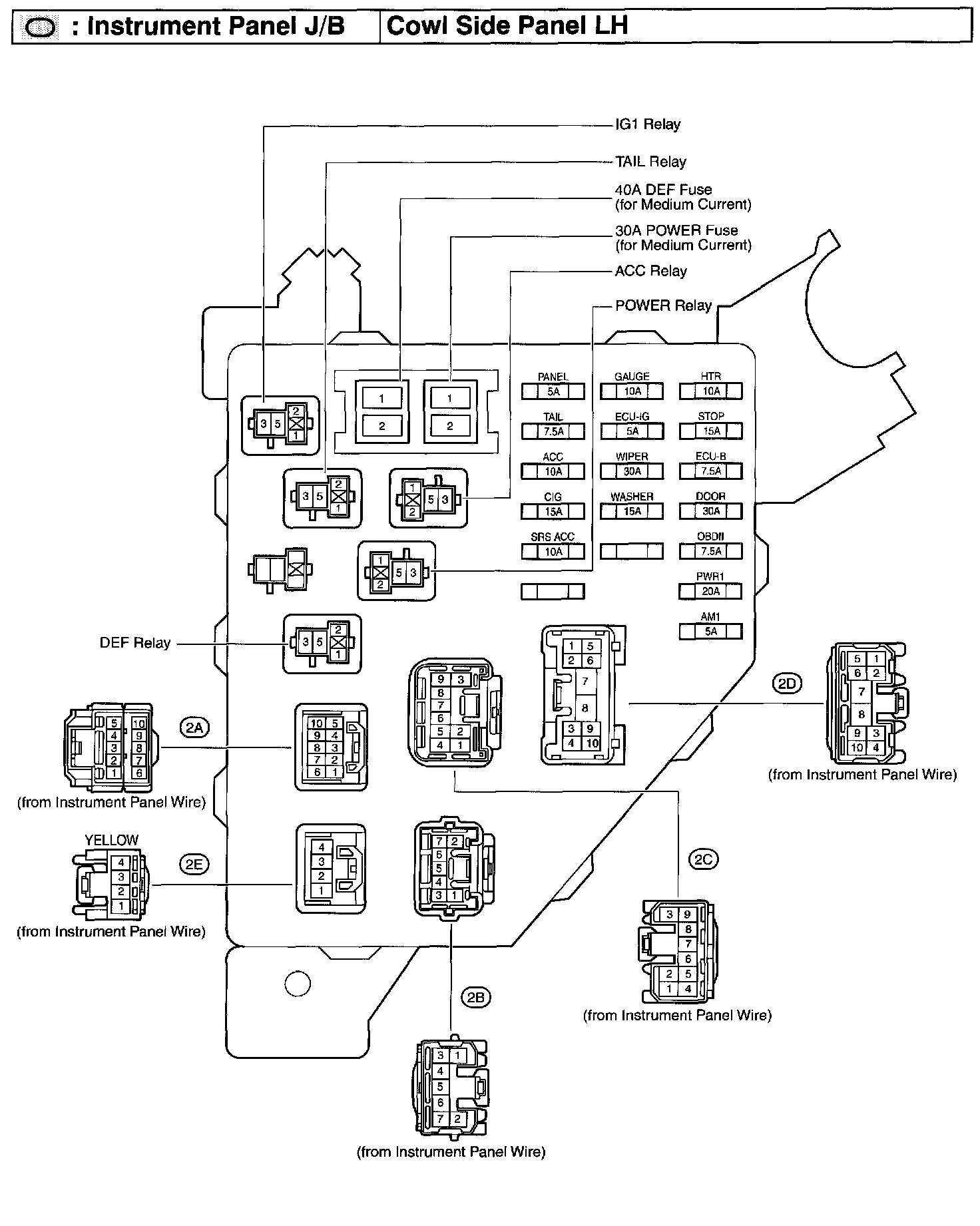

Instrument Panel J/B Part 1:
Details
Engine Compartment:
Instrument Panel:
Body:
Locations
