Ground Locations

Engine Compartment:

Ground Location
EA Engine Block
EB Engine Block
EC Engine Compartment Left

Connector Location
EA1 Engine Wire and Engine No.4 Wire (Near the Radiator Fan)

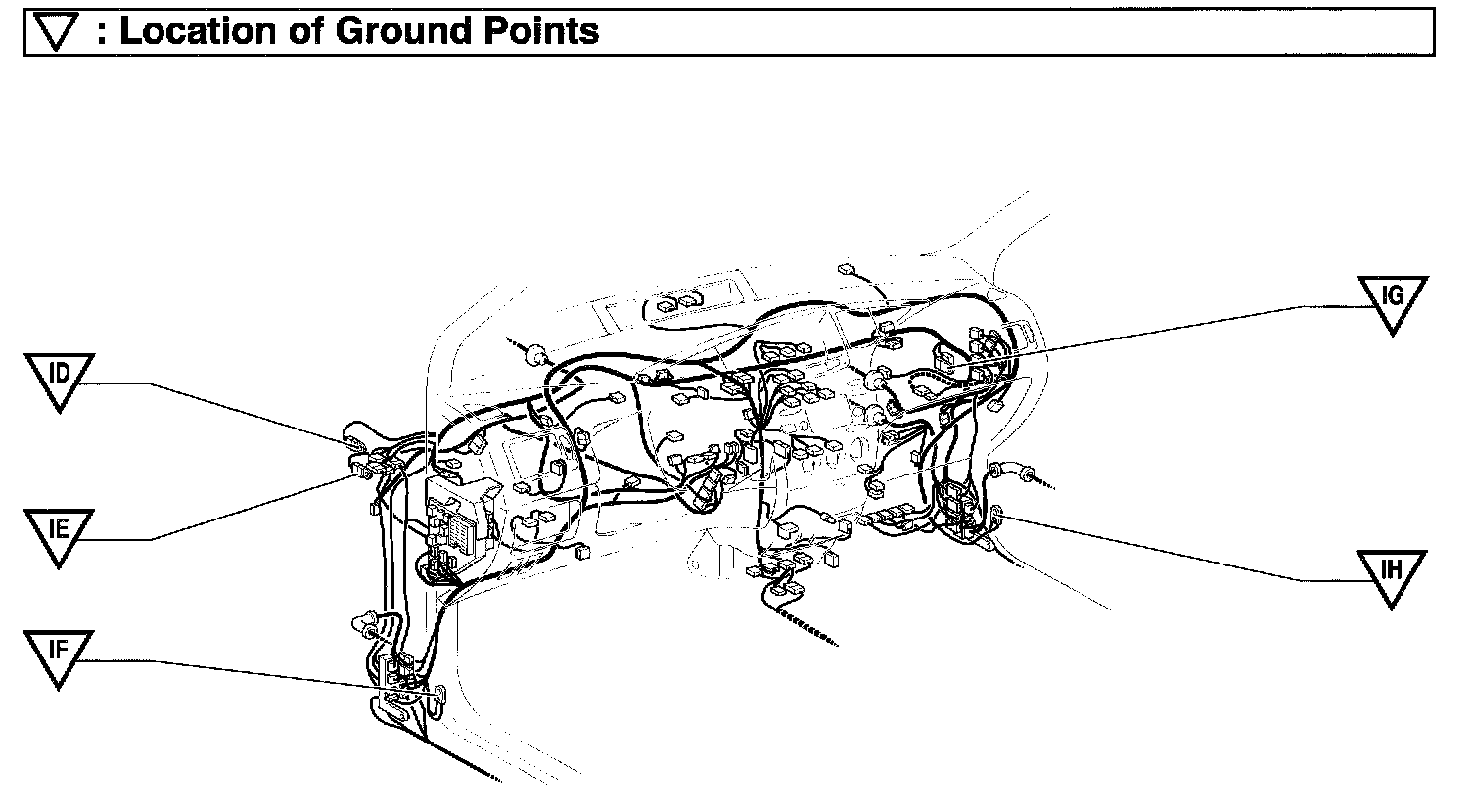

Instrument Panel:

Ground Location
ID Cowl Side Panel LH
IE Cowl Side Panel LH
IF Left Kick Panel
IG Cowl Side Panel RH
IH Right Kick Panel

Body:

Ground Location
BI Left Side of Rear Pillar
BJ Right Side of Rear Pillar
BK Back Panel Center
BL Near the Fuel Tank

Connector Location
BA1 4 Rear Door No.2 Wire and Floor Wire (Center Pillar LH)
BB1 Rear Door No.1 Wire and Cowl Wire (Center Pillar RH)
BC1 Cowl Wire and Fuel Tank Wire (Near the Fuel Tank)
