Variable Valve Timing Actuator: Service and Repair

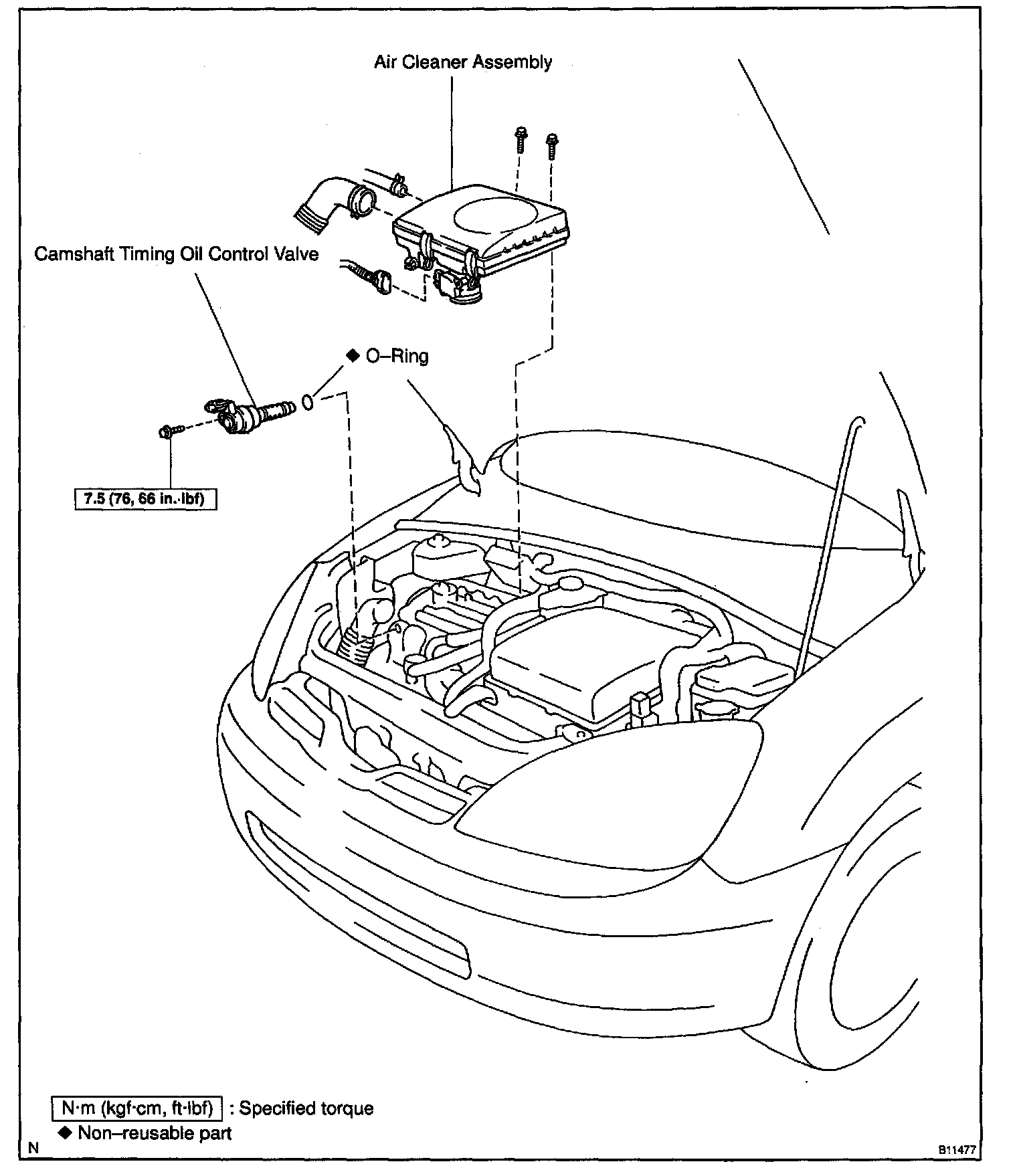

Camshaft Timing Oil Control Valve:






CAMSHAFT TIMING CONTROL VALVE

REMOVAL




1. REMOVE AIR CLEANER ASSEMBLY




2. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE
a. Disconnect the oil control valve connector.
b. Remove the bolt, oil control valve and O-ring.

INSTALLATION




1. INSTALL CAMSHAFT TIMING OIL CONTROL VALVE
a. Install the bolt, oil control valve and O-ring.

Torque: 7.5 N.m (76 kgf.cm, 66 in.lbf)

b. Connect the oil control valve connector.




2. INSTALL AIR CLEANER ASSEMBLY
