Fuse: Application and ID

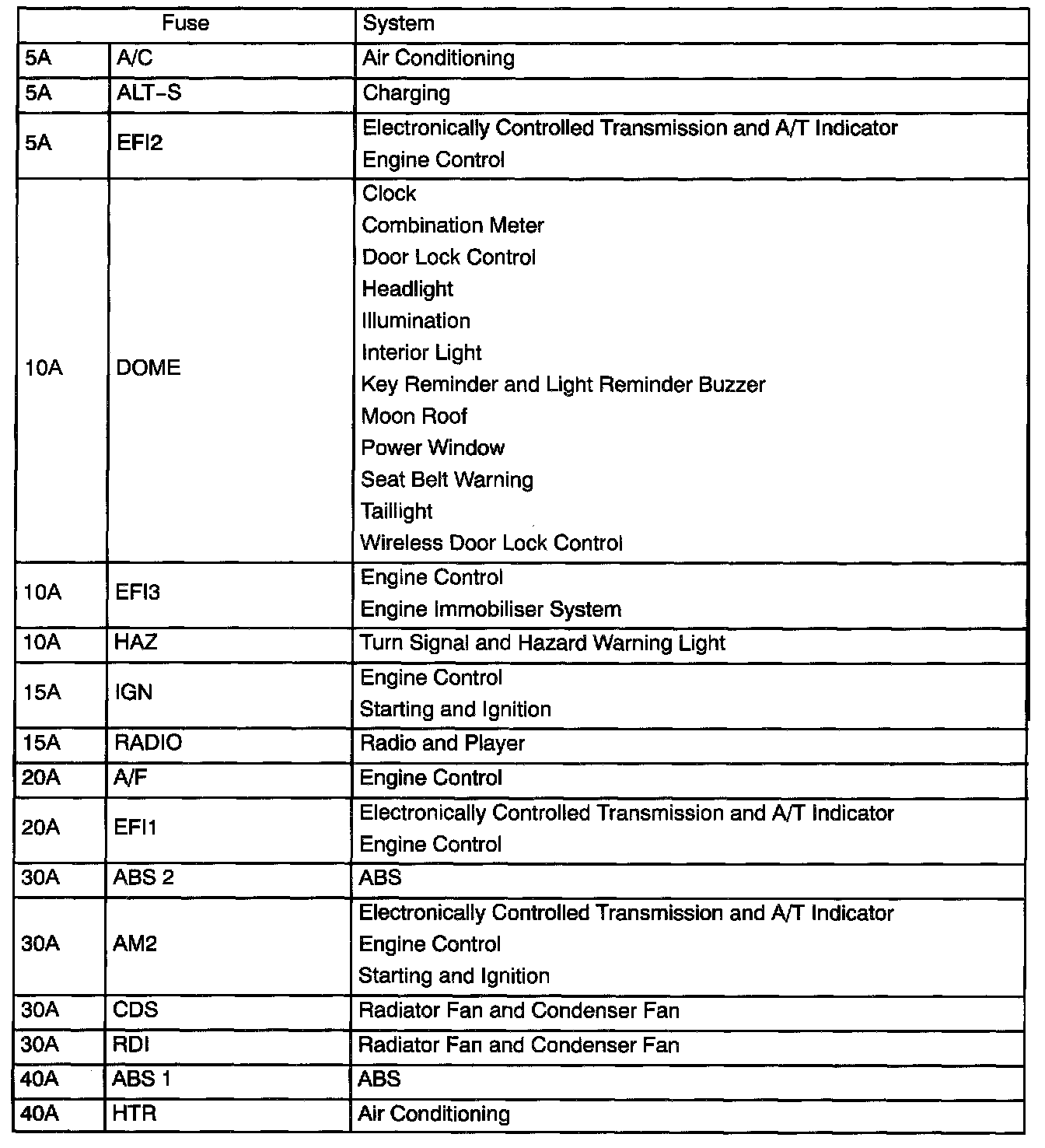

Engine Room R/B Fuse Application:

Engine Room J/B Fuse Application:

Fusible Link Block (F11, F12, F13) Fuse Application:

Engine Room Fuse Details

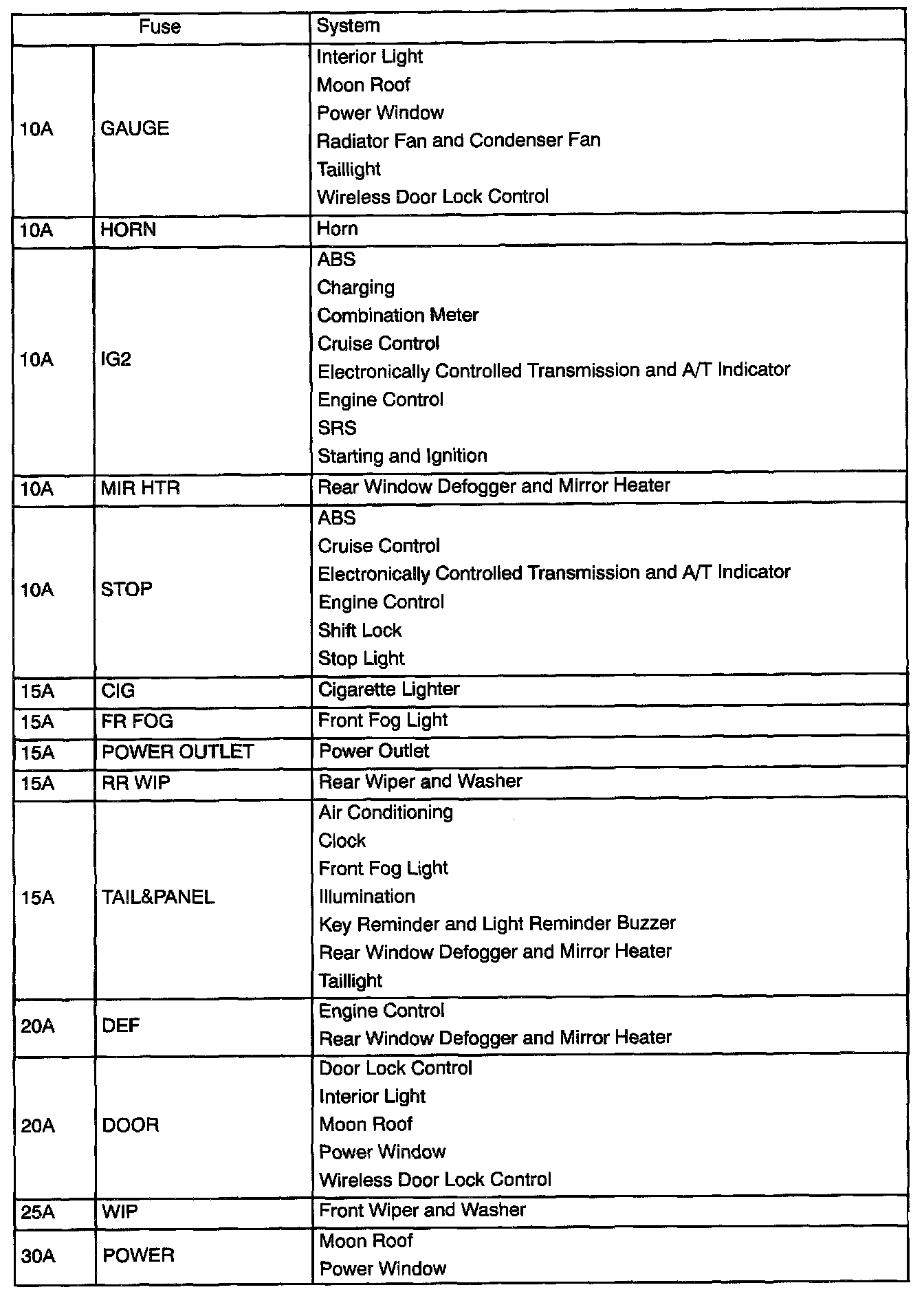

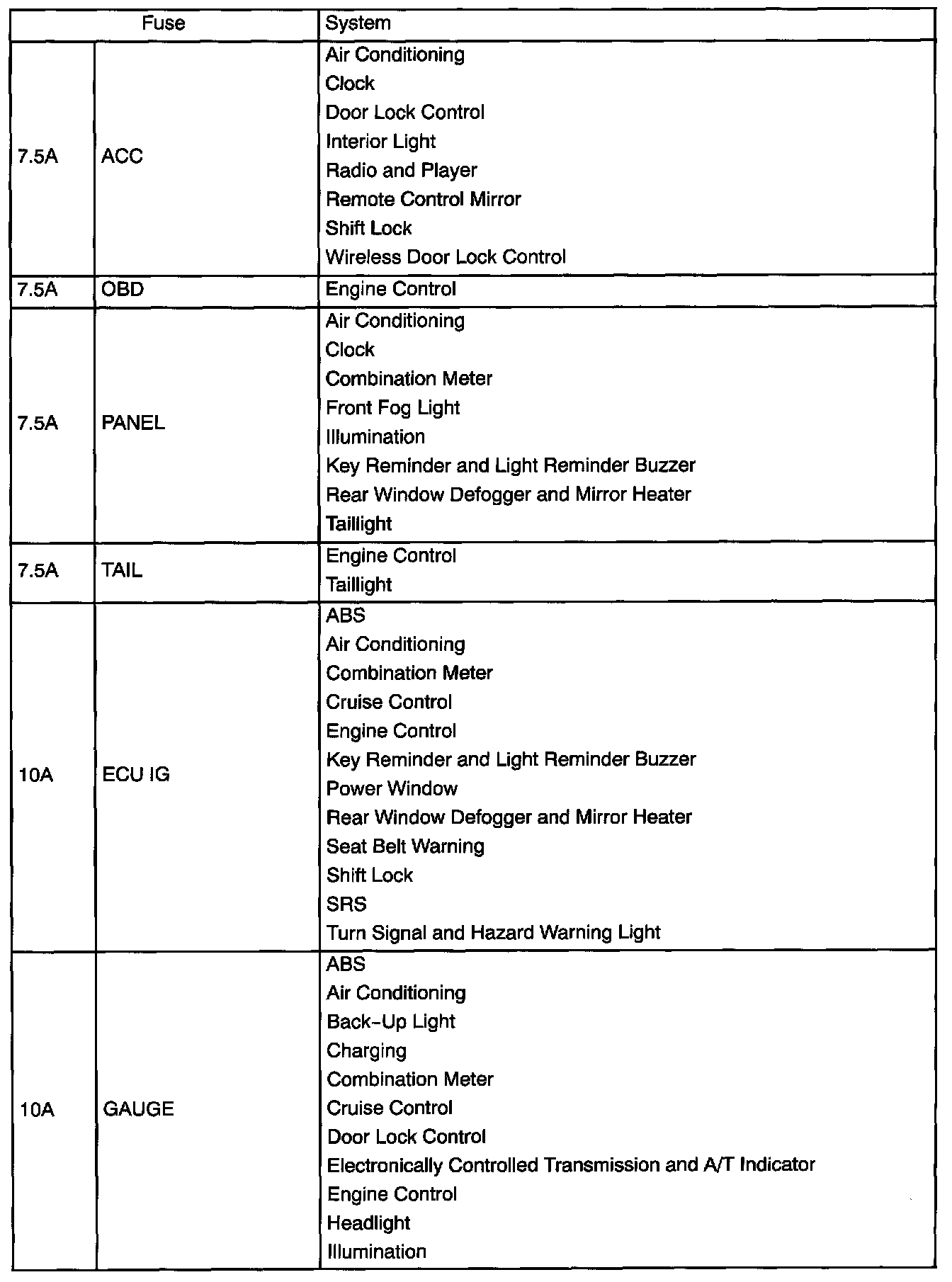

Driver Side J/B Fuse Application Part 1:

Driver Side J/B Fuse Application Part 2:

Driver Side J/B Fuse Application Part 3:

Interior Panel Fuse Details
