Connector Locations

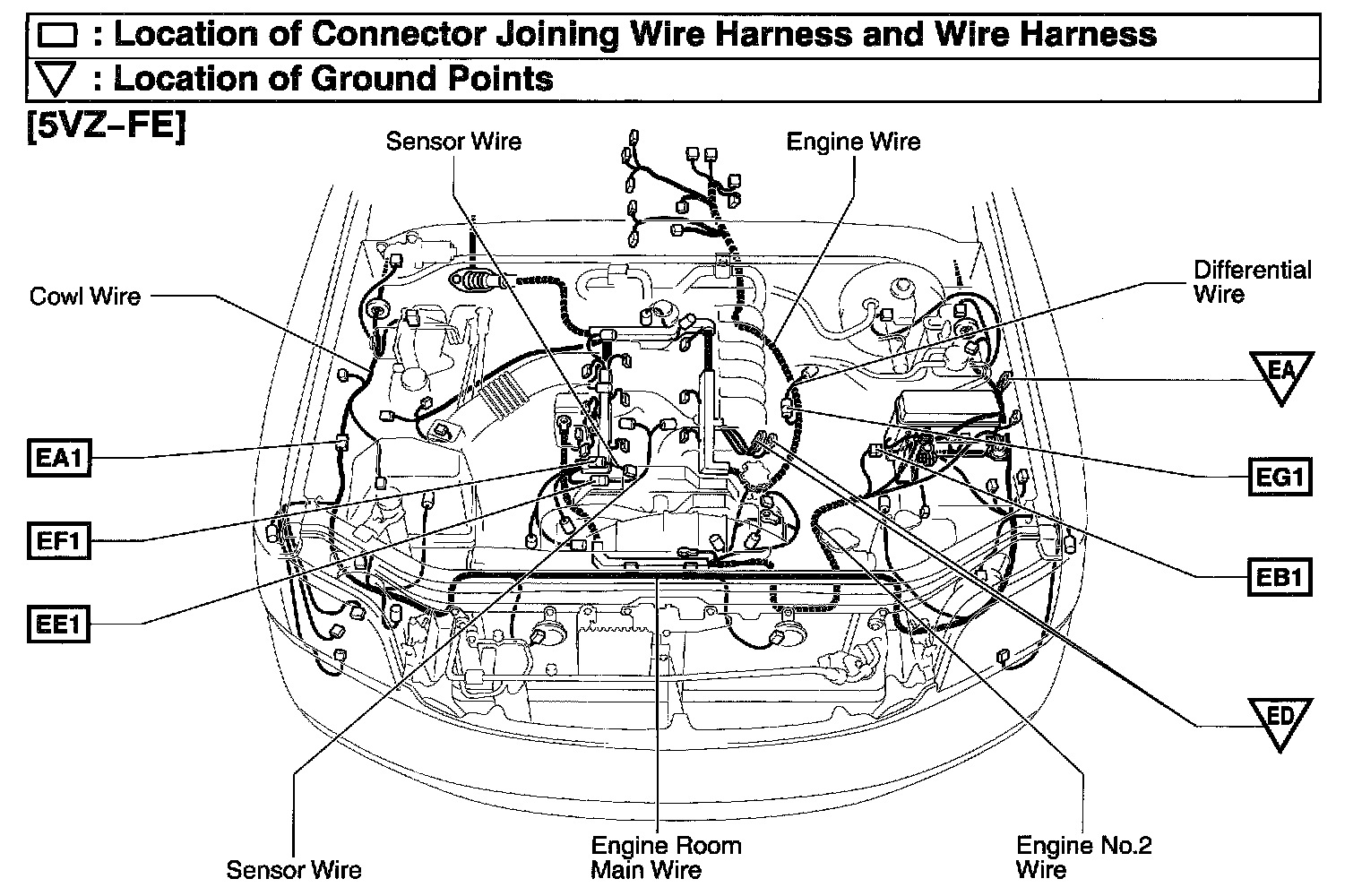

Engine Compartment (5VZ-FE):

Ground Location
EA Front Left Fender
ED Intake Manifold Left

Connector Location
EA1 Cowl Wire and Engine Room Main Wire (Right Fender)
EB1 Engine No.2 Wire and Engine Room Main Wire (Under the Engine Room R/B)
EE1 Sensor Wire and Engine Wire (Over the Cylinder Head)
EF1 Engine Wire and Sensor Wire (Over the Cylinder Head)
EG1 Engine Wire and Differential Wire (Front Differential Upper Side)

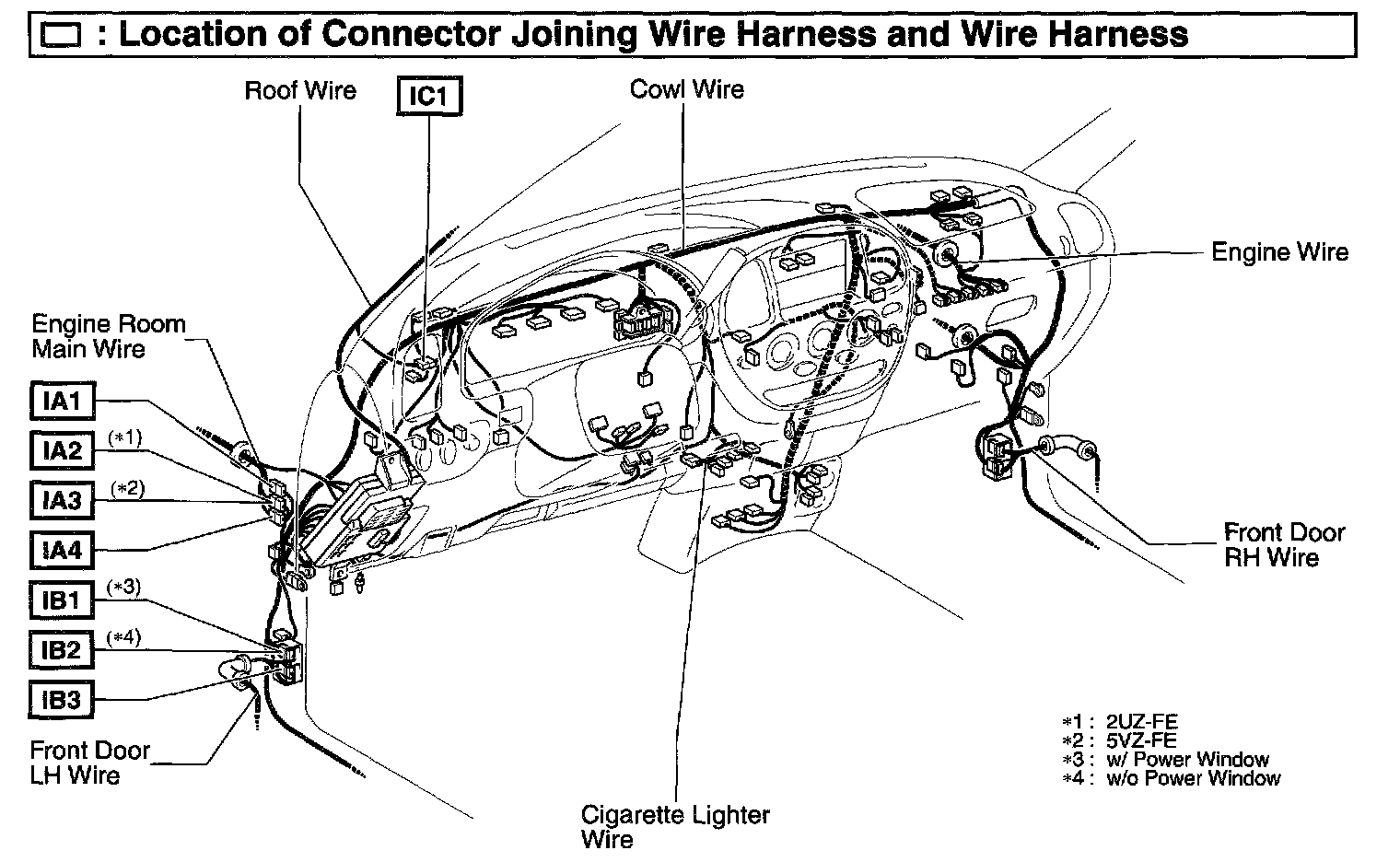

Instrument Panel:

Connector Location
IA1 Engine Room Main Wire and Cowl Wire (Left Kick Panel)
IA2 Engine Room Main Wire and Cowl Wire (Left Kick Panel)
IA3 Engine Room Main Wire and Cowl Wire (Left Kick Panel)
IA4 Engine Room Main Wire and Cowl Wire (Left Kick Panel)
IB1 Front Door LH Wire and Cowl Wire (Left Kick Panel)
IB2 Front Door LH Wire and Cowl Wire (Left Kick Panel)
IB3 Front Door LH Wire and Cowl Wire (Left Kick Panel)
IC1 Cowl Wire and Roof Wire (Left Side of Instrument Panel)

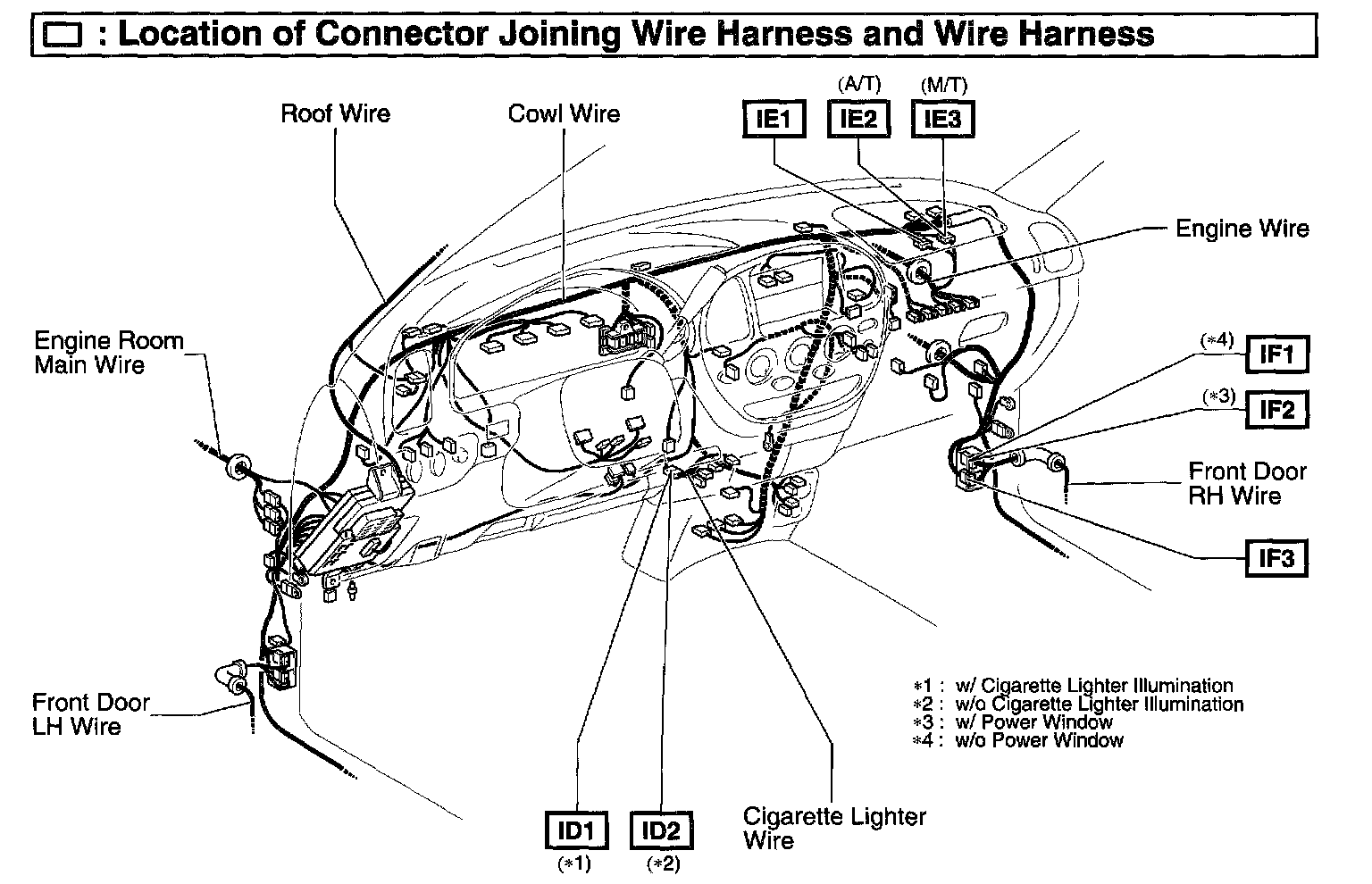

Instrument Panel:

Connector Location
ID1 Cigarette Lighter Wire and Cowl Wire (Instrument Panel Brace LH)
ID2 Cigarette Lighter Wire and Cowl Wire (Instrument Panel Brace LH)
IE1 Engine Wire and Cowl Wire (Right Side of Instrument Panel)
IE2 Engine Wire and Cowl Wire (Right Side of Instrument Panel)
IE3 Engine Wire and Cowl Wire (Right Side of Instrument Panel)
IF1 Front Door RH Wire and Cowl Wire (Right Kick Panel)
IF2 Front Door RH Wire and Cowl Wire (Right Kick Panel)
IF3 Front Door RH Wire and Cowl Wire (Right Kick Panel)

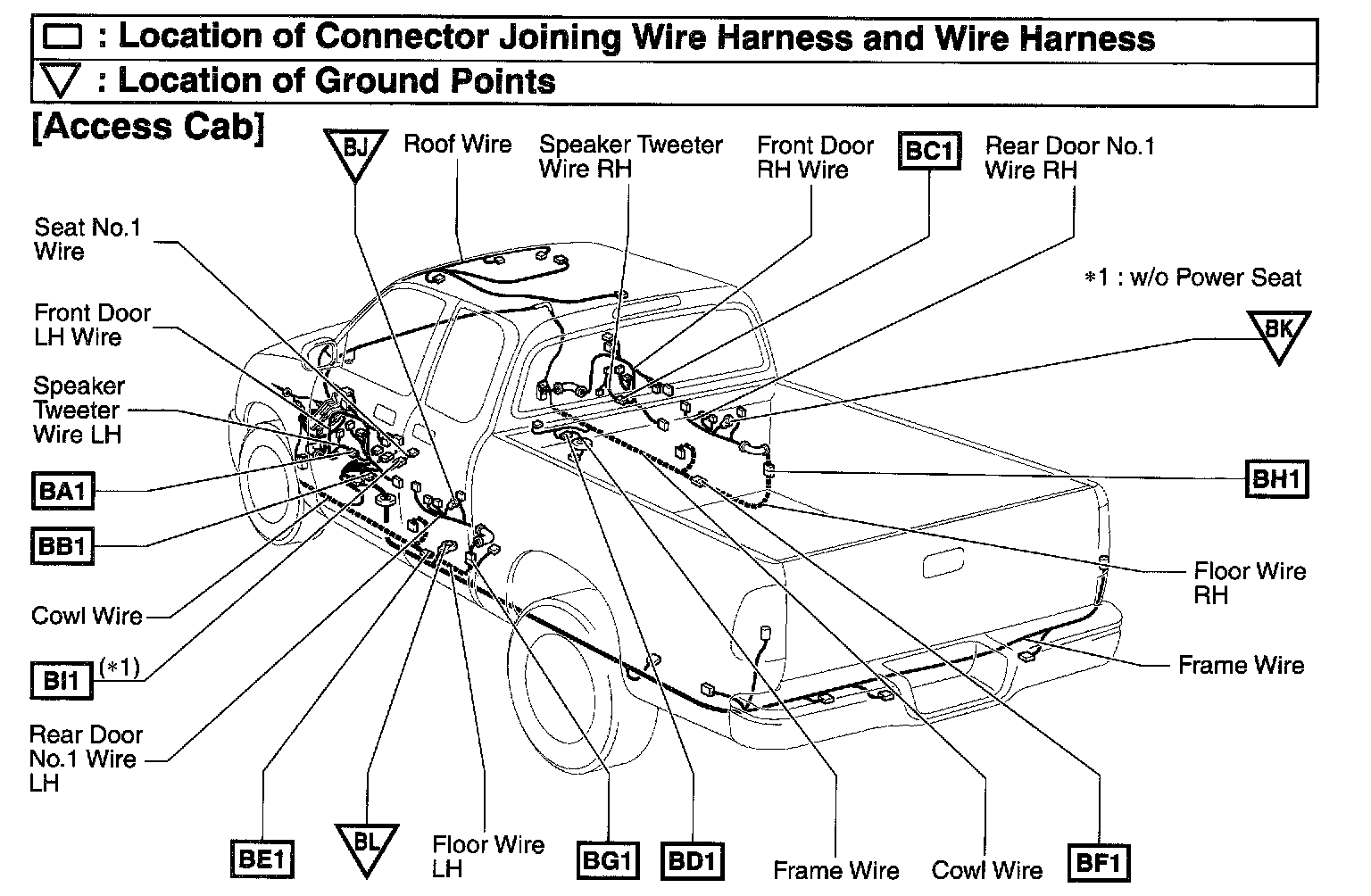

Body (Access Cab):

Ground Location
BJ Inside of Rear Door LH
BK Inside of Rear Door RH
BL Surrounding of the Front of the Fuel Tank

Connector Location
BA1 Front Door LH Wire and Speaker Tweeter Wire LH (Inside of Front Door LH)
BB1 Frame Wire and Cowl Wire (Under the Driver's Seat)
BC1 Front Door RH Wire and Speaker Tweeter Wire RH (Inside of Front Door RH)
BD1 Frame Wire and Cowl Wire (Under the Front Passenger's Seat)
BE1 Floor Wire LH and Cowl Wire (Center of Left Rocker Panel)
BF1 Floor Wire RH and Cowl Wire (Center of Right Rocker Panel)
BG1 Floor Wire LH and Rear Door No.1 Wire LH (Under the Left Quarter Panel)
BH1 Floor Wire RH and Rear Door No.1 Wire RH (Under the Right Quarter Panel)
BI1 Cowl Wire and Seat No.1 Wire (Under the Driver's Seat)

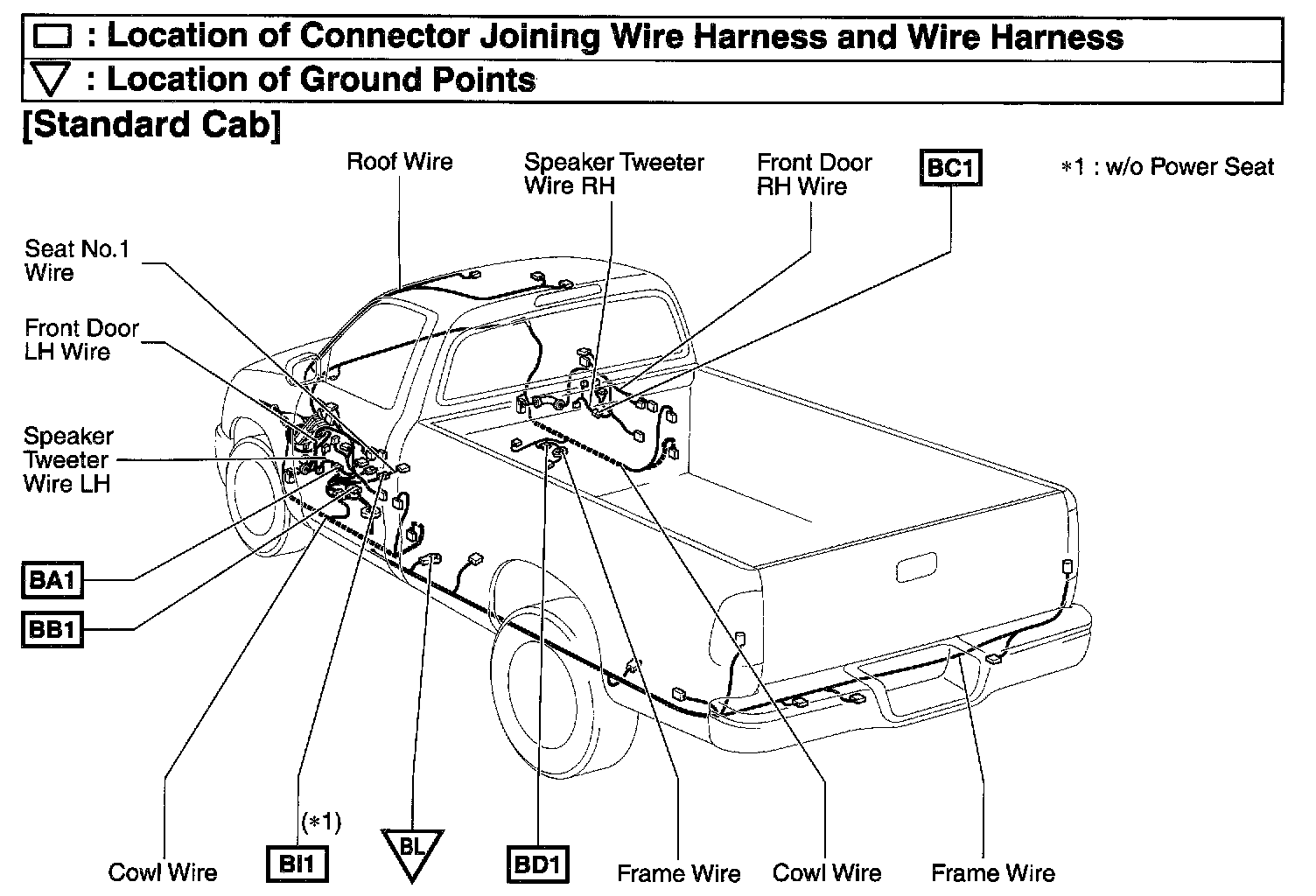

Body (Standard Cab):

Ground Location
BL Surrounding the Front of the Fuel Tank

Connector Location
BA1 Front Door LH Wire and Speaker Tweeter Wire LH (Inside of Front Door LH)
BB1 Frame Wire and Cowl Wire (Under the Driver's Seat)
BC1 Front Door RH Wire and Speaker Tweeter Wire RH (Inside of Front Door RH)
BD1 Frame Wire and Cowl Wire (Under the Front Passenger's Seat)
BI1 Cowl Wire and Seat No.1 Wire (Under the Driver's Seat)

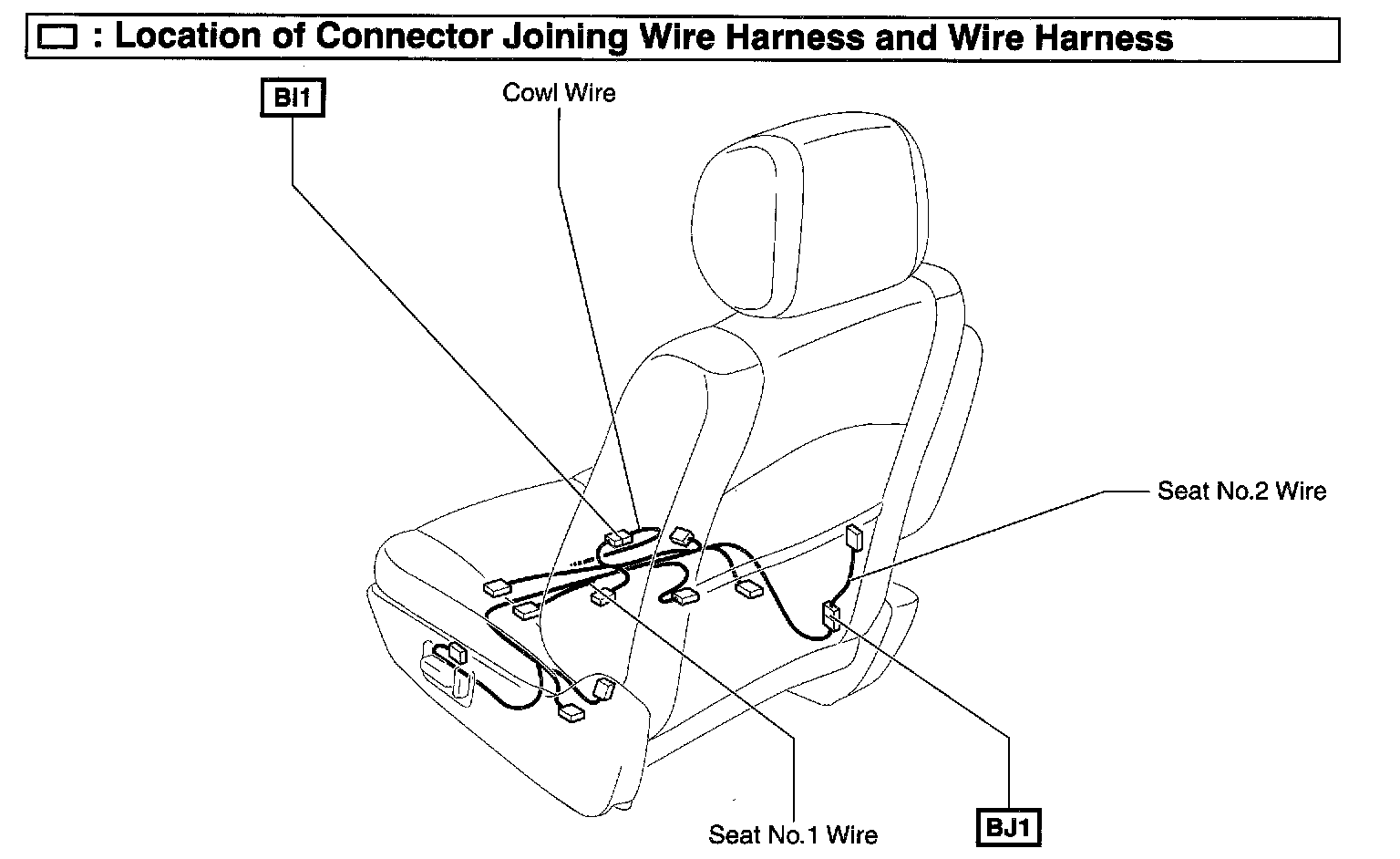

Body:

Connector Location
BI1 Cowl Wire and Seat No.1 Wire (Under the Driver's Seat)
BJ1 Seat No.1 Wire and Seat No.2 Wire (Under the Driver's Seat)
