Theft Deterrent System

TERMINALS OF ECU

Terminals Of ECU/Pinouts:

1. CHECK THEFT WARNING ECU ASSY (THEFT DETERRENT ECU)

a. Disconnect the T5 ECU connector, and check the voltage or continuity between each terminal of the wire harness side connector.

Standard:

If the result is not as specified, there may be a malfunction on the wire harness side.

b. Reconnect the T5 ECU connector, and check the voltage between each terminal of the connector.

Standard:

If the result is not as specified, the ECU may malfunction.

Terminals Of ECU/Pinouts:

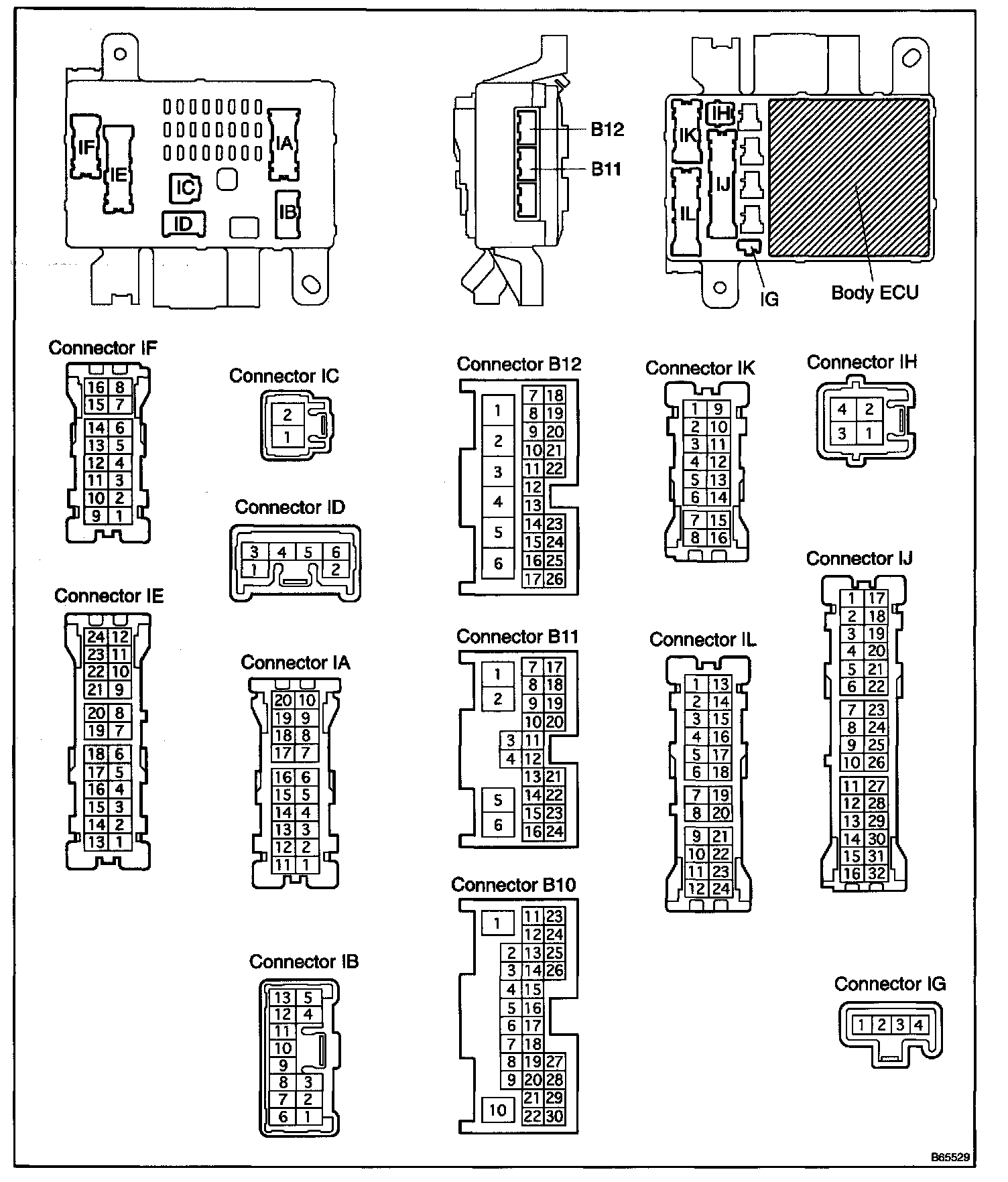

2. CHECK INSTRUMENT PANEL JUNCTION BLOCK ASSY (BODY ECU)
a. Disconnect the the J/B connector, and check the voltage or continuity between each terminal of the wire harness side connector.

Standard:

If the result is not as specified, there may be a malfunction on the wire harness side.

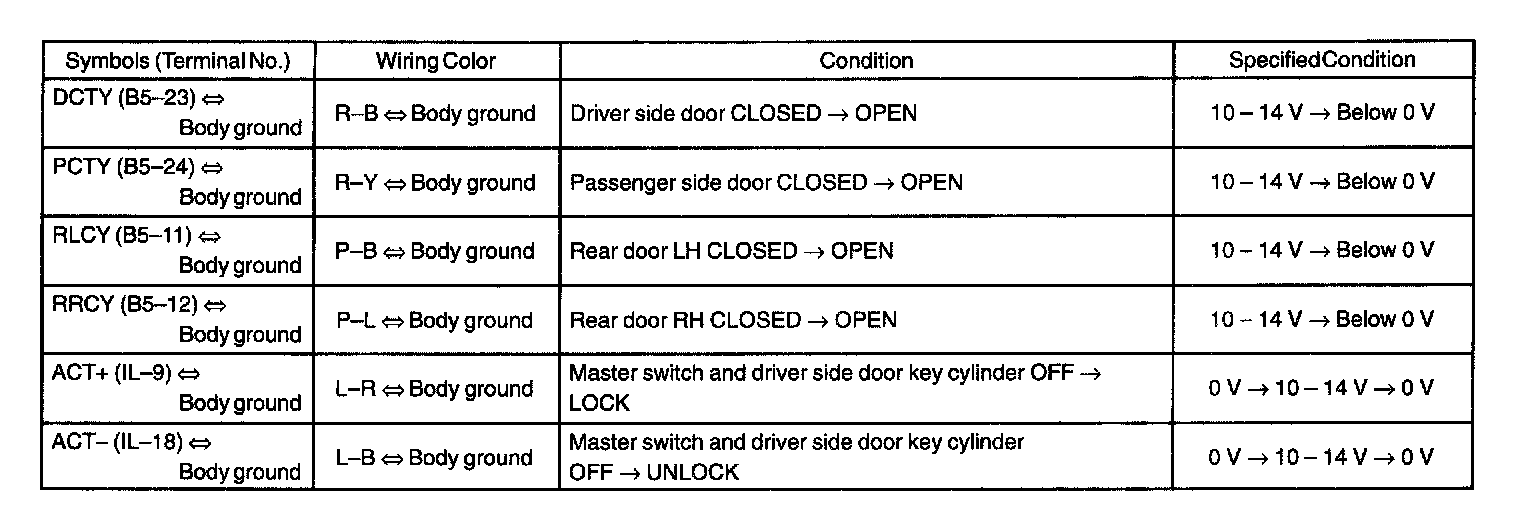

b. Reconnect the J/B connector, and check the voltage between each terminal of the connector.

Standard:

If the result is not as specified, the ECU may malfunction.

Terminals Of ECU/Pinouts:

3. INSPECT MULTIPLEX NETWORK DOOR ECU BACK (BACK DOOR ECU)
a. Disconnect the B8 ECU connector, and check the voltage of each terminal of the wire harness side connector.

Standard:

If the result is not as specified, there may be a malfunction on the wire harness side.

b. Reconnect the B8 ECU connector, and check the voltage of each terminal of the connector.

Standard:

If the result is not as specified, the ECU may malfunction.
