Wireless Control Function Doesn't Operate

Only Wireless Control Function Does Not Operate (Prepare New or Normal Transmitter of the Same Type Vehicle)

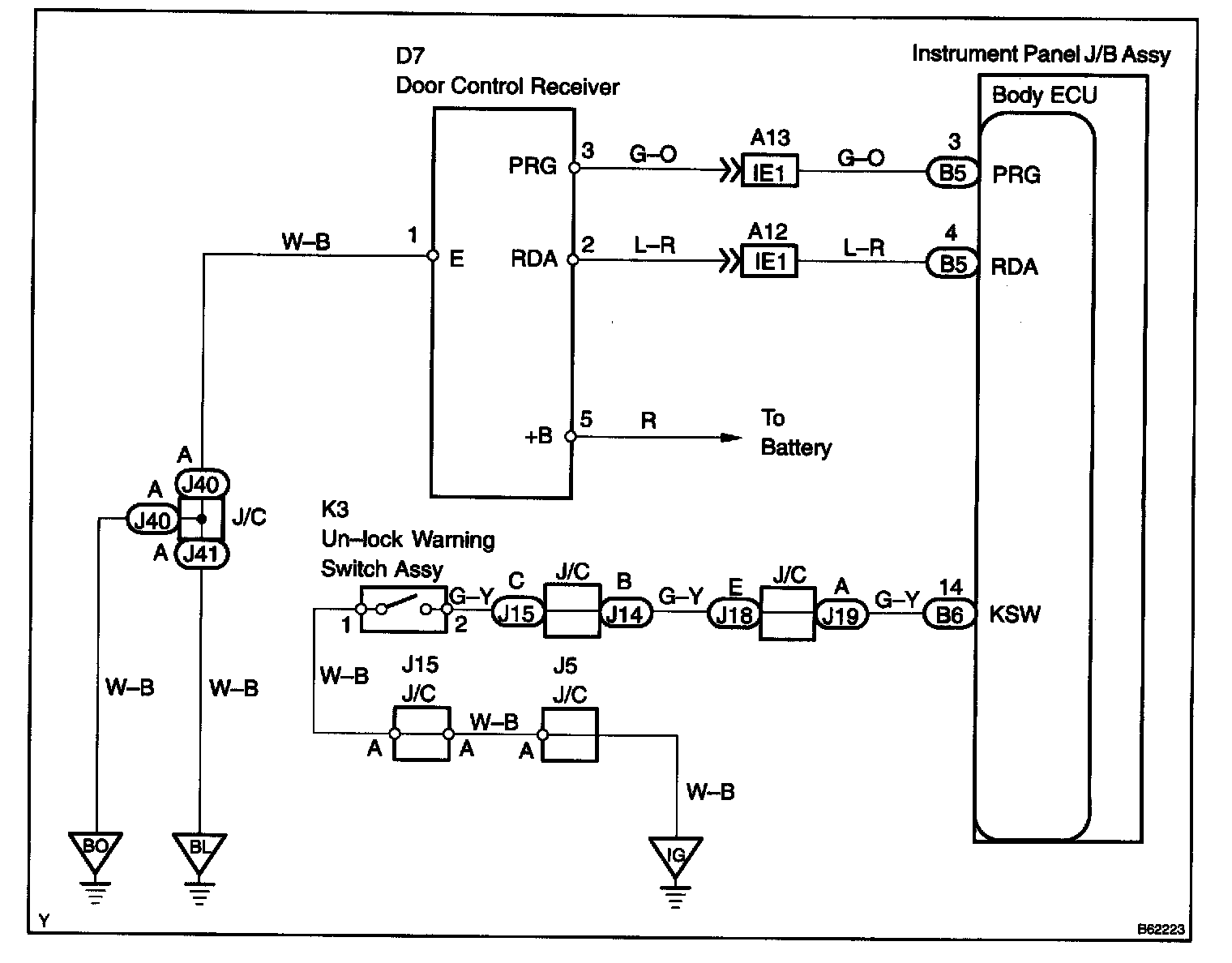

Wiring Diagram:

CIRCUIT DESCRIPTION
The door control receiver receives a signal from the transmitter and sends this signal to the body ECU. The body ECU sends a door LOCK/UNLOCK signal to each door lock motor to control it.

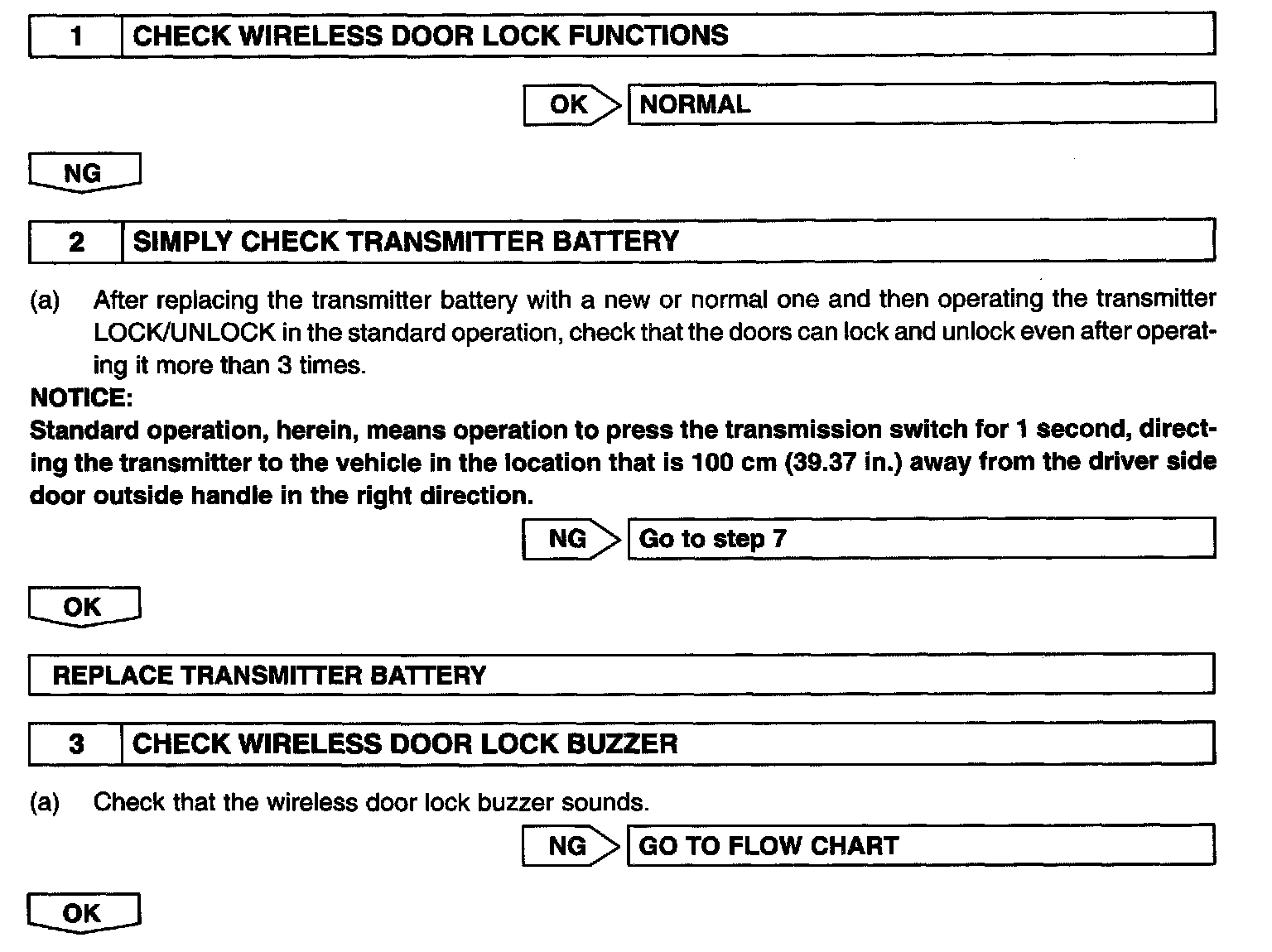

Step 1 - 3:

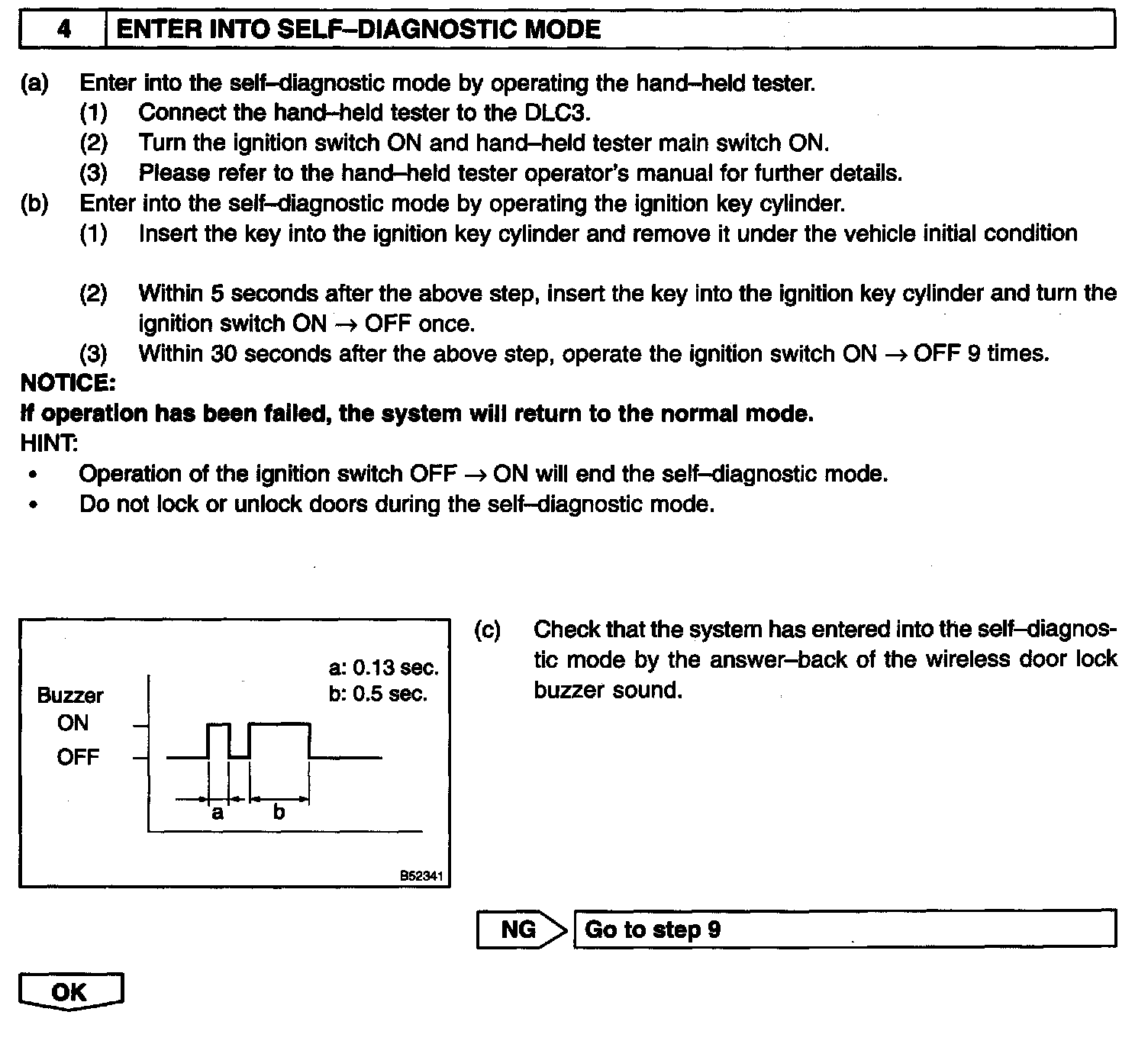

Step 4:

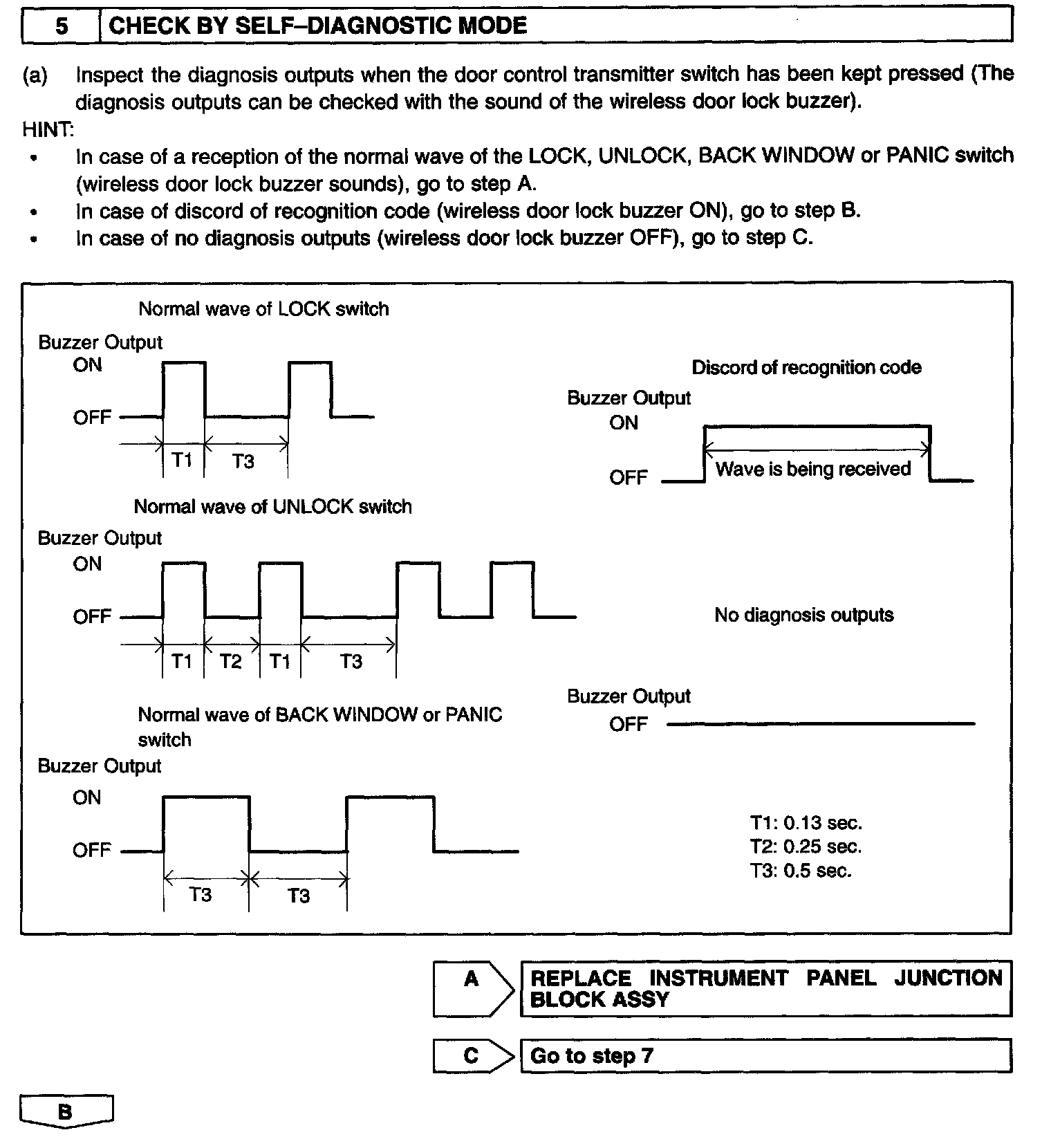

Step 5:

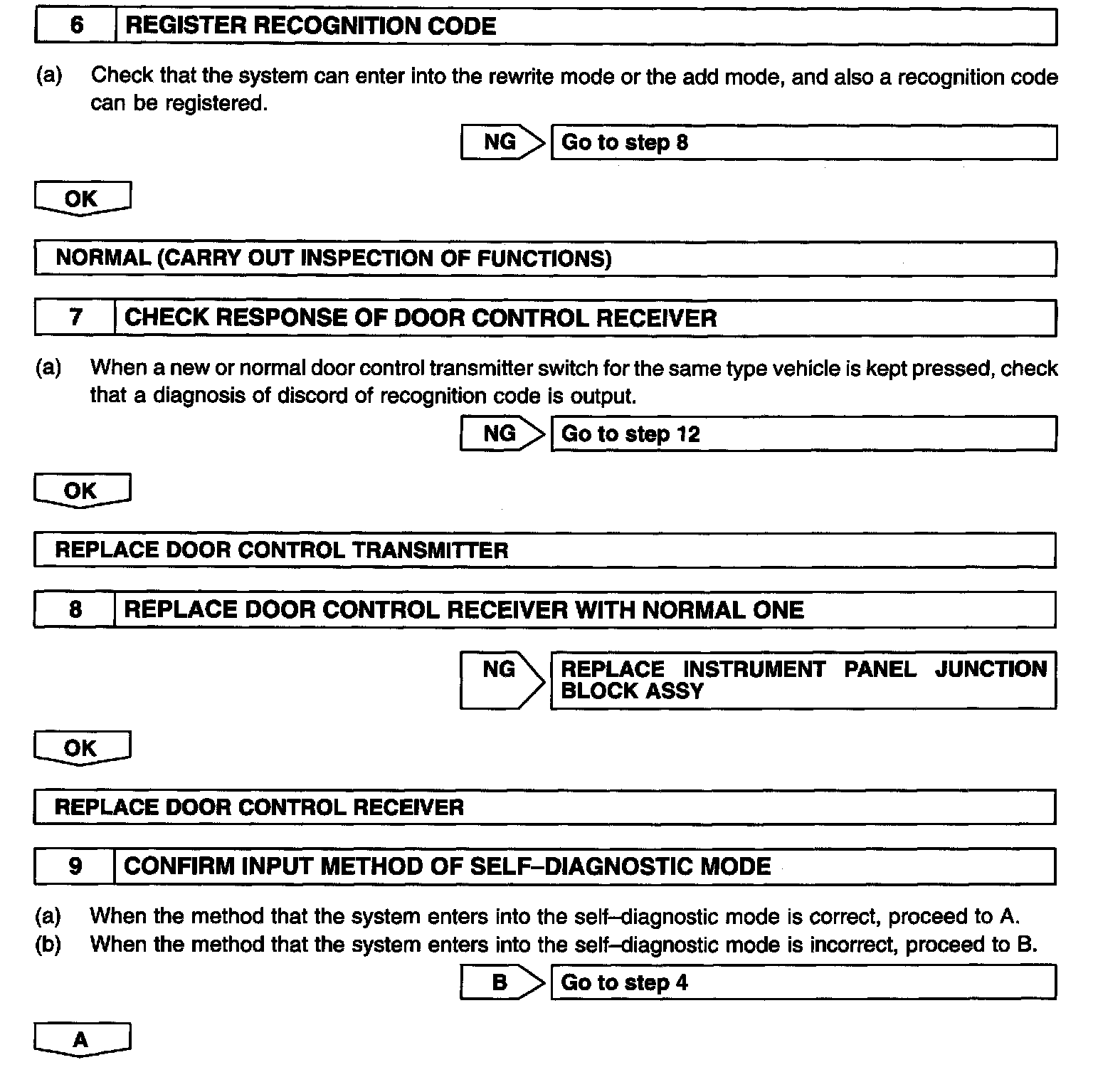

Step 6 - 9:

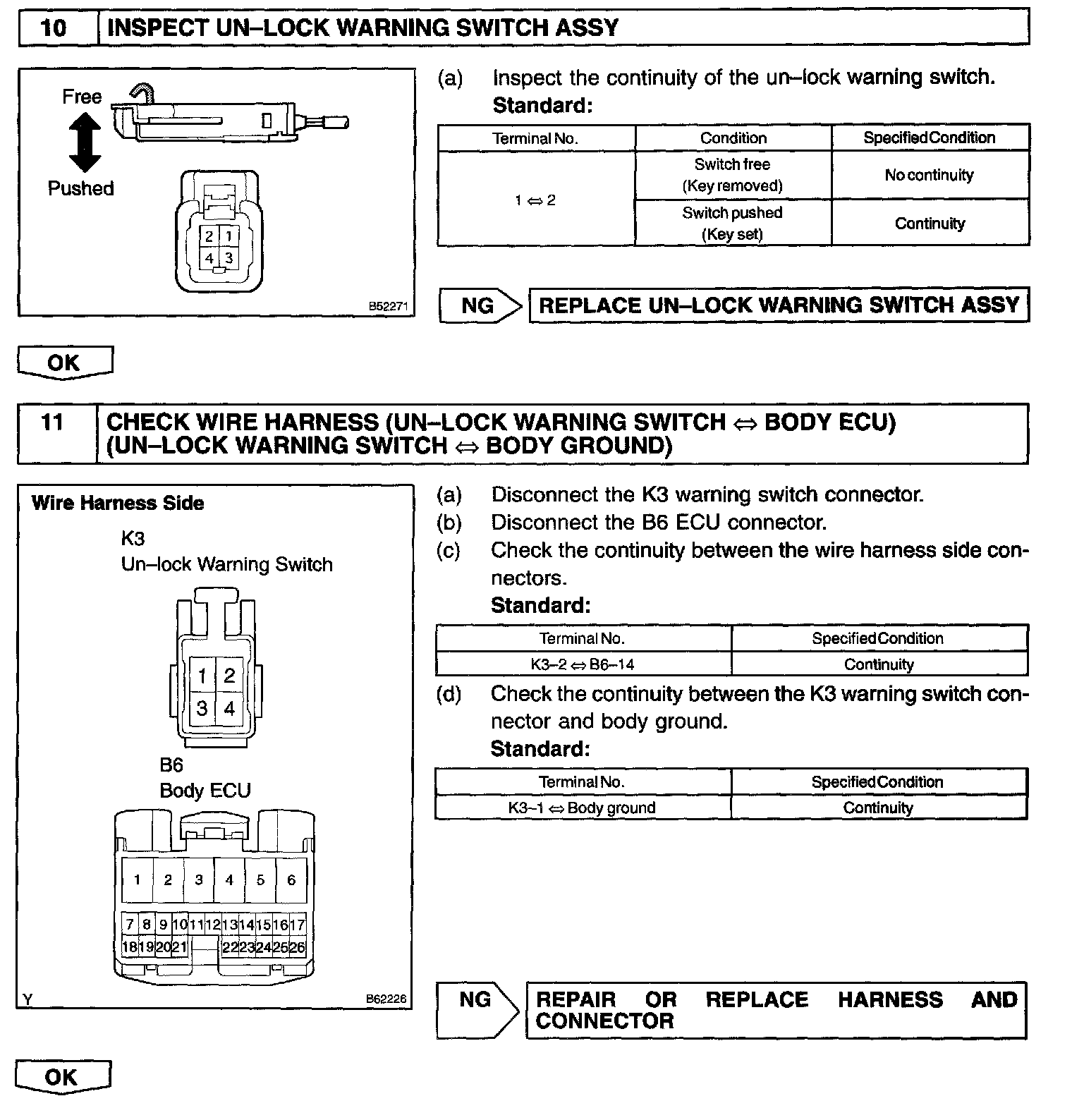

Step 10 - 11:

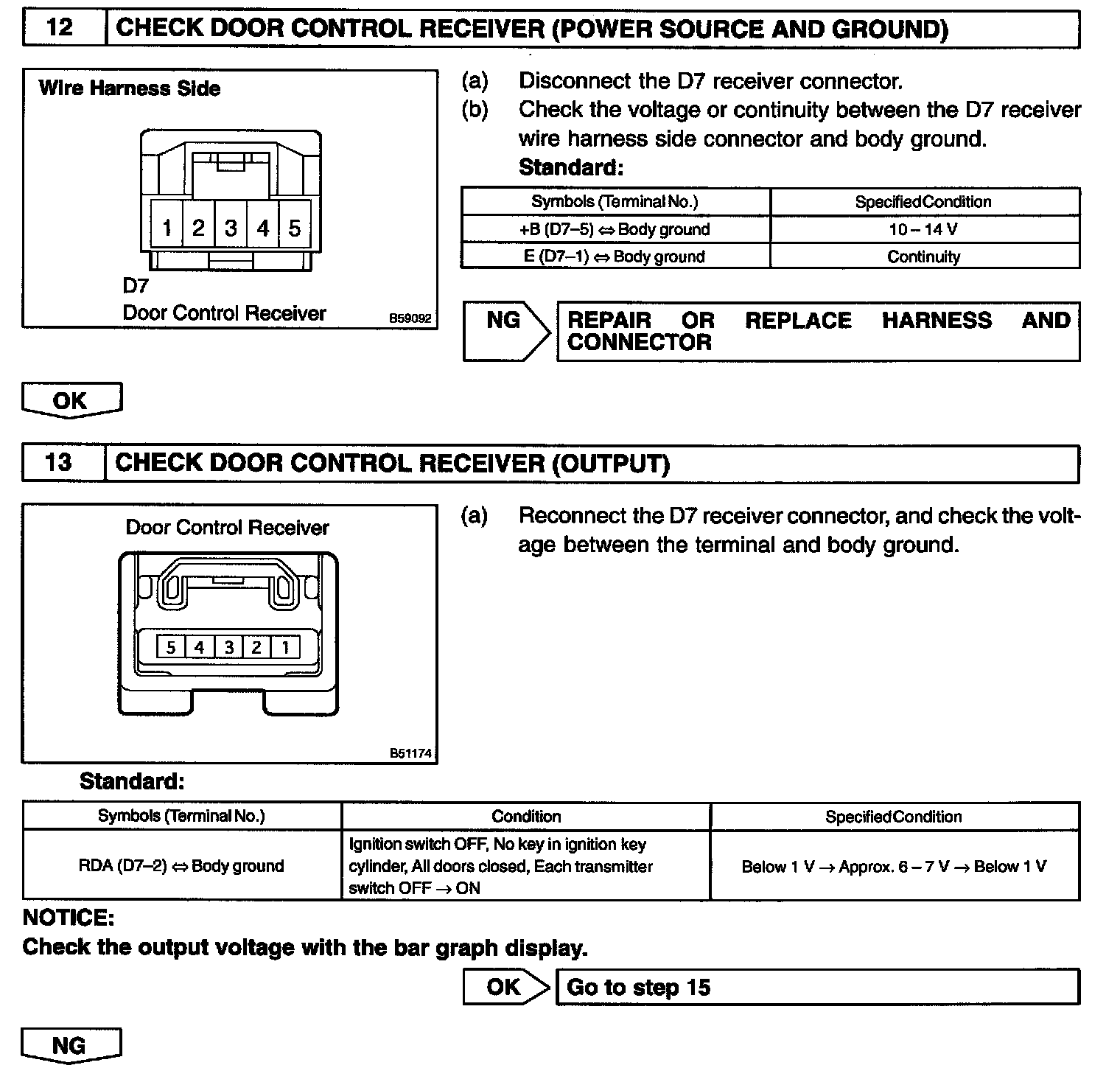

Step 12 - 13:

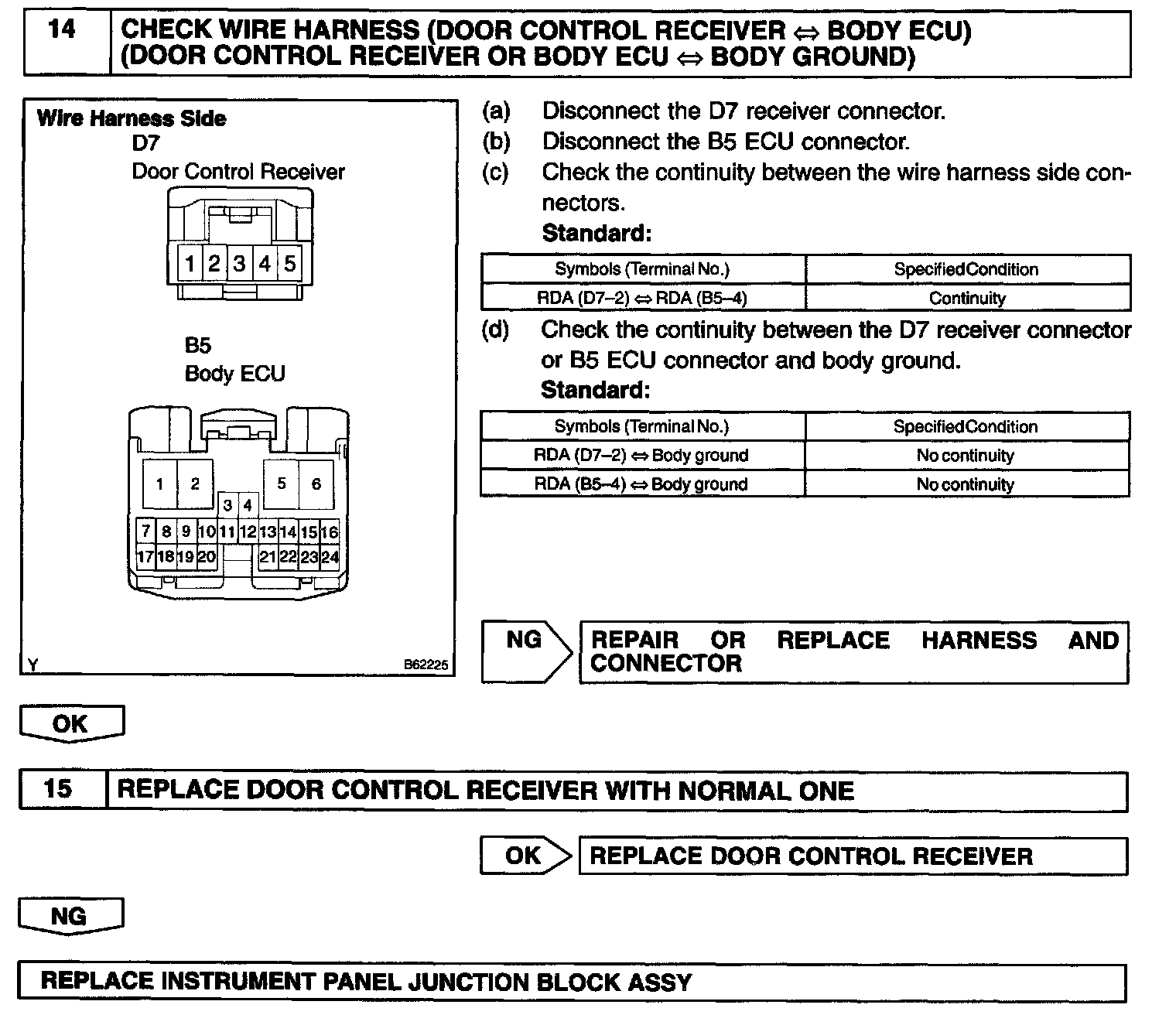

Step 14 - 15:

INSPECTION PROCEDURE

HINT: The switch described in this text is a switch for transmitting signals which is built in the door control transmitter.
