Active Test

ACTIVE TEST

ACTIVE TEST:

HINT: Performing the ACTIVE TEST using the hand-held tester allows the relay, VSV, actuator and so on to operate without parts removal. Performing the ACTIVE TEST as a first step of troubleshooting is one of the method to shorten the labor time.

It is possible to display the DATA LIST during the ACTIVE TEST.

a. Connect the hand-held tester to DLC3.
b. Turn the ignition switch to ON.

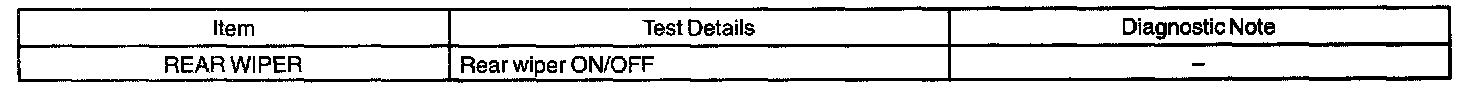

c. According to the display on the tester, perform the "ACTIVE TEST"
