Accelerator Pedal Position Sensor: Testing and Inspection
ACCELERATOR PEDAL POSITION SENSORWhen turning
ignition switch ON, check that the voltage of the
throttle position sensor of the CURRENT DATA shown the standard value.

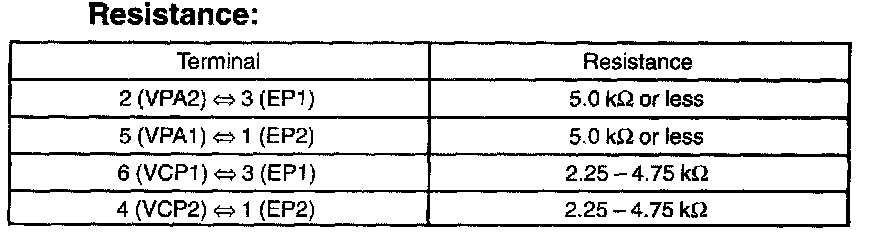

Standard Voltage:...............................0.6 - 1.0 VACCELERATOR PEDAL ASSYResistance inspection

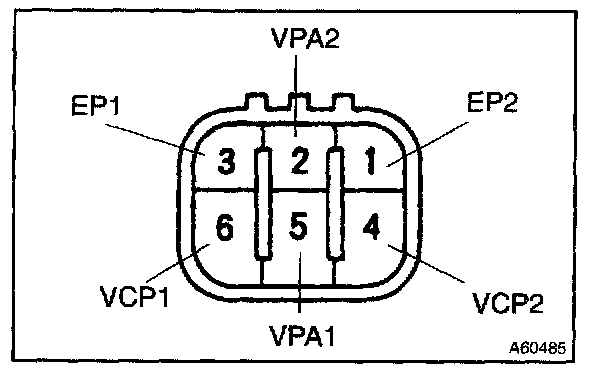

Using an ohmmeter, measure the resistance between terminals.
