Ignition Lock: Service and Repair

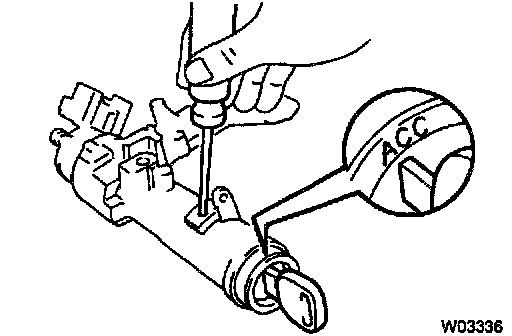

a. Place the ignition key at the ACC position.

b. Push down the stop pin with a screwdriver, and pull out the cylinder.
c. Install a new cylinder.

HINT: Make sure the key is at the ACC position.
