Airbag System

DTC 32 - Side Airbag Sensor Assembly RH Malfunction

CIRCUIT DESCRIPTION

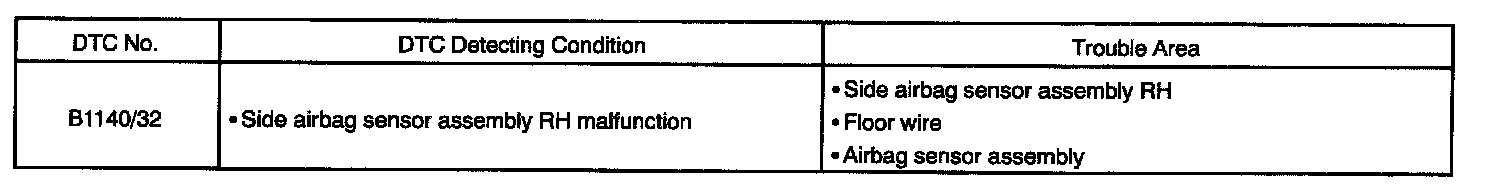

DTC Detecting Condition:

The side airbag sensor assembly RH consists of the safing sensor, diagnosis circuit and lateral deceleration sensor, etc.

It receives signals from the lateral deceleration sensor, judges whether or not the SRS must be activated, and detects diagnosis system malfunction.

DTC B1140/32 is recorded when occurrence of a malfunction in the side airbag sensor assembly RH is detected.

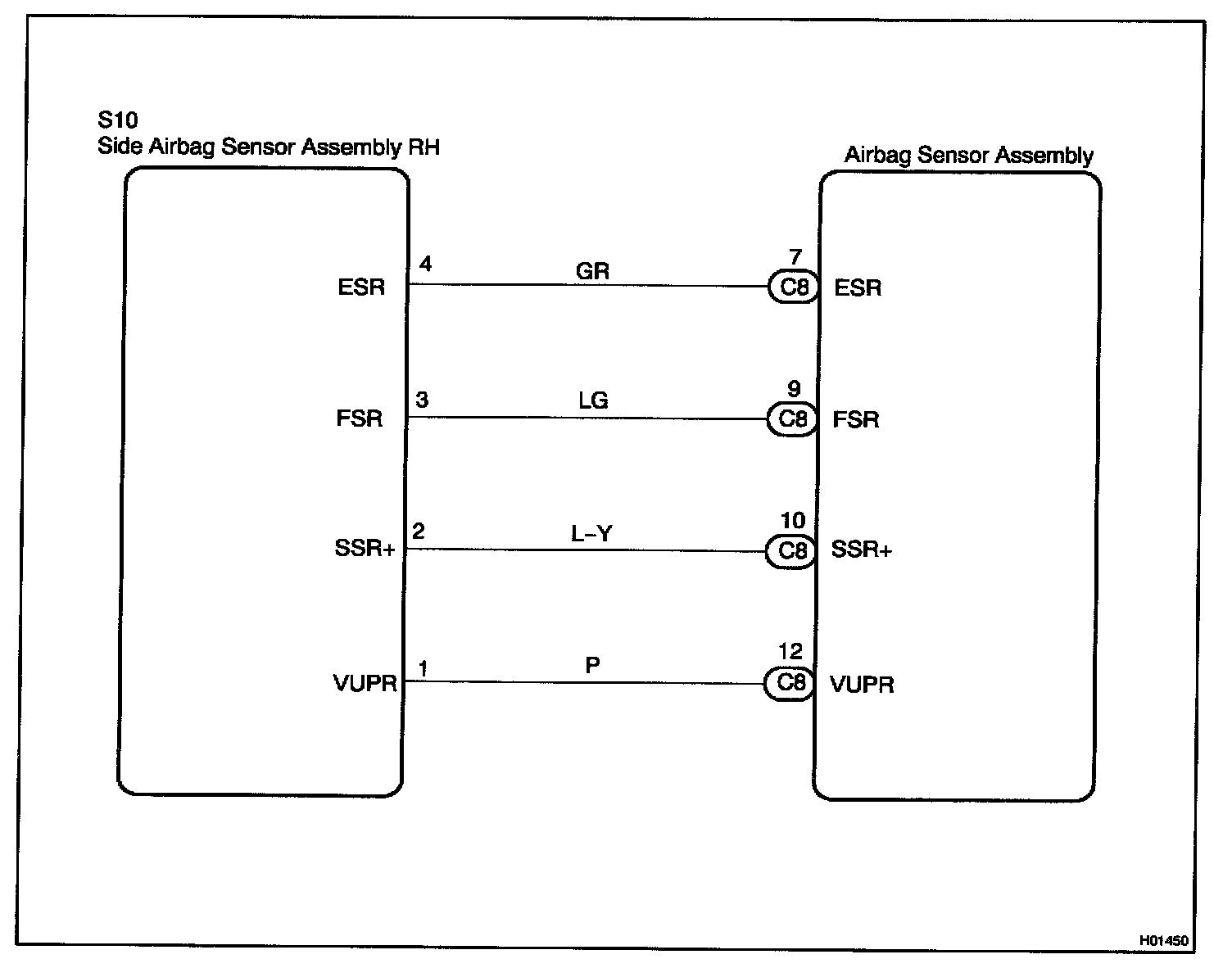

Wiring Diagram:

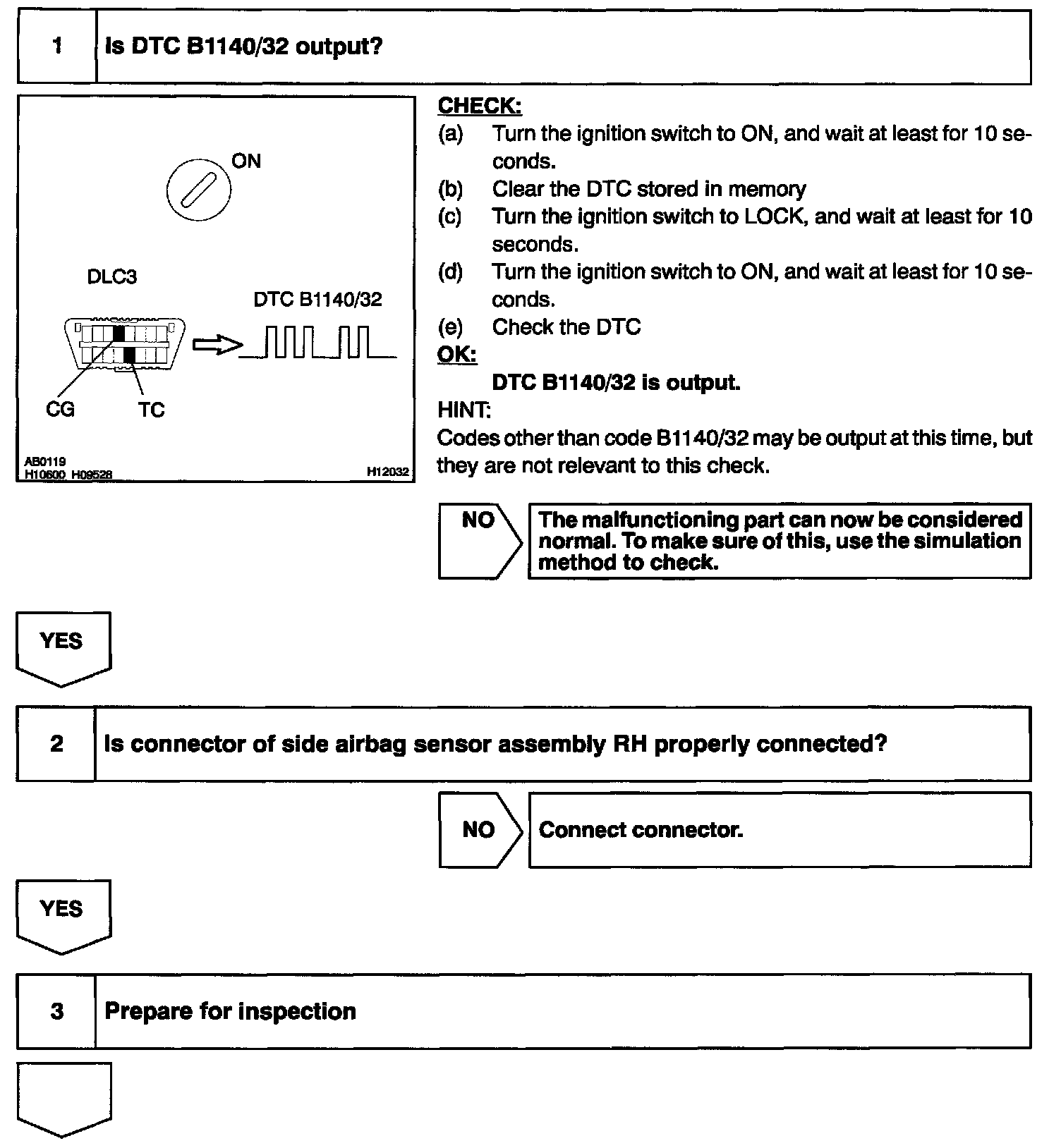

Step 1 - 3:

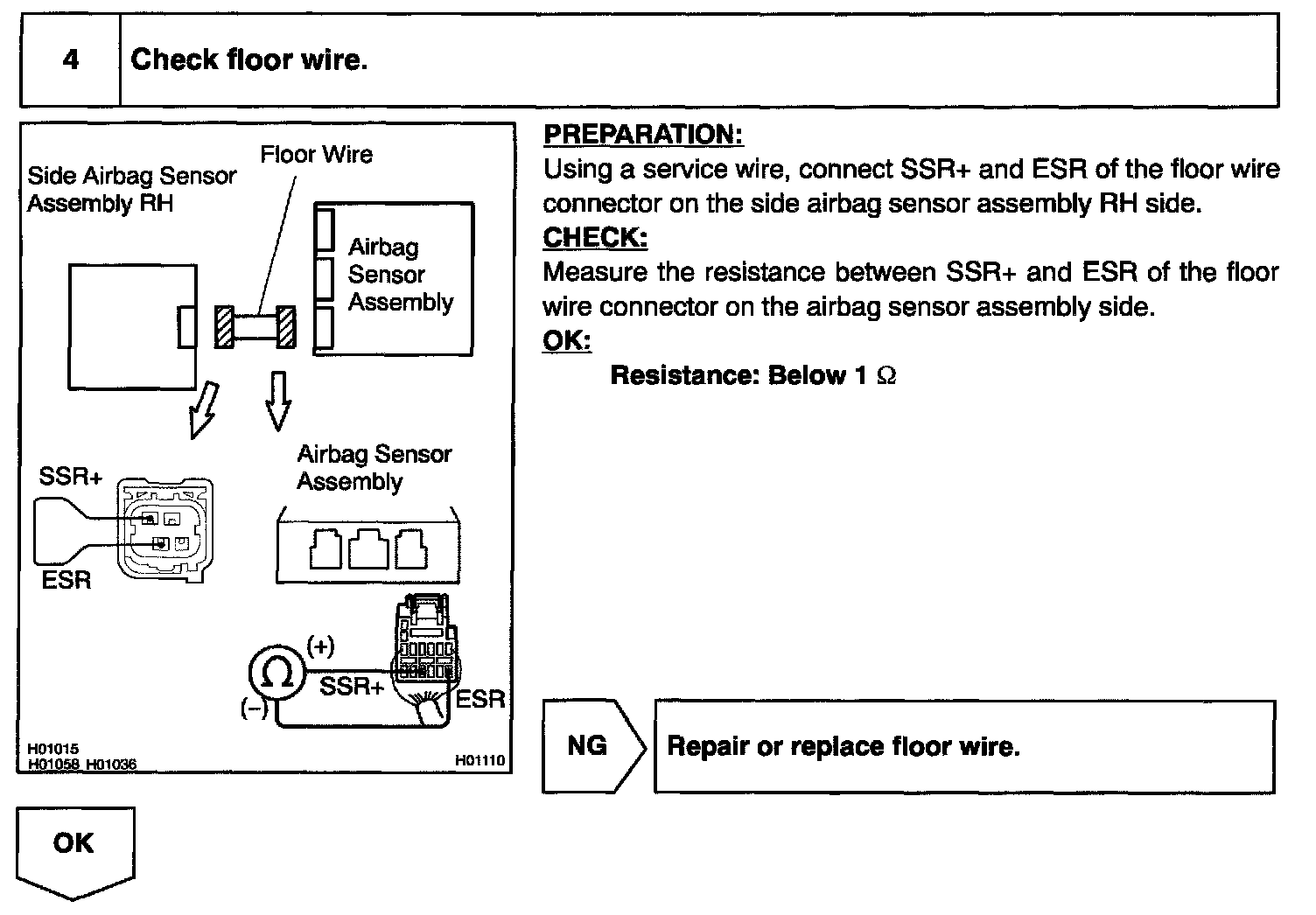

Step 4:

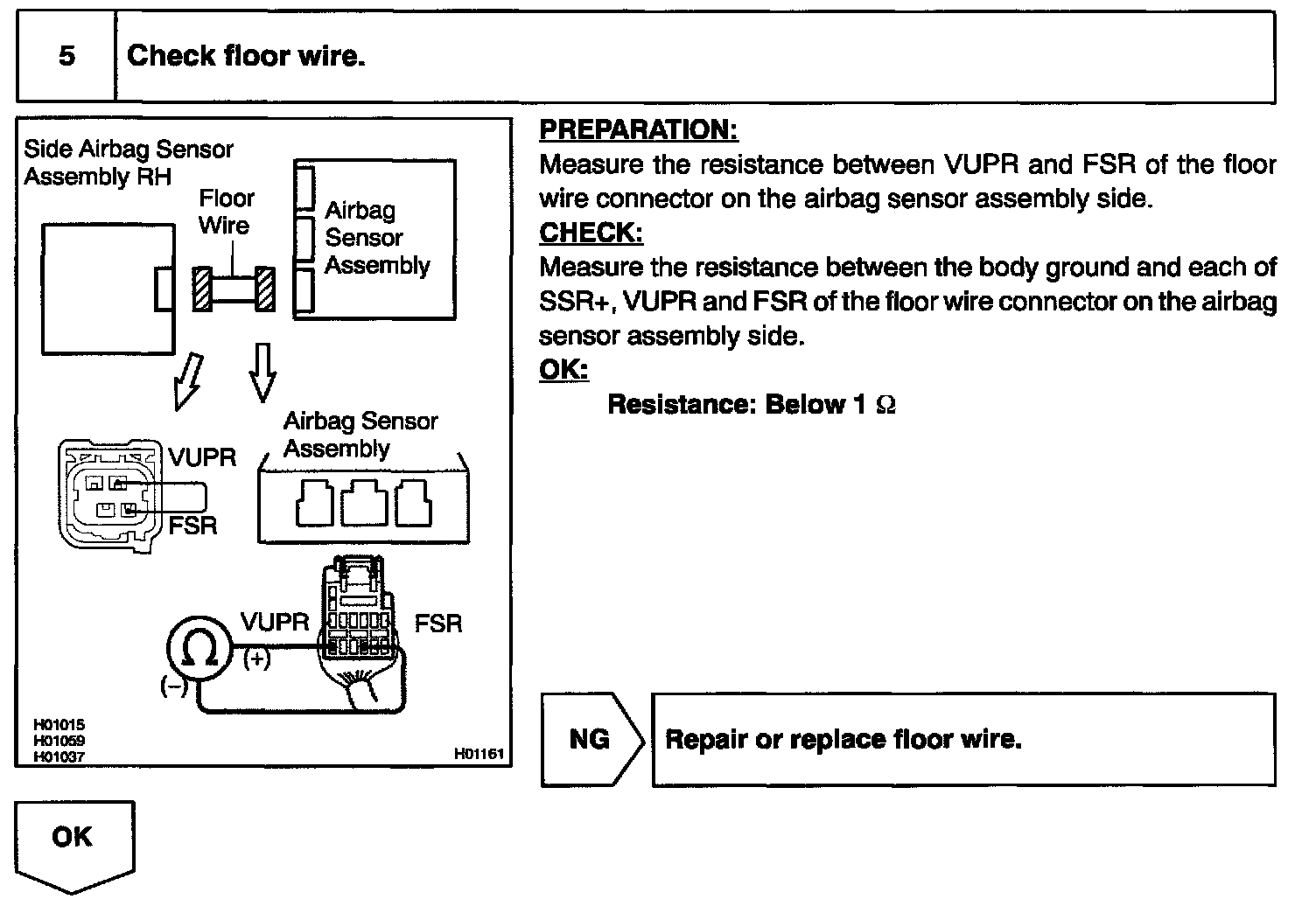

Step 5:

Step 6 - 7:

Step 8:

INSPECTION PROCEDURE
