Airbag System

DTC 74 - Open In P/T Squib LH Circuit

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The P/T squib LH circuit consists of the airbag sensor assembly and the seat belt pretensioner LH.

It causes the SRS to deploy when the SRS deployment conditions are satisfied.

For details of the funtion of each component, see OPERATION.

DTC B0136/74 is recorded when open is detected in the P/T squib LH circuit.

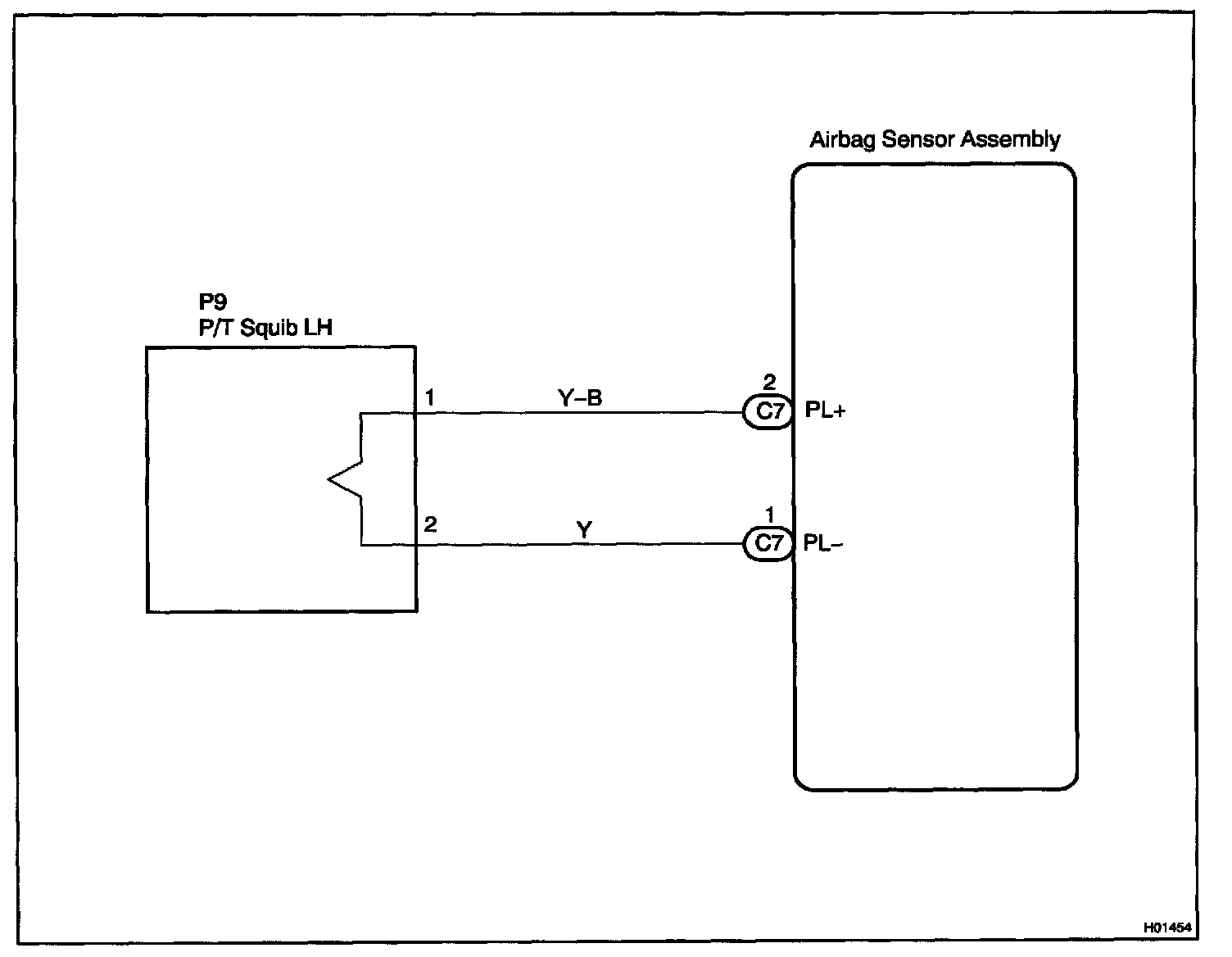

Wiring Diagram:

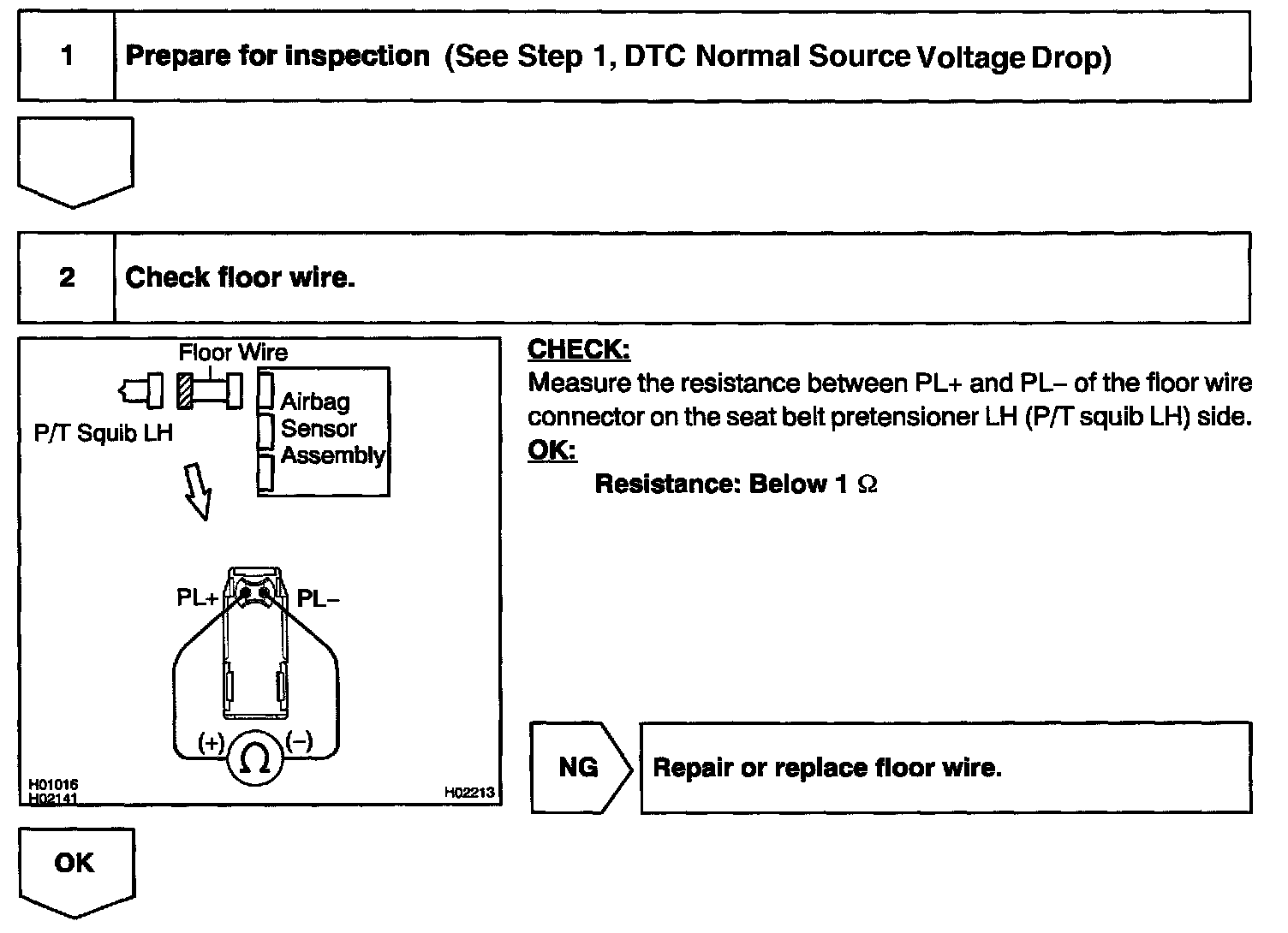

Step 1 - 2:

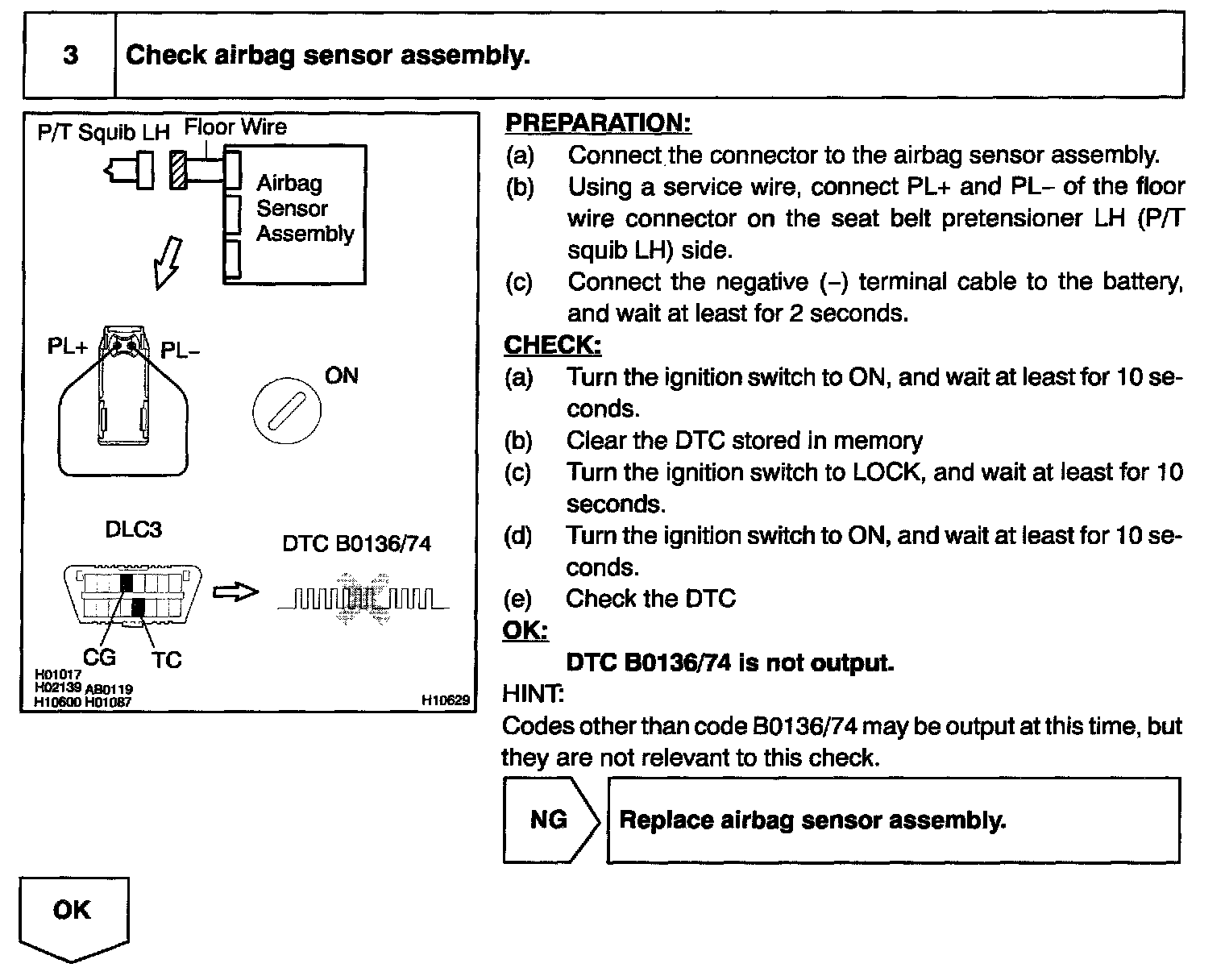

Step 3:

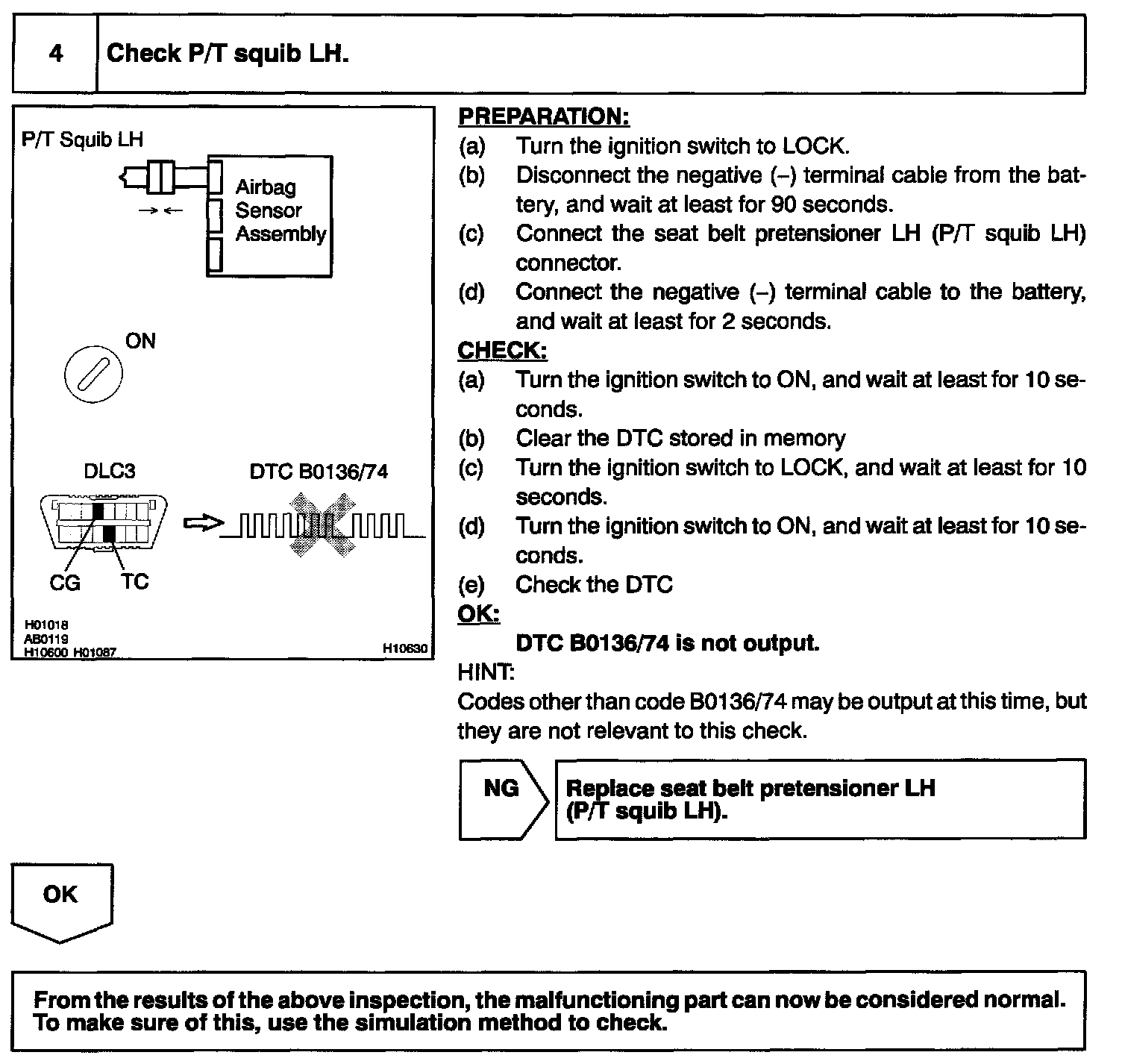

Step 4:

INSPECTION PROCEDURE
