Data List

DATA LIST

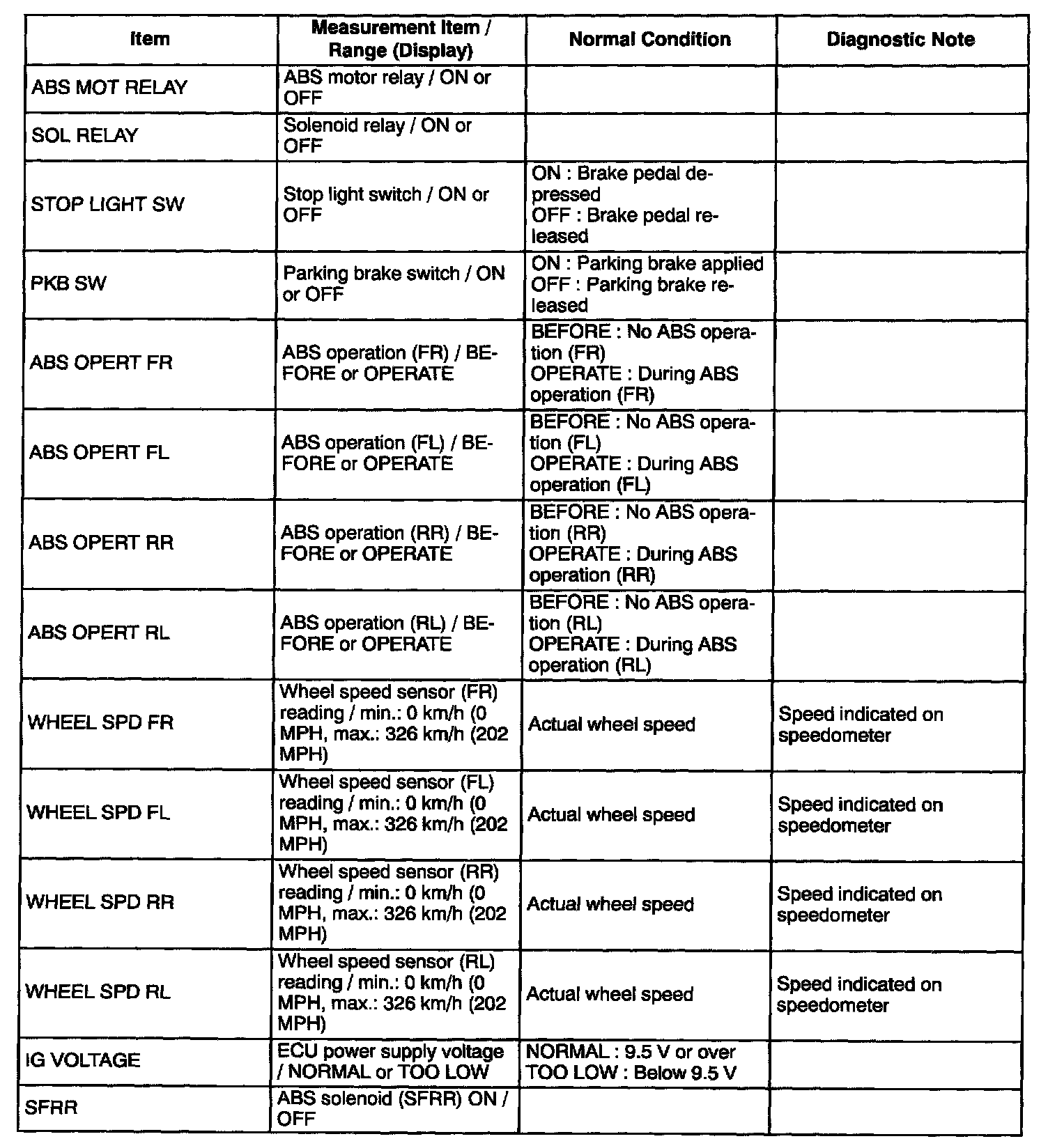

Part 1:

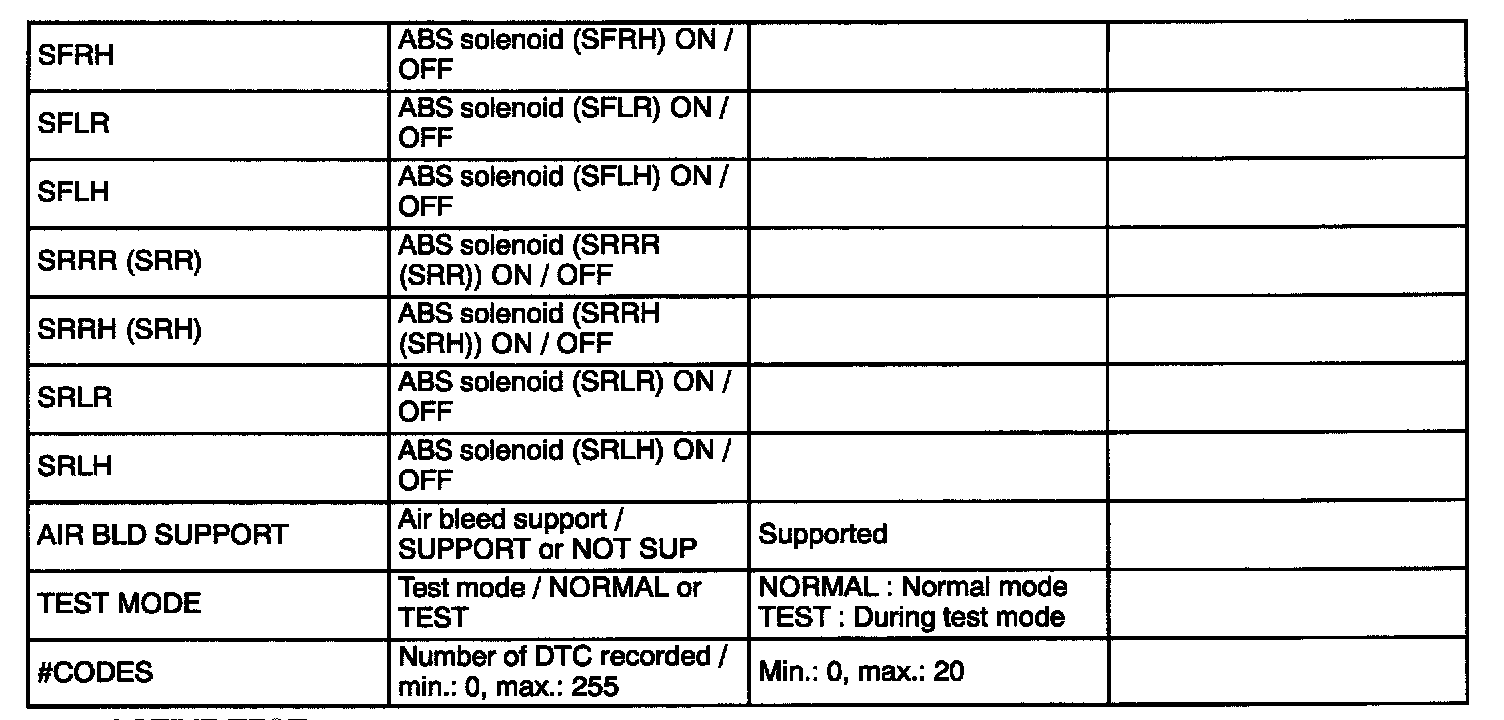

Part 2:

HINT:
By the DATA LIST displayed by the TOYOTA hand-held tester, you can read the value of the switch, sensor, actuator and so on without parts removal. Reading the DATA LIST as a first step of troubleshooting is one of the method to shorten the labor time.
a. Connect the TOYOTA hand-held tester to the DLC3.
b. Turn the ignition switch to ON.
c. According to the display on tester, read the "DATA LIST".
