Input Signal Check

INPUT SIGNAL CHECK






HINT:
1. For check No.1 - No.3
Turn ignition switch ON.

2. For check No.4
- Jack up the vehicle.
- Start the engine.
- Shift to D position.

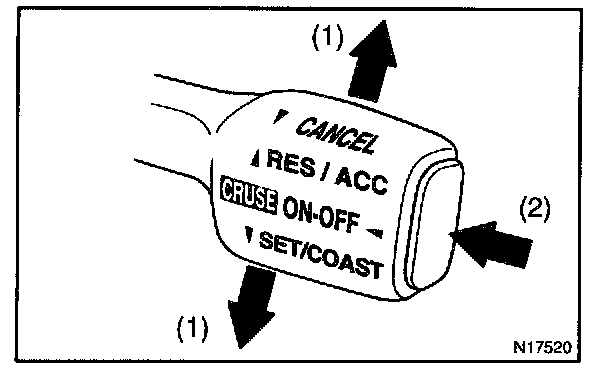

a. Pull down the control switch to push up the SET/COAST or push up the RES/ACC position and hold it down or hold it up (1).
b. Push the main switch ON (2).
c. Check that the CRUISE MAIN indicator light blinks twice or 3 times repeatedly after 3 seconds.
d. Turn the SET/COAST or RES/ACC switch OFF.

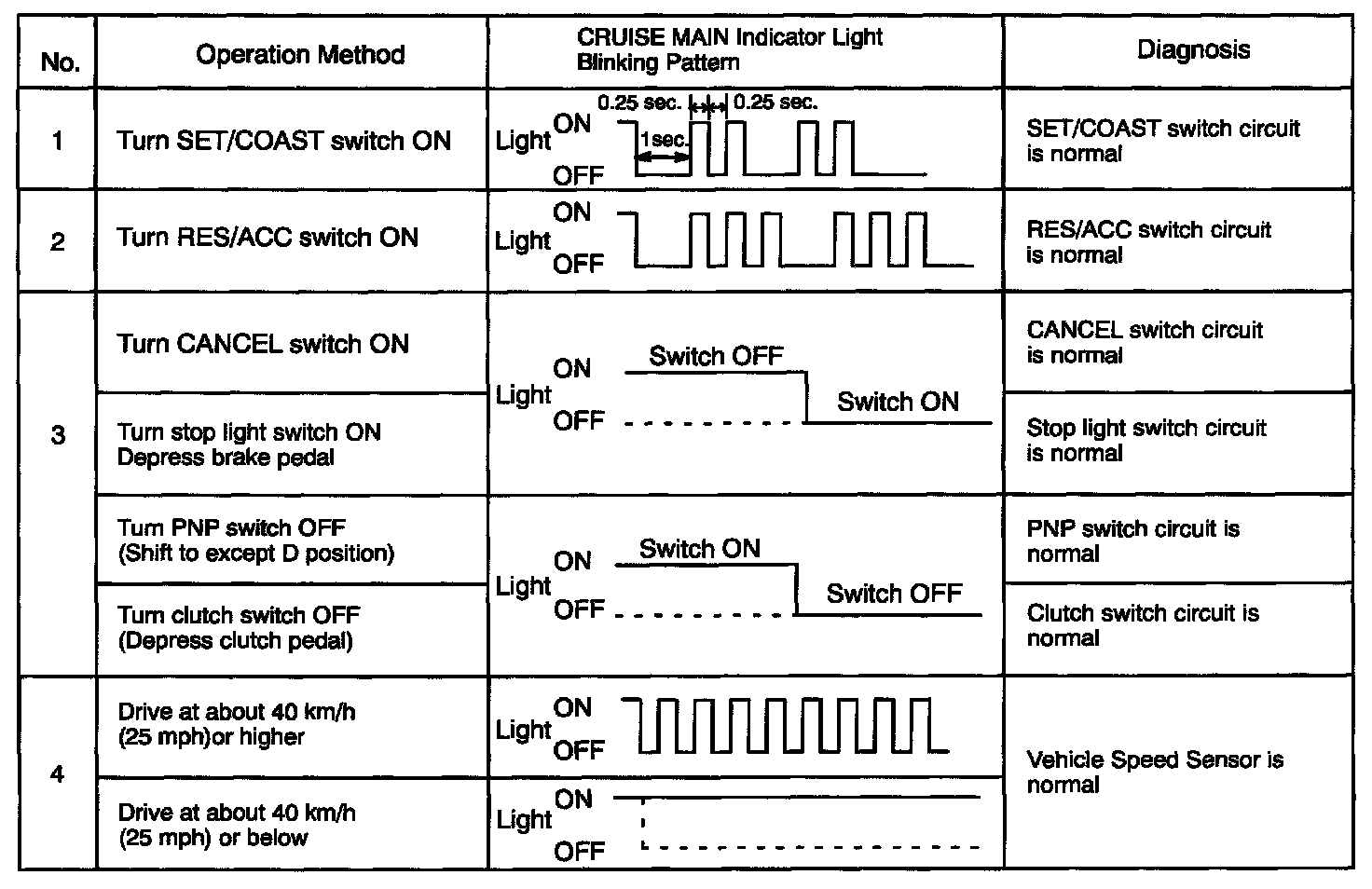

e. Operate each switch as listed in the table.
f. Read the blinking pattern of the CRUISE MAIN indicator light.
g. After performing the check, turn the main switch OFF.

HINT: When 2 or more signals are input to the ECU, the lowest numbered code will be displayed first.
