Without Scan Tool

DTC CLEARANCE (ERASE MODE)

HINT: When operating the erase mode, diag detection does not work.




a. Drive at about 15 km/h or below.

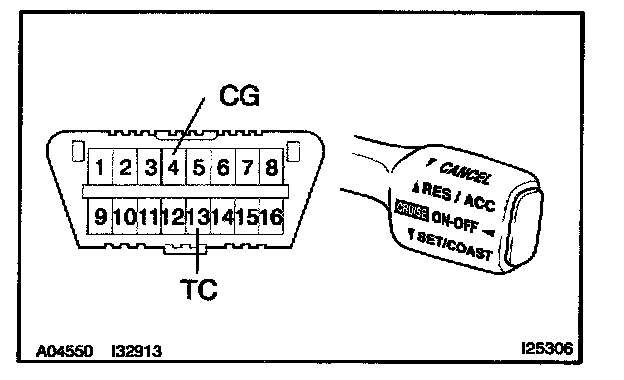

b. Using SST, connect terminals Tc and CG of DLC3.
SST 09843-18040

c. Pull the cruise control switch to CANCEL.
d. On the above mentioned condition, turn on the cruise control main switch 5 times within 3 seconds.
