Engine
>>
Cylinder Block Assembly
Cylinder Block Assembly

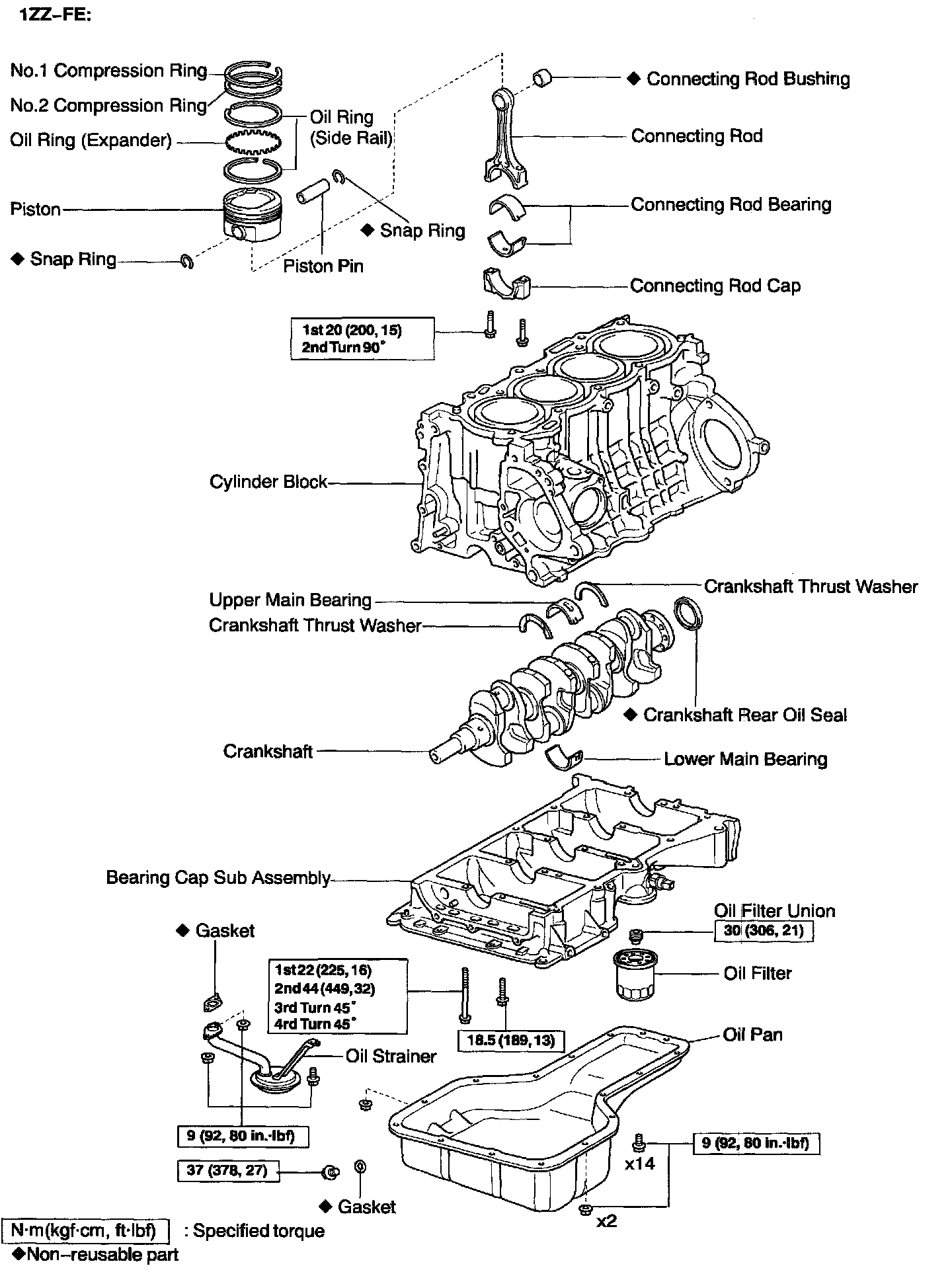

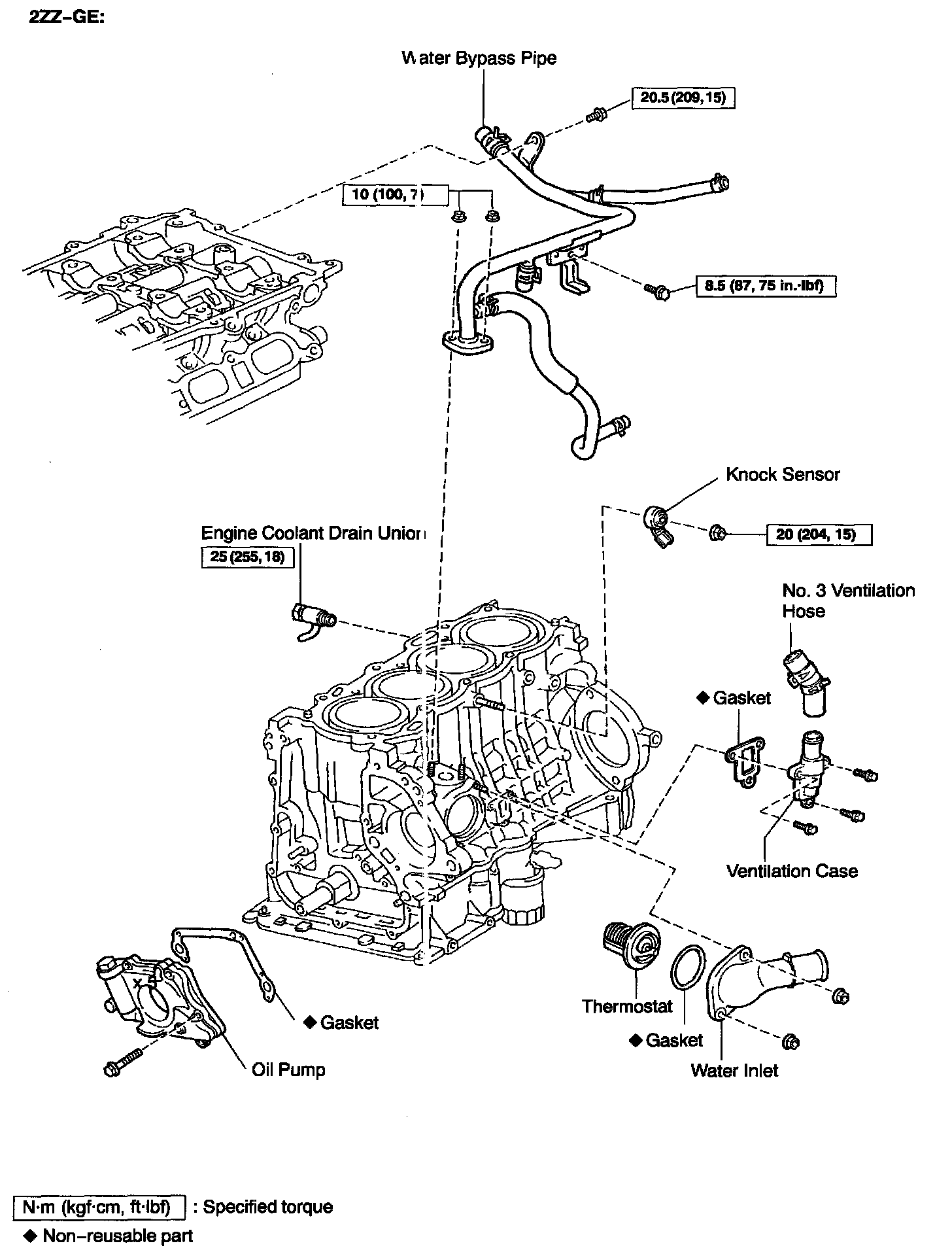

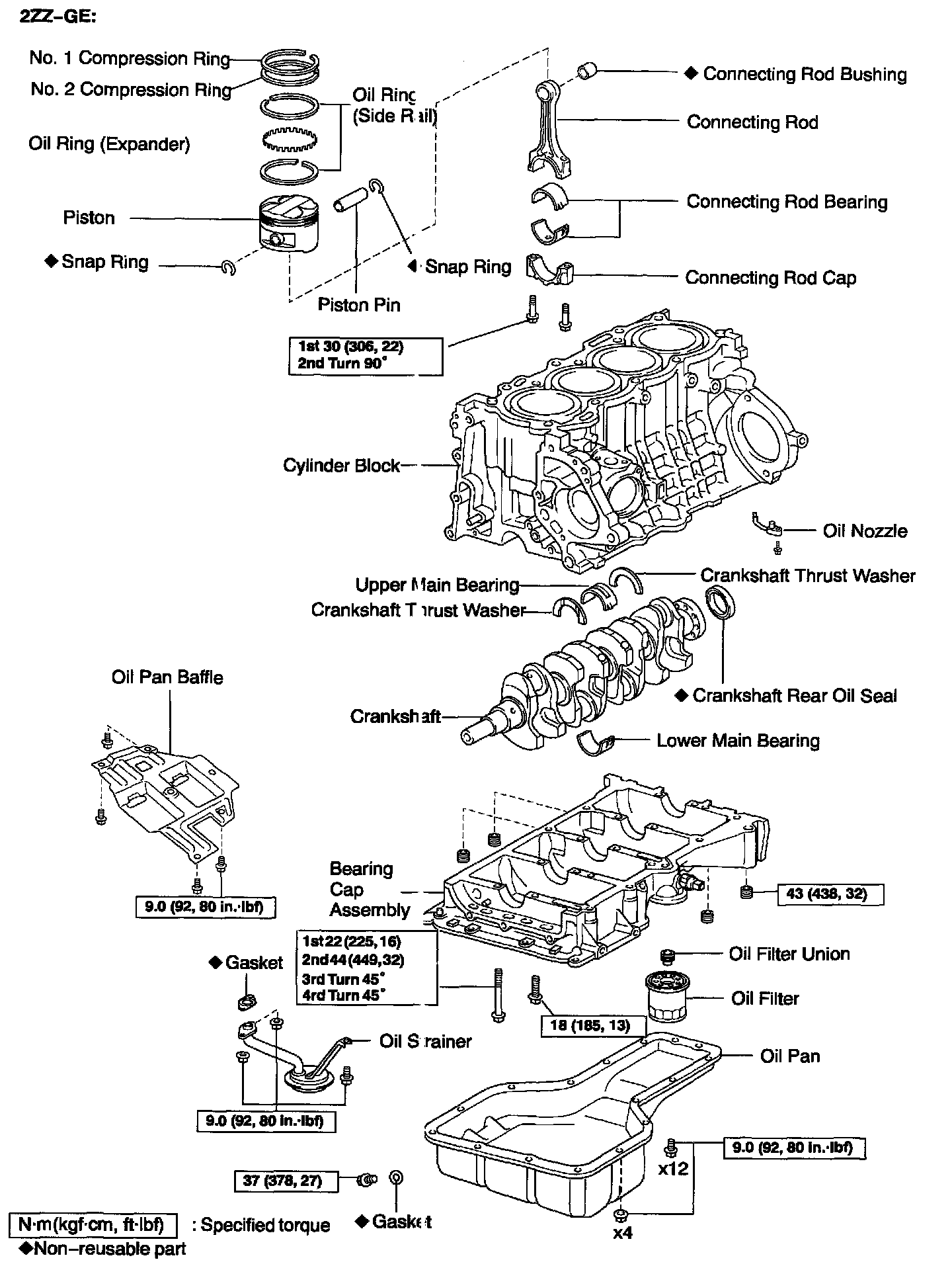

CYLINDER BLOCK OVERHAUL W/ RELATED COMPONENTS
