Cylinder Head Assembly

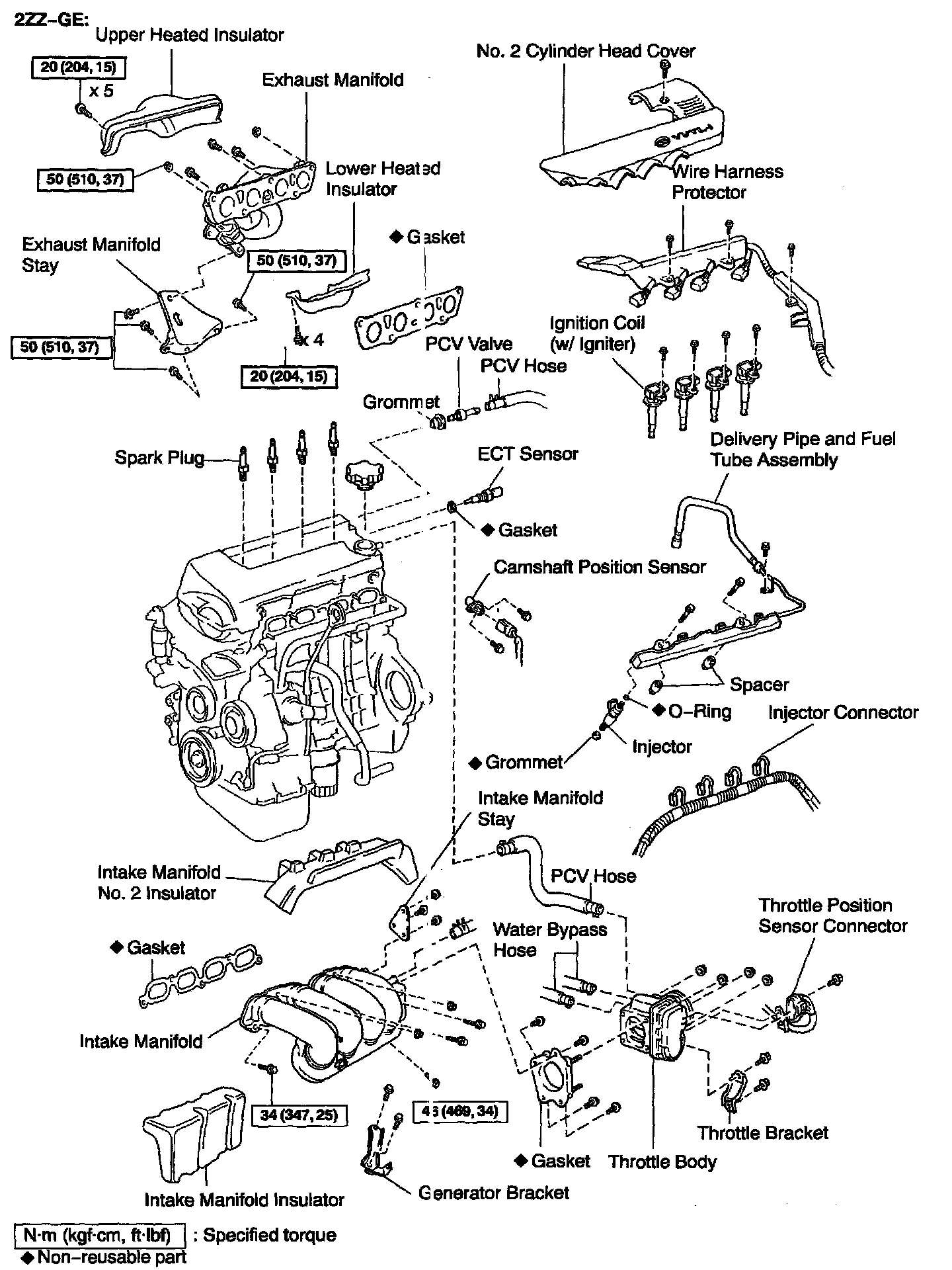

Part 1 Of 6:

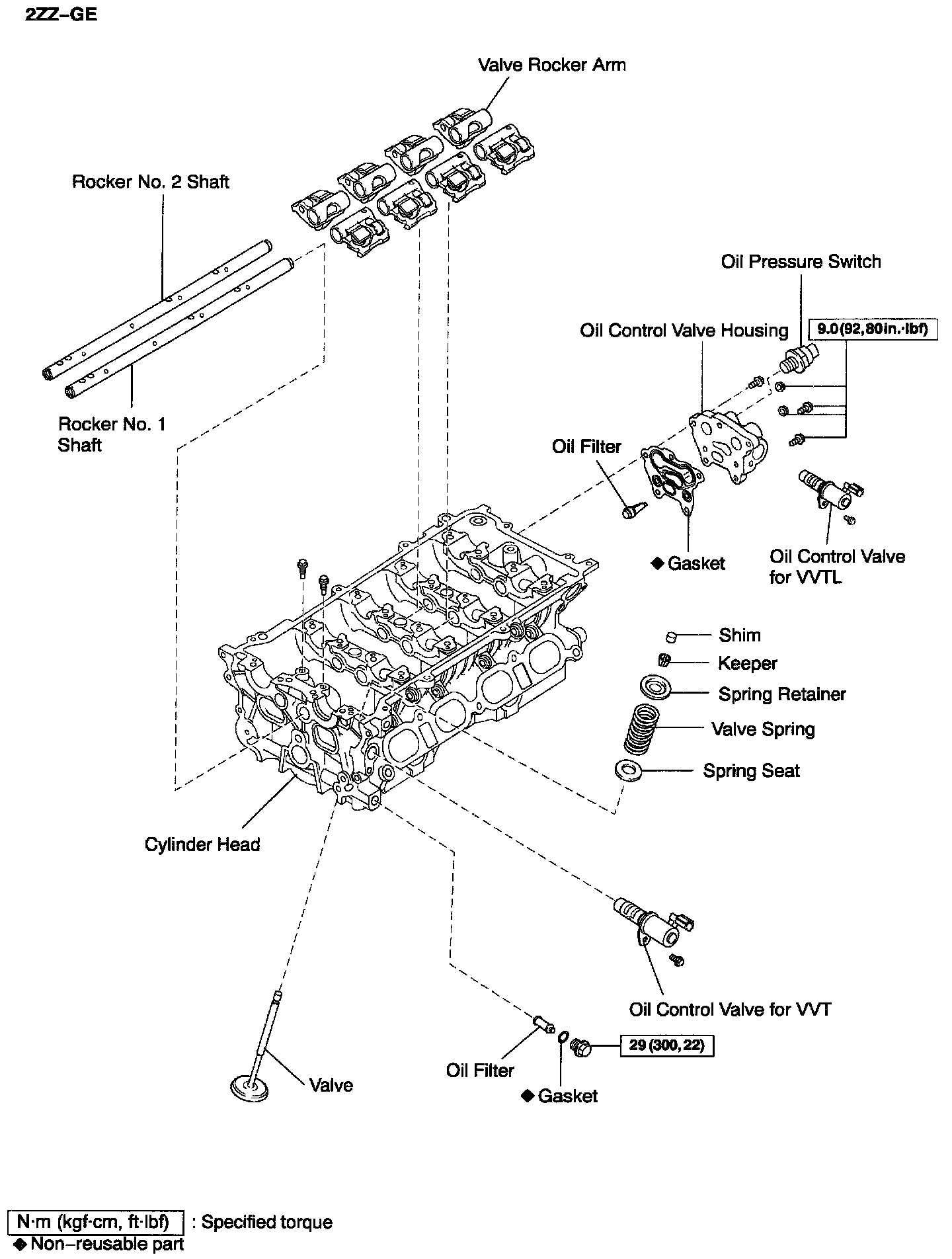

Part 2 Of 6:

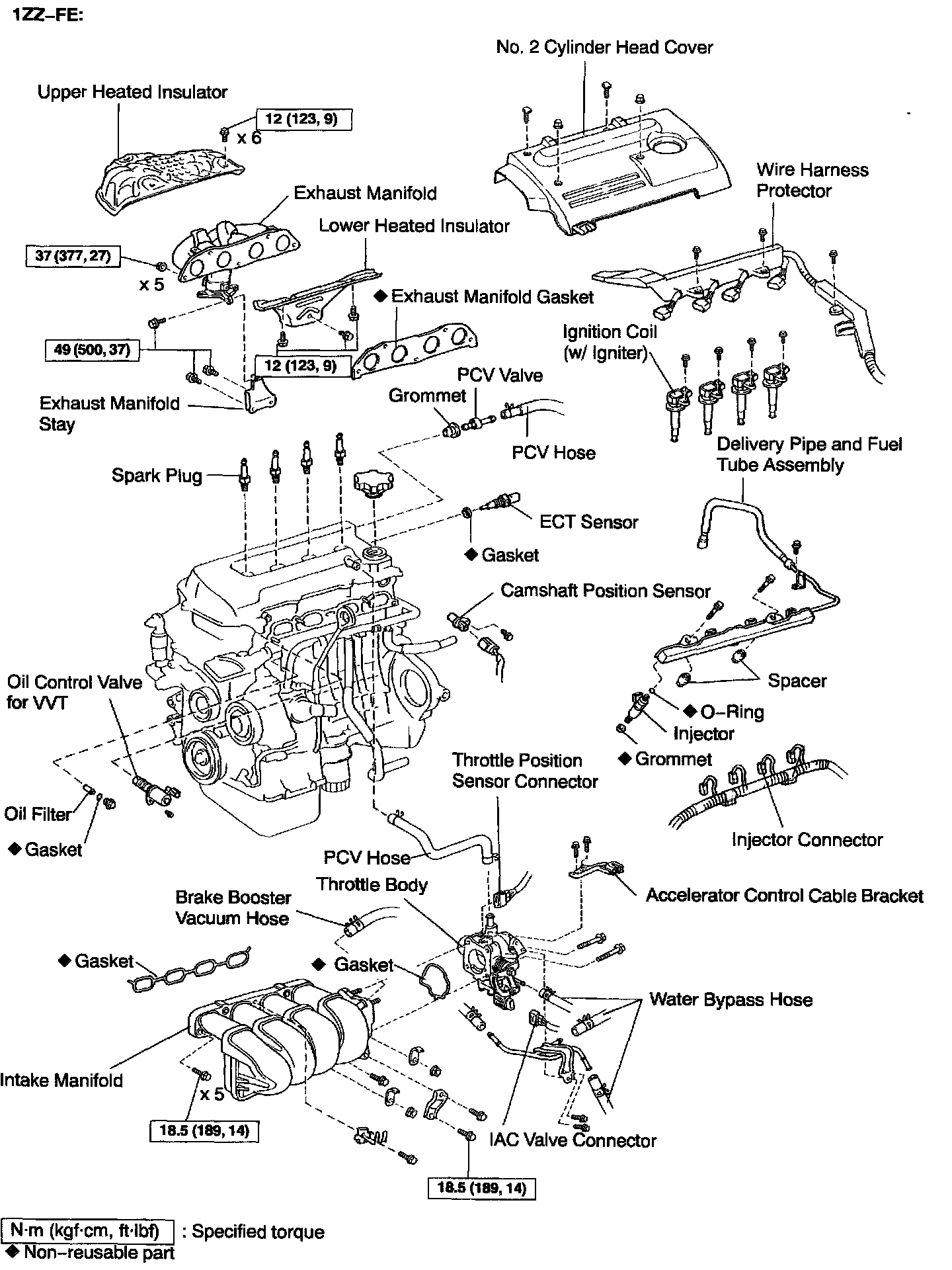

Part 3 Of 6:

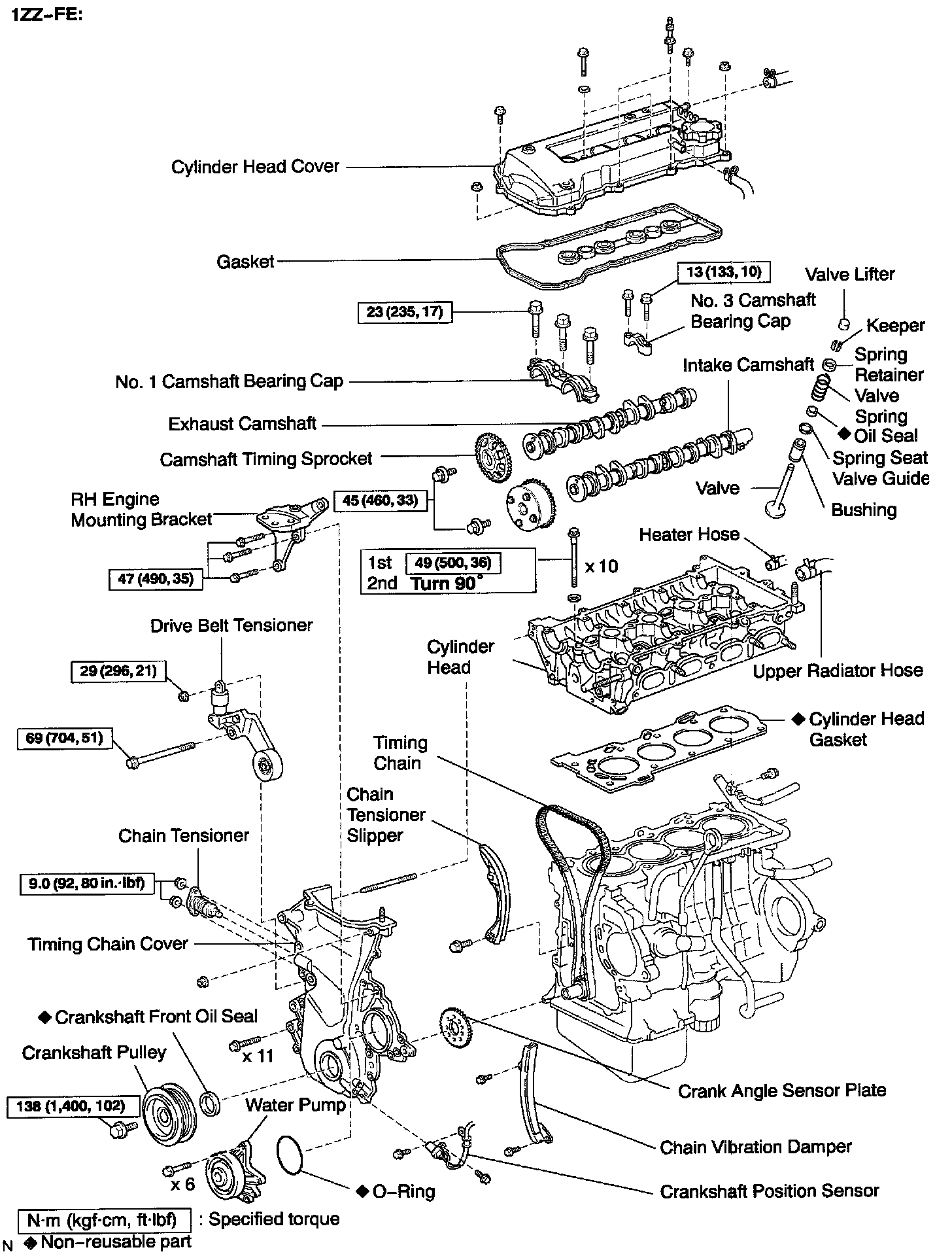

Part 4 Of 6:

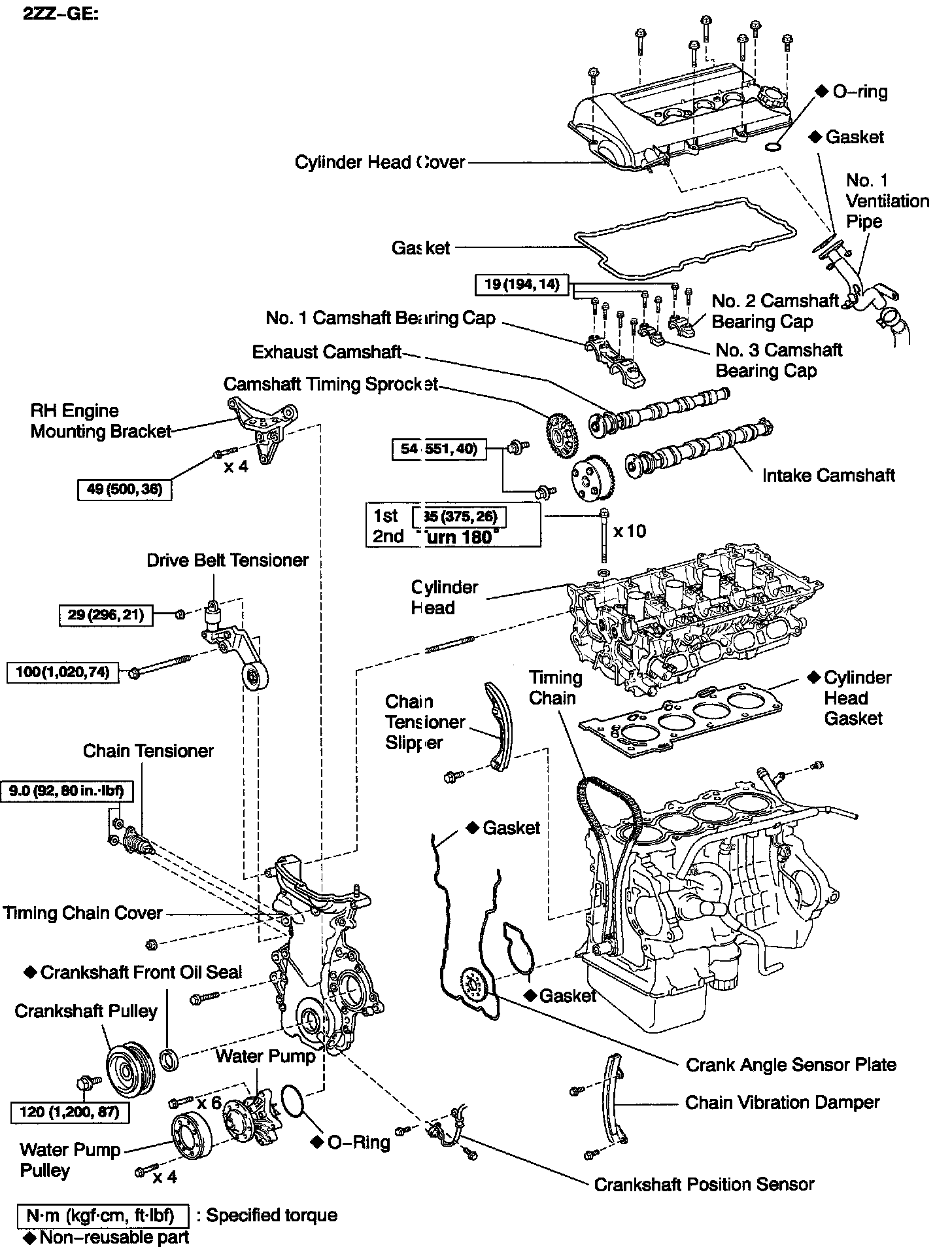

Part 5 Of 6:





Part 6 Of 6:





CYLINDER HEAD REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
