Timing Chain

Part 1 Of 3:




Part 2 Of 3:




Part 3 Of 3:

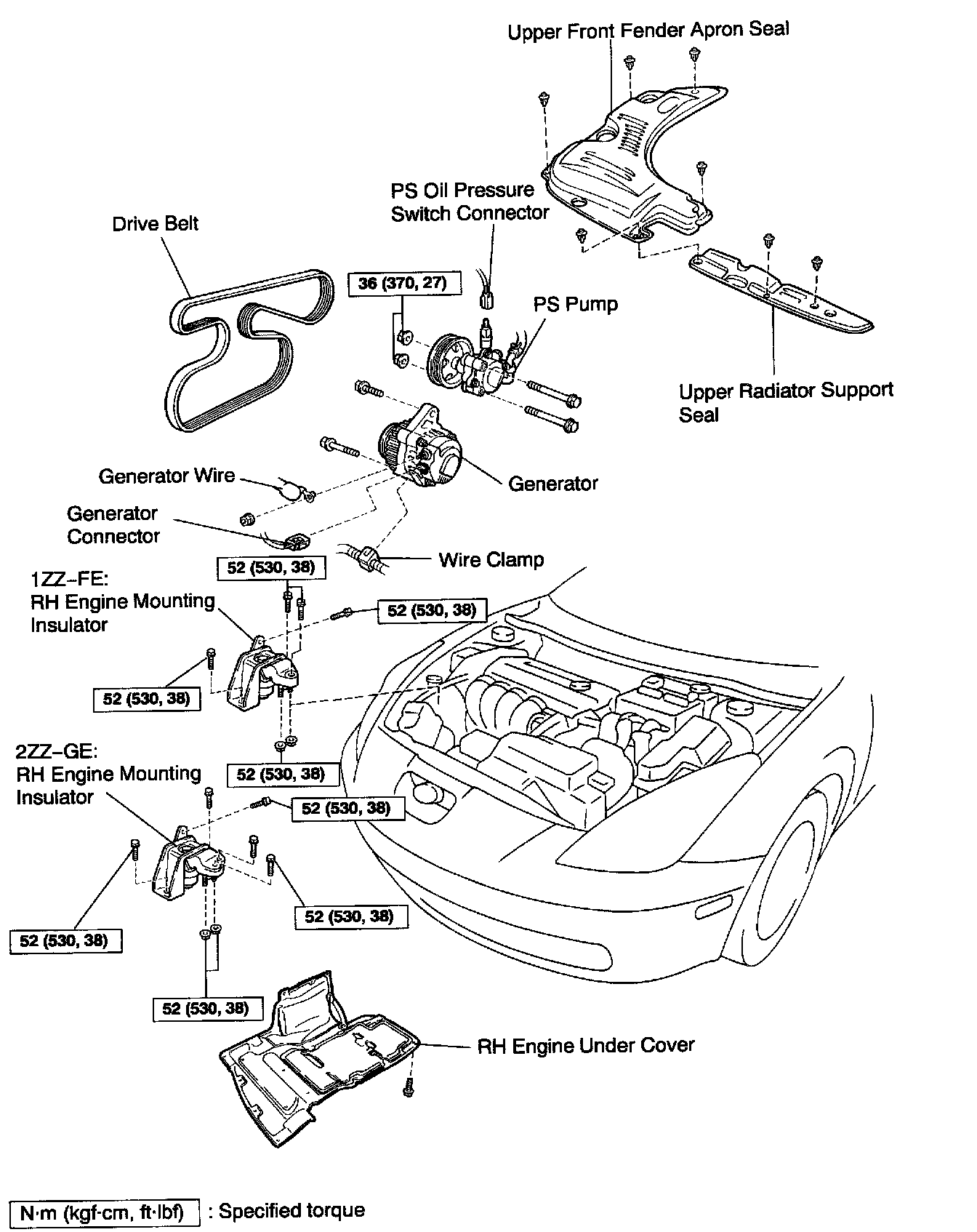

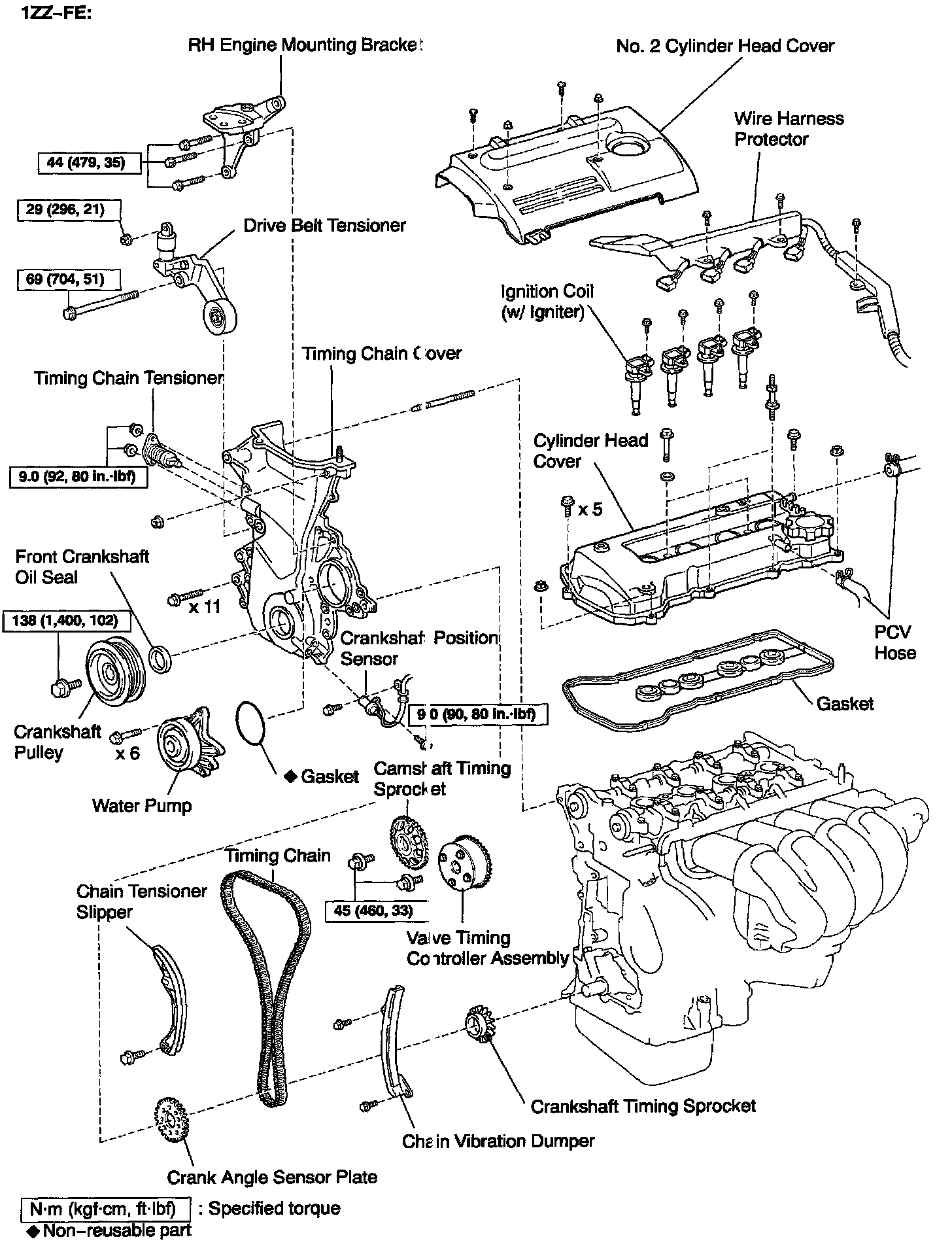

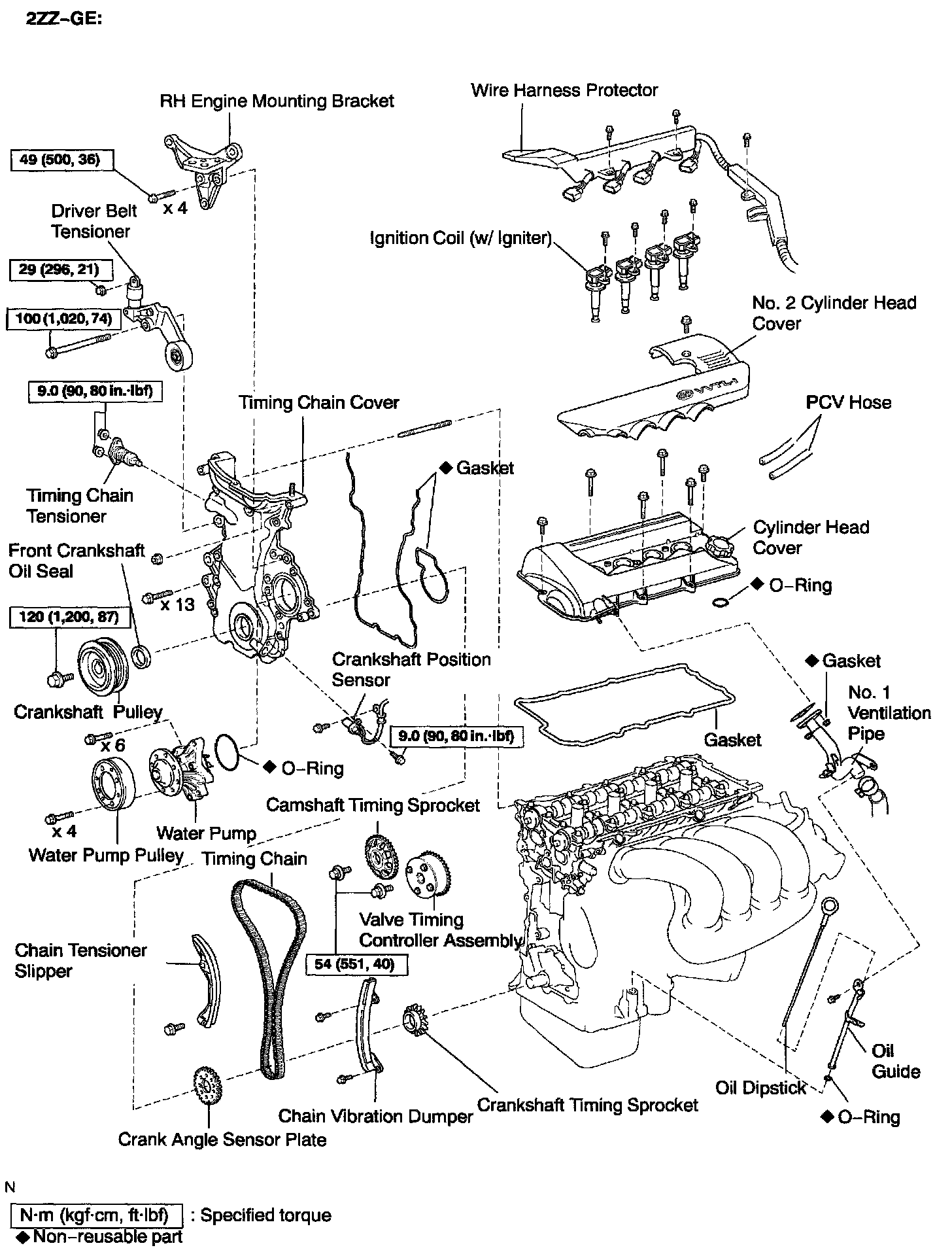

TIMING CHAIN REPLACEMENT W/ RELATED COMPONENTS
