Data List

DATA LIST

NOTE: The values for "Normal Condition" are representative values. So, a vehicle may still be normal even if its value differs from those listed here. So, do not solely depend on the "Normal Condition" here when deciding whether a part is faulty or not.

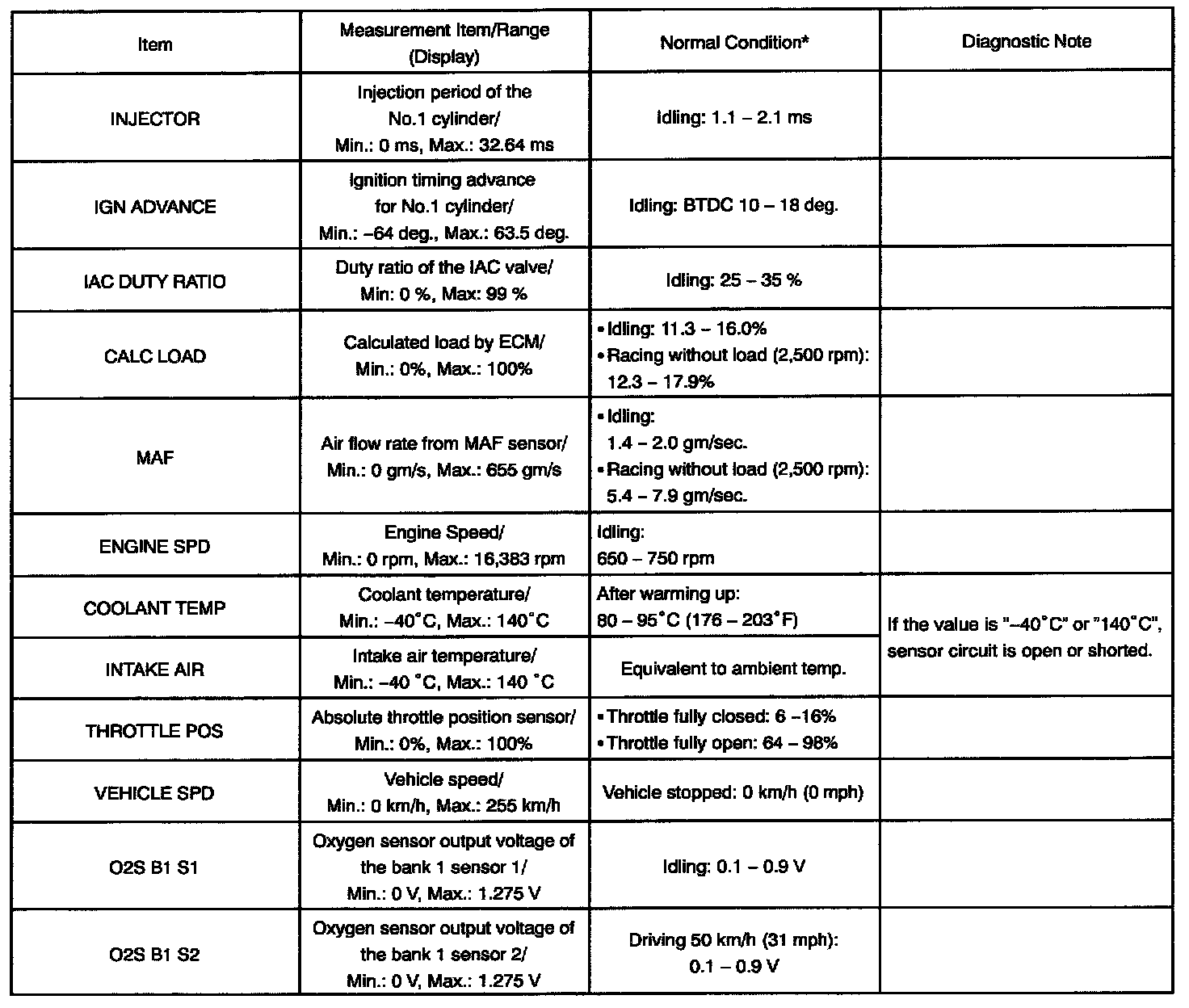

Part 1:

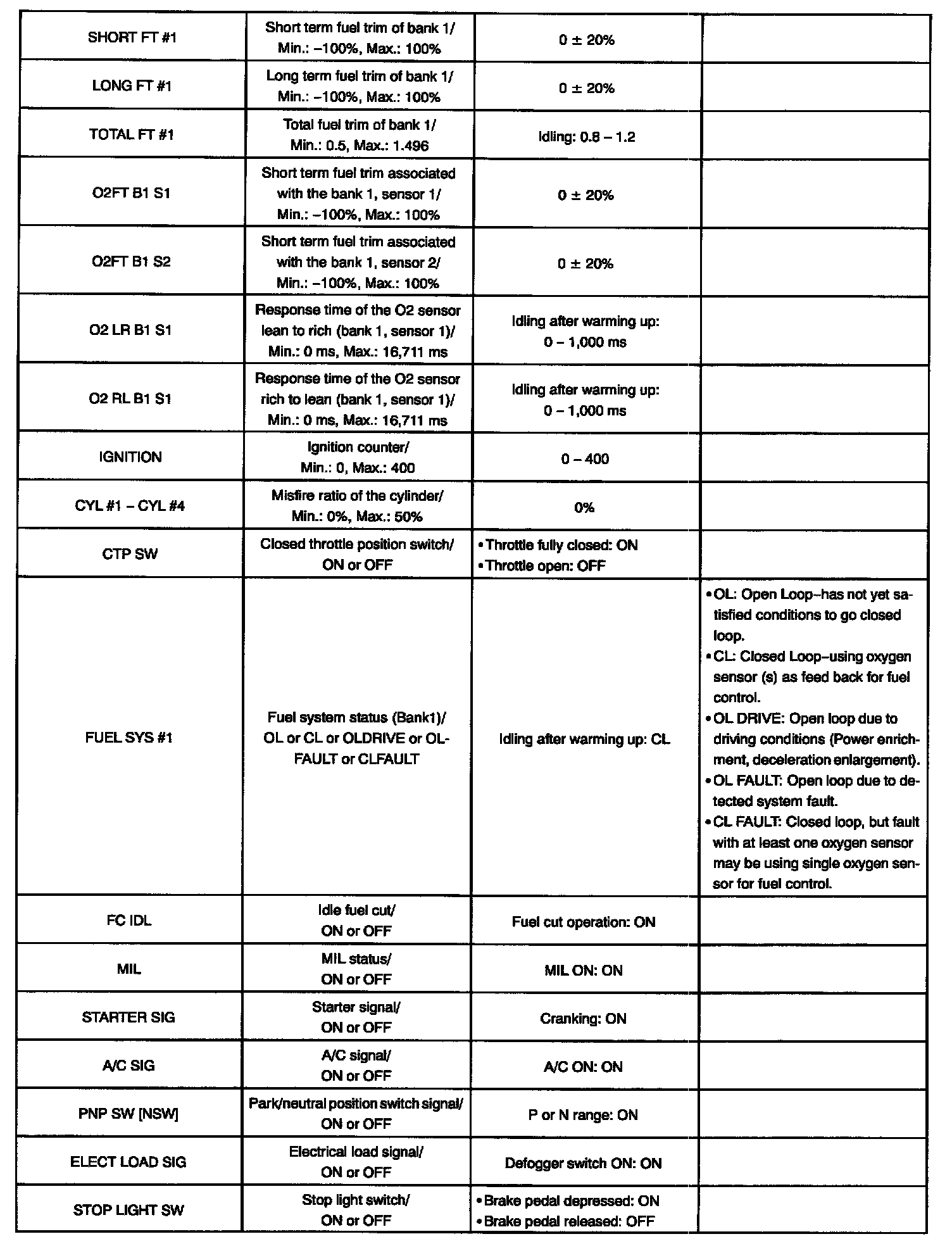

Part 2:

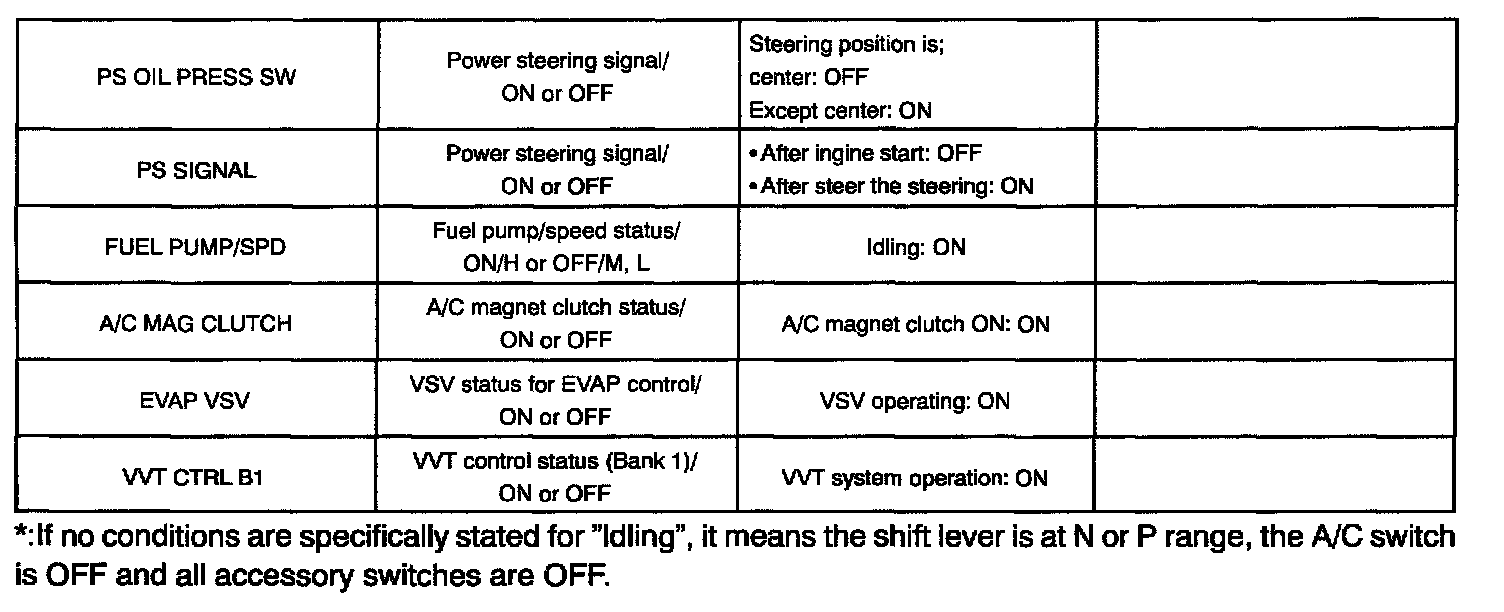

Part 3:

HINT:
According to the DATA LIST displayed by the OBD II scan tool or hand-held tester, you can read the value of the switch, sensor, actuator and so on without parts removal. Reading the DATA LIST as a first step of troubleshooting is one of the method to shorten the labor time.
a. Warm up the engine.
b. Turn the ignition switch OFF.
c. Connect the OBD II scan tool or hand-held tester to the DLC3.
d. Turn the ignition switch ON.
e. According to the display on tester, read the "DATA LIST".
