SRS Warning Light (Always Lights Up W/Ignition in ACC or Lock)

CIRCUIT DESCRIPTION

The SRS warning light is located on the combination meter.

When the SRS is normal, the SRS warning light lights up for approx. 6 seconds after the ignition switch is turned from the LOCK position to ON position, and then turns off automatically.

If there is a malfunction in the SRS, the SRS warning light lights up to inform the driver of the abnormality. When terminals Tc and CG of the DLC3 are connected, the DTC is displayed by blinking the SRS warning light.

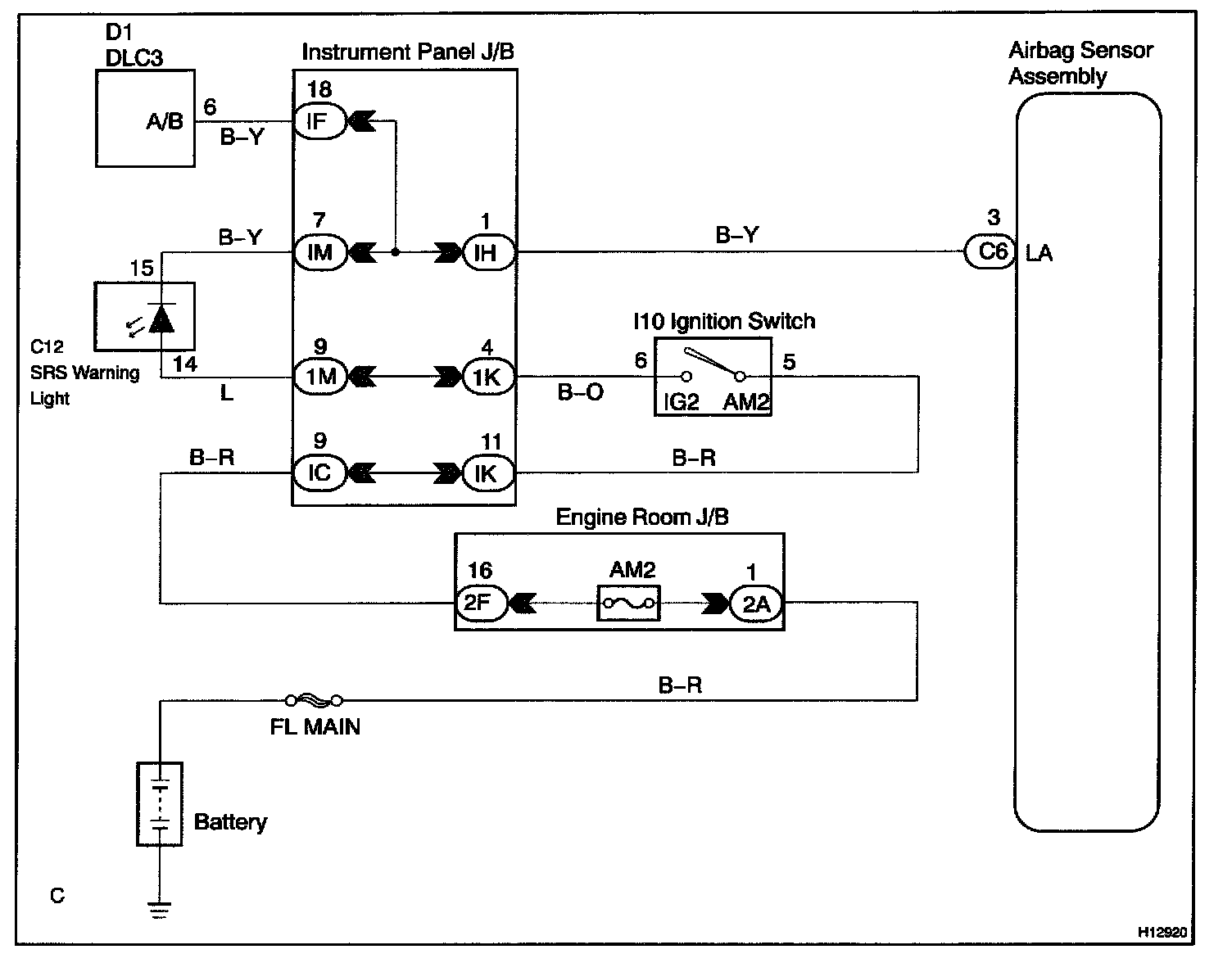

Wiring Diagram:

Step 1 - 2:

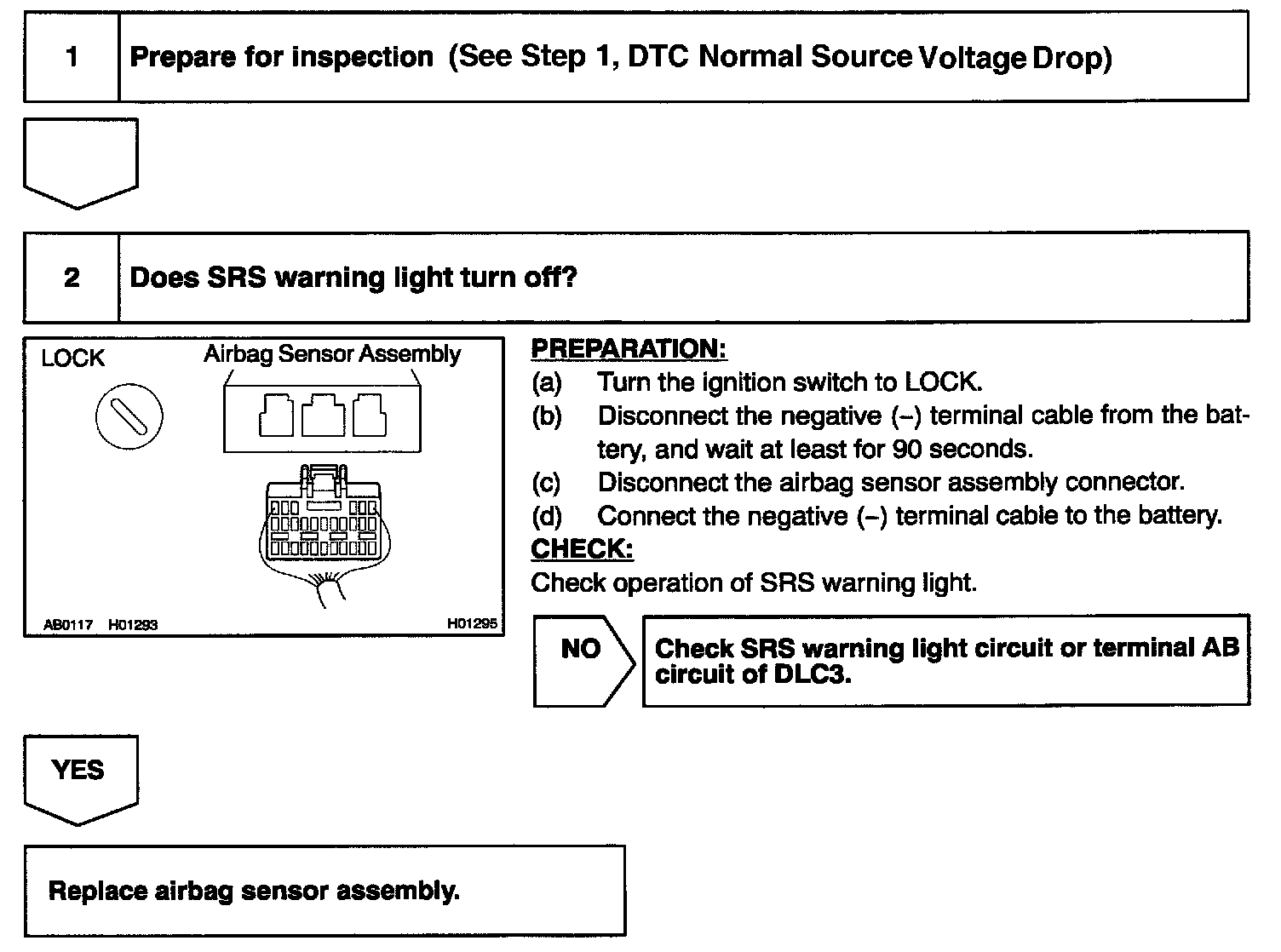

INSPECTION PROCEDURE
Always lights up, when ignition switch is in LOCK position
