Home
>>
Toyota
>>
2003
>>
Celica GT L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Charging System
>>
Alternator
Alternator

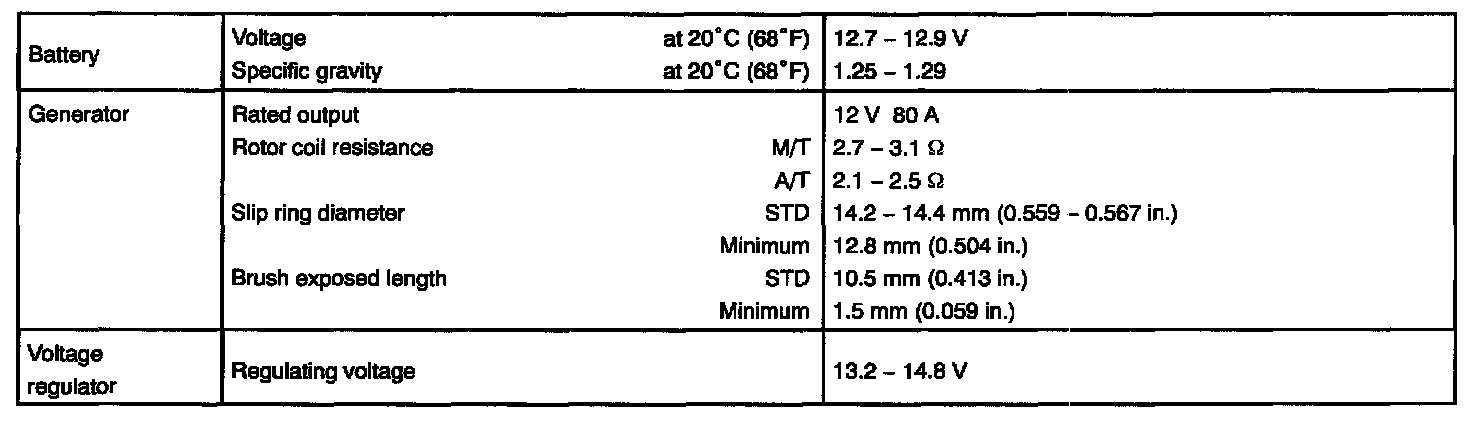

Charging - Service Data:
