Ground Circuits

Ground Point Part 1:

Ground Point Part 2:

Ground Point Part 3:

Ground Point Part 4:

Ground Point Part 5:

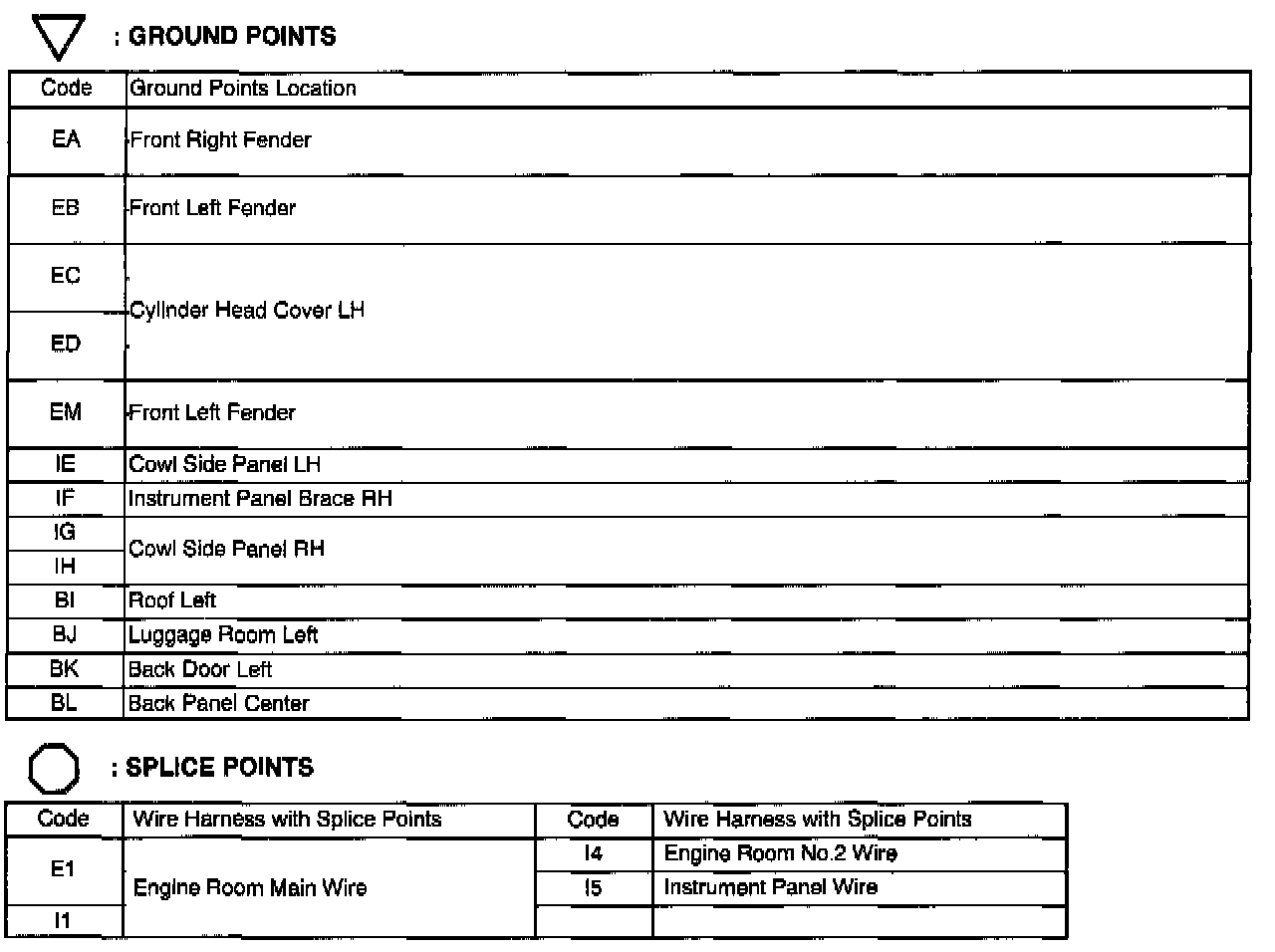

Diagram Legend Part 1:

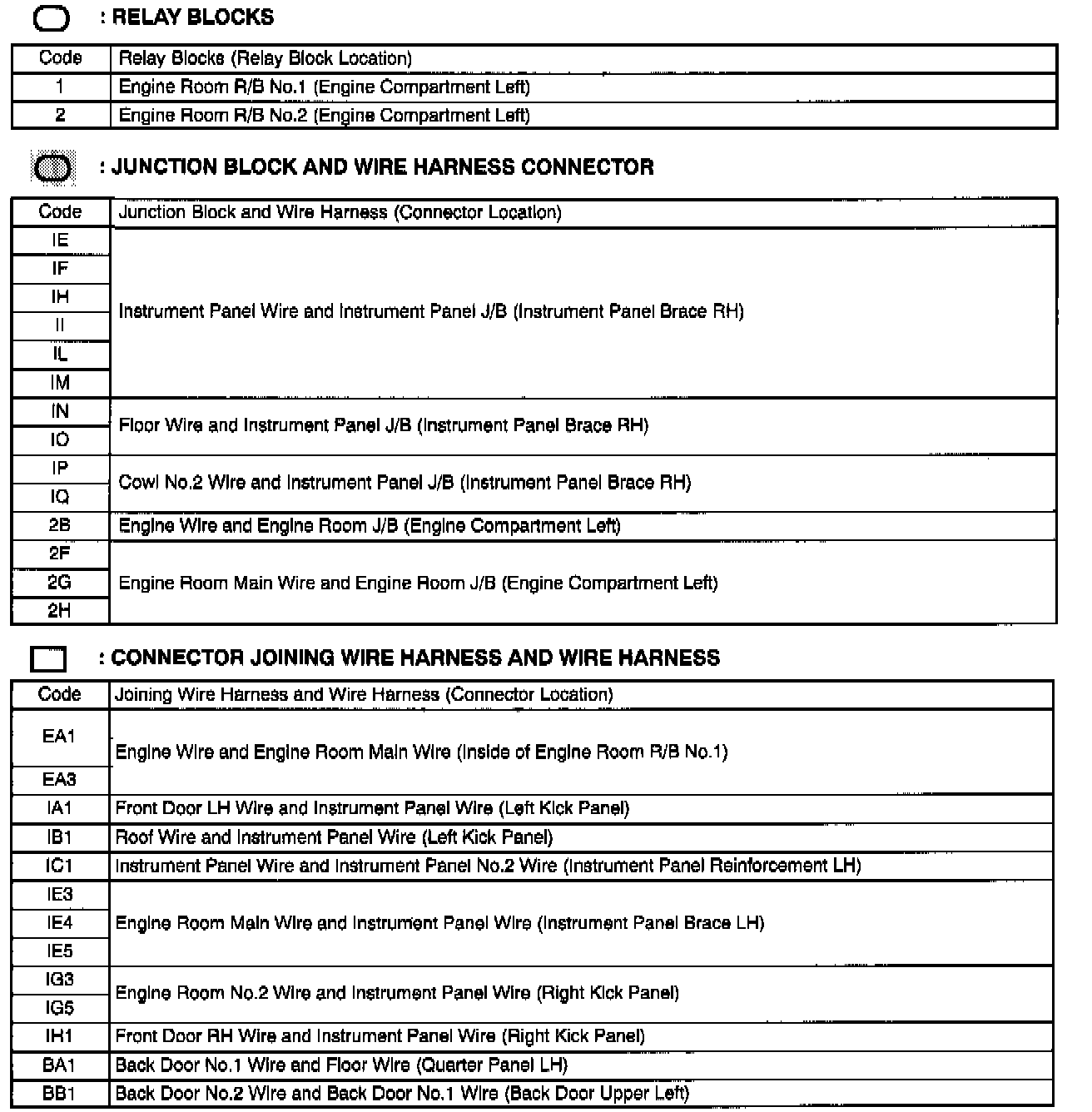

Diagram Legend Part 2:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations.

Connector Views: The connector views for connectors referred to within these diagrams can be found at the Vehicle level Connector Views.
