Removal and Installation

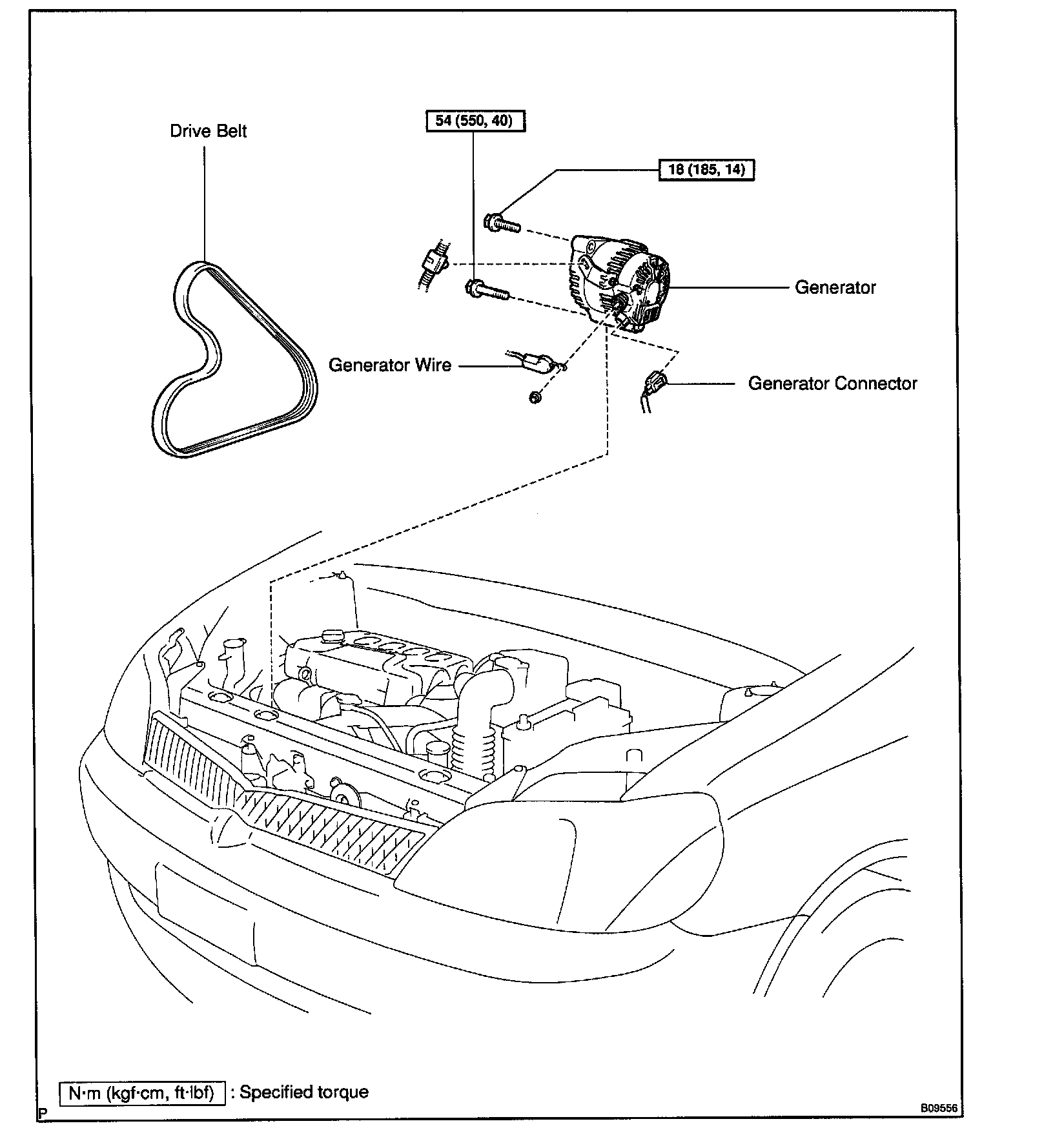

Part 1 Of 2 (Generator Components):




Generator (Part 2):






REMOVAL

REMOVE GENERATOR




a. Disconnect the wire clamp from the wire clip on the rectifier end frame
b. Remove the rubber cap and nut, and disconnect the generator wire.
c. Disconnect the generator connector.
d. Disconnect the harness clamp from the generator




e. Loosen the 2 bolts and remove the drive belt.
f. Remove the 2 bolts and generator.

INSTALLATION




INSTALL GENERATOR
a. Install the generator and temporally tighten the 2 bolts.
b. Install the drive belt and adjust the belt tension.
c. Toughen the 2 bolts.

Torque:
14 mm head 18 N.m (185 kgf.cm, 14 ft.lbf)
17 mm head 54 N.m (550 kgf.cm1 40 ft.lbf)

d. Connect the generator connector.
e. Connect the harness clamp.
f. Connect the generator wire, and install the nut and rubber cap.
g. Connect the generator wire, and install the rubber cap and nut.
