System Specifications

Cylinder head





Cylinder head x Cylinder block
1st 79 Nm (806 kgf-cm, 58 ft. lbs.)
2nd Turn 90°

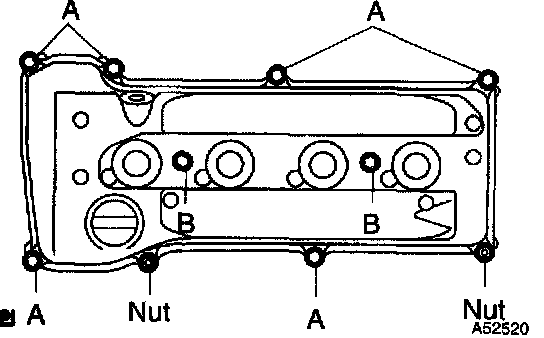

Cylinder head cover x Cylinder head
Bolt A 11 Nm (112 kgf-cm, 8 ft. lbs.)
Bolt B 14 Nm (143 kgf-cm, 10 ft. lbs.)
Nut 11 Nm (112 kgf-cm, 8 ft. lbs.)

Warpage (Maximum)
Cylinder block side 0.05 mm (0.0020 inch)
Intake manifold side 0.08 mm (0.0031 inch)
Exhaust manifold side 0.08 mm (0.0031 inch)





Camshaft Bearing Cap
No.1 30 Nm (301 kgf-cm, 22 ft. lbs.)
No.3 9.0 Nm (92 kgf-cm, 80 inch lbs.)





Camshaft No.2 Bearing Cap
No.2 30 Nm (301 kgf-cm, 22 ft. lbs.)
No.3 9.0 Nm (92 kgf-cm, 80 inch lbs.)

Intake manifold
Torque 30 Nm (306 kgf-cm, 22 ft. lbs.)

Crankshaft pulley
Torque 170 Nm (1,733 kgf-cm, 125 ft. lbs.)

Exhaust Manifold
Torque 44 Nm (449 kgf-cm, 32 ft. lbs.)
