Electrical Diagrams

Wireless Door Lock Control Part 1:

Wireless Door Lock Control Part 2:

Wireless Door Lock Control Part 3:

Wireless Door Lock Control Part 4:

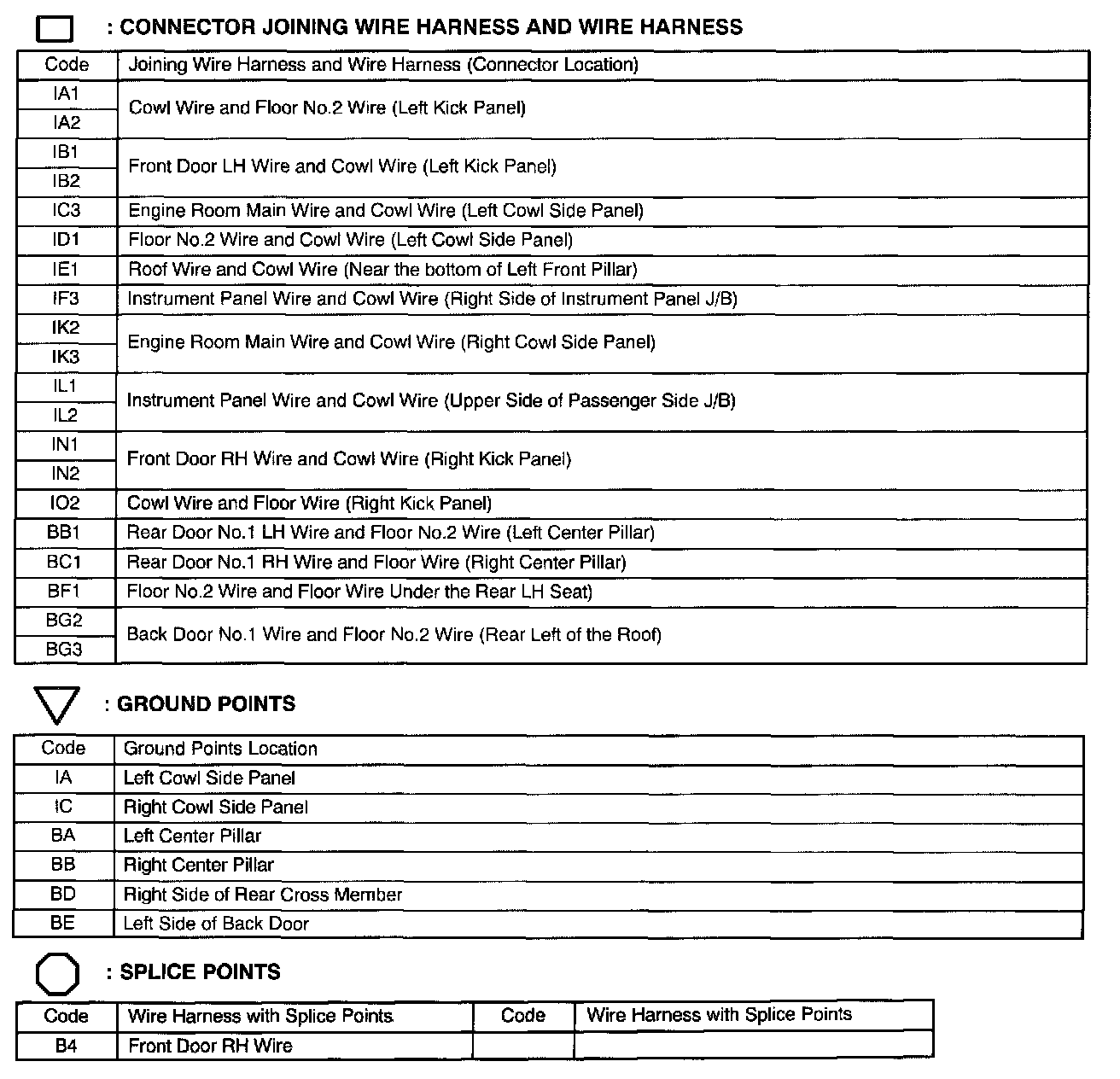

Diagram Legend Part 1:

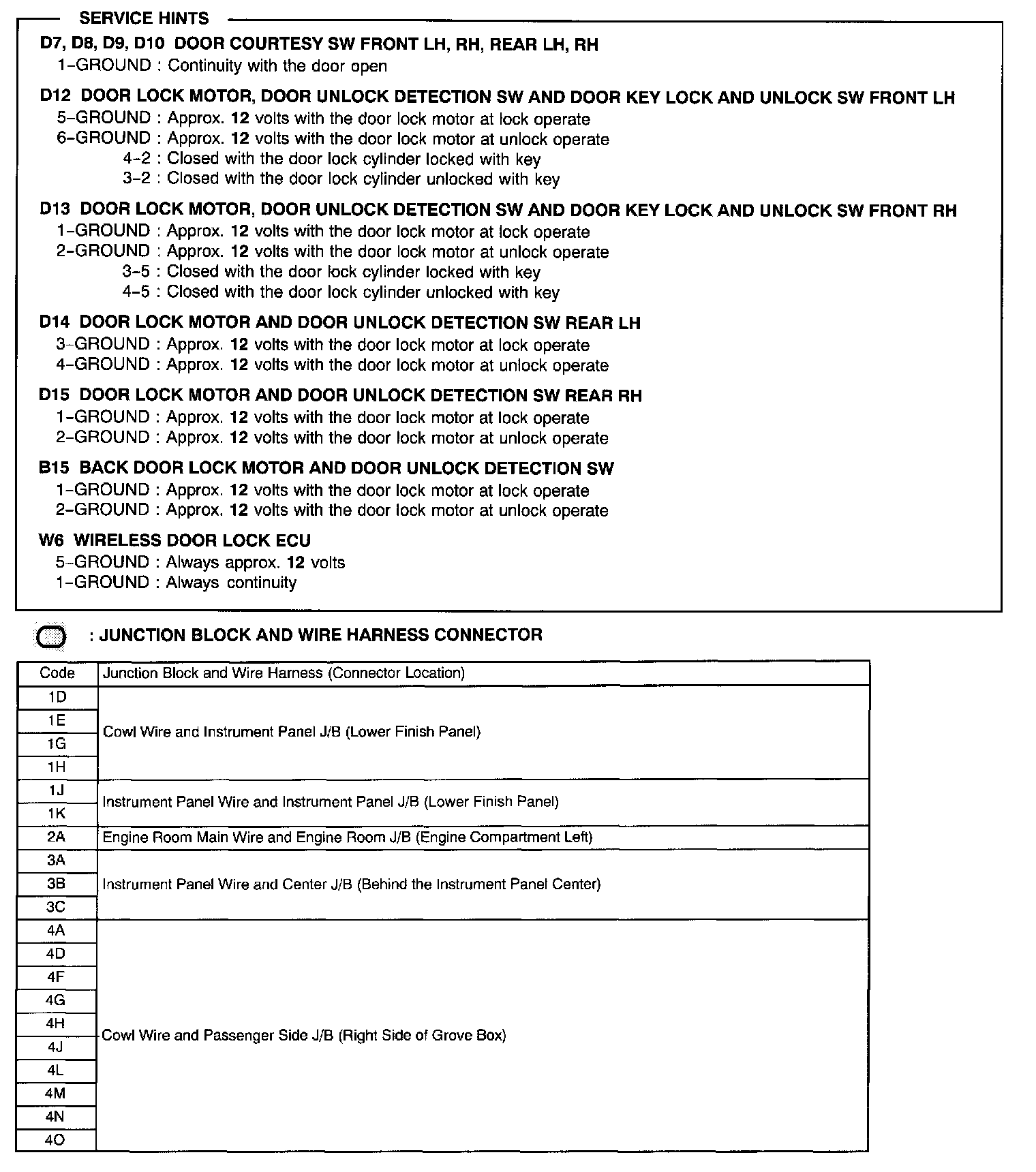

Diagram Legend Part 2:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations.

Connector Views: The connector views for connectors referred to within these diagrams can be found at the Vehicle level Connector Views.
