Brake Warning Light Circuit

CIRCUIT DESCRIPTION

If the ECU detects trouble, it lights the brake warning light while at the same time prohibiting ABS control.

At this time, the ECU records a DTC in memory.

Connect terminals Tc and CG of the DLC3 to make the brake warning light blink and output the DTC.

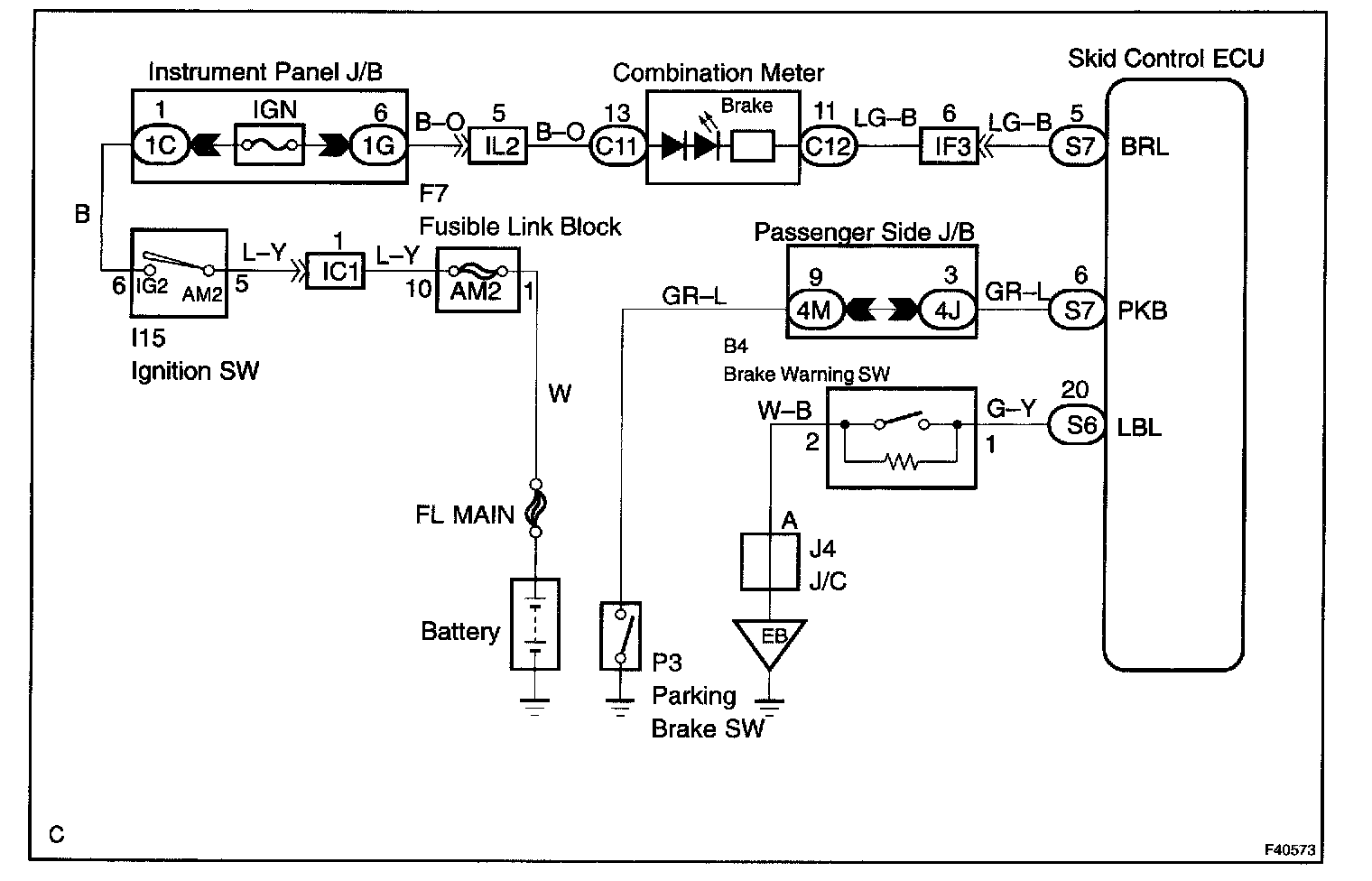

Wiring Diagram:

Step 1 - 2:

Step 3 - 5:

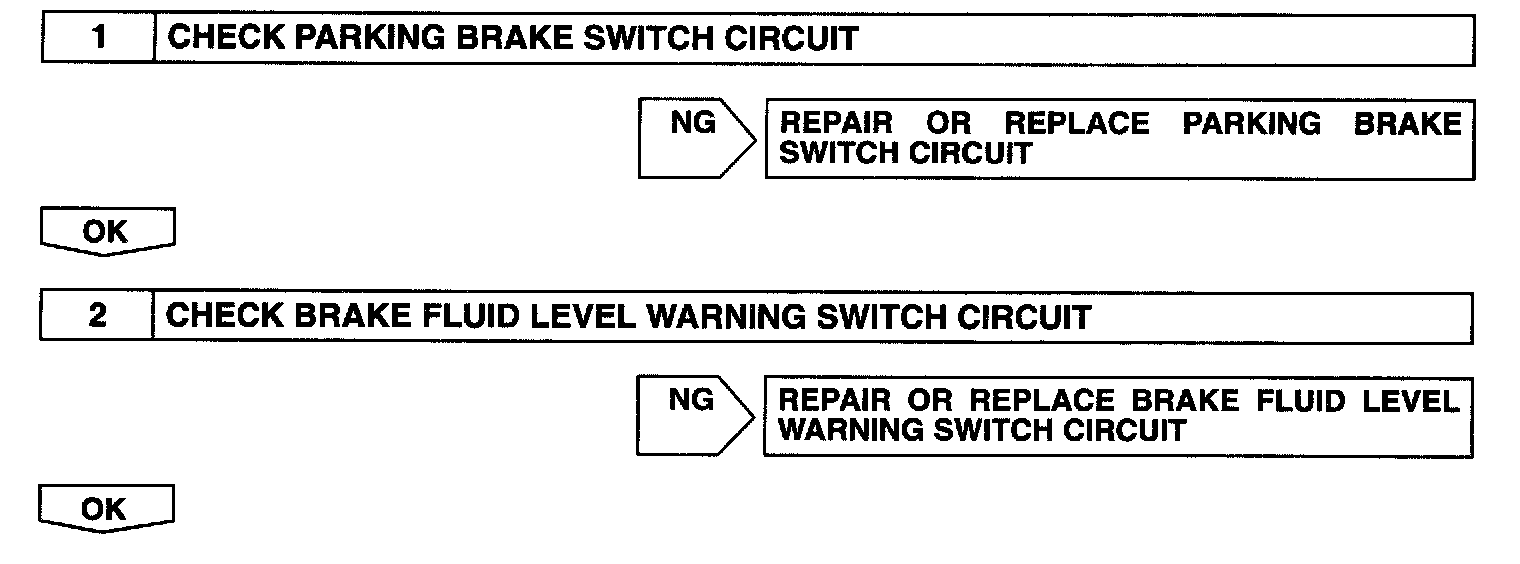

INSPECTION PROCEDURE
