Engine Immobilizer System

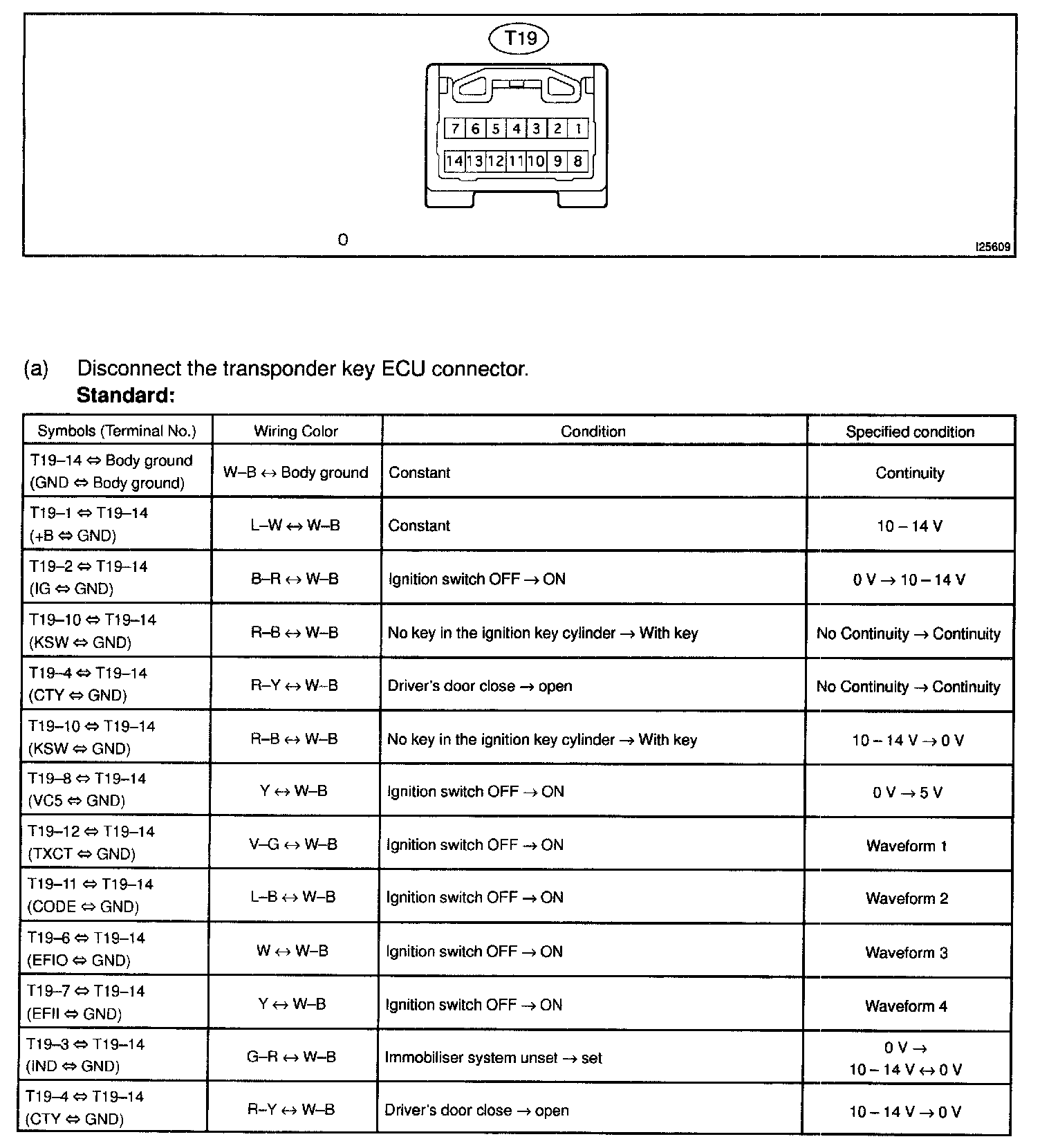

Terminals Of ECM/ Pinouts - Transponder Key ECU Part 1:



Terminals Of ECM/ Pinouts - Transponder Key ECU Part 2:

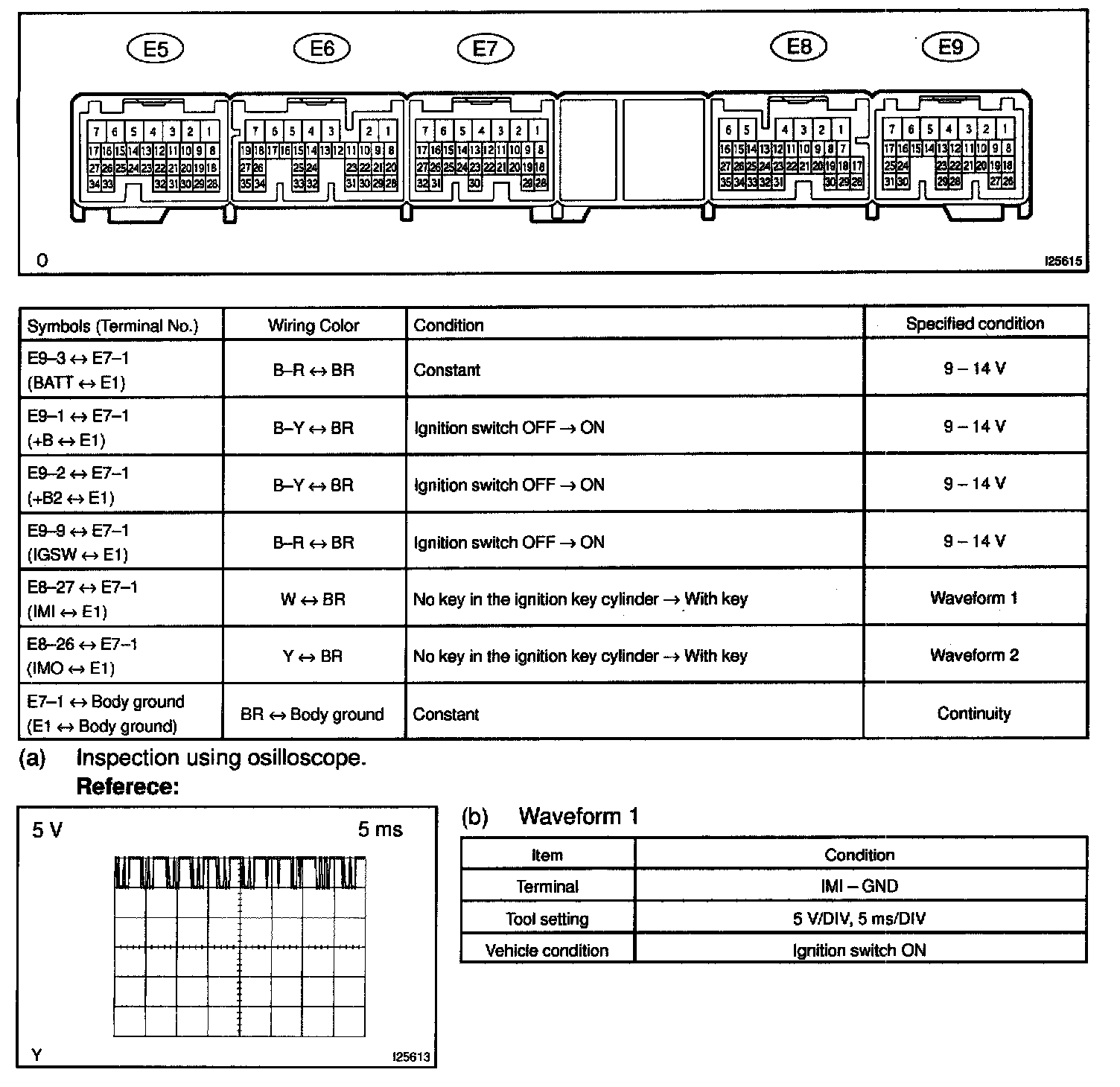

Terminals Of ECM/ Pinouts - ECM Part 1:

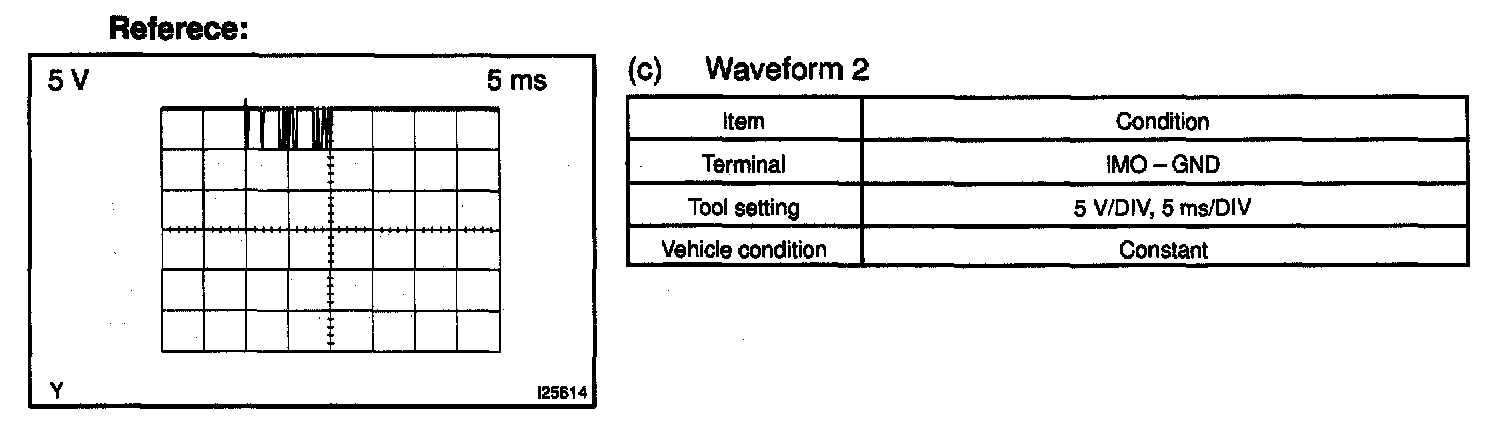

Terminals Of ECM/ Pinouts - ECM Part 2:
