Engine Hood Courtesy Switch Circuit

Engine Hood Courtesy Switch Circuit

CIRCUIT DESCRIPTION
The door courtesy light goes on when the door is opened and goes off when closed.

Wiring Diagram:

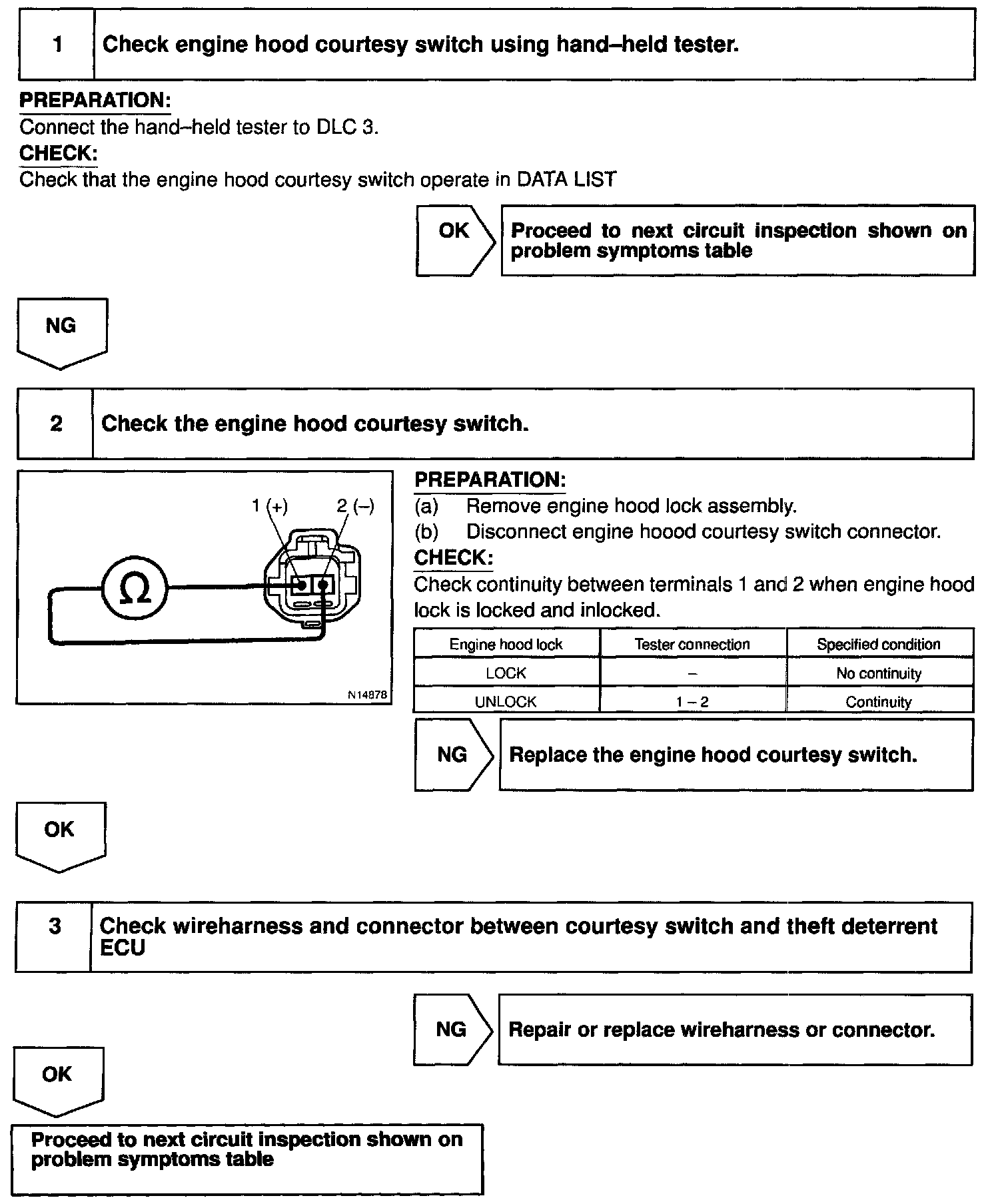

Step 1 - 3:

INSPECTION PROCEDURE

HINT: In case of using the hand-held tester, start the inspection from step 1 and in case of not using the hand-held tester, start from step 2.
