Driver Door Control System
Driver Door Control System

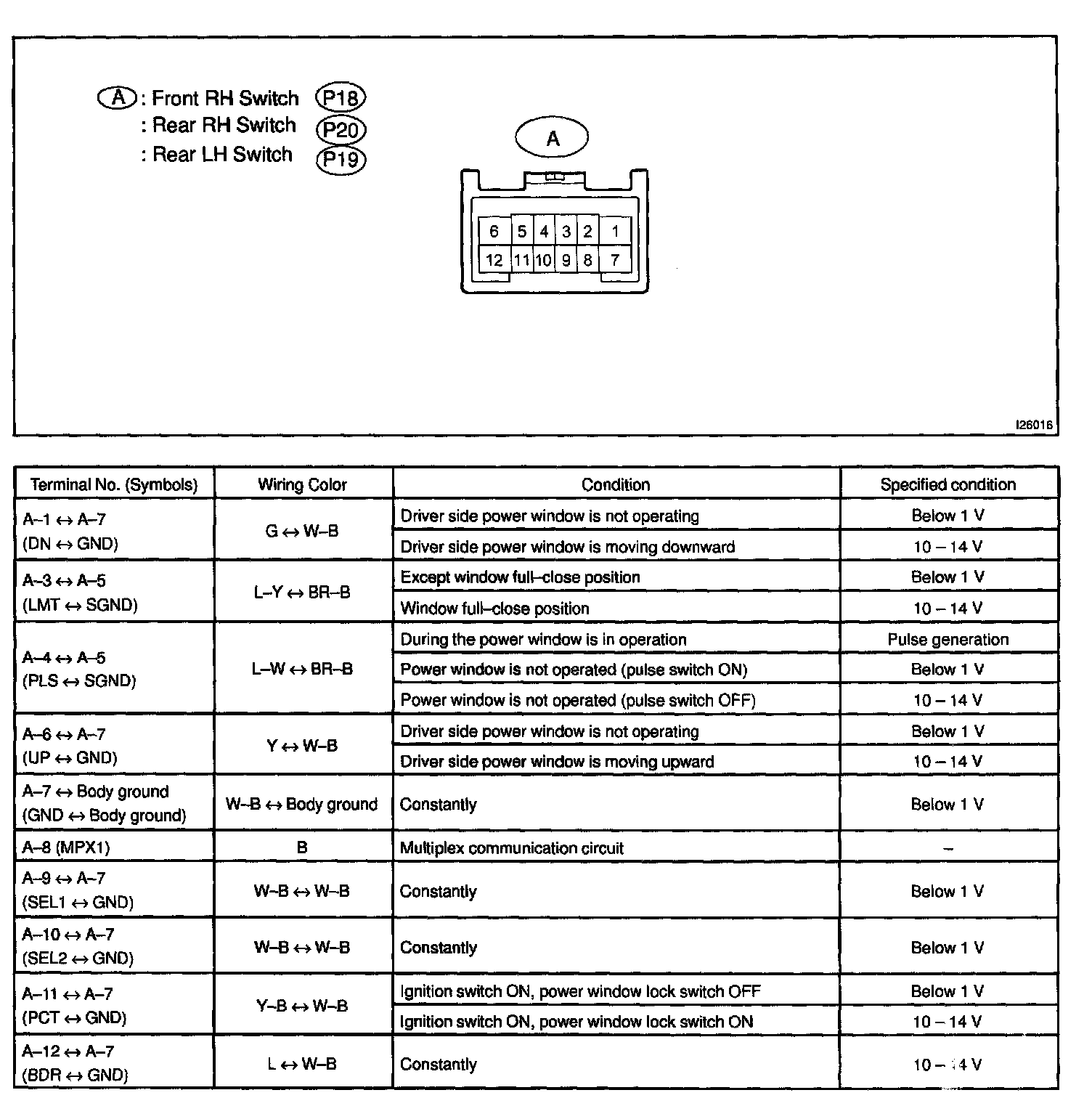

Terminals Of ECU/ Pinouts - Power Window Master Switch:

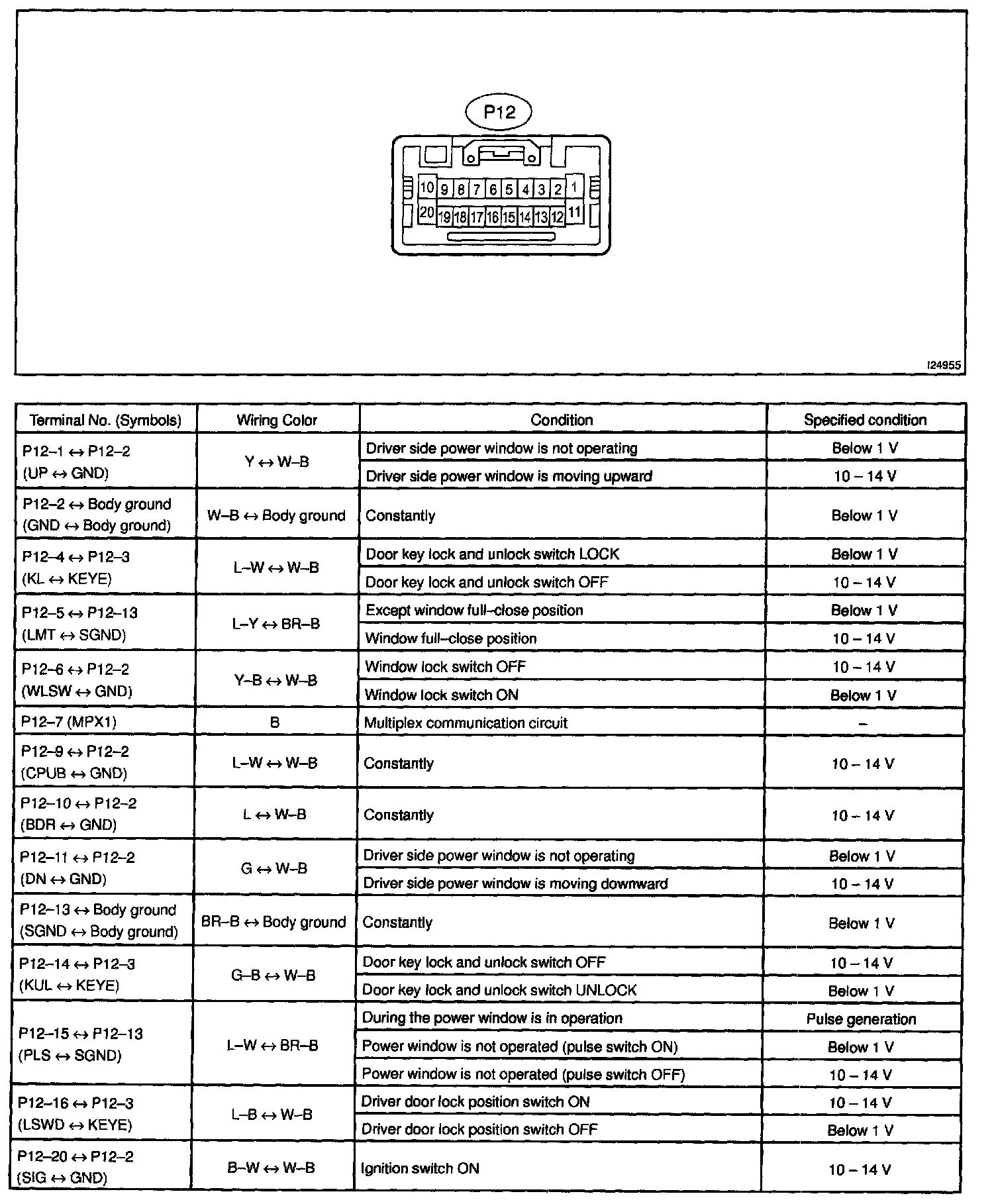

Terminals Of ECU/ Pinouts - Except Power Window Master Switch:
