Data List
DATA LISTHINT: According to the DATA LIST displayed by the hand-held tester, you can read the value of the switch, sensor, actuator and so on without parts removal. Reading the DATA LIST as a first step of troubleshooting is one of the method to shorten the labor time.
a. Connect the hand-held tester to the DLC3.
b. Turn the ignition switch ON.
c. According to the display on tester, read the "DATA LIST".

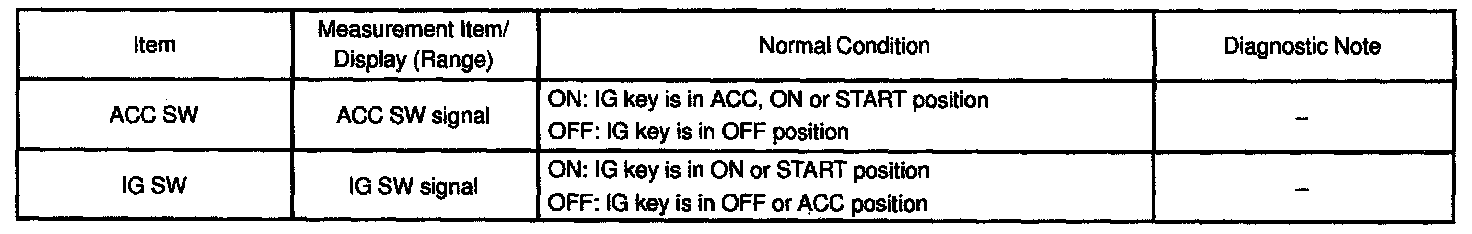

Power source & ignition switch

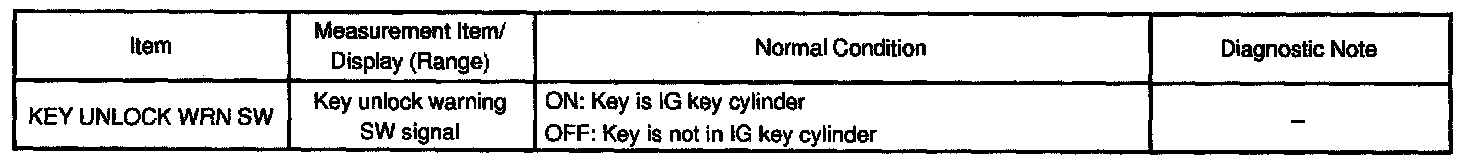

Key unlock warning switch

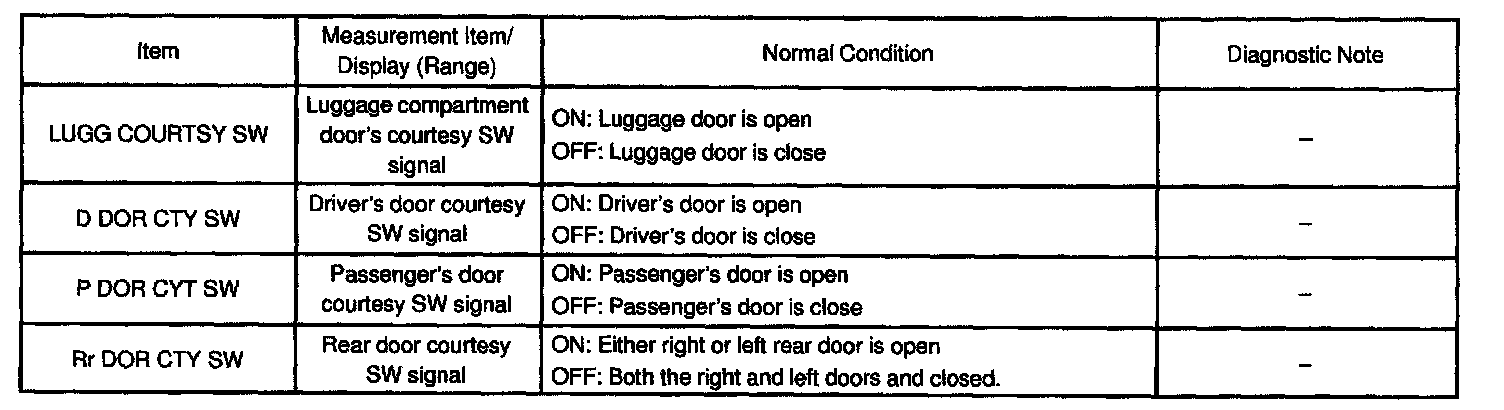

Door courtesy switch

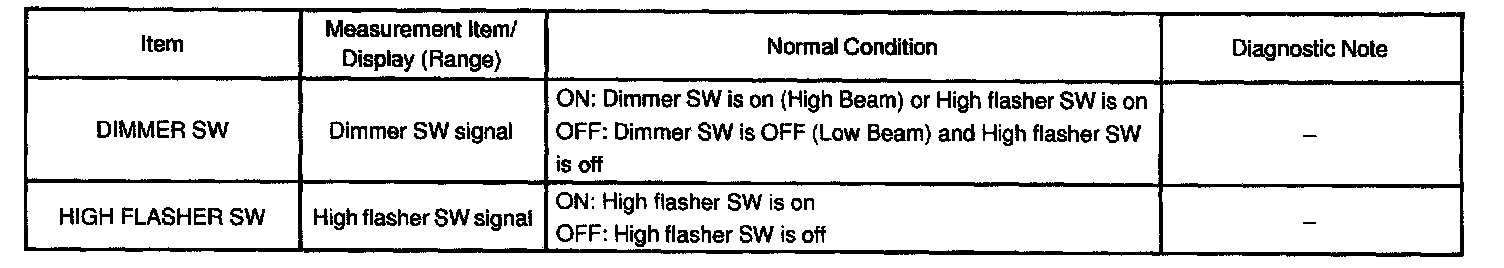

Headlight dimmer switch

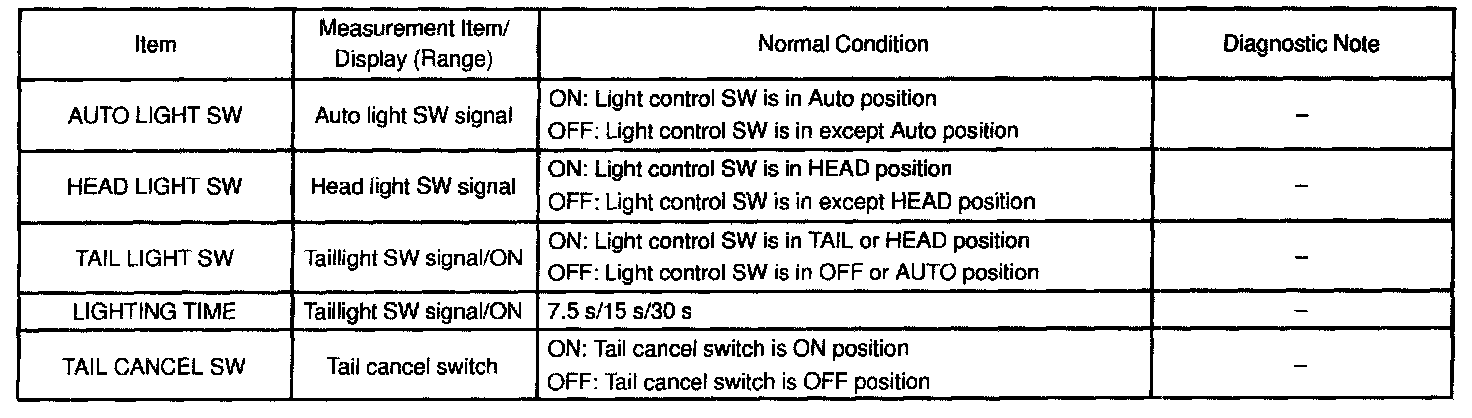

Light control switch

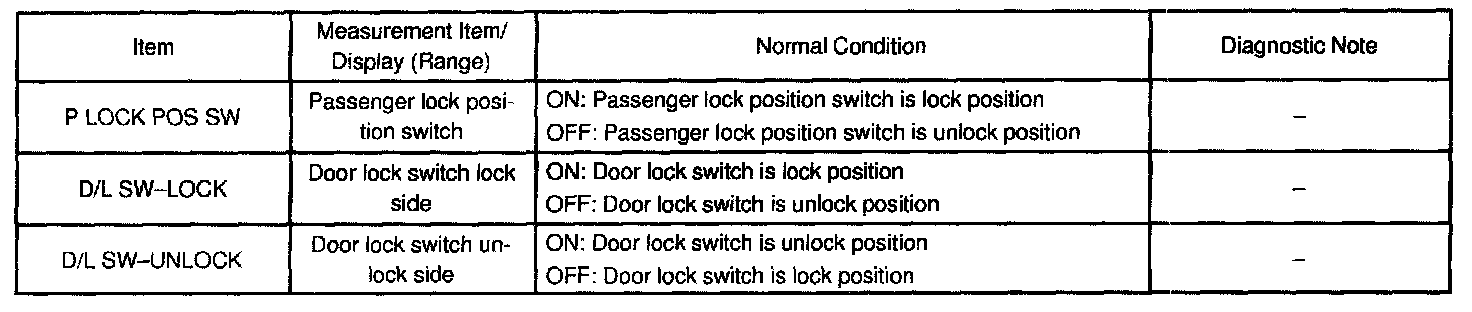

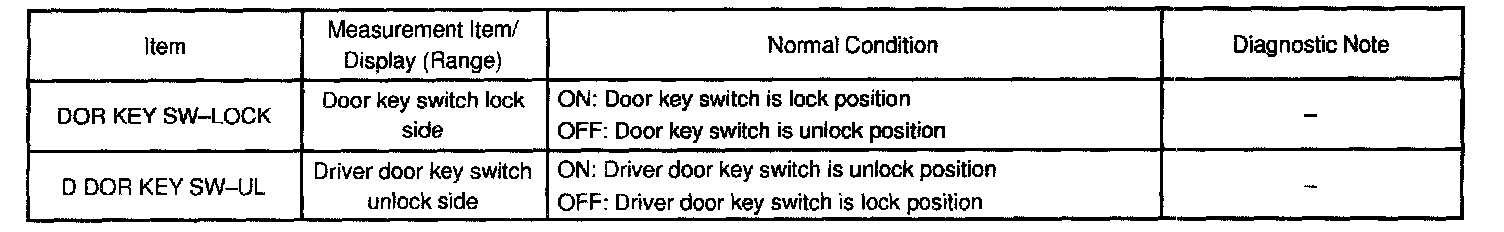

Door key lock and unlock switch
Door key lock and unlock switch

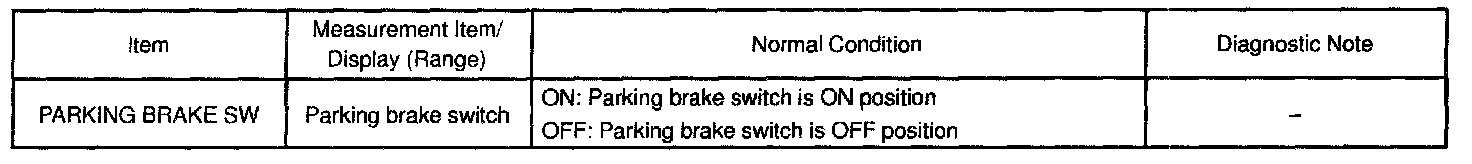

Parking brake switch

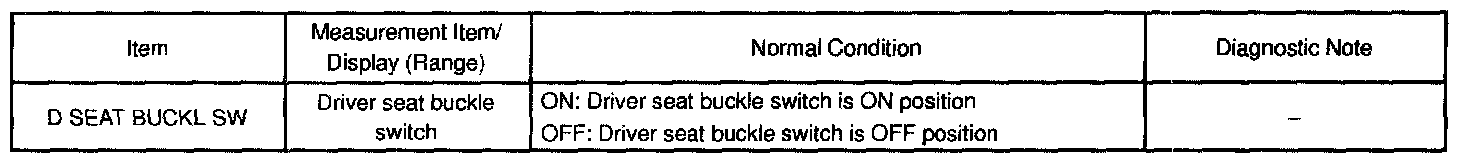

Driver seat buckle switch

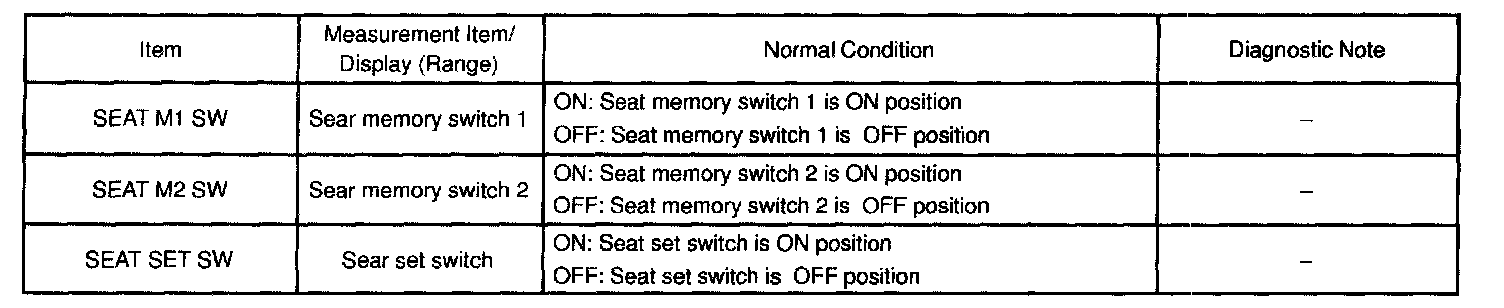

Seat memory switch

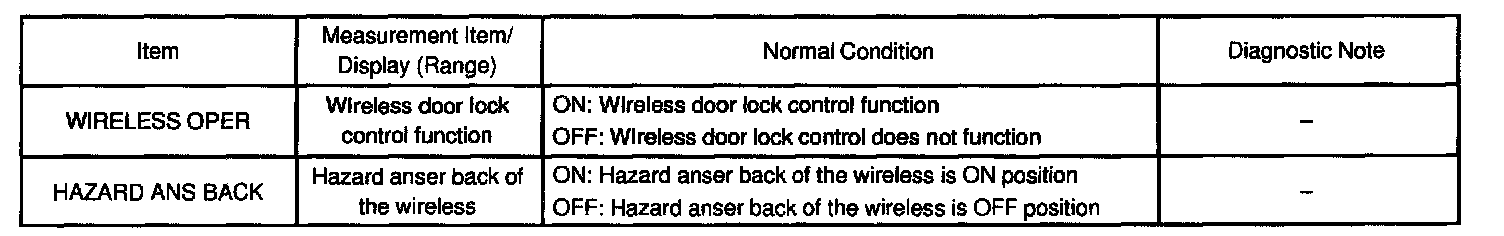

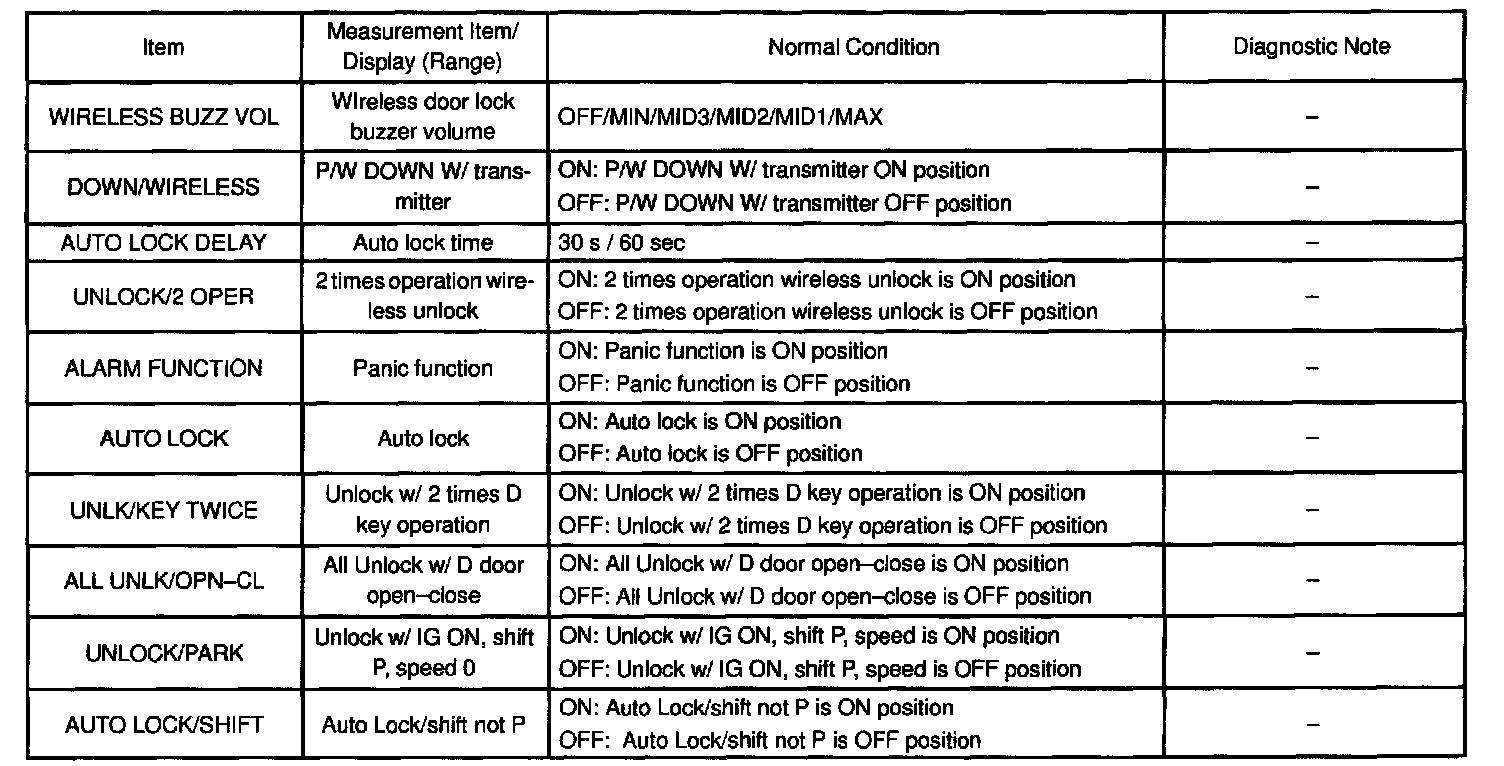

Wireless door lock control
Wireless door lock buzzer

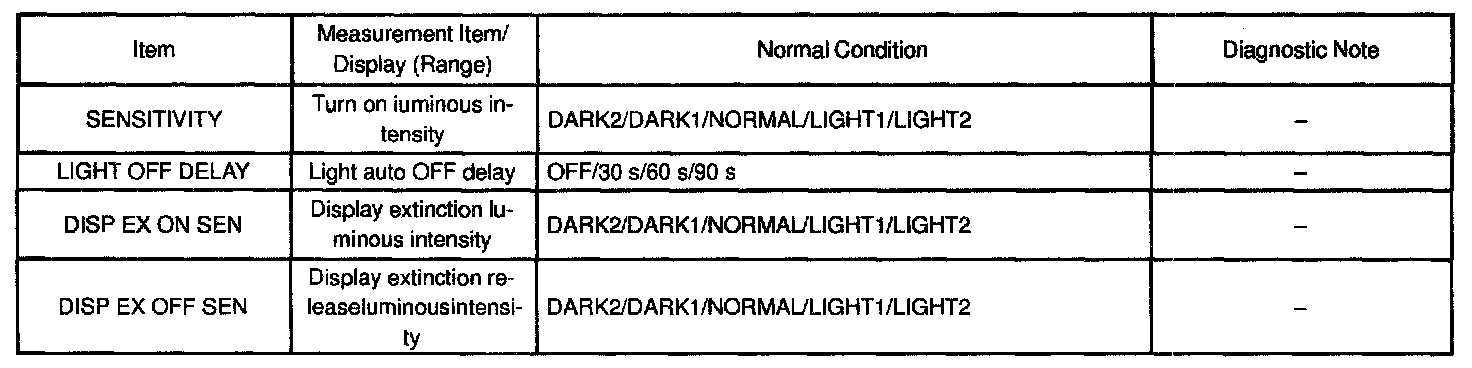

Light control sensor

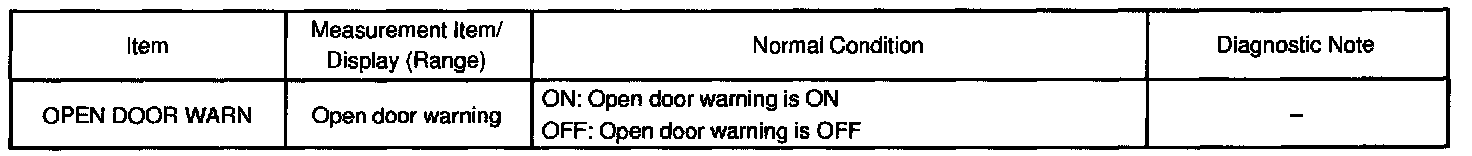

Open door warning light

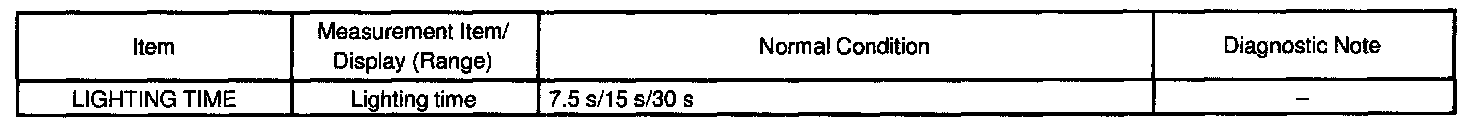

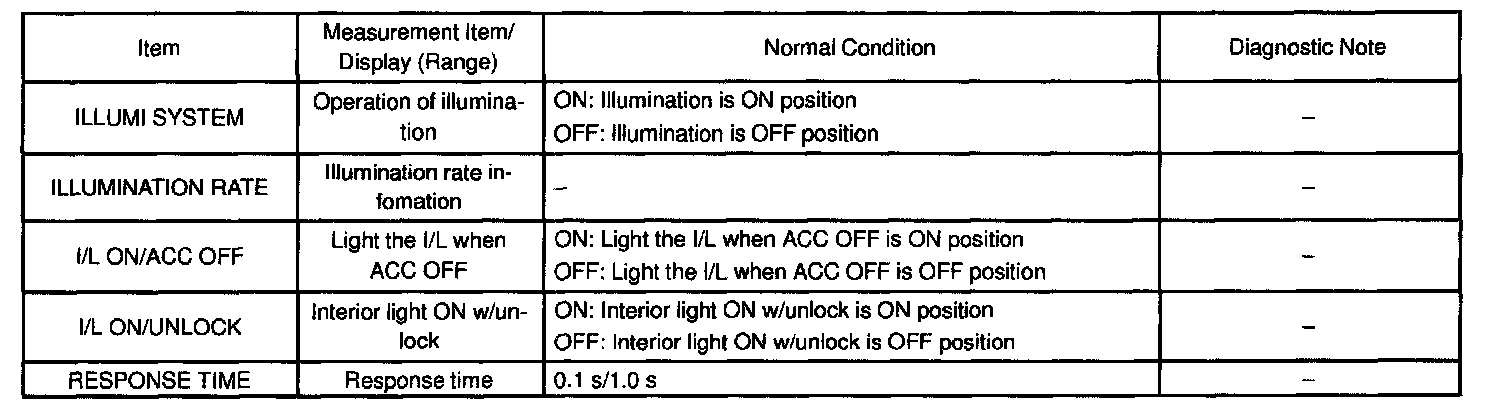

Illumination

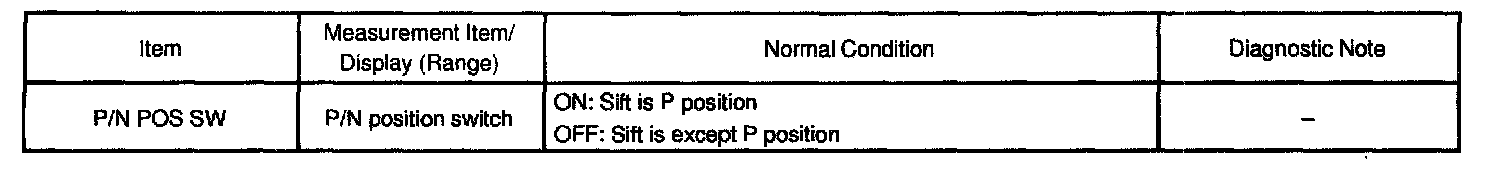

Park/Neutral position switch

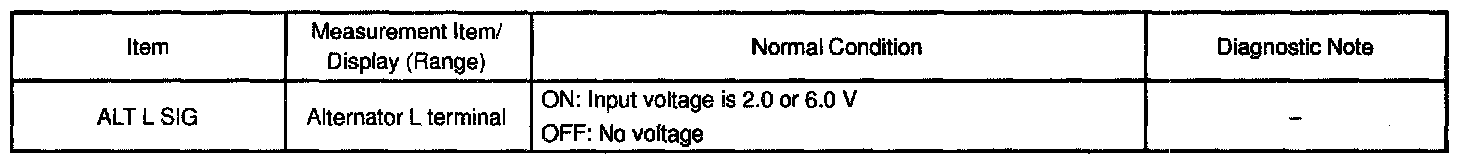

Alternator signal
Others
