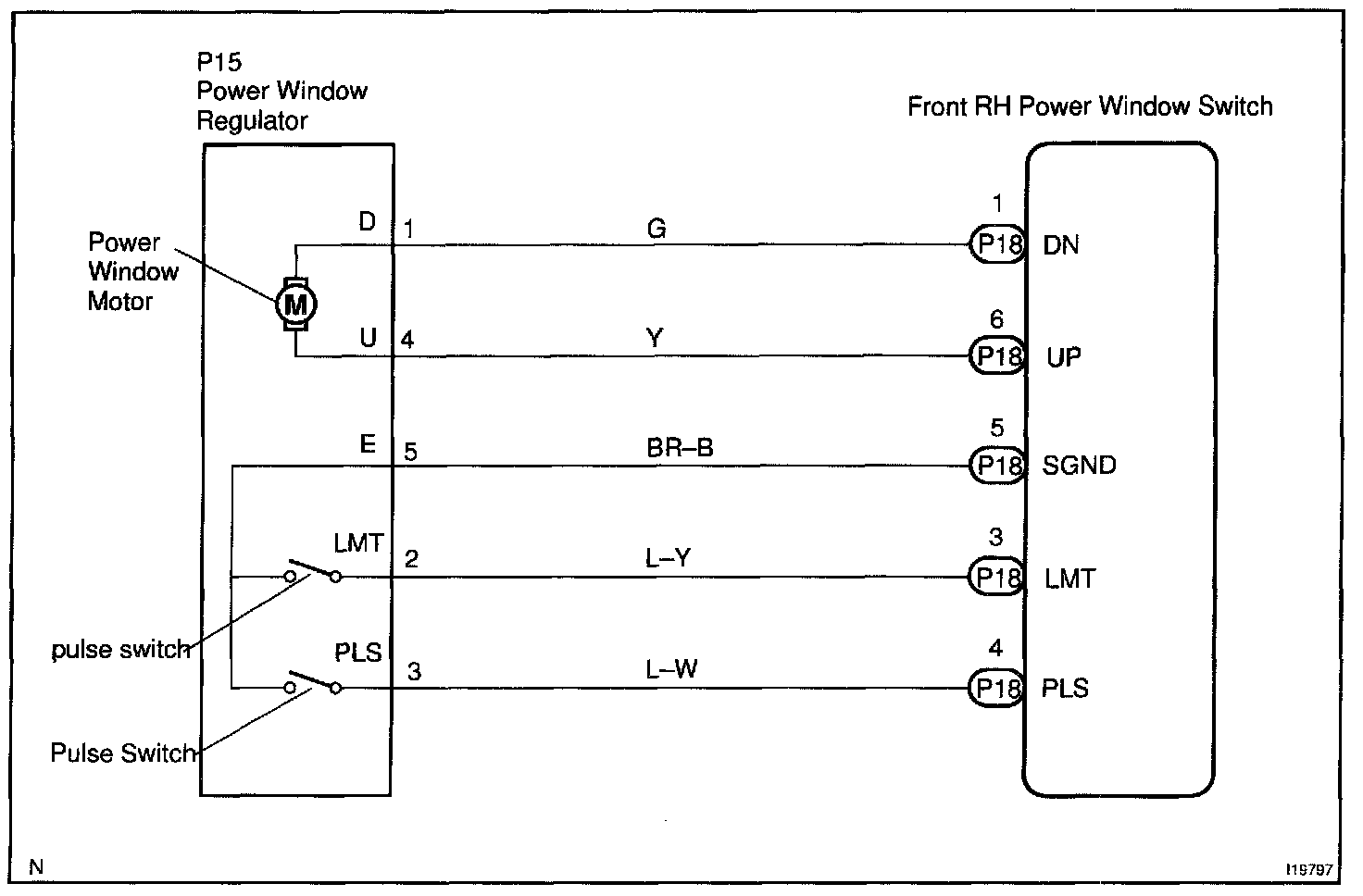

Jam Protection Limit/Pulse Switch Circuit on Front RH Door

CIRCUIT DESCRIPTION

The front RH power window switch receives the power window switch signal from the switch to operate the power window motor.
