Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2003
>>
Landcruiser V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Disc Brake System
>>
Rear
Rear

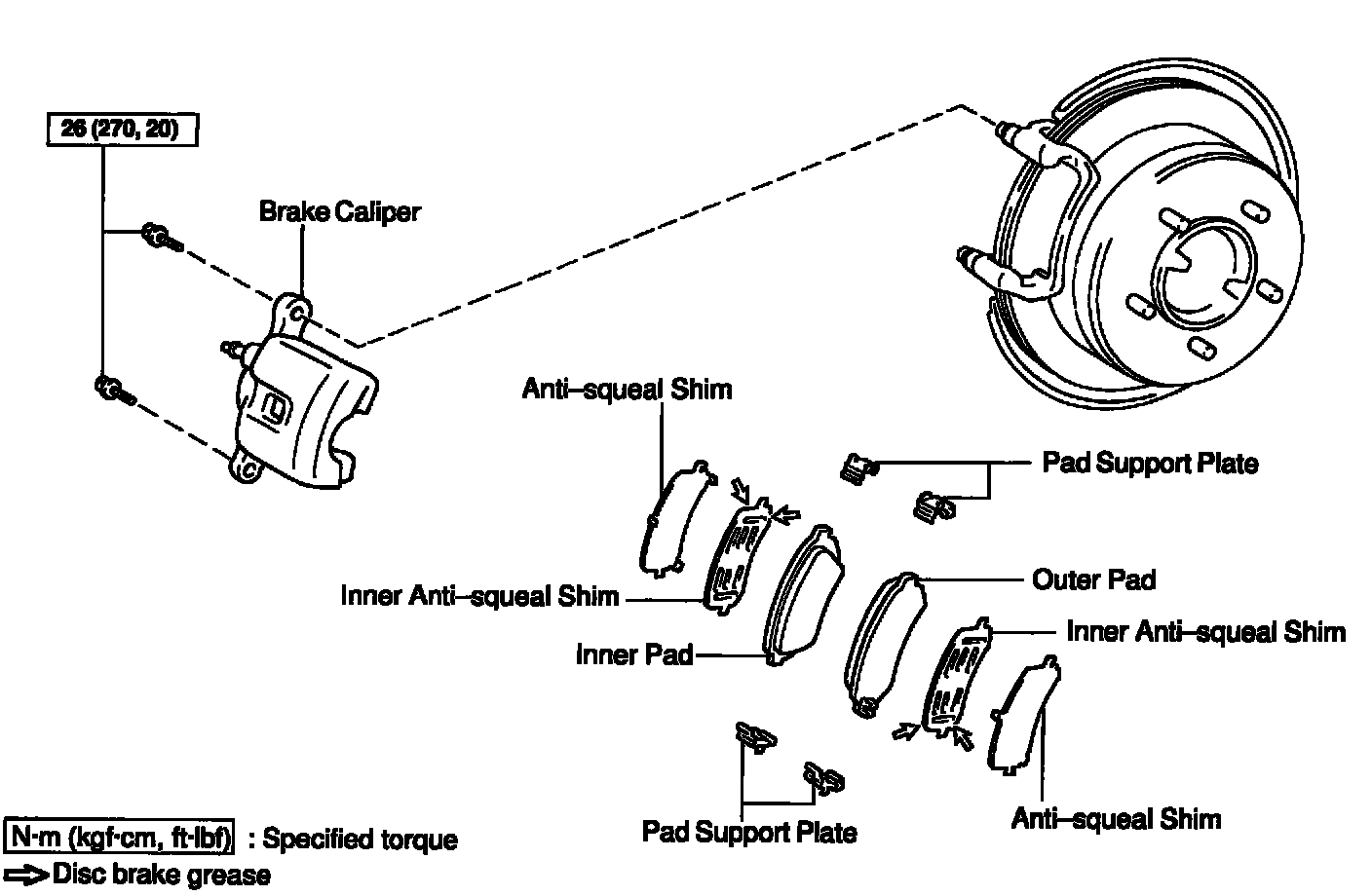

REAR
BRAKE PAD
REPLACEMENT W/ RELATED COMPONENTS

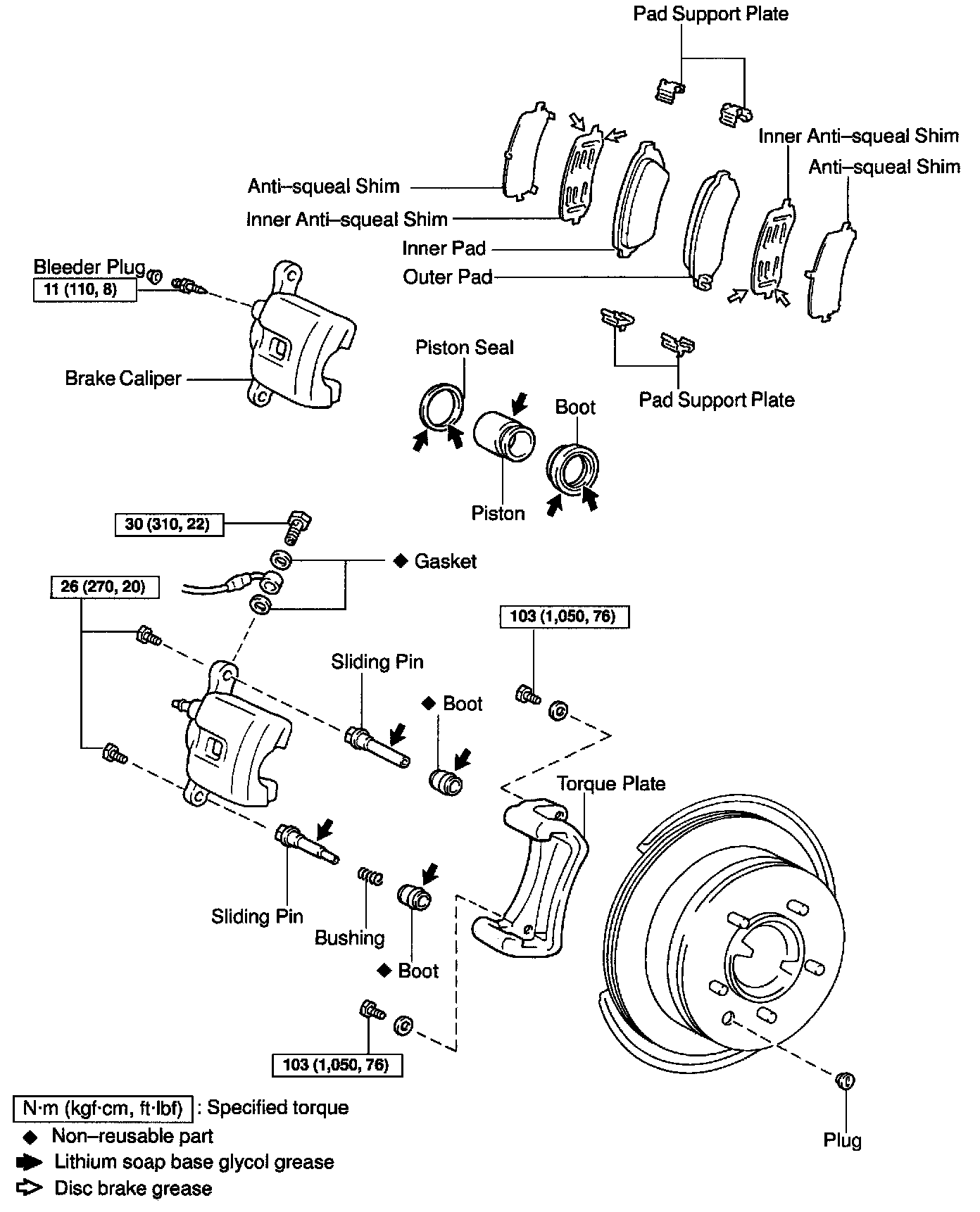

REAR
BRAKE CALIPER
OVERHAUL W/ RELATED COMPONENTS
