Exploded Views
>>
Transfer Case
>>
System Diagram
>>
Front Extension Housing
Front Extension Housing

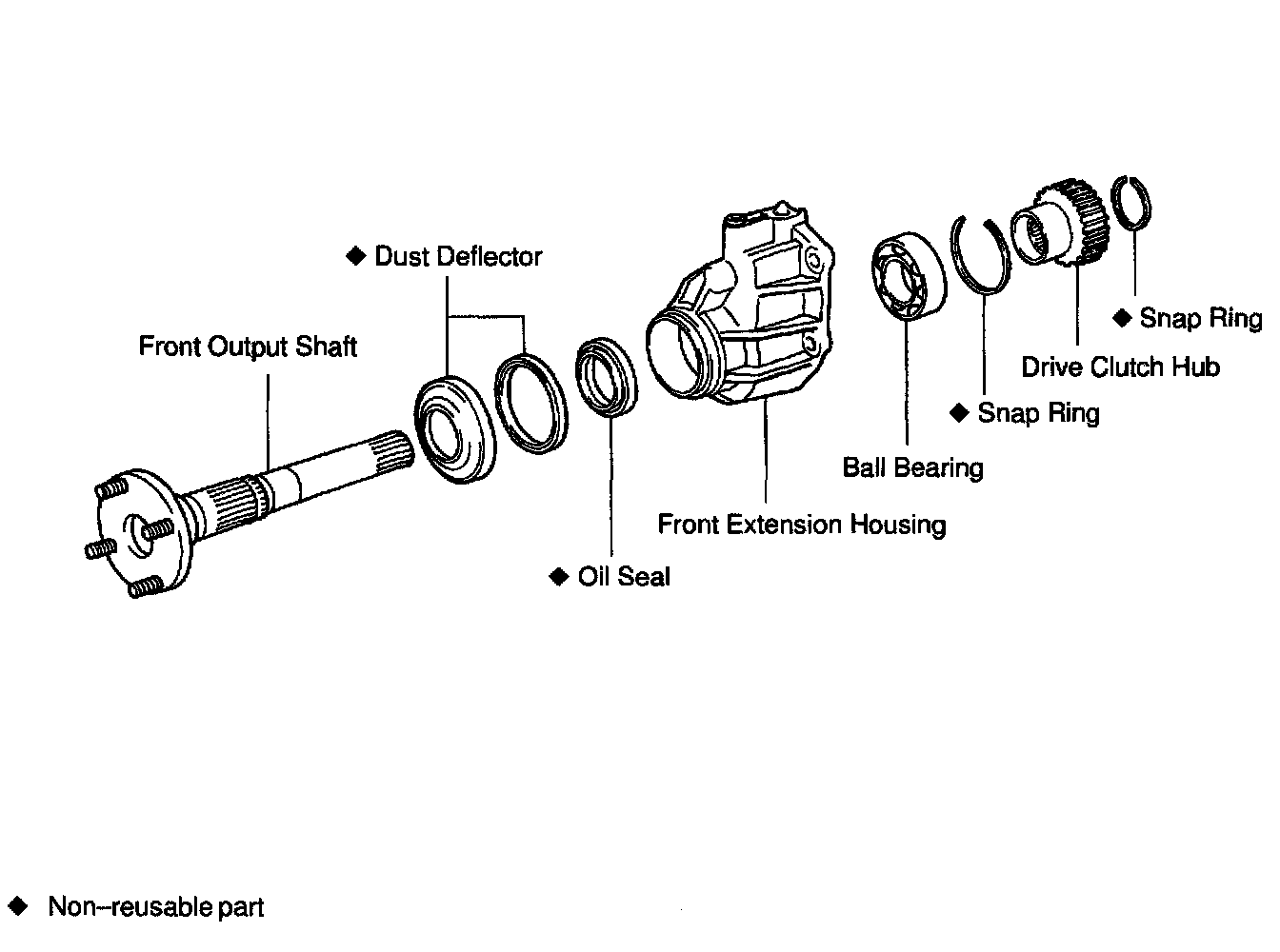

FRONT EXTENSION HOUSING
