Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2003
>>
Landcruiser V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Transfer Case
>>
System Diagram
>>
Transfer Unit
Transfer Unit

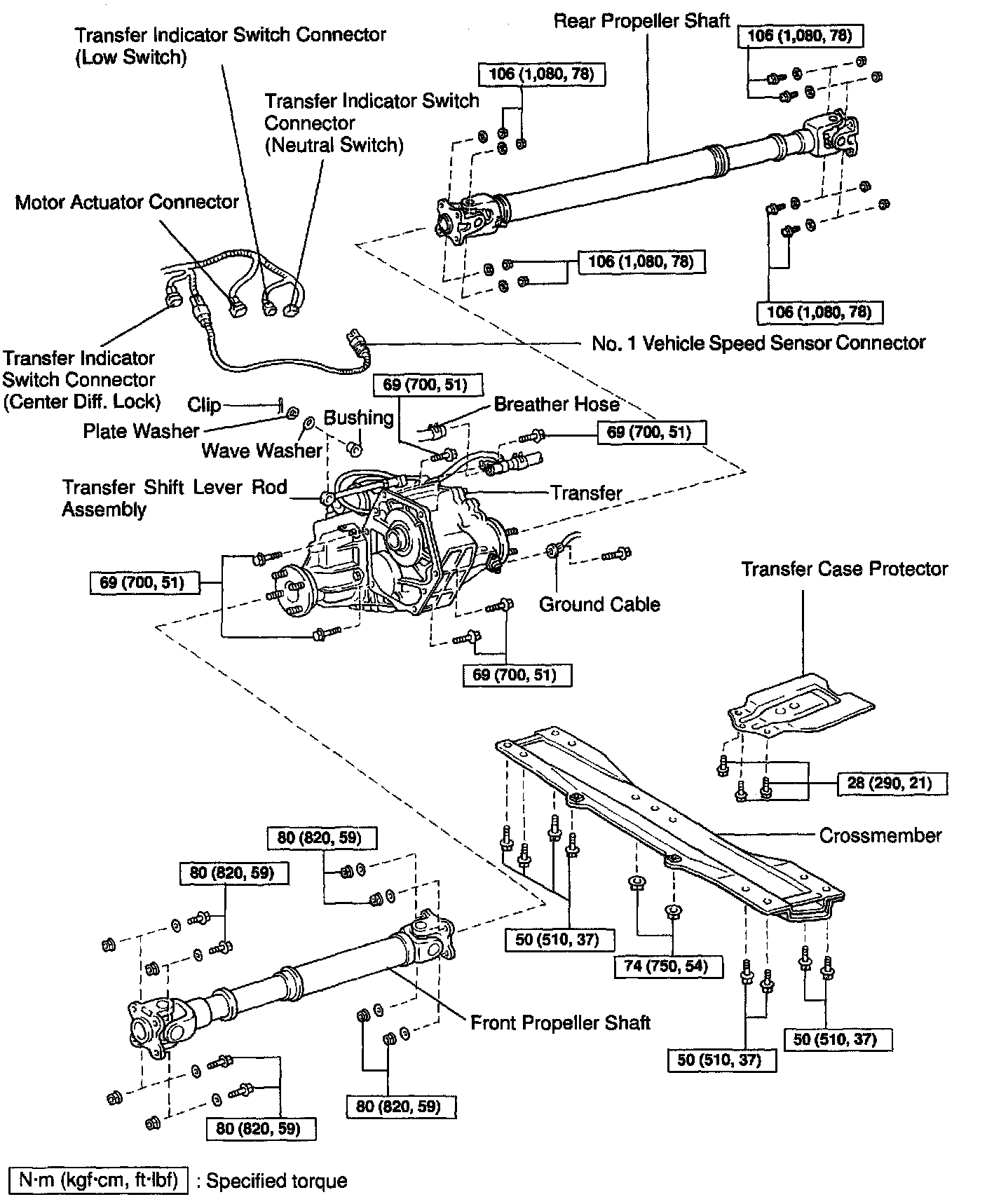

TRANSFER UNIT
