Home >> Toyota >> 2003 >> Landcruiser V8-4.7L (2UZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Wheel Hub

Wheel Hub

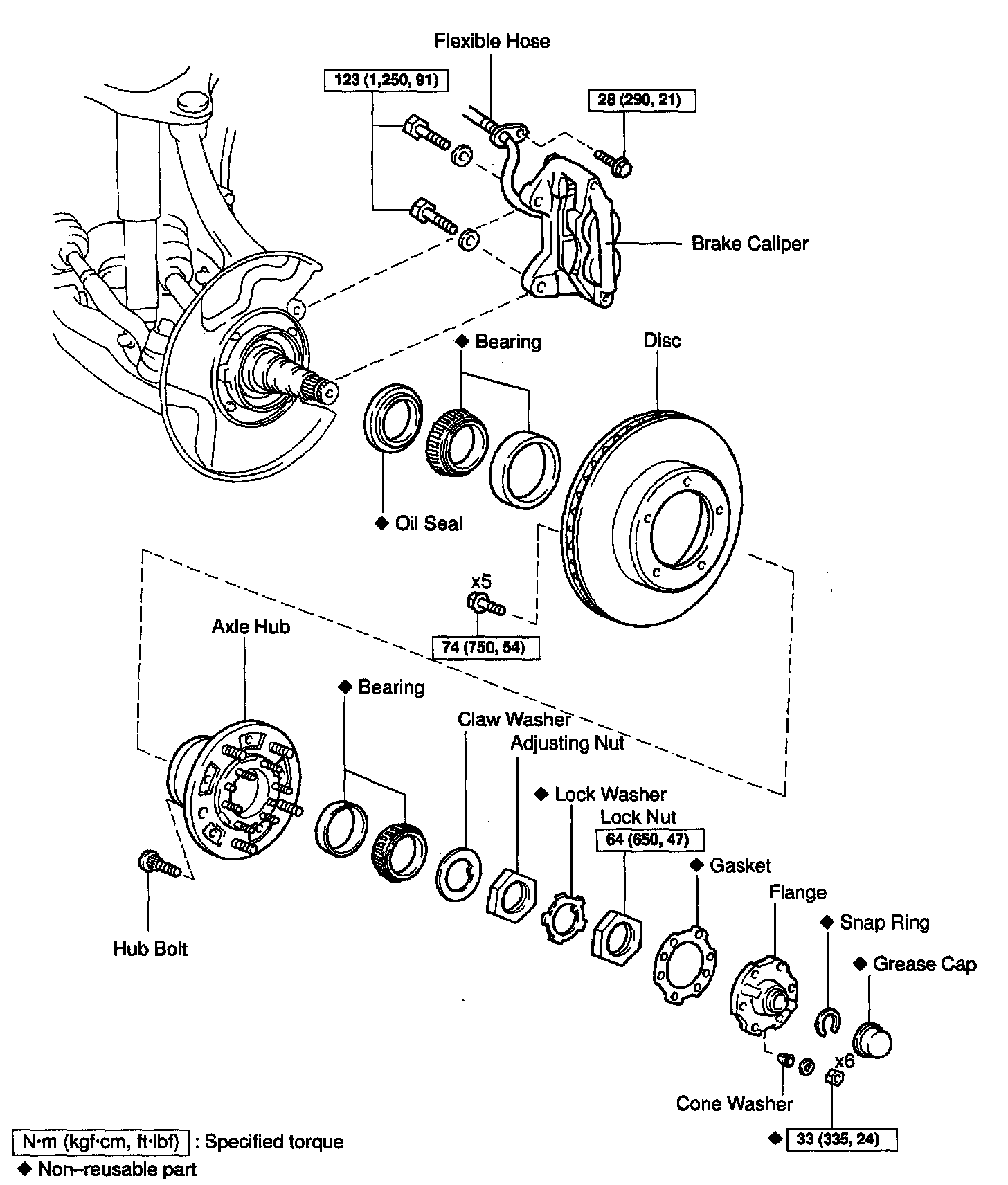

FRONT AXLE HUB REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
