Disassembly and Reassembly

DISASSEMBLY




1. W/ navigation system:
REMOVE KNOB

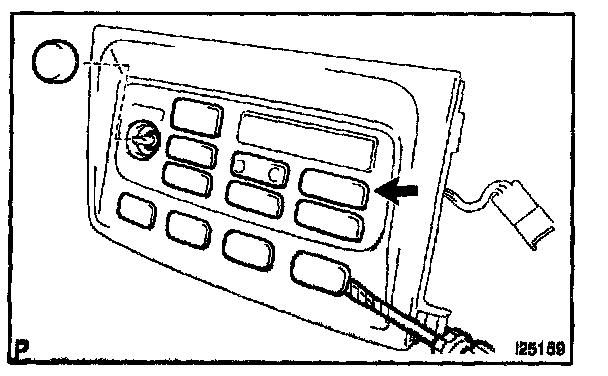

Using a screwdriver, pull out the knobs.

HINT: Tape up the screwdriver tip before use.




2. W/ navigation system:
REMOVE INTEGRATION CONTROL PANEL

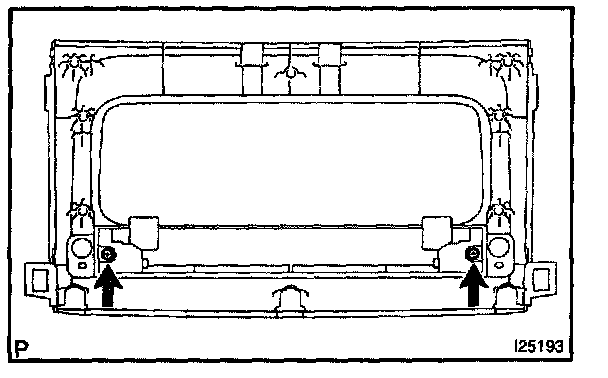

a. Remove the 2 screws.




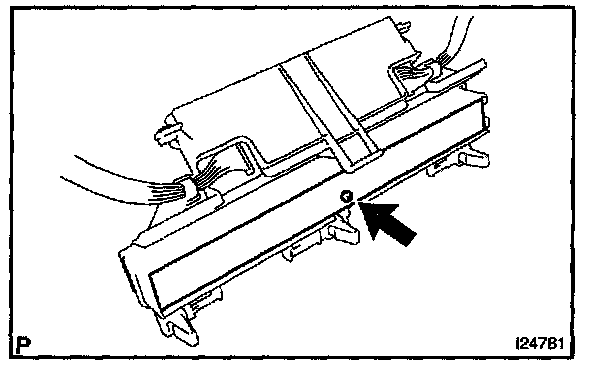

b. Remove the screw and the board.




3. W/ navigation system:
REMOVE HEATER CONTROL HOUSING

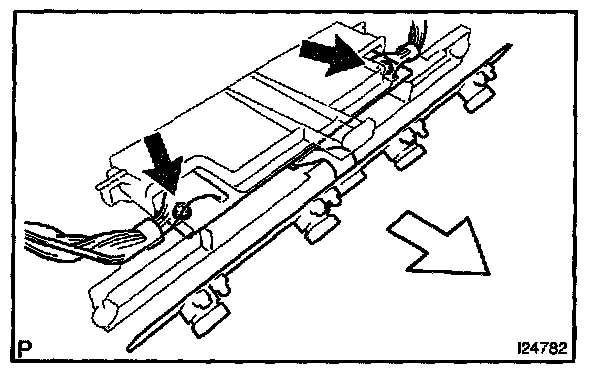

a. Disconnect the connector clamps.
b. Remove the 2 screws and pull out the board from the heater control housing.

4. REMOVE KNOB

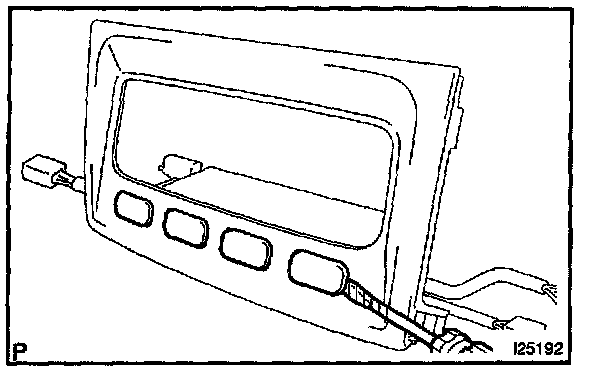

a. Using a screwdriver, pull out the knobs.

HINT: Tape up the screwdriver tip before use.

b. Remove the nut.




5. w/o LEXUS navigation system:
REMOVE KNOB
Using a screwdriver, pull out the knobs.
HINT: Tape up the screwdriver tip before use.

6. w/o navigation system:
REMOVE INTEGRATION CONTROL PANEL

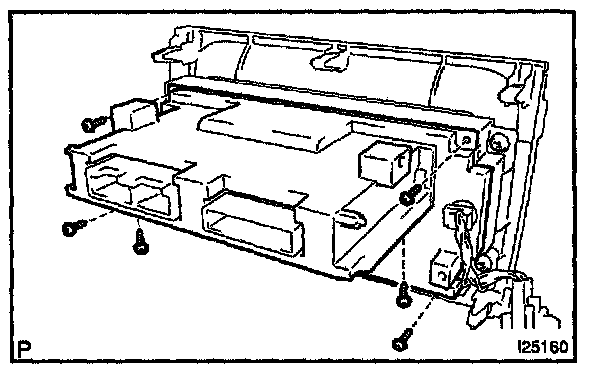

a. Remove the 6 screws and pull out the A/C amplifier.

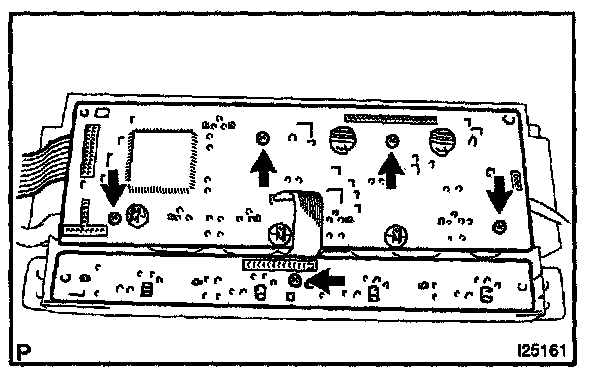

b. Remove the 5 screws and the board.

REASSEMBLY
Reassembly is in the reverse of disassembly.
