Removal and Installation

Air Conditioning Control Assembly:

Air Conditioning Control Assembly - W/ Navigation System:

Air Conditioning Control Assembly - W/o Navigation System:

REMOVAL




1. REMOVE CENTER RESISTORS

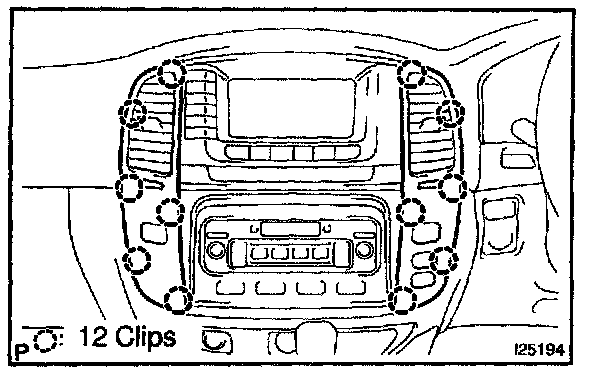

Disengage the 12 clips and remove the center resistors, then disconnect the connectors.




2. REMOVE INTEGRATION CONTROL PANEL ASSEMBLY

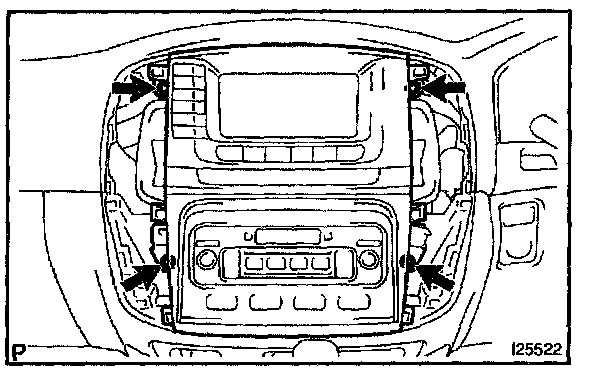

a. Remove the 4 bolts.
b. Remove the integration control panel assembly, then disconnect the connectors.




3. W/ navigation system:
REMOVE A/C AMPLIFIER
a. Disconnect the connector clamp.

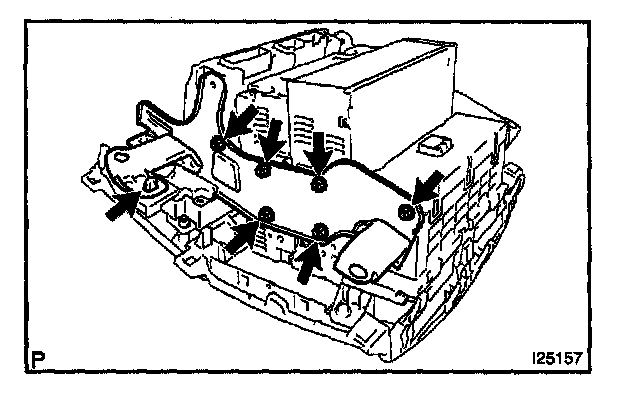

b. Remove the 3 screws, the 4 bolts and the radio receiver bracket LH.

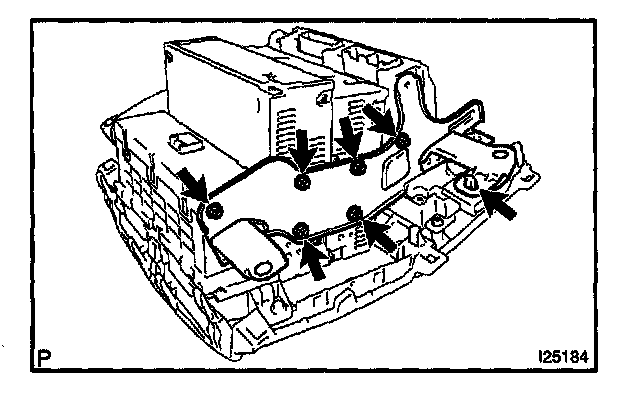

c. Remove the 2 screws and the A/C amplifier.




4. W/ LEXUS navigation system:
REMOVE EMV

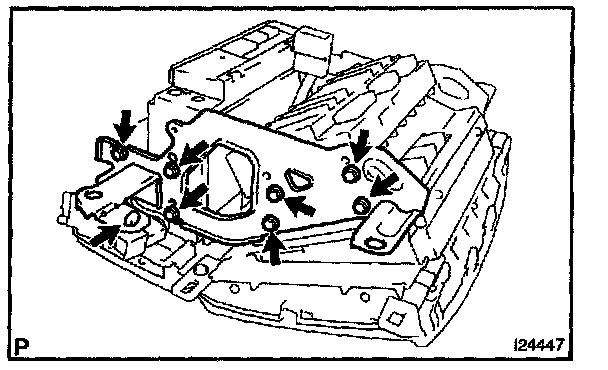

Remove the 3 screws, the 2 bolts and the EMV




5. W/ navigation system:
REMOVE INTEGRATION CONTROL PANEL

6. Disconnect the connector clamps.

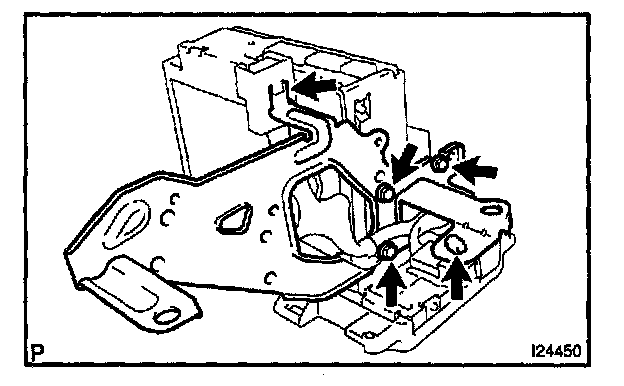

a. Remove the screw, the 2 bolts and the radio receiver bracket RH.
b. Remove the integration control panel from the radio receiver.

7. W/o navigation system:
REMOVE INTEGRATION CONTROL PANEL




a. Disconnect the connector clamp.

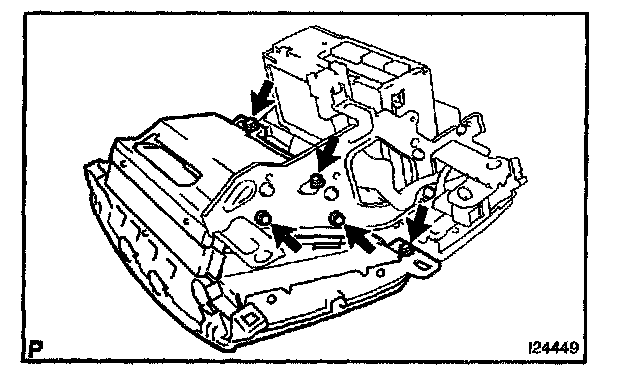

b. Remove the 2 screws, 4 bolts and the radio receiver bracket LH.




c. Disconnect the connector clamp.

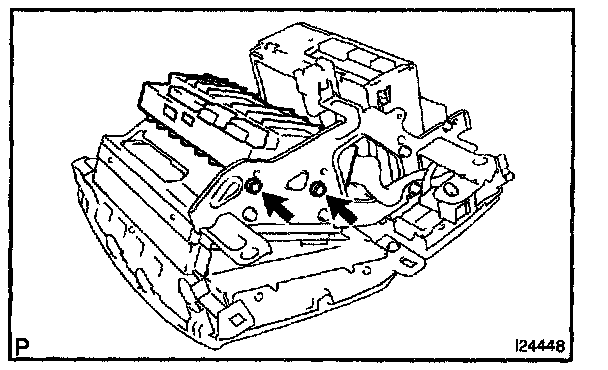

d. Remove the 2 screws, 4 bolts and the radio receiver bracket RH.
e. Remove the integration control panel.

INSTALLATION
Installation is in the reverse of removal

HINT:
w/ Navigation System:
When removing/installing EMV, or when disconnecting the battery terminal, turn the IG ON and OFF twice for initial display setting.
