Pinout Values and Diagnostic Parameters

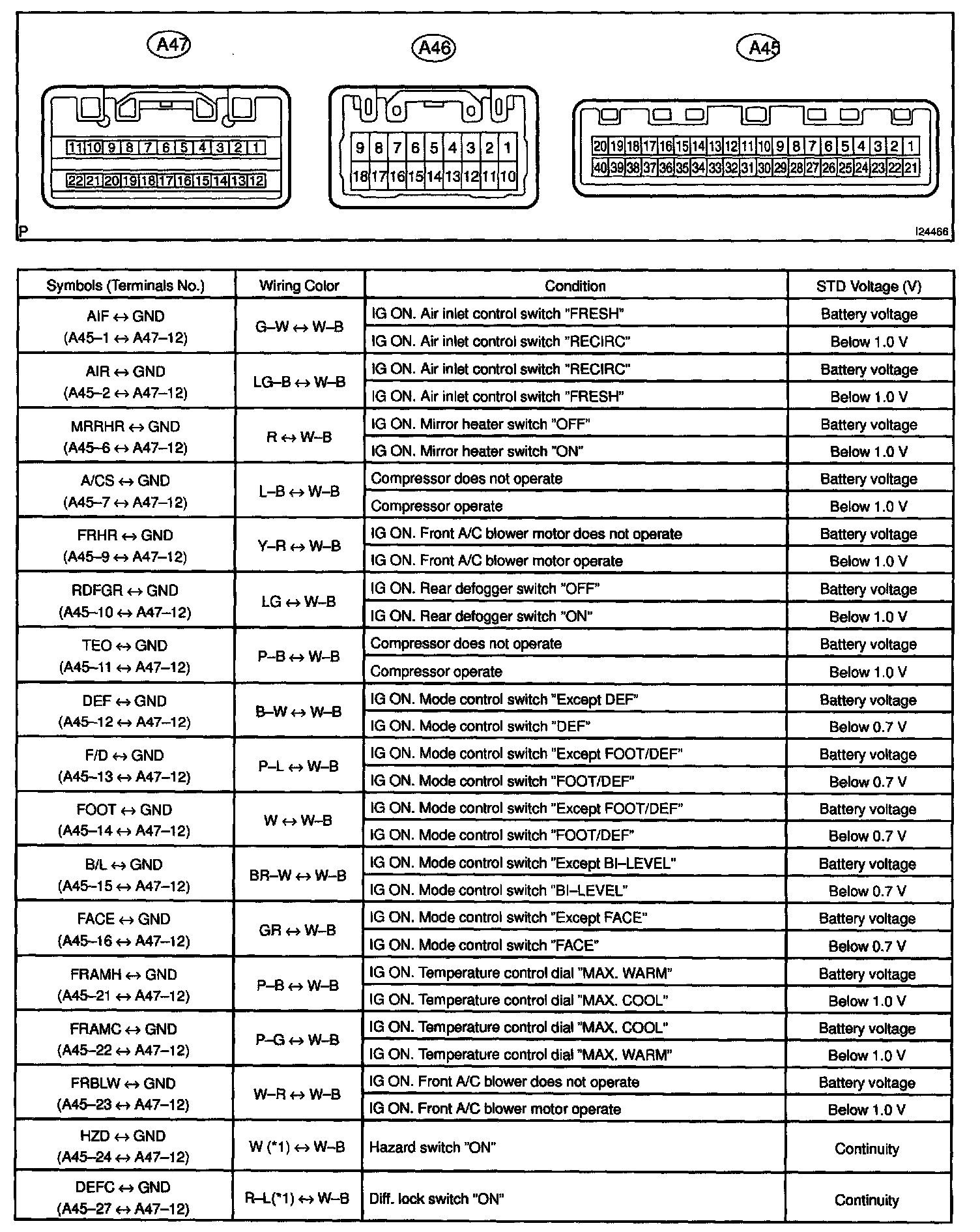

Terminals Of ECU/ Pinouts - Front A/C Amplifier Part 1:

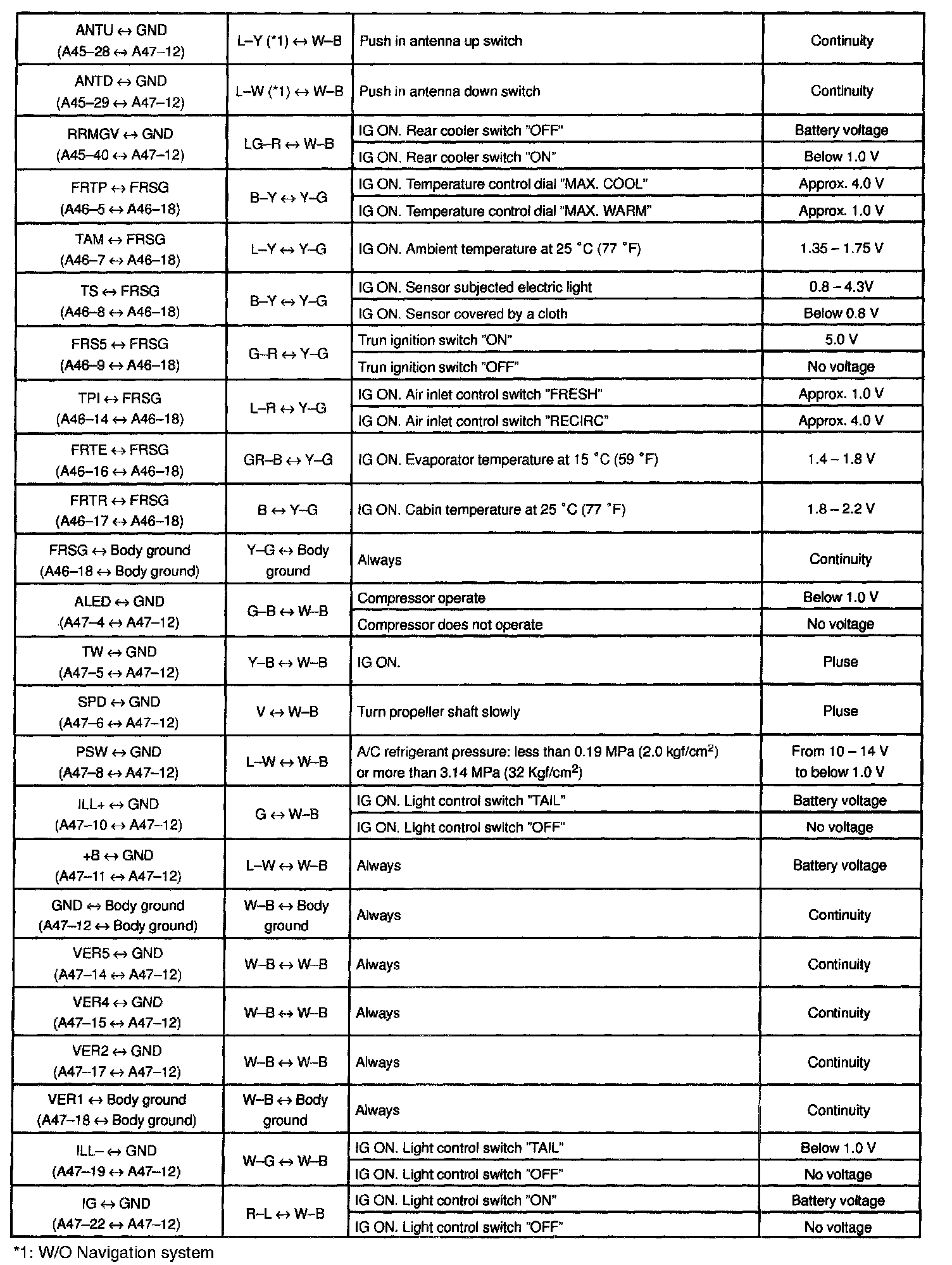

Terminals Of ECU/ Pinouts - Front A/C Amplifier Part 2:

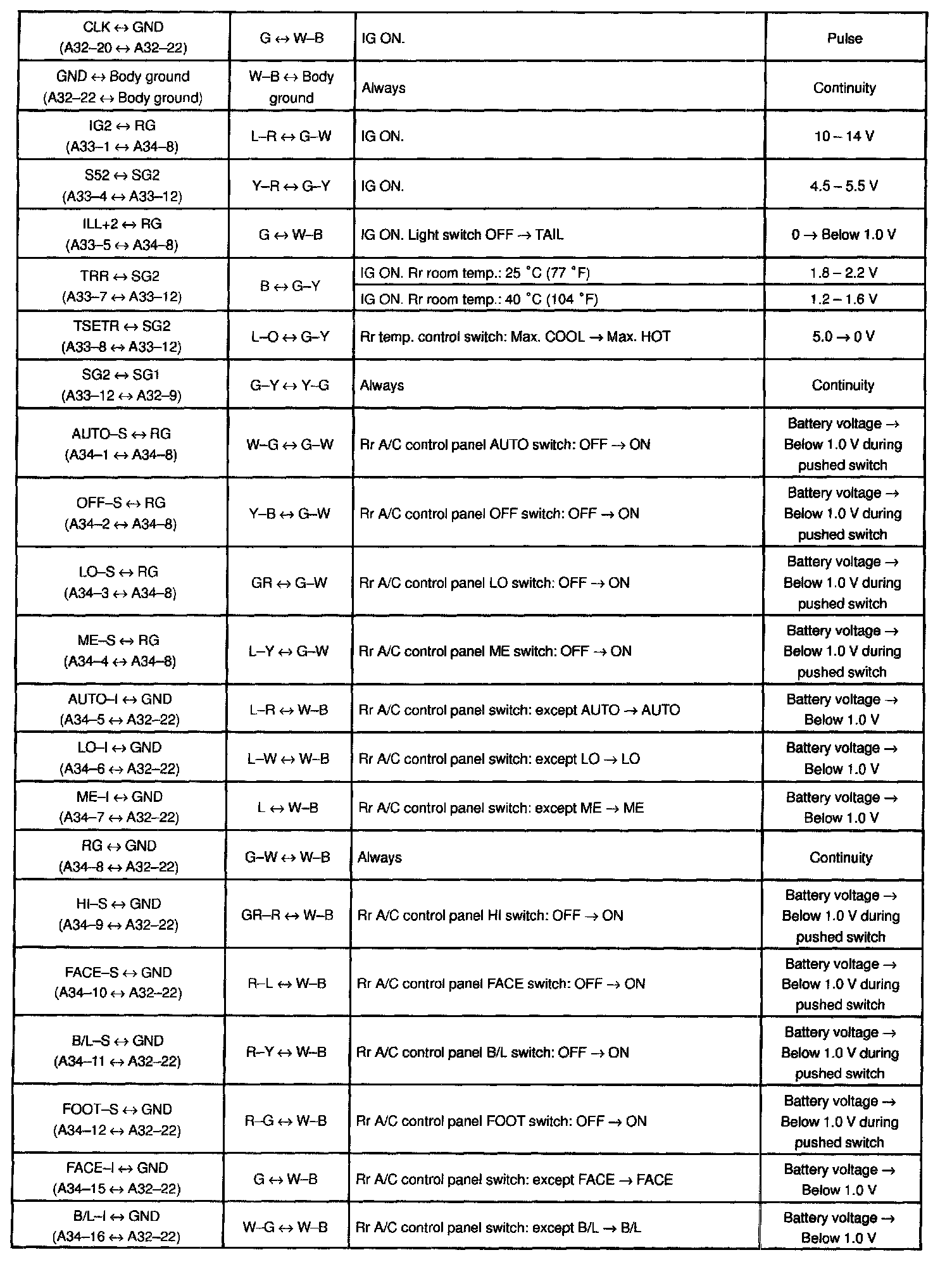

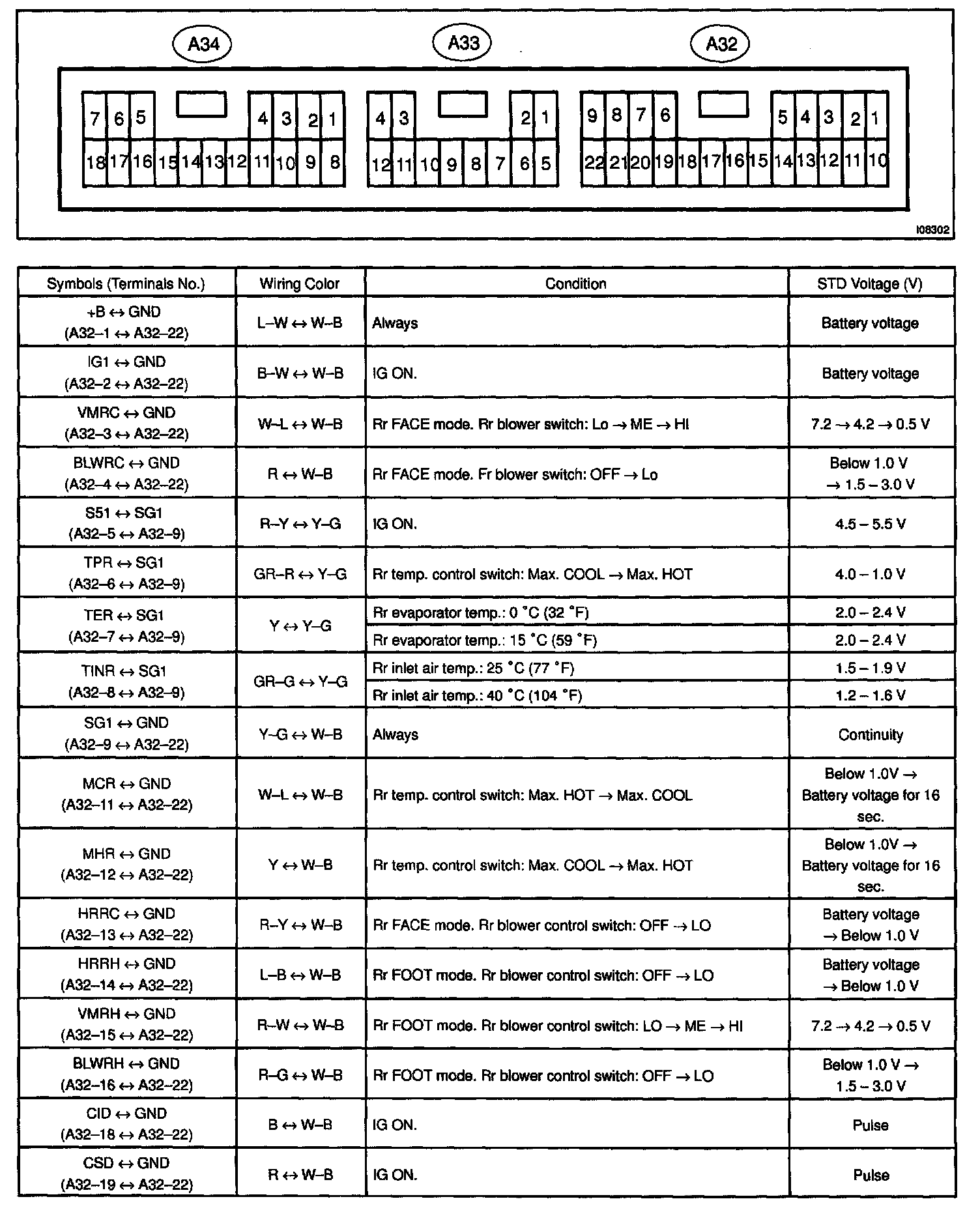

Terminals Of ECU/ Pinouts - Rear A/C Amplifier Part 1:

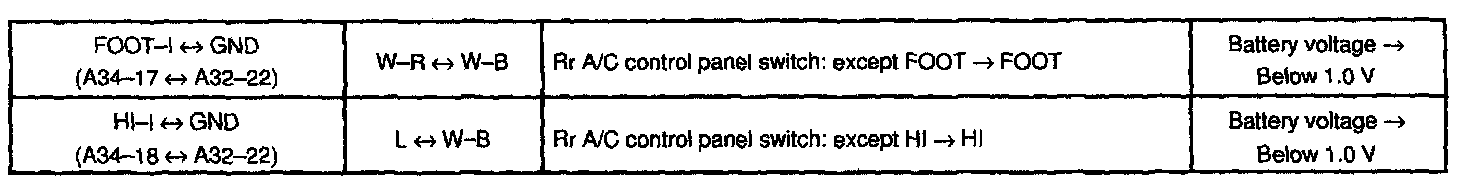

Terminals Of ECU/ Pinouts - Rear A/C Amplifier Part 2:



Terminals Of ECU/ Pinouts - Rear A/C Amplifier Part 3:
