Heating and Air Conditioning: Locations

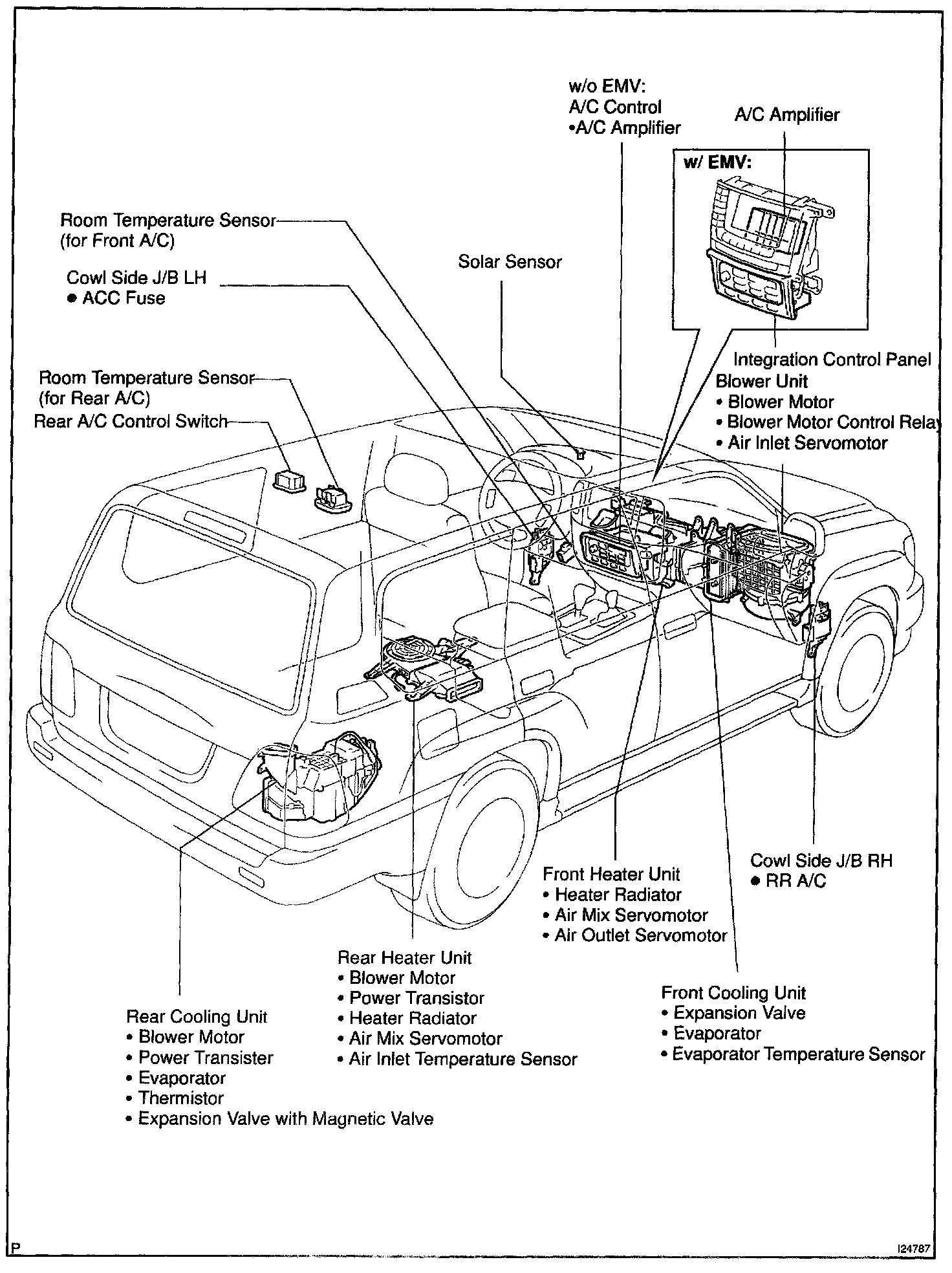

Air Conditioning System (Part 1):

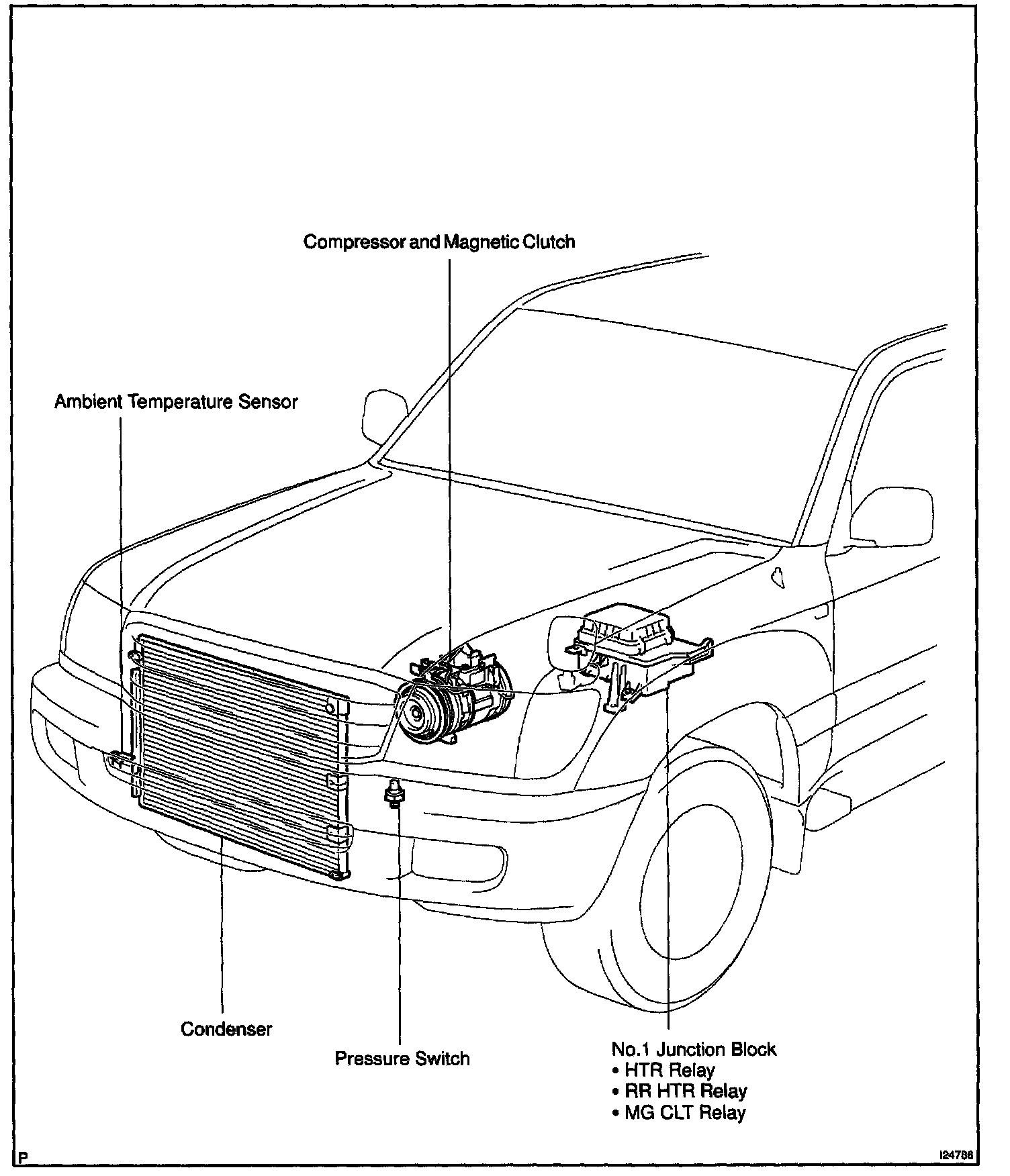

Air Conditioning System (Part 2):



Pa - Wo:
