Fuse Block: Locations

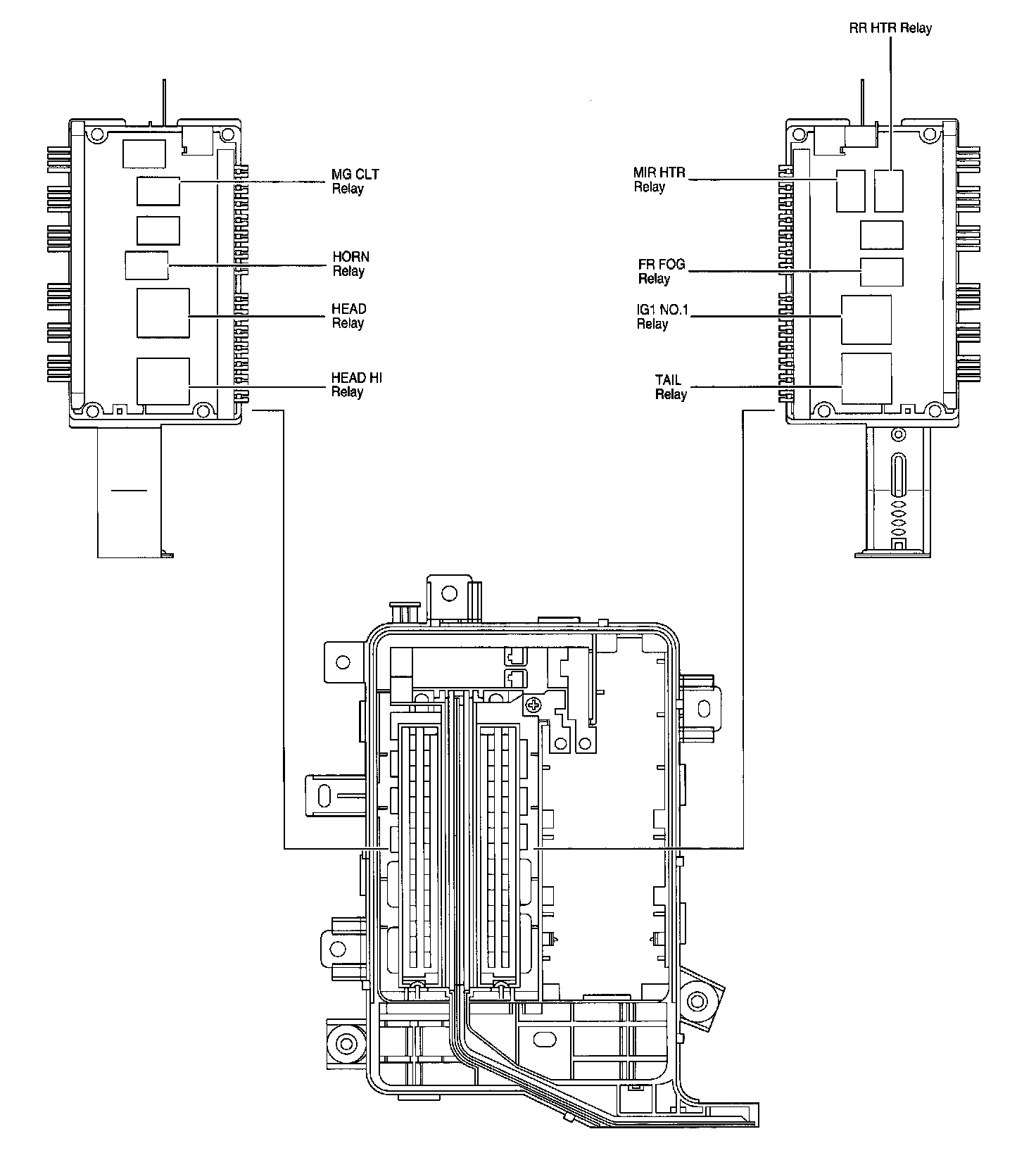

Engine Room JB/RB - Engine Compartment:

Engine Room JB/RB - Engine Compartment:

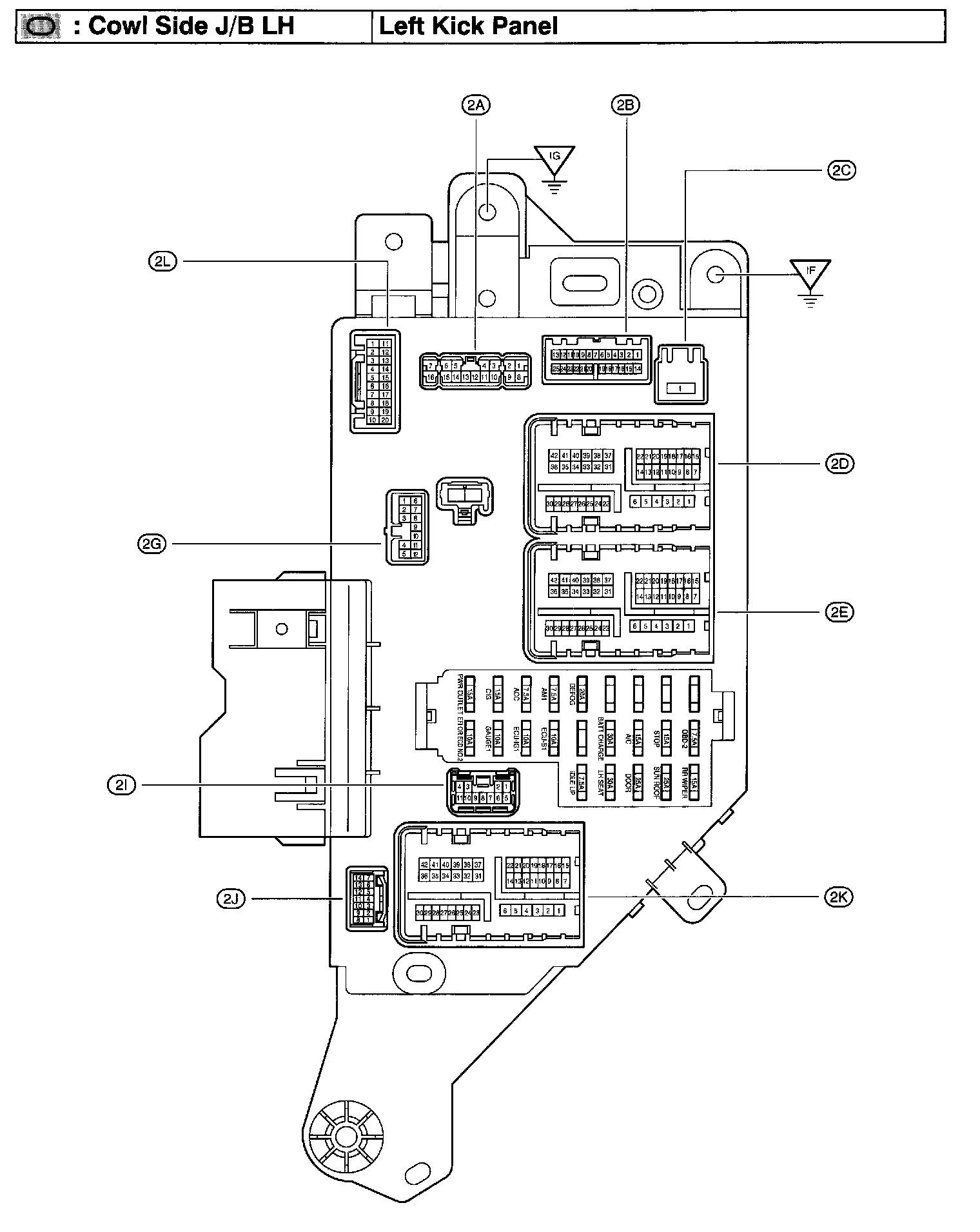

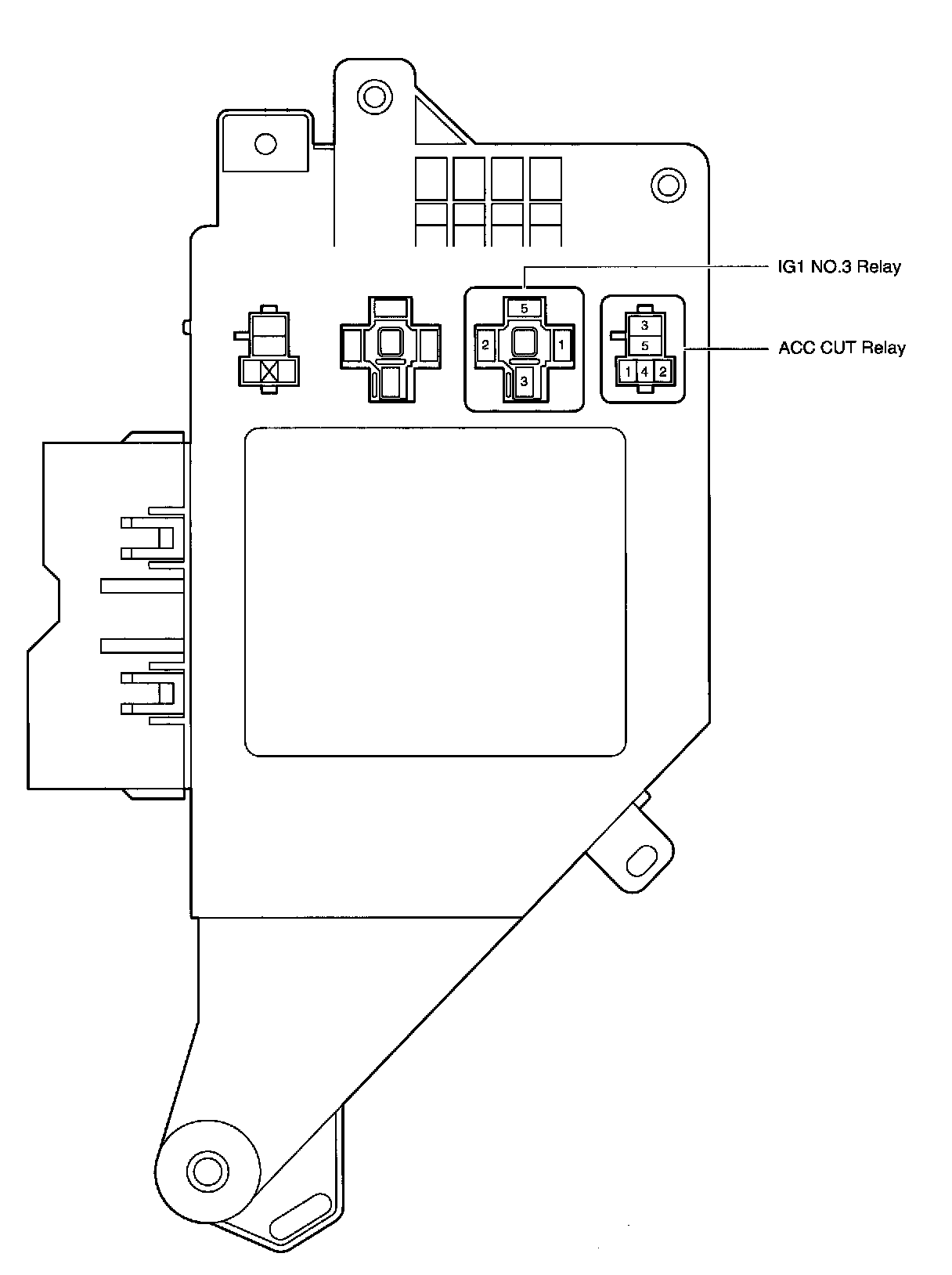

Cowl Side J/B LH - Left Kick Panel:

Cowl Side J/B LH - Left Kick Panel:

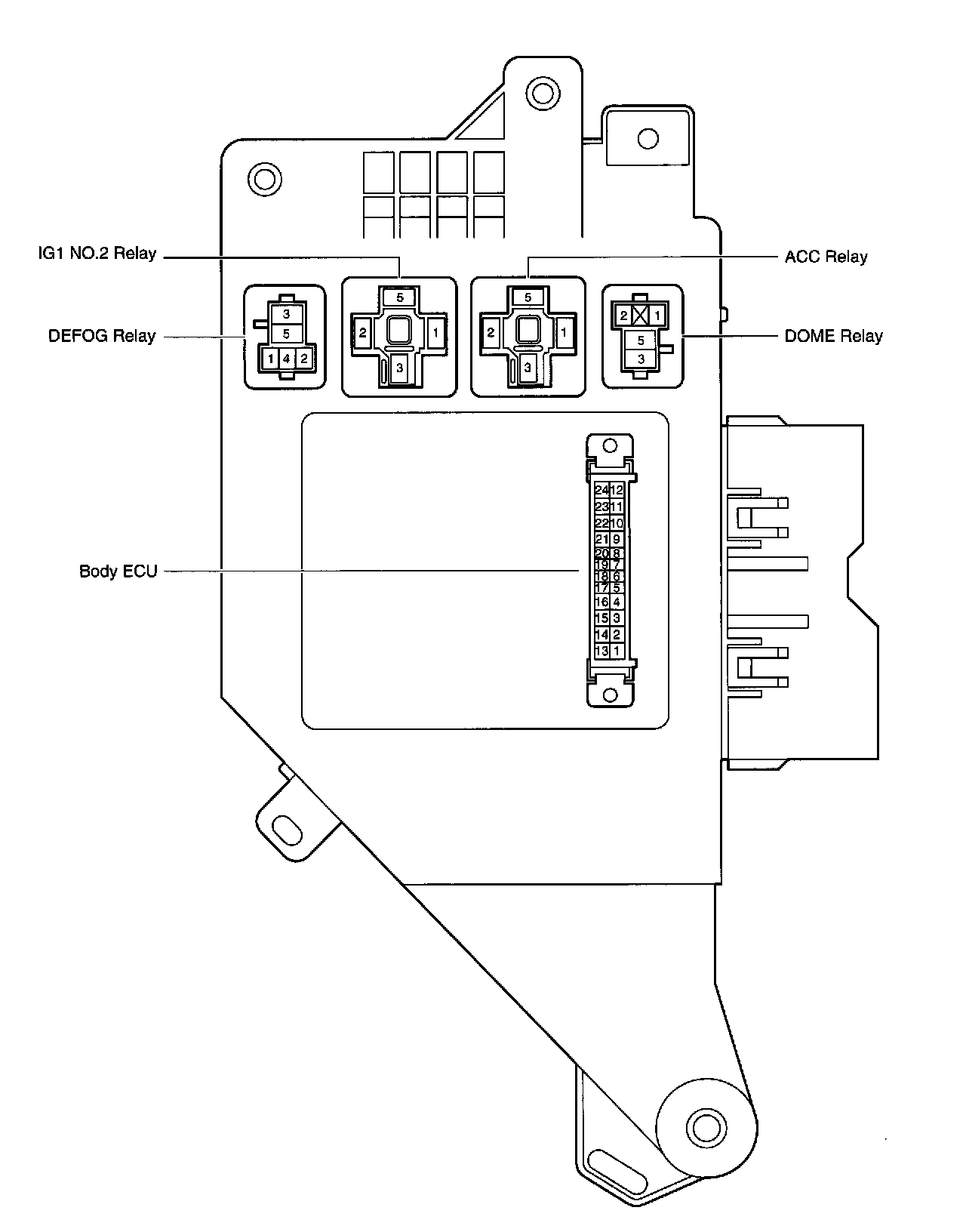

Cowl Side J/B RH - Right Kick Panel:

Cowl Side J/B RH - Right Kick Panel:

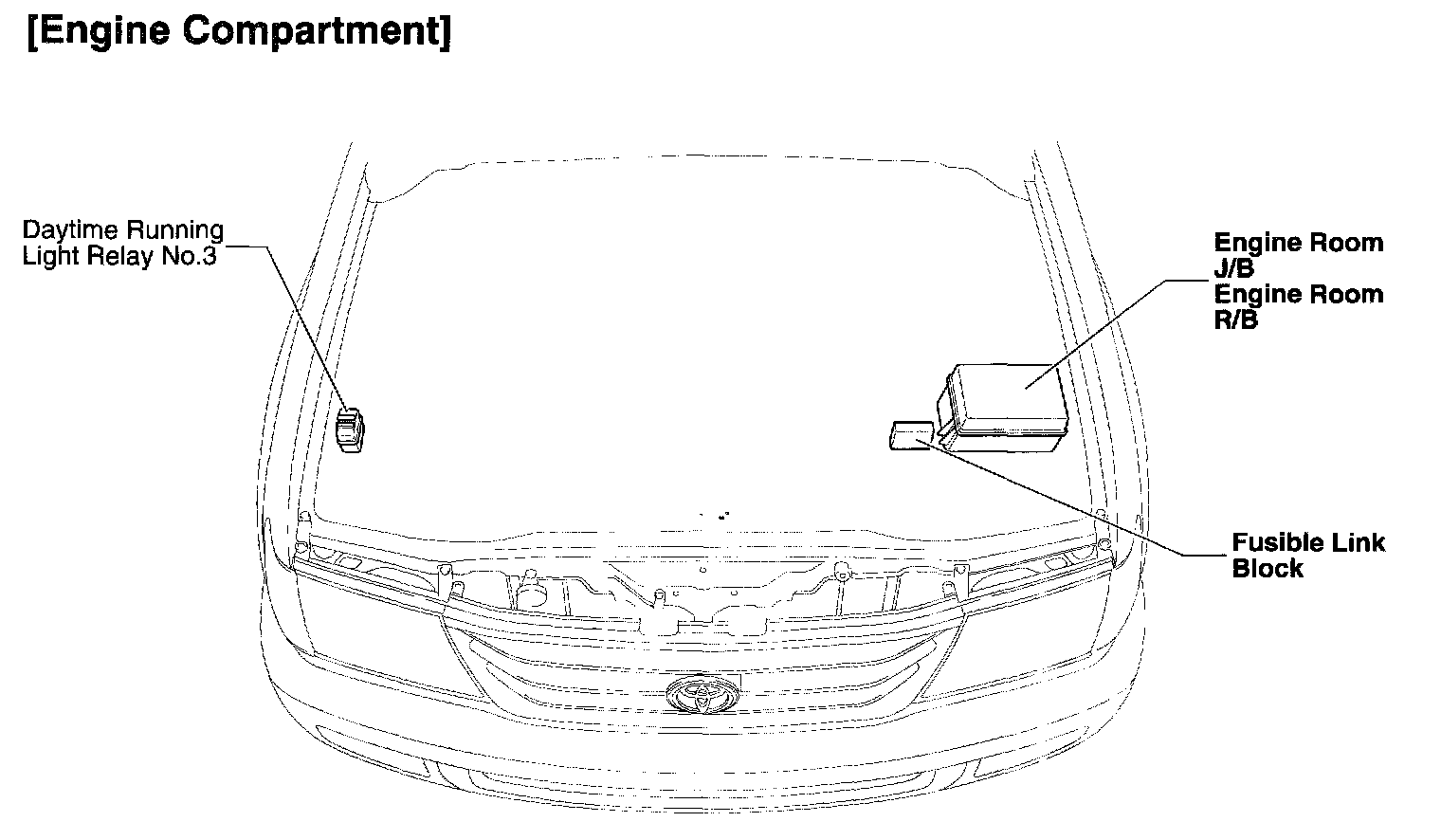

Engine Compartment:

Instrument Panel:

Body:
