Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2003
>>
Landcruiser V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Control Module
>>
Testing and Inspection
Control Module: Testing and Inspection

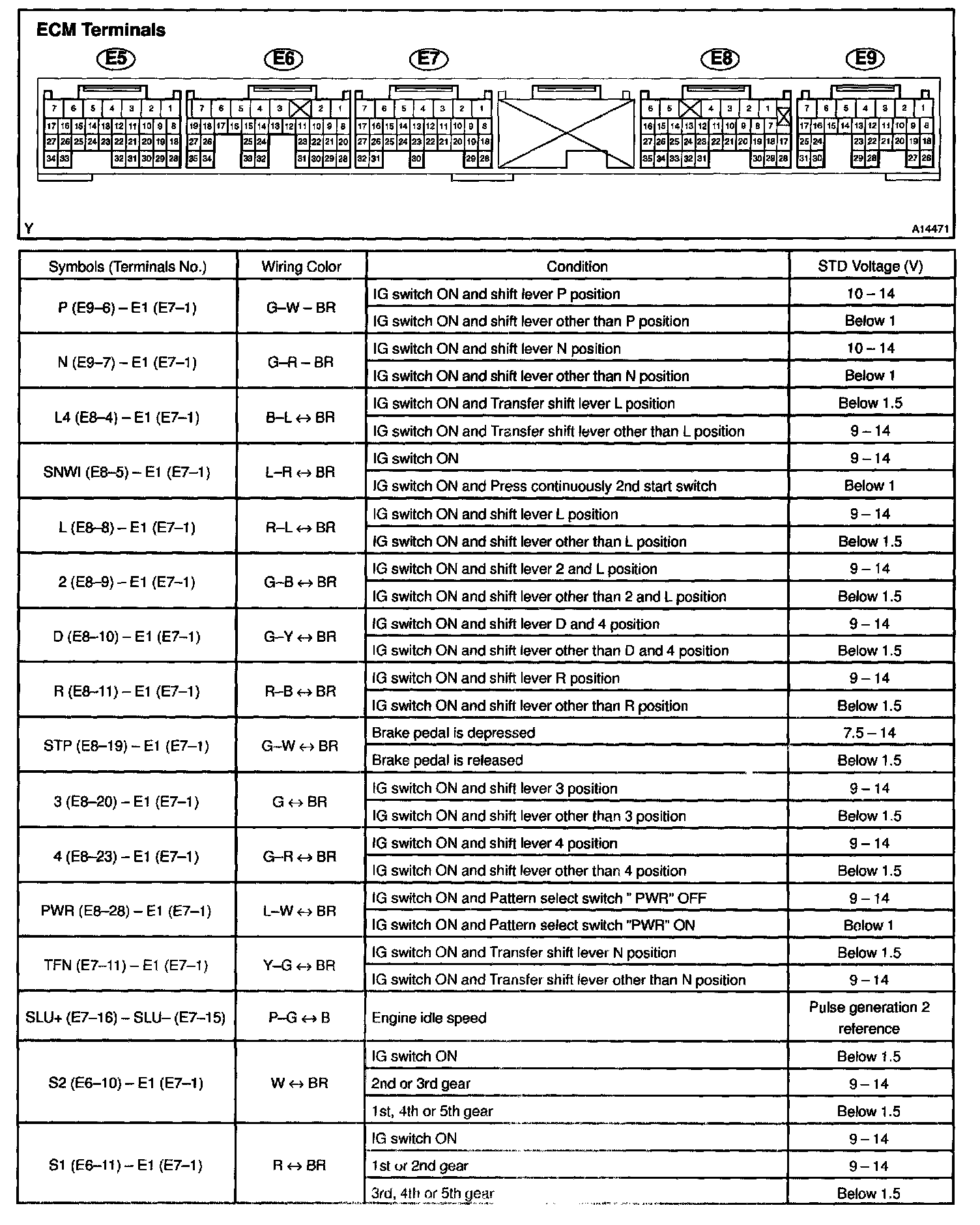

Terminals Of ECM/Pinouts Part 1:

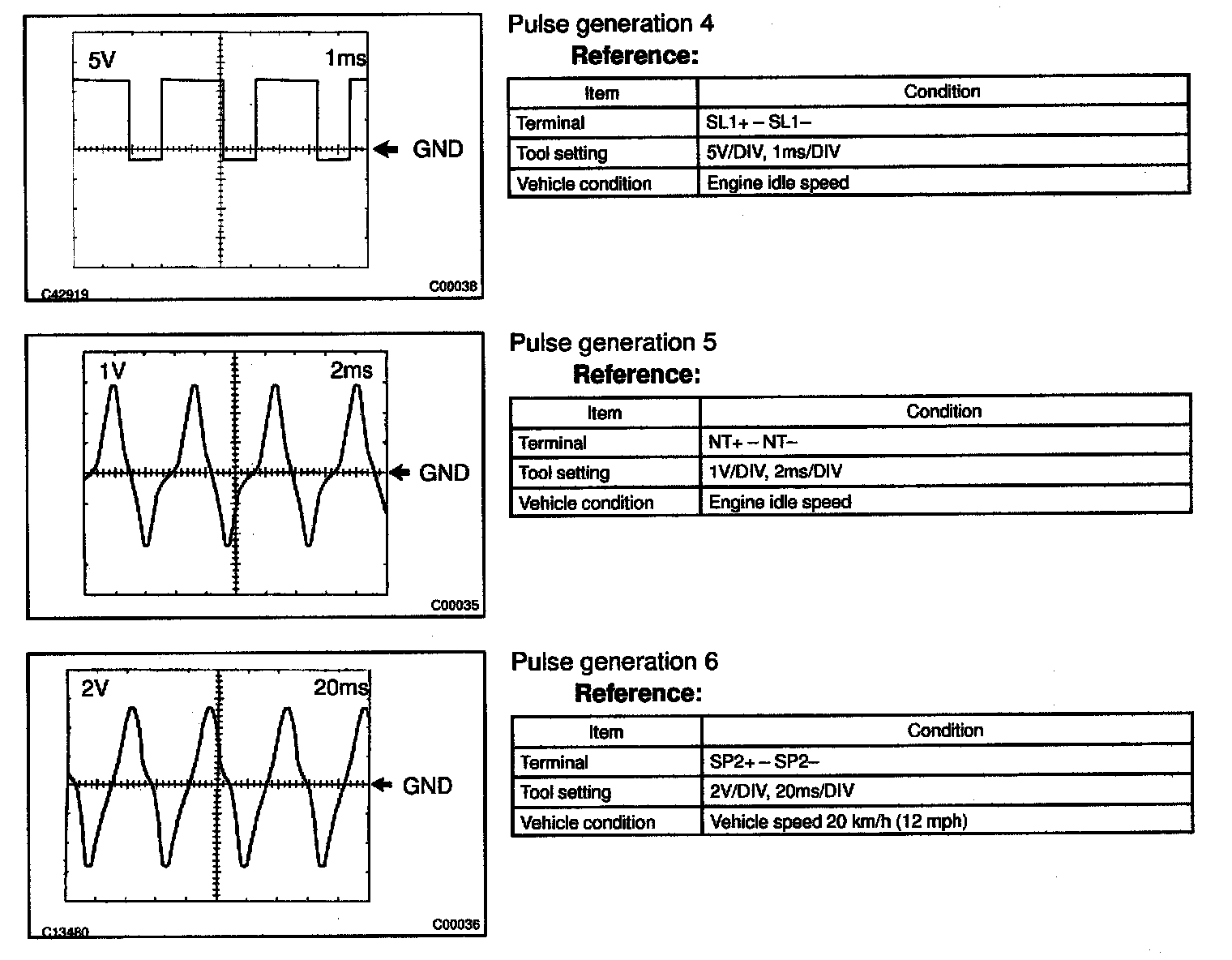

Terminals Of ECM/ Pinouts Part 2:

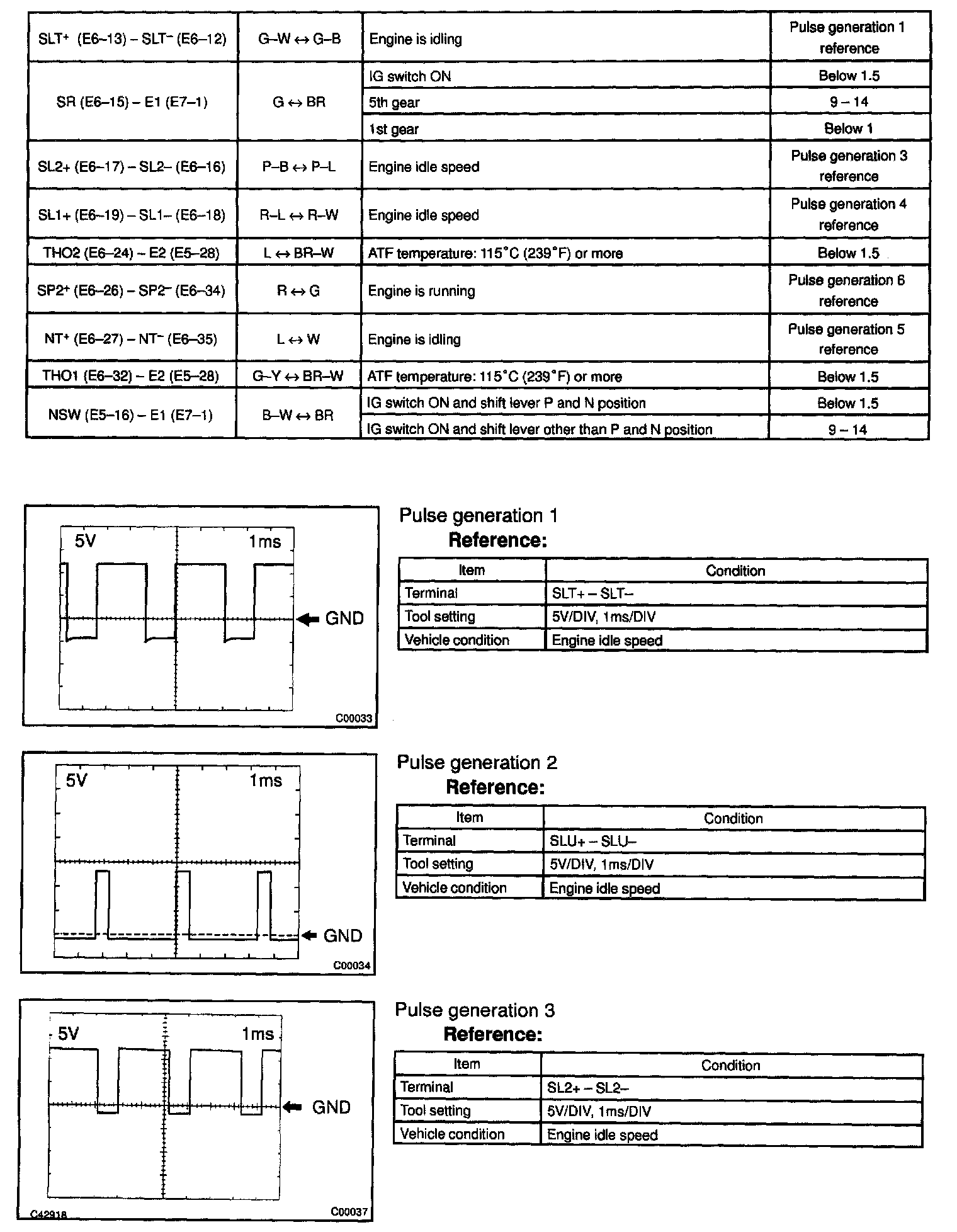

Terminals Of ECM/ Pinouts Part 3:
