Check Sequential Transmission Fluid Level

CHECK SEQUENTIAL TRANSMISSION FLUID LEVEL

HINT: Check the fluid level with all the sequential manual transmission system being connected and no pressure inside the accumulator.

a. Park the vehicle on a level surface and set the parking brake.
b. Do the operation of reducing accumulator pressure.
c. Remove the air filter.

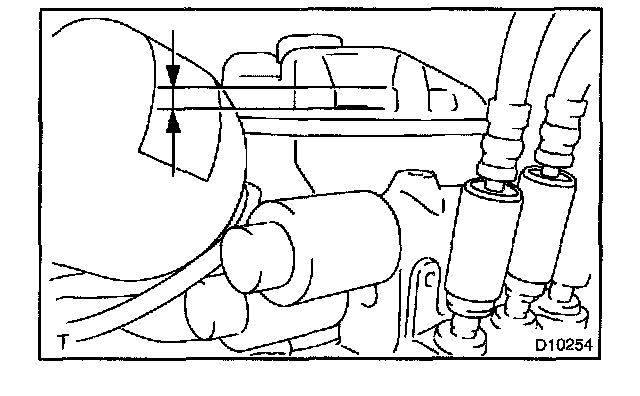

d. Check the fluid level from the level check window of the reservoir tank.

HINT:
- If the amount of the fluid is less than the specified range, check for fluid leak and add fresh fluid as necessary.
- If leaks are found, it is necessary to replace the O-rings, gaskets, oil seals, plugs or other parts.

Fluid type: Sequential M/T Fluid

NOTE: Do not overfill.
