Engine Torque and Sequence

Part 1 Of 2:

Part 2 Of 2:

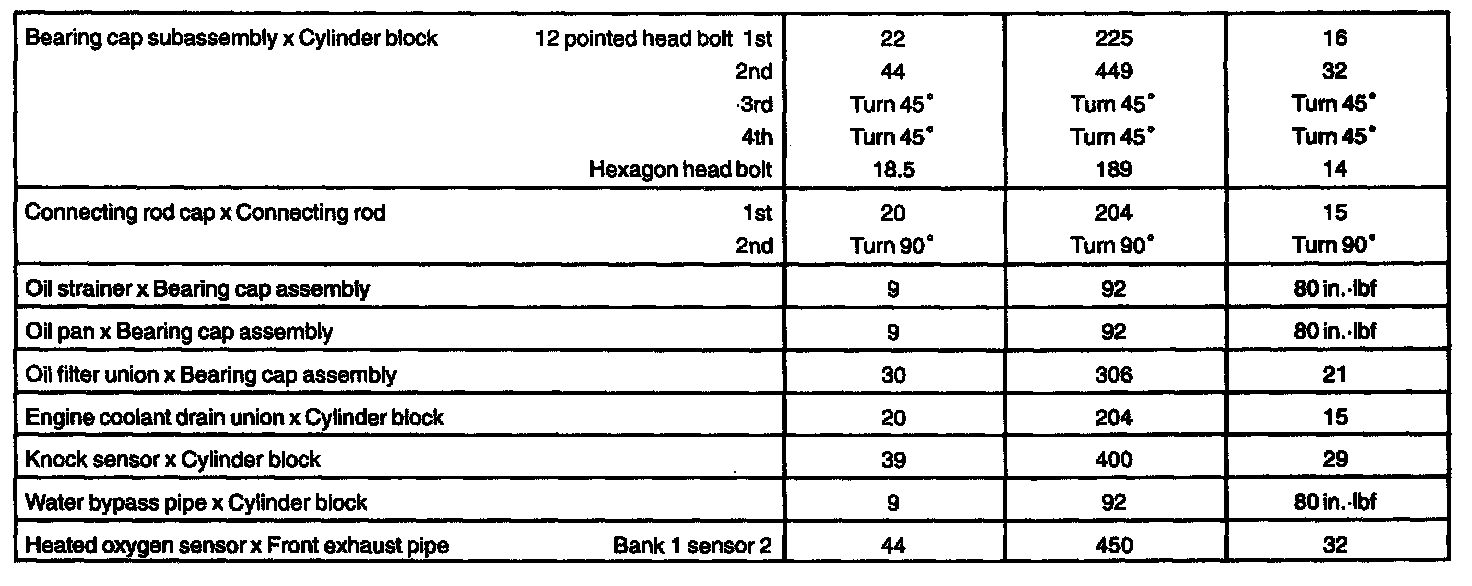

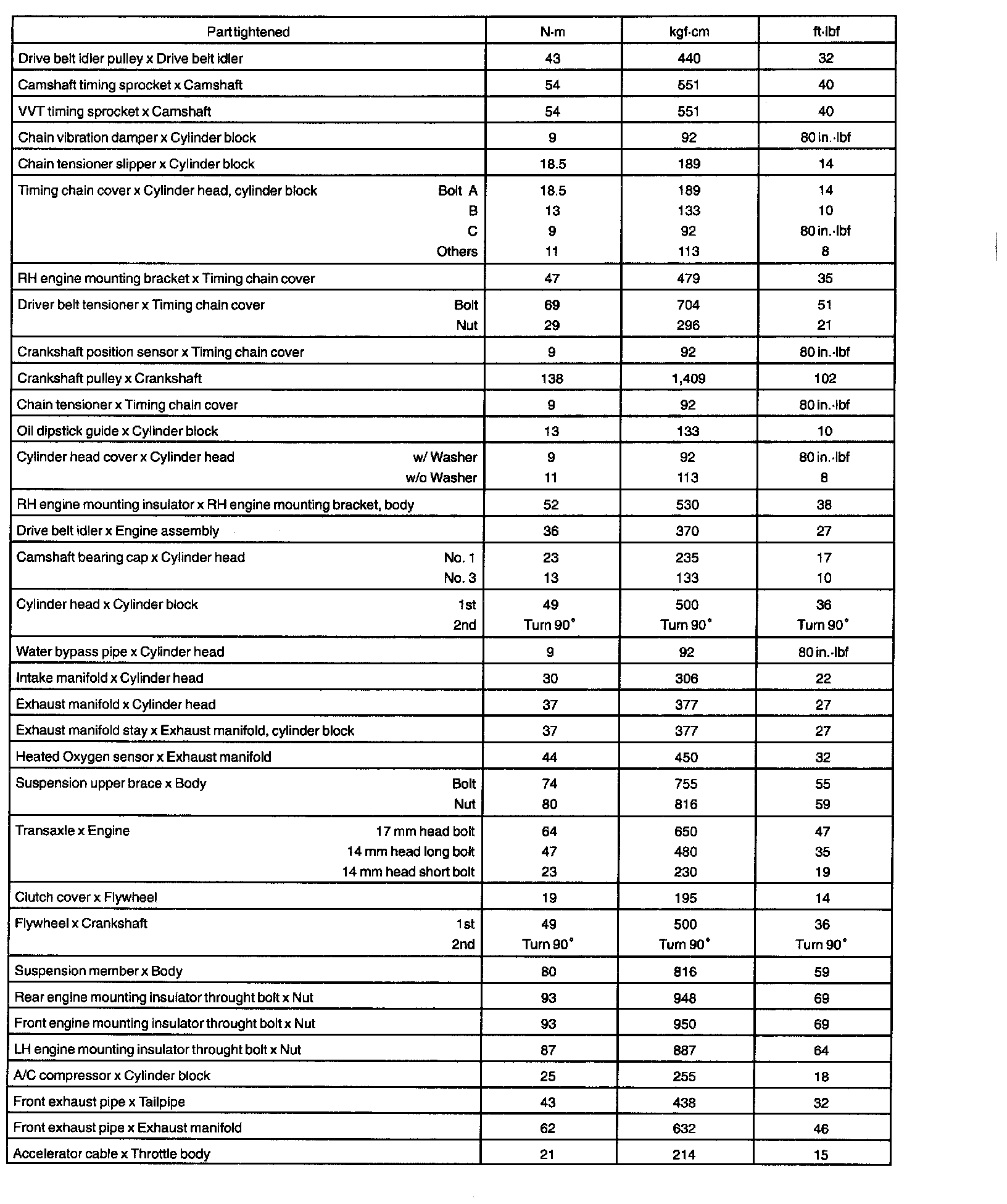

TORQUE SPECIFICATION


CYLINDER HEAD





Torque 49 Nm (500 kgf-cm, 36 ft. lbs.)Initial +90


INTAKE MANIFOLD
Torque 30 Nm (306 kgf-cm, 22 ft. lbs.)


CAMSHAFT BEARING CAP





Torque 22 Nm (225 kgf-cm, 16 ft. lbs.)


ROD BEARING CAP
Torque 20 Nm (204 kgf-cm, 15 ft. lbs.)


CRANKSHAFT PULLEY
Torque 138 Nm (1,409 kgf-cm, 102 ft. lbs.)


FLYWHEEL
1st 49 Nm (500 kgf-cm, 36 ft. lbs.)
2nd Turn 90° (Turn 90°, Turn 90°)


OIL PUMP
Torque 88 Nm (105 kgf-cm, 72 inch lbs.)


EXHAUST MANIFOLD
Torque 37 Nm (377 kgf-cm, 27 ft. lbs.)


WATER PUMP
Torque 11 Nm (113 kgf-cm, 8 ft. lbs.)
