Symptom Diagnostic Procedures

Only Wireless Control Function Is Inoperative (Prepare New or Normal Transmitter of the Same Type Vehicle)

CIRCUIT DESCRIPTION

The door control receiver receives a signal from the transmitter and send it to the integration relay by line.

The integration relay sends a door LOCK/UNLOCK signal to each door lock actuator to control it.

Wiring Diagram:

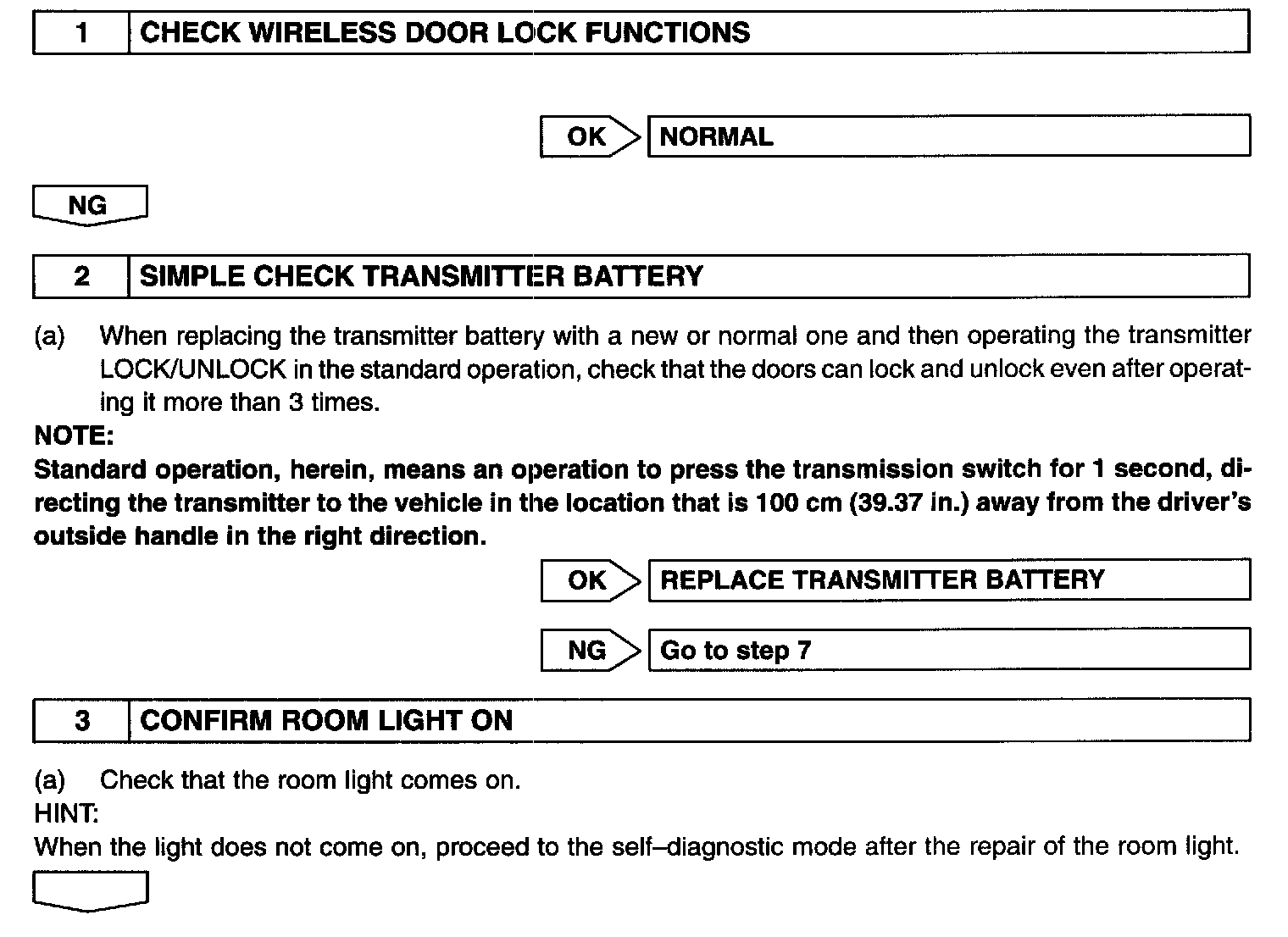

Step 1 - 3:

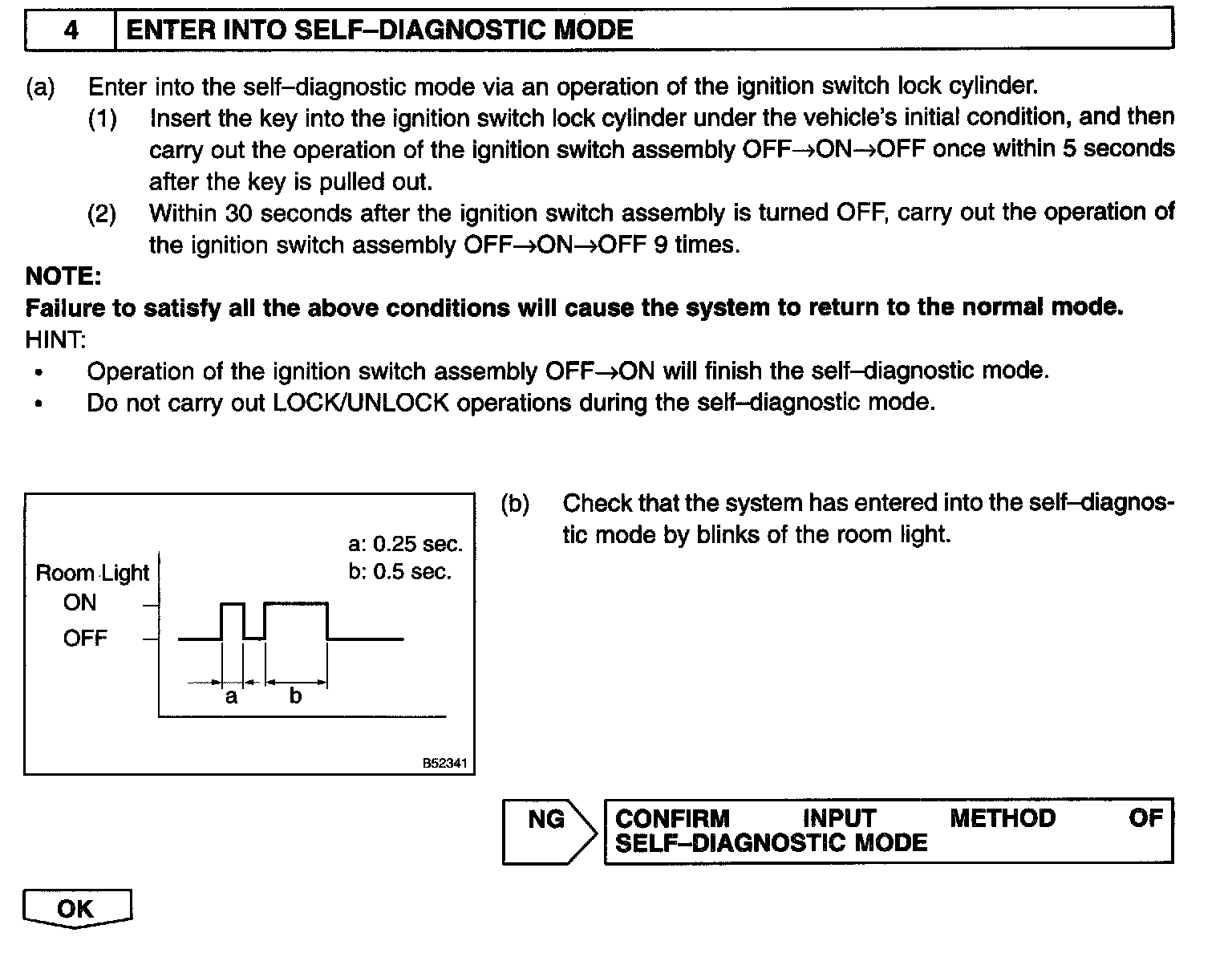

Step 4:

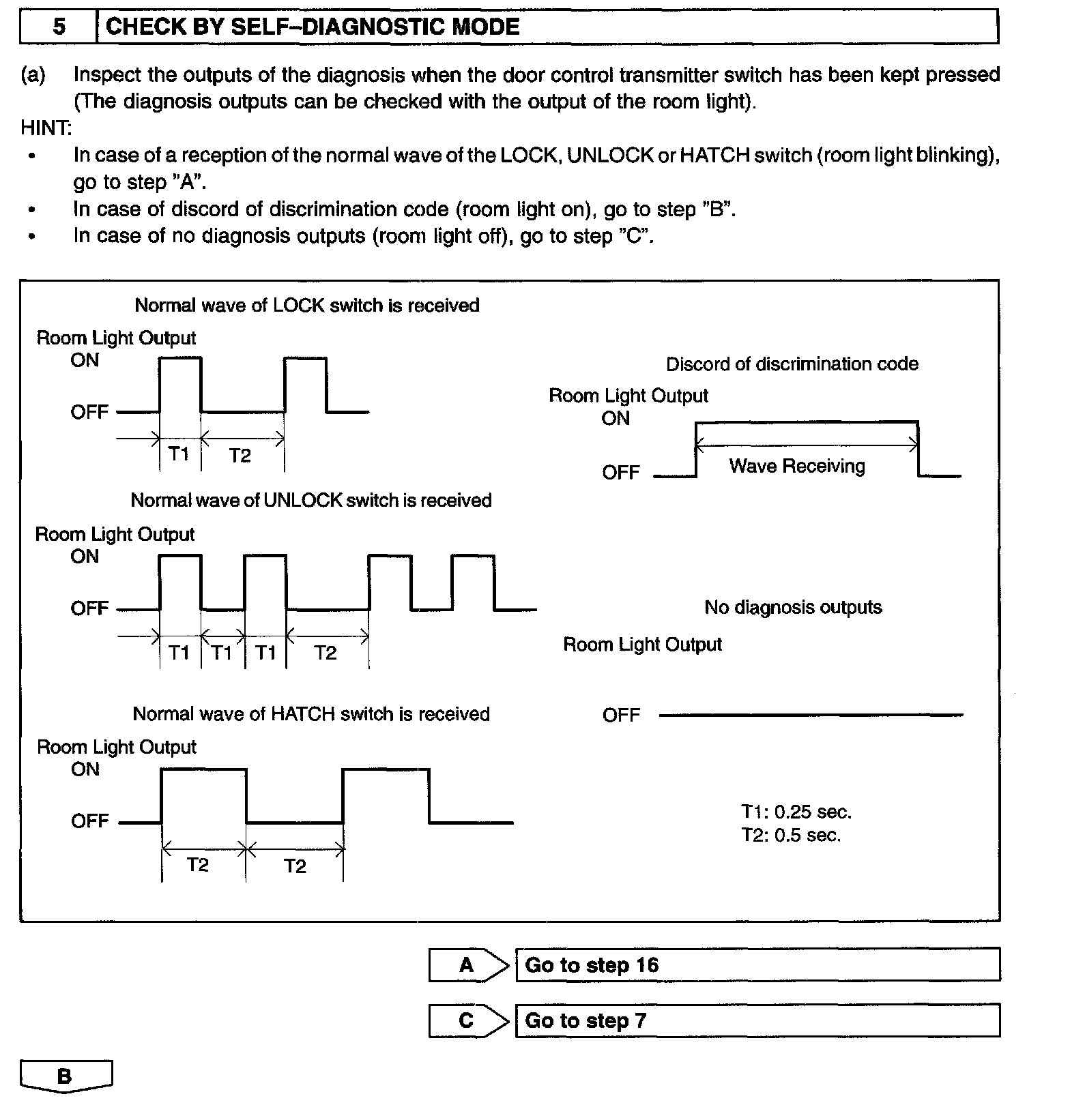

Step 5:

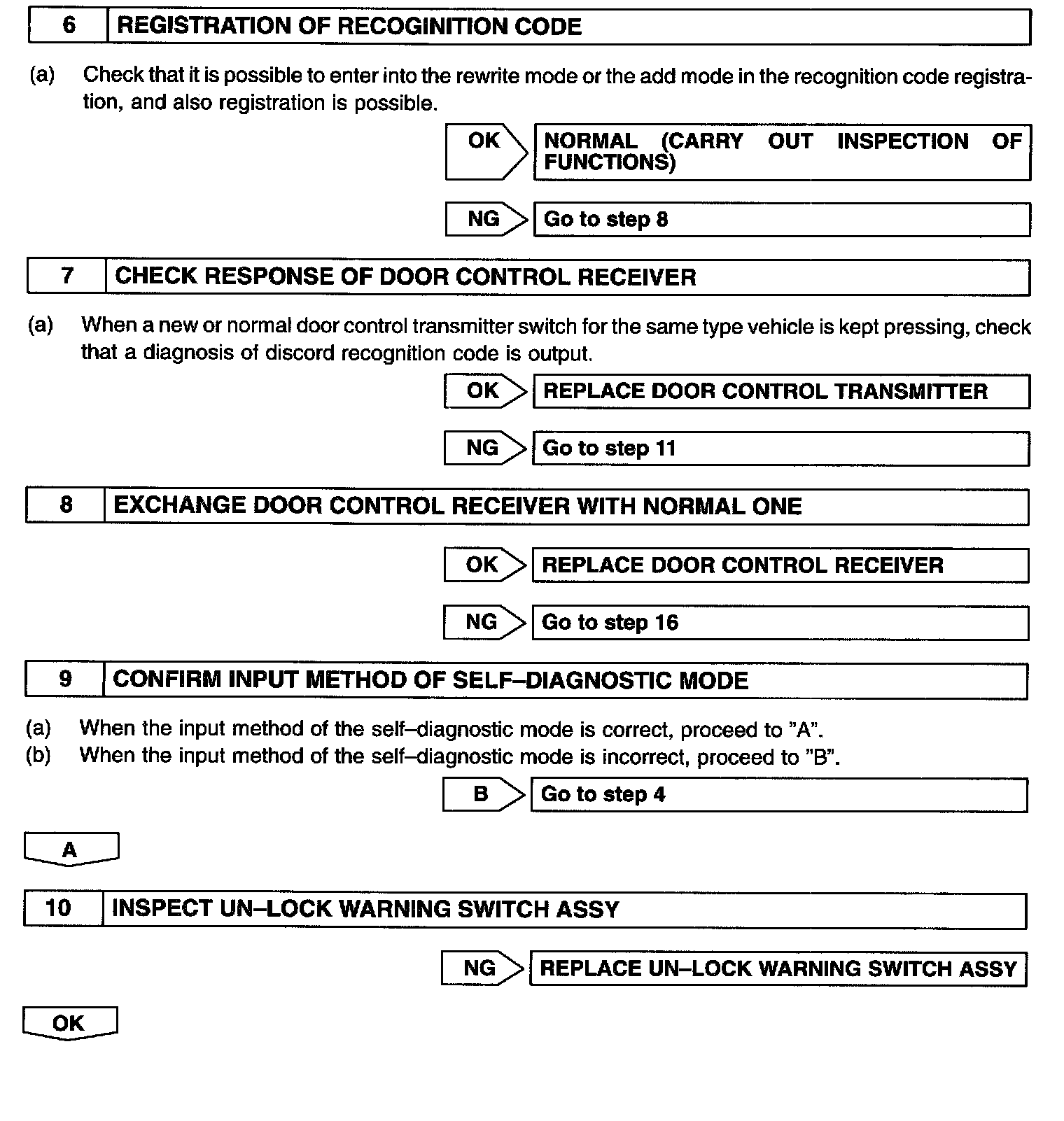

Step 6 - 10:

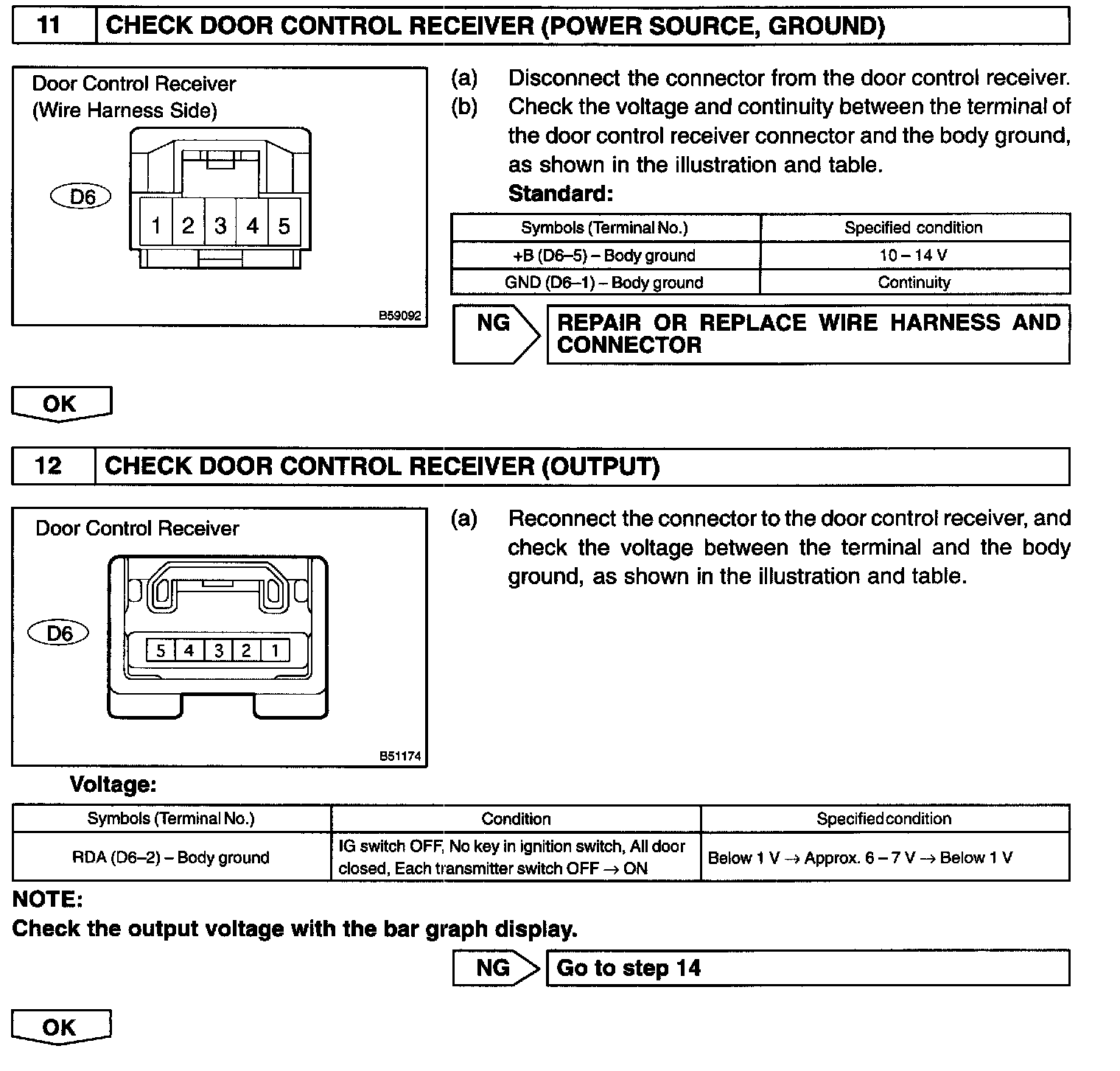

Step 11 - 12:

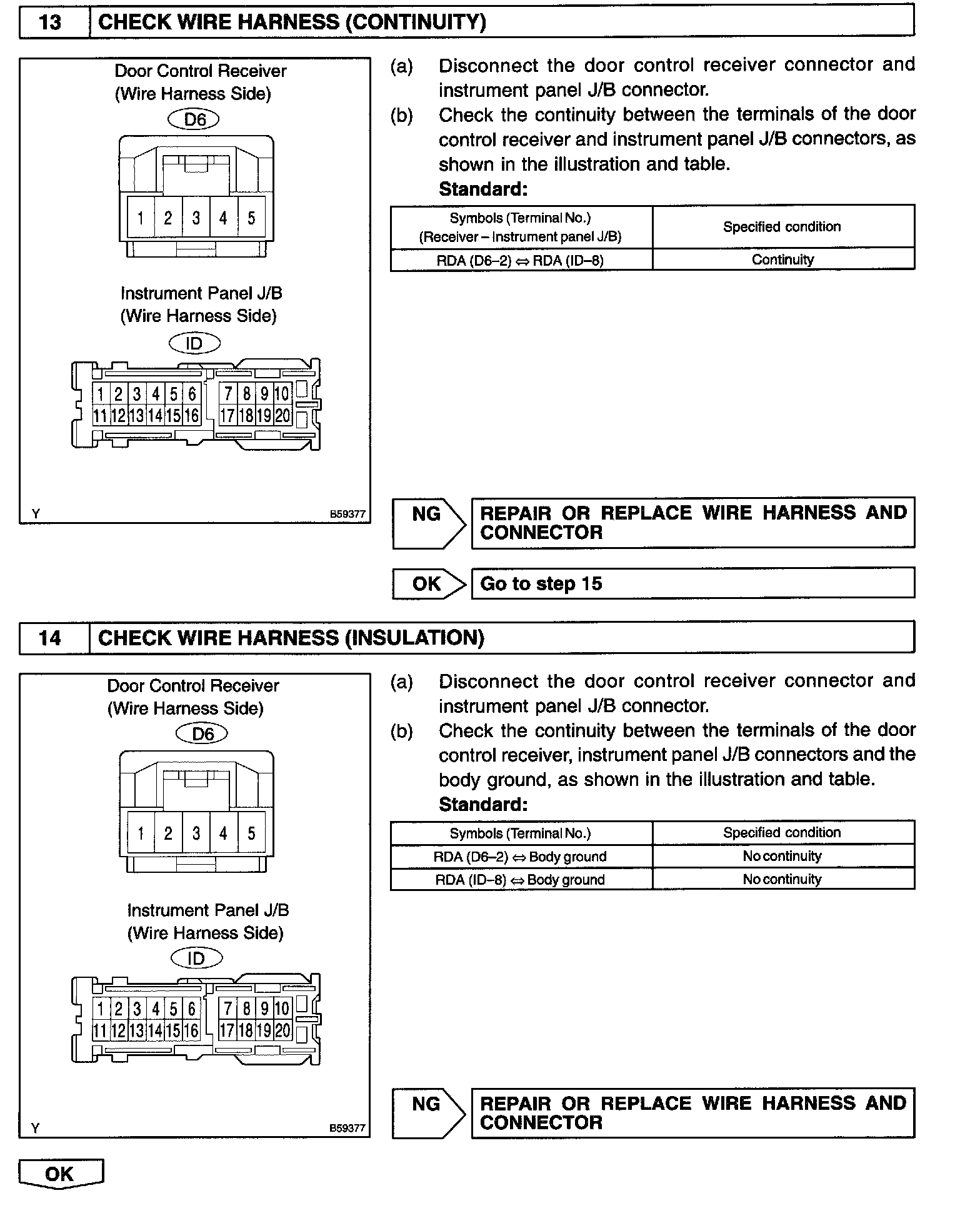

Step 13 - 14:

Step 15 - 16:

INSPECTION PROCEDURE

HINT: The switch described in this text is a switch for transmission, which is built-in the door control transmitter.
