Clutch Switch Circuit
CIRCUIT DESCRIPTIONWhen the clutch pedal is depressed, the
clutch switch sends a signal to the cruise control ECU assy. When the signal is input to the cruise control ECU assy during
cruise control driving, the cruise control ECU assy cancels the cruise control.

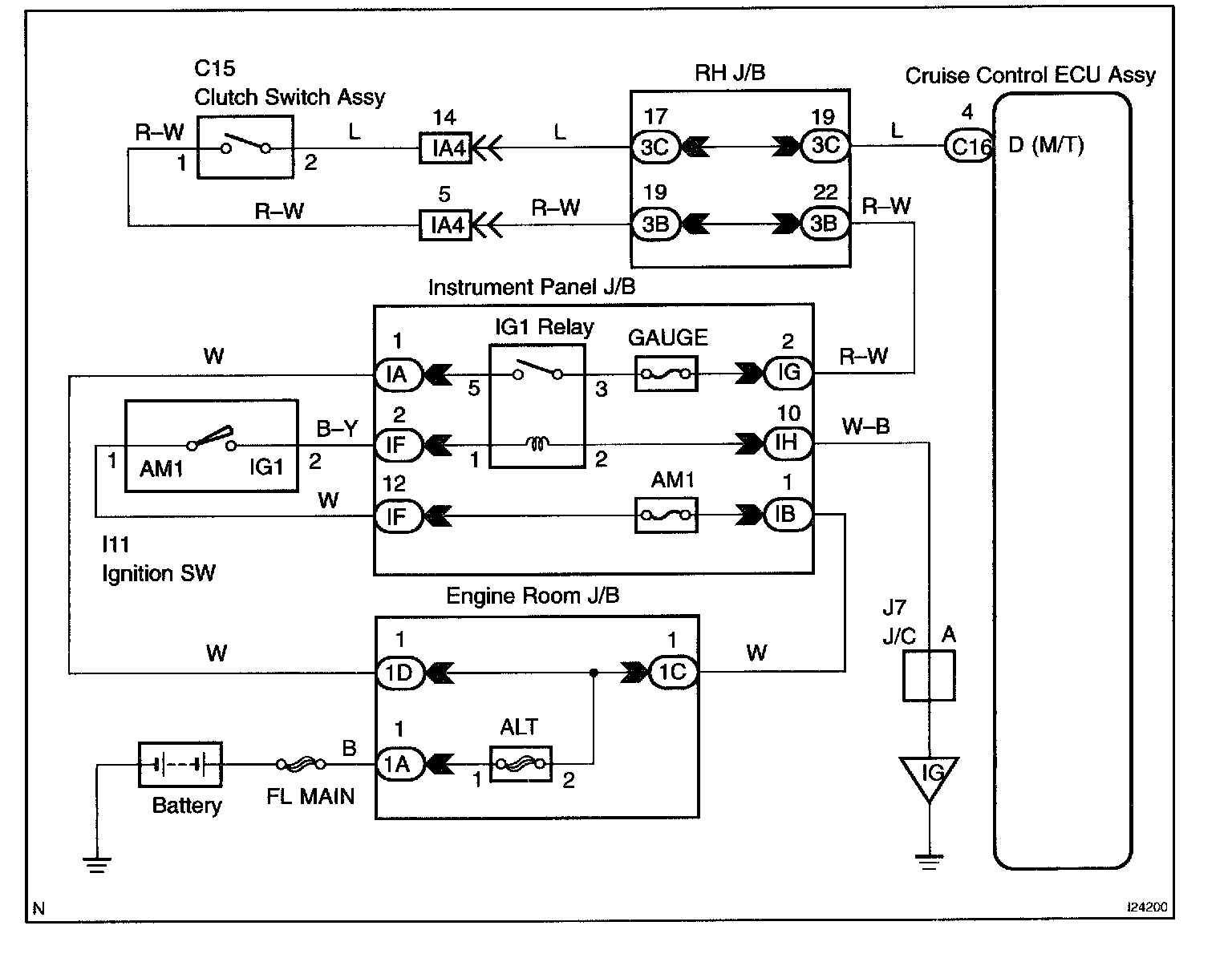

Wiring Diagram:

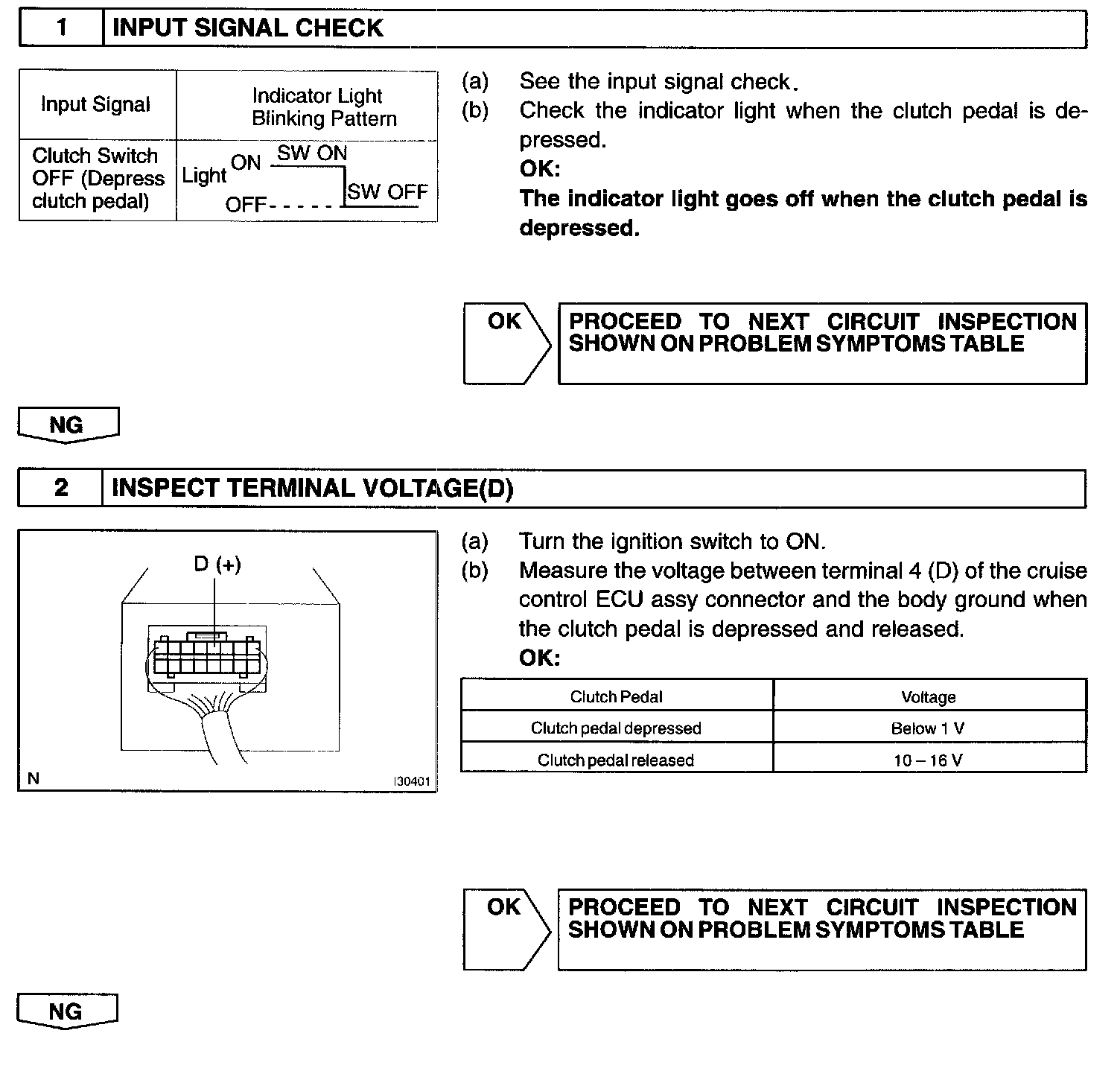

Step 1 - 2:

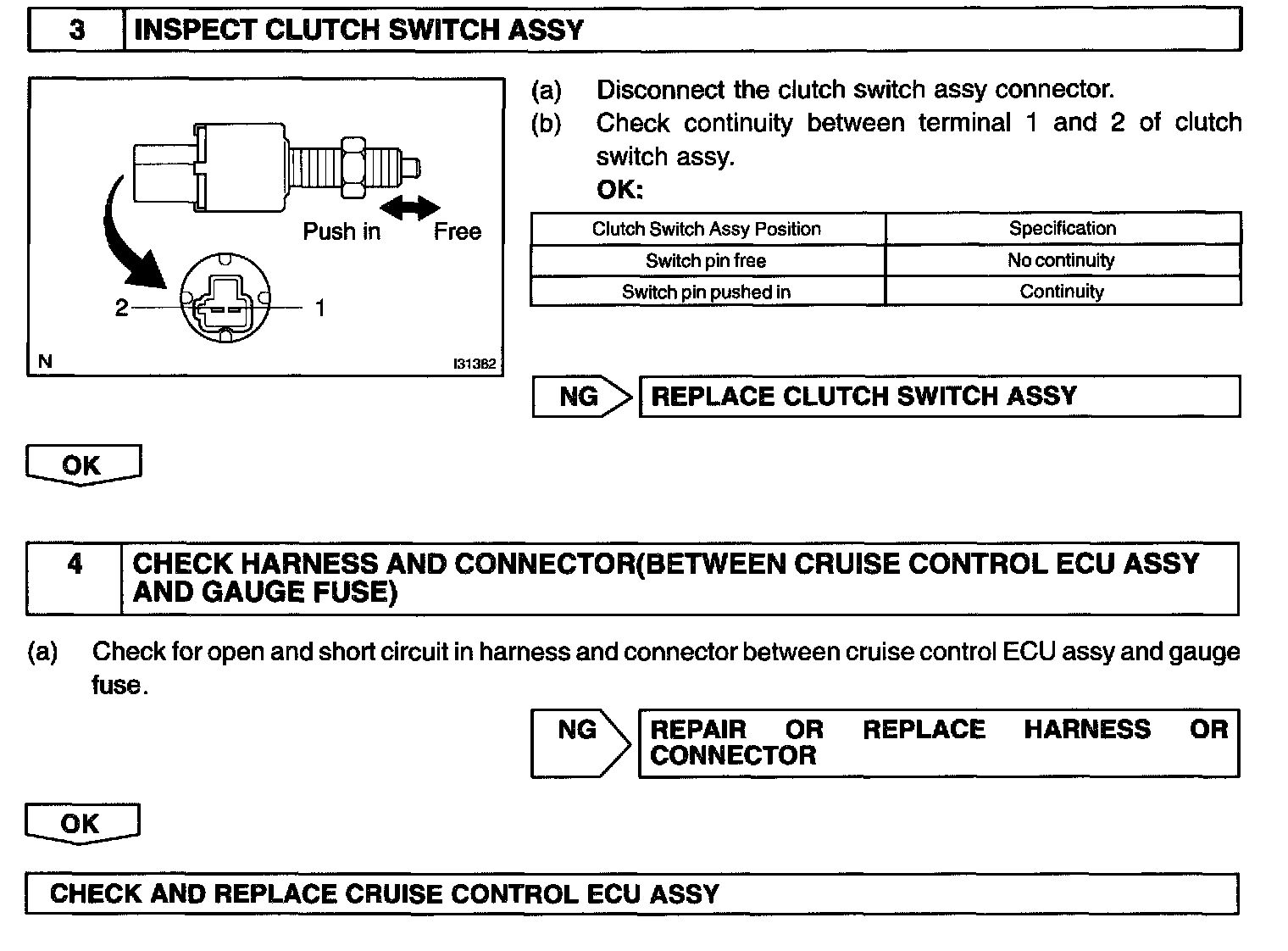

Step 3 - 4:
INSPECTION PROCEDURE
